JZS171-AEAXH (2001)

Toyota Crown/Crown Majesta

Production Aug 2001 - Dec 2003
Engine 1JZFSE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0108- )1JZFSE

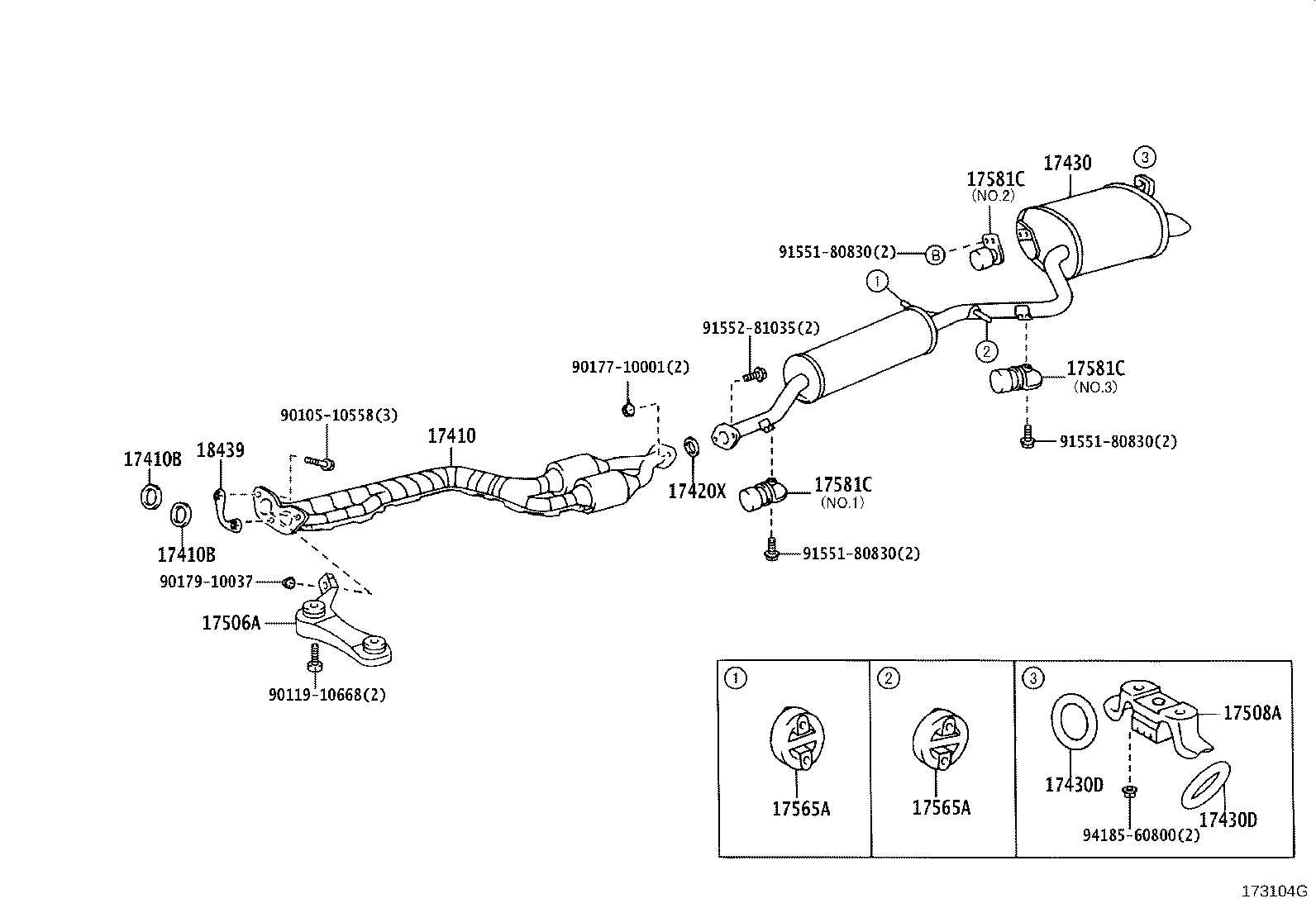

Click highlighted areas on diagram

diagram 17410 17410B 17410B 17420X 17430 17430D 17430D 17506A 17508A 17565A 17565A 17581C 17581C 17581C 18439 9010510558 9011910668 9017710001 9017910037 9155180830 9155180830 9155180830 9155281035 9418560800
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-46611

1JZFSE..JZS171

 1
17410B - GASKET, EXHAUST PIPE
90917-06046

1GFE,1JZFSE,1JZGE,2JZ#..GS171,JKS175,JZS17#

 2
17410B - GASKET, EXHAUST PIPE
90917-06046

1GFE,1JZFSE,1JZGE,2JZ#..GS171,JKS175,JZS17#

 2
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06073

1GFE,1JZ#,2JZ#..GS171,JZS171,173,175,179

 1
90917-06076

1JZFSE..JZS171

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-46720

1JZFSE..JZS171

 1
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
90301-36001

1GFE,1JZ#,2JZ#..GS171,JZS171,173,175,179

 2
90301-36001

1GFE,1JZ#,2JZ#..GS171,JKS175,JZS171,173,175,179

 2
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
90301-36001

1GFE,1JZ#,2JZ#..GS171,JZS171,173,175,179

 2
90301-36001

1GFE,1JZ#,2JZ#..GS171,JKS175,JZS171,173,175,179

 2
17506A - BRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT
17506-46210

1JZFSE,2JZFSE..JKS175,JZS171,175,177

 1
17508A - BRACKET SUB-ASSY, EXHAUST PIPE NO.3 SUPPORT
17508-50010

1GFE,1JZ#,2JZ#..GS171,JZS171,173,175,179

 1
17508-46060

1GFE,1JZ#,2JZ#..GS171,JKS175,JZS171,173,175,179

 1
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-11160

1GFE,1JZ#,2JZ#..GS171,JZS171,173,175,179

 2
17565-11160

1GFE,1JZ#,2JZ#..GS171,JKS175,JZS171,173,175,179

 2
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-11160

1GFE,1JZ#,2JZ#..GS171,JZS171,173,175,179

 2
17565-11160

1GFE,1JZ#,2JZ#..GS171,JKS175,JZS171,173,175,179

 2
17581C - DAMPER, EXHAUST PIPE, NO.3
17581-46070

1JZFSE..JZS171

NO.1

 1
17581-46140

1JZFSE..JZS171

NO.2

 1
17581-62010

1JZFSE..JZS171

NO.3

 1
17581C - DAMPER, EXHAUST PIPE, NO.3
17581-46070

1JZFSE..JZS171

NO.1

 1
17581-46140

1JZFSE..JZS171

NO.2

 1
17581-62010

1JZFSE..JZS171

NO.3

 1
17581C - DAMPER, EXHAUST PIPE, NO.3
17581-46070

1JZFSE..JZS171

NO.1

 1
17581-46140

1JZFSE..JZS171

NO.2

 1
17581-62010

1JZFSE..JZS171

NO.3

 1
18439 - BRACKET, CONVERTOR PROTECTOR, REAR
18495-46020

1GFE,1JZFSE,1JZGE,2JZ#..GS171,JKS175,JZS17#

 1
Common parts
90105-10558
90119-10668
90177-10001
90179-10037
91551-80830
91552-81035
94185-60800
