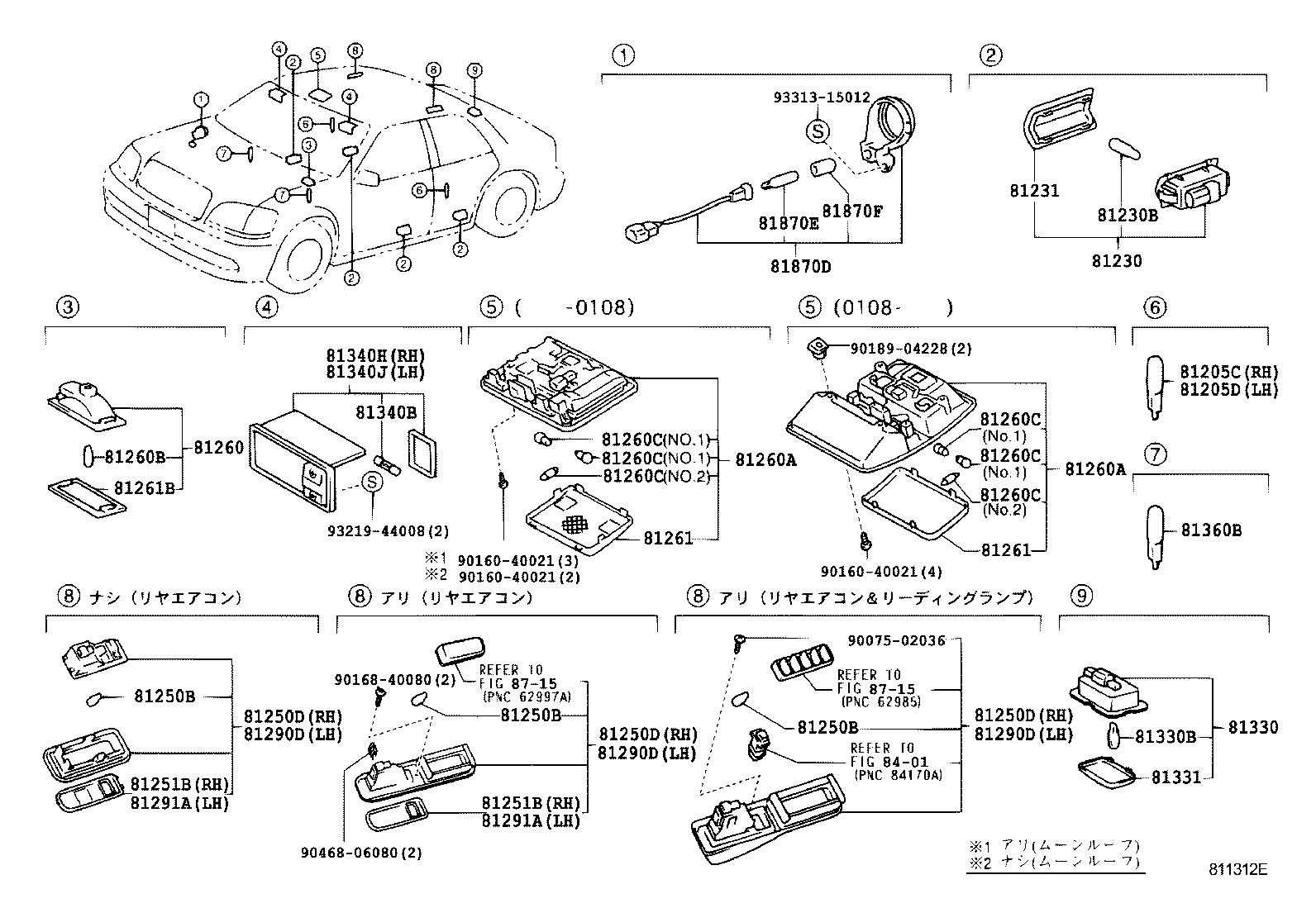

JZS171-AEAXF (1999)
Toyota Crown/Crown Majesta
(9909- )SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81205C - BULB, ASH RECEPTACLE LAMP, REAR RH | ||||
| 90981-11041 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 81205D - BULB, ASH RECEPTACLE LAMP, REAR LH | ||||
| 90981-11041 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 81230 - LAMP ASSY, COURTESY | ||||
| 81230-30160 |
GS171,JZS17#,UZS17# |
4 | ||
| 81230B - BULB(FOR COURTESY LAMP) | ||||
| 90981-11020 |
GS171,JZS17#,UZS17# 12V 3.8W |
4 | ||
| 81231 - LENS, COURTESY LAMP | ||||
| 81231-50050 |
GS171,JZS17#,UZS17# |
4 | ||
| 81250B - BULB, ROOM LAMP, NO.2 | ||||
| 90981-12020 |
JZS171,175,177,179,UZS17#..SED..(A,C,ROY,ROYG) 12V 8W |
2 | ||
| 99132-12050 |
GS171,JZS17#,UZS175..SED..(A,ATH,ATHG,ATHV,ROY,ROYEX) |
2 | ||
| 81250B - BULB, ROOM LAMP, NO.2 | ||||
| 90981-12020 |
JZS171,175,177,179,UZS17#..SED..(A,C,ROY,ROYG) 12V 8W |
2 | ||
| 99132-12050 |
GS171,JZS17#,UZS175..SED..(A,ATH,ATHG,ATHV,ROY,ROYEX) |
2 | ||
| 81250B - BULB, ROOM LAMP, NO.2 | ||||
| 90981-12020 |
JZS171,175,177,179,UZS17#..SED..(A,C,ROY,ROYG) 12V 8W |
2 | ||
| 99132-12050 |
GS171,JZS17#,UZS175..SED..(A,ATH,ATHG,ATHV,ROY,ROYEX) |
2 | ||
| 81250D - LAMP ASSY, REAR ROOM, RH | ||||
| 81250-30120B2 |
GS171,JZS17#,UZS175..SED..(A,ATH,ATHG,ATHV,ROY,ROYEX) ｱﾘ(ﾘﾔ ｴｱｺﾝ),MD.CHARCOAL,TRIM1# |
1 | ||
| 81250-30130A0 |
GS171,JZS17#,UZS175..A,ATH,ATHE,ATHG,ATHV,ROY,ROYEX IVORY,TRIM0# |
1 | ||
| 81250-30120A0 |
GS171,JZS17#,UZS175..SED..(A,ATH,ATHG,ATHV,ROY,ROYEX) ｱﾘ(ﾘﾔ ｴｱｺﾝ),IVORY,TRIM0# |
1 | ||
| 81250-30130B2 |
GS171,JZS17#,UZS175..A,ATH,ATHE,ATHG,ATHV,ROY,ROYEX MD.CHARCOAL,TRIM1# |
1 | ||
| 81250-30190A0 |
JZS171,175,177,179,UZS17#..SED..(A,C,ROY,ROYG) ｱﾘ(ﾘﾔ ｴｱｺﾝ & ﾘ-ﾃﾞｲﾝｸﾞﾗﾝﾌﾟ),IVORY,TRIM0# |
1 | ||
| 81250-30190B0 |
JZS171,175,177,179,UZS17#..SED..(A,C,ROY,ROYG) ｱﾘ(ﾘﾔ ｴｱｺﾝ & ﾘ-ﾃﾞｲﾝｸﾞﾗﾝﾌﾟ),MD.CHARCOAL,TRIM1# |
1 | ||
| 81250D - LAMP ASSY, REAR ROOM, RH | ||||
| 81250-30120B2 |
GS171,JZS17#,UZS175..SED..(A,ATH,ATHG,ATHV,ROY,ROYEX) ｱﾘ(ﾘﾔ ｴｱｺﾝ),MD.CHARCOAL,TRIM1# |
1 | ||
| 81250-30130A0 |
GS171,JZS17#,UZS175..A,ATH,ATHE,ATHG,ATHV,ROY,ROYEX IVORY,TRIM0# |
1 | ||
| 81250-30120A0 |
GS171,JZS17#,UZS175..SED..(A,ATH,ATHG,ATHV,ROY,ROYEX) ｱﾘ(ﾘﾔ ｴｱｺﾝ),IVORY,TRIM0# |
1 | ||
| 81250-30130B2 |
GS171,JZS17#,UZS175..A,ATH,ATHE,ATHG,ATHV,ROY,ROYEX MD.CHARCOAL,TRIM1# |
1 | ||
| 81250-30190A0 |
JZS171,175,177,179,UZS17#..SED..(A,C,ROY,ROYG) ｱﾘ(ﾘﾔ ｴｱｺﾝ & ﾘ-ﾃﾞｲﾝｸﾞﾗﾝﾌﾟ),IVORY,TRIM0# |
1 | ||
| 81250-30190B0 |
JZS171,175,177,179,UZS17#..SED..(A,C,ROY,ROYG) ｱﾘ(ﾘﾔ ｴｱｺﾝ & ﾘ-ﾃﾞｲﾝｸﾞﾗﾝﾌﾟ),MD.CHARCOAL,TRIM1# |
1 | ||
| 81250D - LAMP ASSY, REAR ROOM, RH | ||||
| 81250-30120B2 |
GS171,JZS17#,UZS175..SED..(A,ATH,ATHG,ATHV,ROY,ROYEX) ｱﾘ(ﾘﾔ ｴｱｺﾝ),MD.CHARCOAL,TRIM1# |
1 | ||
| 81250-30130A0 |
GS171,JZS17#,UZS175..A,ATH,ATHE,ATHG,ATHV,ROY,ROYEX IVORY,TRIM0# |
1 | ||
| 81250-30120A0 |
GS171,JZS17#,UZS175..SED..(A,ATH,ATHG,ATHV,ROY,ROYEX) ｱﾘ(ﾘﾔ ｴｱｺﾝ),IVORY,TRIM0# |
1 | ||
| 81250-30130B2 |
GS171,JZS17#,UZS175..A,ATH,ATHE,ATHG,ATHV,ROY,ROYEX MD.CHARCOAL,TRIM1# |
1 | ||
| 81250-30190A0 |
JZS171,175,177,179,UZS17#..SED..(A,C,ROY,ROYG) ｱﾘ(ﾘﾔ ｴｱｺﾝ & ﾘ-ﾃﾞｲﾝｸﾞﾗﾝﾌﾟ),IVORY,TRIM0# |
1 | ||
| 81250-30190B0 |
JZS171,175,177,179,UZS17#..SED..(A,C,ROY,ROYG) ｱﾘ(ﾘﾔ ｴｱｺﾝ & ﾘ-ﾃﾞｲﾝｸﾞﾗﾝﾌﾟ),MD.CHARCOAL,TRIM1# |
1 | ||
| 81251B - LENS, REAR ROOM LAMP, RH | ||||
| 81251-30120 |
GS171,JZS17#,UZS175..A,ATH,ATHE,ATHG,ATHV,ROY,ROYEX |
1 | ||
| 81251B - LENS, REAR ROOM LAMP, RH | ||||
| 81251-30120 |
GS171,JZS17#,UZS175..A,ATH,ATHE,ATHG,ATHV,ROY,ROYEX |
1 | ||
| 81260 - LAMP ASSY, GLOVE BOX | ||||
| 81260-50010 |
GS171,JZS17#,UZS17# |
1 | ||
| 81260A - LAMP ASSY, MAP | ||||
| 81260-30200B2 |
GS171,JZS17#,UZS17# MD.CHARCOAL,TRIM1# |
1 | ||
| 81260-30200A0 |
GS171,JZS17#,UZS17# IVORY,TRIM0# |
1 | ||
| 81260-30210B2 |
JZS17#,UZS17#..A,ATH,ATHE,ATHG,ATHV,C,ROY,ROYG ｱﾘ(ﾑ-ﾝﾙ-ﾌ),MD.CHARCOAL,TRIM1# |
1 | ||
| 81260-30210A0 |
JZS17#,UZS17#..A,ATH,ATHE,ATHG,ATHV,C,ROY,ROYG ｱﾘ(ﾑ-ﾝﾙ-ﾌ),IVORY,TRIM0# |
1 | ||
| 81260A - LAMP ASSY, MAP | ||||
| 81260-30200B2 |
GS171,JZS17#,UZS17# MD.CHARCOAL,TRIM1# |
1 | ||
| 81260-30200A0 |
GS171,JZS17#,UZS17# IVORY,TRIM0# |
1 | ||
| 81260-30210B2 |
JZS17#,UZS17#..A,ATH,ATHE,ATHG,ATHV,C,ROY,ROYG ｱﾘ(ﾑ-ﾝﾙ-ﾌ),MD.CHARCOAL,TRIM1# |
1 | ||
| 81260-30210A0 |
JZS17#,UZS17#..A,ATH,ATHE,ATHG,ATHV,C,ROY,ROYG ｱﾘ(ﾑ-ﾝﾙ-ﾌ),IVORY,TRIM0# |
1 | ||
| 81260B - BULB(FOR GLOVE BOX) | ||||
| 90981-11018 |
GS171,JZS17#,UZS17# 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 81260C - BULB(FOR MAP LAMP) | ||||
| 90981-14004 |
GS171,JZS17#,UZS17# 12V 8W,NO.2 |
1 | ||
| 90981-12005 |
GS171,JZS17#,UZS17# 12V 8W,NO.1 |
2 | ||
| 81260C - BULB(FOR MAP LAMP) | ||||
| 90981-14004 |
GS171,JZS17#,UZS17# 12V 8W,NO.2 |
1 | ||
| 90981-12005 |
GS171,JZS17#,UZS17# 12V 8W,NO.1 |
2 | ||
| 81260C - BULB(FOR MAP LAMP) | ||||
| 90981-14004 |
GS171,JZS17#,UZS17# 12V 8W,NO.2 |
1 | ||
| 90981-12005 |
GS171,JZS17#,UZS17# 12V 8W,NO.1 |
2 | ||
| 81260C - BULB(FOR MAP LAMP) | ||||
| 90981-14004 |
GS171,JZS17#,UZS17# 12V 8W,NO.2 |
1 | ||
| 90981-12005 |
GS171,JZS17#,UZS17# 12V 8W,NO.1 |
2 | ||
| 81260C - BULB(FOR MAP LAMP) | ||||
| 90981-14004 |
GS171,JZS17#,UZS17# 12V 8W,NO.2 |
1 | ||
| 90981-12005 |
GS171,JZS17#,UZS17# 12V 8W,NO.1 |
2 | ||
| 81260C - BULB(FOR MAP LAMP) | ||||
| 90981-14004 |
GS171,JZS17#,UZS17# 12V 8W,NO.2 |
1 | ||
| 90981-12005 |
GS171,JZS17#,UZS17# 12V 8W,NO.1 |
2 | ||
| 81261 - LENS AND COVER, MAP LAMP | ||||
| 81261-50060 |
GS171,JZS17#,UZS17# |
1 | ||
| 81261-50070 |
JZS17#,UZS17#..A,ATH,ATHE,ATHG,ATHV,C,ROY,ROYG ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 81261 - LENS AND COVER, MAP LAMP | ||||
| 81261-50060 |
GS171,JZS17#,UZS17# |
1 | ||
| 81261-50070 |
JZS17#,UZS17#..A,ATH,ATHE,ATHG,ATHV,C,ROY,ROYG ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 81261B - LENS,GLOVE BOX LAMP | ||||
| 81261-50010 |
GS171,JZS17#,UZS17# |
1 | ||
| 81290D - LAMP ASSY, REAR ROOM, LH | ||||
| 81290-30130B2 |
GS171,JZS17#,UZS175..SED..(A,ATH,ATHG,ATHV,ROY,ROYEX) ｱﾘ(ﾘﾔ ｴｱｺﾝ),MD.CHARCOAL,TRIM1# |
1 | ||
| 81290-30170B0 |
JZS171,175,177,179,UZS17#..SED..(A,C,ROY,ROYG) ｱﾘ(ﾘﾔ ｴｱｺﾝ & ﾘ-ﾃﾞｲﾝｸﾞﾗﾝﾌﾟ),MD.CHARCOAL,TRIM1# |
1 | ||
| 81290-30140B2 |
GS171,JZS17#,UZS175..A,ATH,ATHE,ATHG,ATHV,ROY,ROYEX MD.CHARCOAL,TRIM1# |
1 | ||
| 81290-30130A0 |
GS171,JZS17#,UZS175..SED..(A,ATH,ATHG,ATHV,ROY,ROYEX) ｱﾘ(ﾘﾔ ｴｱｺﾝ),IVORY,TRIM0# |
1 | ||
| 81290-30140A0 |
GS171,JZS17#,UZS175..A,ATH,ATHE,ATHG,ATHV,ROY,ROYEX IVORY,TRIM0# |
1 | ||
| 81290-30170A0 |
JZS171,175,177,179,UZS17#..SED..(A,C,ROY,ROYG) ｱﾘ(ﾘﾔ ｴｱｺﾝ & ﾘ-ﾃﾞｲﾝｸﾞﾗﾝﾌﾟ),IVORY,TRIM0# |
1 | ||
| 81290D - LAMP ASSY, REAR ROOM, LH | ||||
| 81290-30130B2 |
GS171,JZS17#,UZS175..SED..(A,ATH,ATHG,ATHV,ROY,ROYEX) ｱﾘ(ﾘﾔ ｴｱｺﾝ),MD.CHARCOAL,TRIM1# |
1 | ||
| 81290-30170B0 |
JZS171,175,177,179,UZS17#..SED..(A,C,ROY,ROYG) ｱﾘ(ﾘﾔ ｴｱｺﾝ & ﾘ-ﾃﾞｲﾝｸﾞﾗﾝﾌﾟ),MD.CHARCOAL,TRIM1# |
1 | ||
| 81290-30140B2 |
GS171,JZS17#,UZS175..A,ATH,ATHE,ATHG,ATHV,ROY,ROYEX MD.CHARCOAL,TRIM1# |
1 | ||
| 81290-30130A0 |
GS171,JZS17#,UZS175..SED..(A,ATH,ATHG,ATHV,ROY,ROYEX) ｱﾘ(ﾘﾔ ｴｱｺﾝ),IVORY,TRIM0# |
1 | ||
| 81290-30140A0 |
GS171,JZS17#,UZS175..A,ATH,ATHE,ATHG,ATHV,ROY,ROYEX IVORY,TRIM0# |
1 | ||
| 81290-30170A0 |
JZS171,175,177,179,UZS17#..SED..(A,C,ROY,ROYG) ｱﾘ(ﾘﾔ ｴｱｺﾝ & ﾘ-ﾃﾞｲﾝｸﾞﾗﾝﾌﾟ),IVORY,TRIM0# |
1 | ||
| 81290D - LAMP ASSY, REAR ROOM, LH | ||||
| 81290-30130B2 |
GS171,JZS17#,UZS175..SED..(A,ATH,ATHG,ATHV,ROY,ROYEX) ｱﾘ(ﾘﾔ ｴｱｺﾝ),MD.CHARCOAL,TRIM1# |
1 | ||
| 81290-30170B0 |
JZS171,175,177,179,UZS17#..SED..(A,C,ROY,ROYG) ｱﾘ(ﾘﾔ ｴｱｺﾝ & ﾘ-ﾃﾞｲﾝｸﾞﾗﾝﾌﾟ),MD.CHARCOAL,TRIM1# |
1 | ||
| 81290-30140B2 |
GS171,JZS17#,UZS175..A,ATH,ATHE,ATHG,ATHV,ROY,ROYEX MD.CHARCOAL,TRIM1# |
1 | ||
| 81290-30130A0 |
GS171,JZS17#,UZS175..SED..(A,ATH,ATHG,ATHV,ROY,ROYEX) ｱﾘ(ﾘﾔ ｴｱｺﾝ),IVORY,TRIM0# |
1 | ||
| 81290-30140A0 |
GS171,JZS17#,UZS175..A,ATH,ATHE,ATHG,ATHV,ROY,ROYEX IVORY,TRIM0# |
1 | ||
| 81290-30170A0 |
JZS171,175,177,179,UZS17#..SED..(A,C,ROY,ROYG) ｱﾘ(ﾘﾔ ｴｱｺﾝ & ﾘ-ﾃﾞｲﾝｸﾞﾗﾝﾌﾟ),IVORY,TRIM0# |
1 | ||
| 81291A - LENS, REAR ROOM LAMP, LH | ||||
| 81251-30120 |
GS171,JZS17#,UZS175..A,ATH,ATHE,ATHG,ATHV,ROY,ROYEX |
1 | ||
| 81291A - LENS, REAR ROOM LAMP, LH | ||||
| 81251-30120 |
GS171,JZS17#,UZS175..A,ATH,ATHE,ATHG,ATHV,ROY,ROYEX |
1 | ||
| 81330 - LAMP ASSY, LUGGAGE COMPARTMENT, NO.1 | ||||
| 81330-50021 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 81330B - BULB, LUGGAGE COMPARTMENT LAMP | ||||
| 90981-11020 |
GS171,JZS17#,UZS17#..SED 12V 3.8W |
1 | ||
| 81331 - LENS, LUGGAGE COMPARTMENT LAMP | ||||
| 81331-50010 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 81340B - BULB (FOR VANITY LAMP) | ||||
| 90981-14007 |
GS171,JZS17#,UZS17# 12V 3W |
2 | ||
| 81340H - LAMP ASSY, VANITY, RH | ||||
| 81350-30050A0 |
GS171,JZS17#,UZS17# IVORY,TRIM0# |
1 | ||
| 81350-30050B0 |
GS171,JZS17#,UZS17# MD.CHARCOAL,TRIM1# |
1 | ||
| 81340J - LAMP ASSY, VANITY, LH | ||||
| 81340-30090B0 |
GS171,JZS17#,UZS17# MD.CHARCOAL,TRIM1# |
1 | ||
| 81340-30090A0 |
GS171,JZS17#,UZS17# IVORY,TRIM0# |
1 | ||
| 81360B - BULB, STEP OR SPOT LAMP | ||||
| 90981-11041 |
GS171,JZS17#,UZS17# 14V 1.4W |
2 | ||
| 81870D - LAMP ASSY, KEY CYLINDER | ||||
| 81870-30120 |
GS171,JZS171,173,175,179 |
1 | ||
| 81870E - BULB, KEY CYLINDER LAMP | ||||
| 90981-11014 |
GS171,JZS17#,UZS17# 14V 1.4W |
1 | ||
| 81870F - CAP, KEY CYLINDER LAMP BULB | ||||
| 84998-10070 |
GS171,JZS17#,UZS17# |
1 | ||
| Common parts | ||||
| 90075-02036 | ||||
| 90160-40021 | ||||
| 90168-40080 | ||||
| 90189-04228 | ||||
| 90468-06080 | ||||
| 93219-44008 | ||||
| 93313-15012 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8715 | ||||
