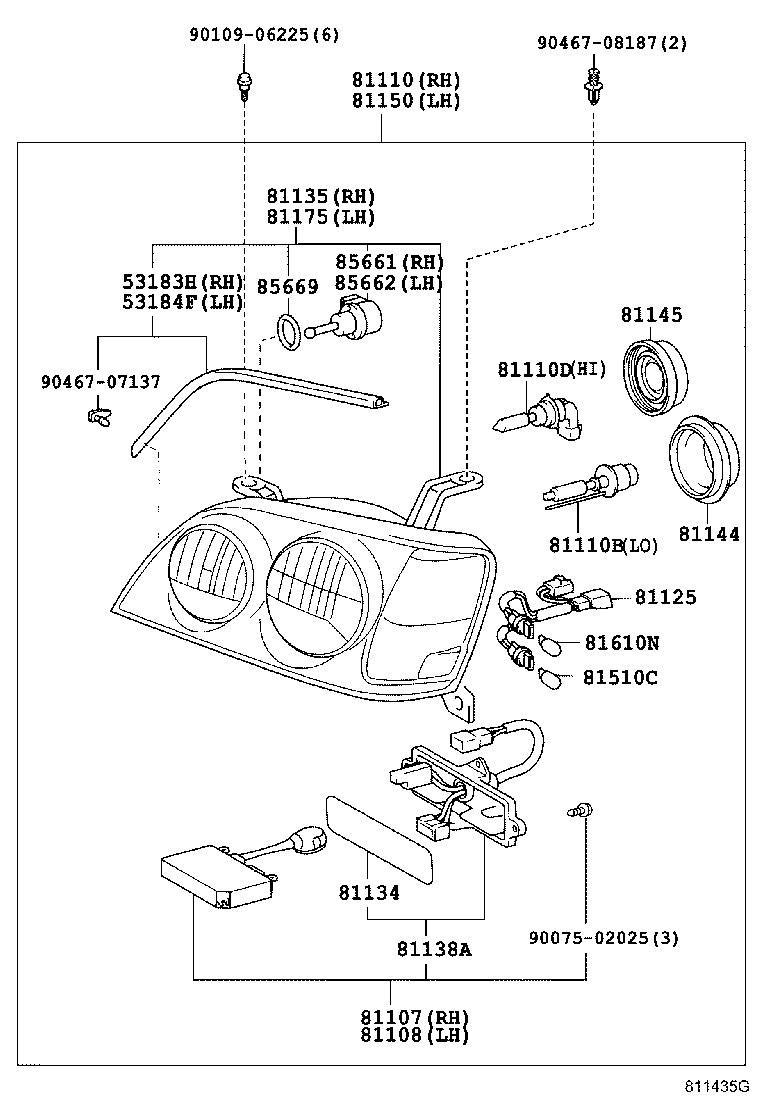

JZS171-AEAXF (1999)
Toyota Crown/Crown Majesta
(9909- )ATH,ATHE,ATHG,ATHV
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53183H - SEAL, HEADLAMP COVER, RH | ||||
| 53183-30110 |
GS171,JZS171,173,175,179 |
1 | ||
| 53184F - SEAL, HEADLAMP COVER, LH | ||||
| 53184-30080 |
GS171,JZS171,173,175,179 |
1 | ||
| 81107 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH | ||||
| 81107-3A560 |
JZS171,173,175..ATH,ATHE,ATHG,ATHV |
1 | ||
| 81108 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH | ||||
| 81107-3A560 |
JZS171,173,175..ATH,ATHE,ATHG,ATHV |
1 | ||
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-3A560 |
JZS171,173,175..ATH,ATHE,ATHG,ATHV |
1 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-20001 |
JZS171,173,175,177,UZS17#..A,ATH,ATHE,ATHG,ATHV,C 85V 35W |
2 | ||
| 81110D - BULB(FOR HEADLAMP, NO.2) | ||||
| 90981-13063 |
JZS171,173,175,177,UZS17#..A,ATH,ATHE,ATHG,ATHV,C 12V 55W,ﾊﾛｹﾞﾝ |
2 | ||
| 81125 - CORD, HEADLAMP | ||||
| 81125-3A560 |
JZS171,173,175..ATH,ATHE,ATHG,ATHV |
2 | ||
| 81134 - GASKET, HEADLAMP | ||||
| 81132-3A560 |
JZS171,173,175..ATH,ATHG,ATHV |
1 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81130-3A560 |
JZS171,173,175..ATH,ATHE,ATHG,ATHV |
1 | ||
| 81138A - SOCKET & WIRE, HEADLAMP | ||||
| 81165-3A680 |
JZS171,173,175..ATH,ATHE,ATHG,ATHV |
2 | ||
| 81144 - COVER, HEADLAMP, NO.1 | ||||
| 81139-48040 |
JZS171,173,175..ATH,ATHE,ATHG,ATHV |
2 | ||
| 81145 - COVER, HEADLAMP, NO.2 | ||||
| 90075-65016 |
JZS171,173,175..ATH,ATHE,ATHG,ATHV |
2 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-3A680 |
JZS171,173,175..ATH,ATHE,ATHG,ATHV |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81170-3A680 |
JZS171,173,175..ATH,ATHE,ATHG,ATHV |
1 | ||
| 81510C - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-15011 |
GS171,JZS171,173,175,179 12V 21W,ｱﾝﾊﾞｰ |
2 | ||
| 81610N - BULB, CLEARANCE & CONERING LAMP | ||||
| 90981-11048 |
JZS171,173,175..ATH,ATHE,ATHG,ATHV 12V 21/5W |
2 | ||
| 85661 - MOTOR, HEADLAMP LEVELING, RH | ||||
| 85661-33010 |
JZS171,173,175,177,UZS17#..A,ATH,ATHE,ATHG,ATHV,C |
1 | ||
| 85661-50040 |
JZS171,173,175,177,UZS17#..A,ATH,ATHE,ATHG,ATHV,C |
1 | ||
| 85662 - MOTOR, HEADLAMP LEVELING, LH | ||||
| 85661-50040 |
JZS171,173,175,177,UZS17#..A,ATH,ATHE,ATHG,ATHV,C |
1 | ||
| 85661-33010 |
JZS171,173,175,177,UZS17#..A,ATH,ATHE,ATHG,ATHV,C |
1 | ||
| 85669 - PACKING, HEADLAMP LEVELING MOTOR BASE | ||||
| 90075-99120 |
JZS171,173,175,177,UZS17#..A,ATH,ATHE,ATHG,ATHV,C |
2 | ||
| Common parts | ||||
| 90075-02025 | ||||
| 90109-06225 | ||||
| 90467-07137 | ||||
| 90467-08187 | ||||
