Toyota Crown/crown majesta JZS171 FUEL TANK & TUBE

JZS171-AEAXF (1999)

Toyota Crown/Crown Majesta

Production Sep 1999 - Aug 2001

Engine 1JZGE

Transmission 5FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

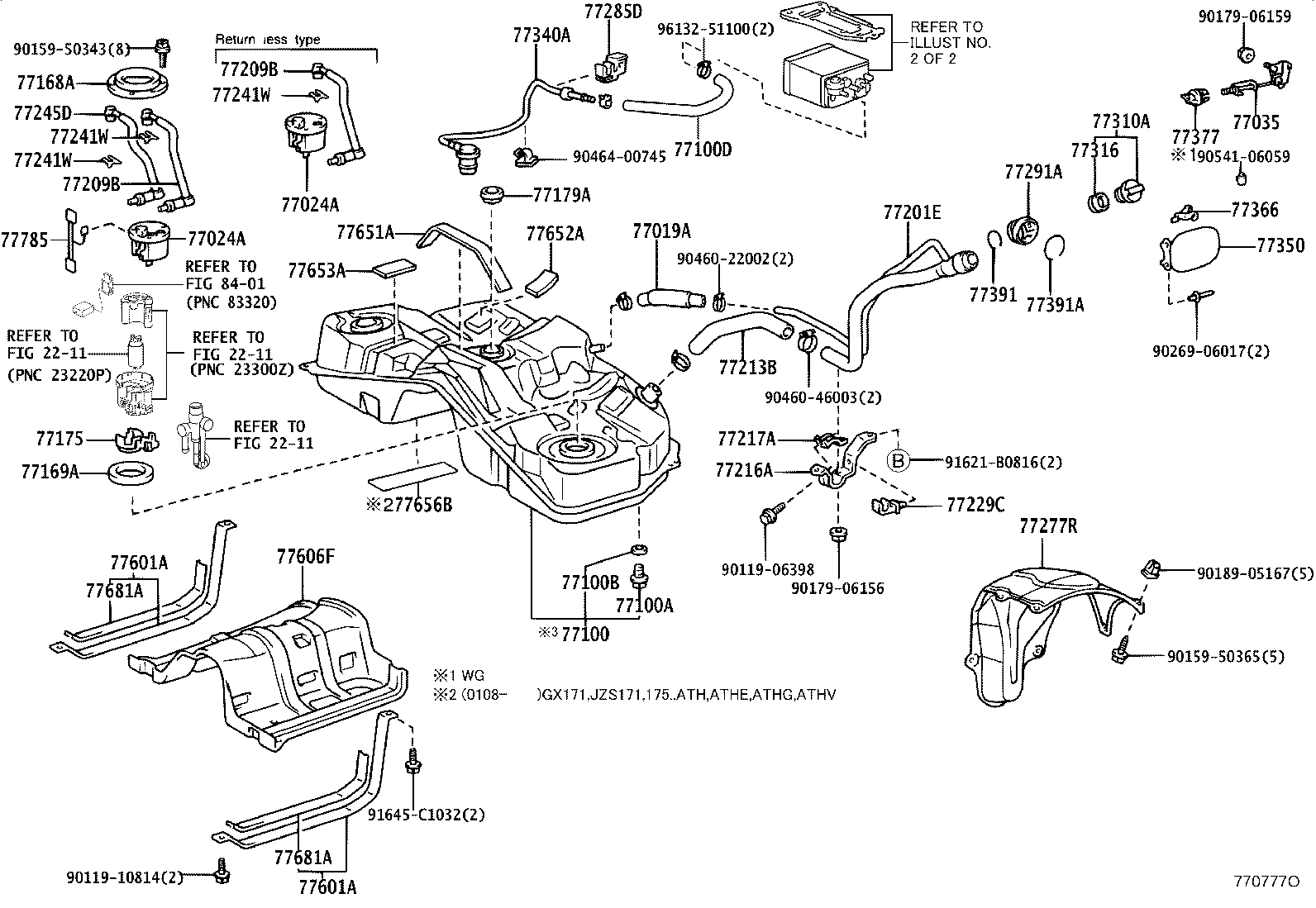

ILLUST NO. 1 OF 2(9909- )GS171,JKS175,JZS171,173,175,179

Click highlighted areas on diagram

ﾌｭｰｴﾙﾀﾝｸ

Part #	Description	Period	Qty
77019A - HOSE, FUEL, NO.1(FOR FUEL EXPANSION TANK)
77019-51010	GS171,JZS171,173,175,179 長さ=200	09/1999 - 08/2001	1
77024A - PLATE SUB-ASSY, FUEL SUCTION
77024-30030	JZS171,173..TWC	09/1999 - 08/2001	1
77024A - PLATE SUB-ASSY, FUEL SUCTION
77024-30030	JZS171,173..TWC	09/1999 - 08/2001	1
77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77030-30120	GS171,JZS171,173,175,179..SED	09/1999 - 08/2001	1
77100 - TANK ASSY, FUEL
77001-30530	GS171,JZS171,173..HTWC,TWC	10/2000 - 08/2001	1
77001-30530	GS171,JZS171,173,175..D4,HTWC,TWC	09/1999 - 10/2000	1
77100A - PLUG(FOR FUEL TANK)
90105-12116	GS171,JZS17#,UZS17#	09/1999 - 08/2001	1
77100B - GASKET(FOR FUEL TANK)
90430-12245	GS171,JZS17#,UZS17#	09/1999 - 08/2001	1
77100D - HOSE, FUEL, NO.1(FOR FUEL TANK)
77249-30030	GS171,JZS171,173,175,179	09/1999 - 08/2001	1
77168A - PLATE, FUEL TANK VENT TUBE SET
77168-33050	GS171,JZS17#,UZS17#	07/2001 - 08/2001	1
77168-12240	GS171,JZS17#,UZS17#	09/1999 - 07/2001	1
77169A - GASKET, FUEL SUCTION TUBE SET
77169-33020	GS171,JZS17#,UZS17#	09/1999 - 08/2001	1
77175 - SUPPORT, FUEL SUCTION, NO.2
77175-30060	JZS171,173..TWC	09/1999 - 08/2001	1
77179A - GASKET, FUEL TANK BREATHER TUBE
77179-33010	GS171,JZS17#,UZS17#	09/1999 - 08/2001	1
77201E - PIPE SUB-ASSY, FUEL TANK FILLER
77201-30380	JZS171,173,175,179	09/1999 - 11/1999	1
77201-30400	JZS171,173,175,179 ｶﾝﾚｲﾁｼﾖｳ	09/1999 - 11/1999	1
77201-30400	GS171,JZS171,173,175,179	11/1999 - 08/2001	1
77209B - TUBE SUB-ASSY, FUEL PUMP
77209-30080	GS171,JZS171,173,175..D4,HTWC,TWC	10/2000 - 08/2001	1
77209-30080	GS171,JZS171,173..HTWC,TWC	09/1999 - 10/2000	1
77209B - TUBE SUB-ASSY, FUEL PUMP
77209-30080	GS171,JZS171,173,175..D4,HTWC,TWC	10/2000 - 08/2001	1
77209-30080	GS171,JZS171,173..HTWC,TWC	09/1999 - 10/2000	1
77213B - HOSE, FUEL TANK TO FILLER PIPE
77213-30170	GS171,JZS171,173,175,179	09/1999 - 08/2001	1
77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1
77216-51010	GS171,JZS171,173,175,179	09/1999 - 08/2001	1
77217A - SUPPORT, FUEL TANK FILLER PIPE, NO.2
77217-51010	GS171,JZS171,173,175,179	09/1999 - 08/2001	1
77229C - CLAMP, BREATHER TUBE
77229-51010	GS171,JZS171,173,175,179	09/1999 - 08/2001	1
77241W - CLIP, TUBE JOINT
77241-33011	JZS171,173,175,177	09/1999 - 08/2001	2
77241W - CLIP, TUBE JOINT
77241-33011	JZS171,173,175,177	09/1999 - 08/2001	2
77241W - CLIP, TUBE JOINT
77241-33011	JZS171,173,175,177	09/1999 - 08/2001	2
77245D - TUBE, FUEL TANK RETURN VENT
77245-30150	JZS171,173..TWC	09/1999 - 10/2000	1
77245-30150	JZS171,173,175..D4,TWC	10/2000 - 08/2001	1
77277R - PROTECTOR, FUEL TANK FILLER PIPE
77277-30020	GS171,JZS171,173,175,179	09/1999 - 08/2001	1
77285D - CLAMP, FUEL TUBE, NO.1
77285-30150	GS171,JZS171,173,175,179	09/1999 - 08/2001	1
77291A - SHIELD, FUEL TANK FILLER PIPE
77291-30070	GS171,JZS171,173,175,179..SED	09/1999 - 08/2001	1
77310A - CAP ASSY, FUEL TANK
77310-48010	GS171,JZS17#,UZS17#	09/1999 - 08/2001	1
77316 - GASKET, FUEL TANK CAP
77316-16010	GS171,JZS17#,UZS17#	09/1999 - 08/2001	1
77340A - VALVE ASSY, FUEL CUT OFF W/TUBE
77340-51010	GS171,JZS171,173,175,179	09/1999 - 08/2001	1
77350 - LID ASSY, FUEL FILLER OPENING
77350-30340	GS171,JZS171,173,175,179..SED	09/1999 - 08/2001	1
77366 - SPRING, FUEL FILLER OPENING LID HINGE
77360-30030	JZS171,173,175,179..SED	09/1999 - 04/2000	1
77360-30070	GS171,JZS171,173,175,179..SED	05/2000 - 08/2001	1
77377 - RETAINER, FUEL FILLER OPENING LID LOCK
77377-12050	GS171,JZS17#,UZS17#..SED	09/1999 - 08/2001	1
77391 - RING, FUEL INLET BOX
77391-12020	GS171,JZS17#,UZS17#	09/1999 - 08/2001	1
77391A - RING, FUEL INLET BOX
77391-30030	GS171,JZS17#,UZS17#..SED	09/1999 - 08/2001	1
77601A - BAND SUB-ASSY, FUEL TANK, NO.1
77601-51010	GS171,JZS171,173,175,179	09/1999 - 08/2001	2
77601A - BAND SUB-ASSY, FUEL TANK, NO.1
77601-51010	GS171,JZS171,173,175,179	09/1999 - 08/2001	2
77606F - CASE SUB-ASSY, FUEL TANK COVER VENT
77606-30170	GS171,JZS171,173,175,179	09/1999 - 08/2001	1
77651A - CUSHION, FUEL TANK, NO.1
77651-30100	GS171,JZS171,173,175,179	09/1999 - 08/2001	1
77652A - CUSHION, FUEL TANK, NO.2
77652-12100	GS171,JZS171,173,175,179	09/1999 - 08/2001	7
77653A - CUSHION, FUEL TANK, NO.3
77653-51010	GS171,JZS171,173,175,179	09/1999 - 08/2001	1
77681A - SEAT, FUEL TANK BAND
77681-32060	GS171,JZS17#,UZS17#	09/1999 - 08/2001	2
77681A - SEAT, FUEL TANK BAND
77681-32060	GS171,JZS17#,UZS17#	09/1999 - 08/2001	2
77785 - HARNESS, FUEL PUMP
77785-52020	GS171,JZS17#,UZS17#	09/1999 - 08/2001	1
Common parts
90119-06398
90119-10814
90159-50343
90159-50365
90179-06156
90179-06159
90189-05167
90269-06017
90460-22002
90460-46003
90464-00745
90541-06059
91621-B0816
91645-C1032
96132-51100
Linked diagrams
2211
8401

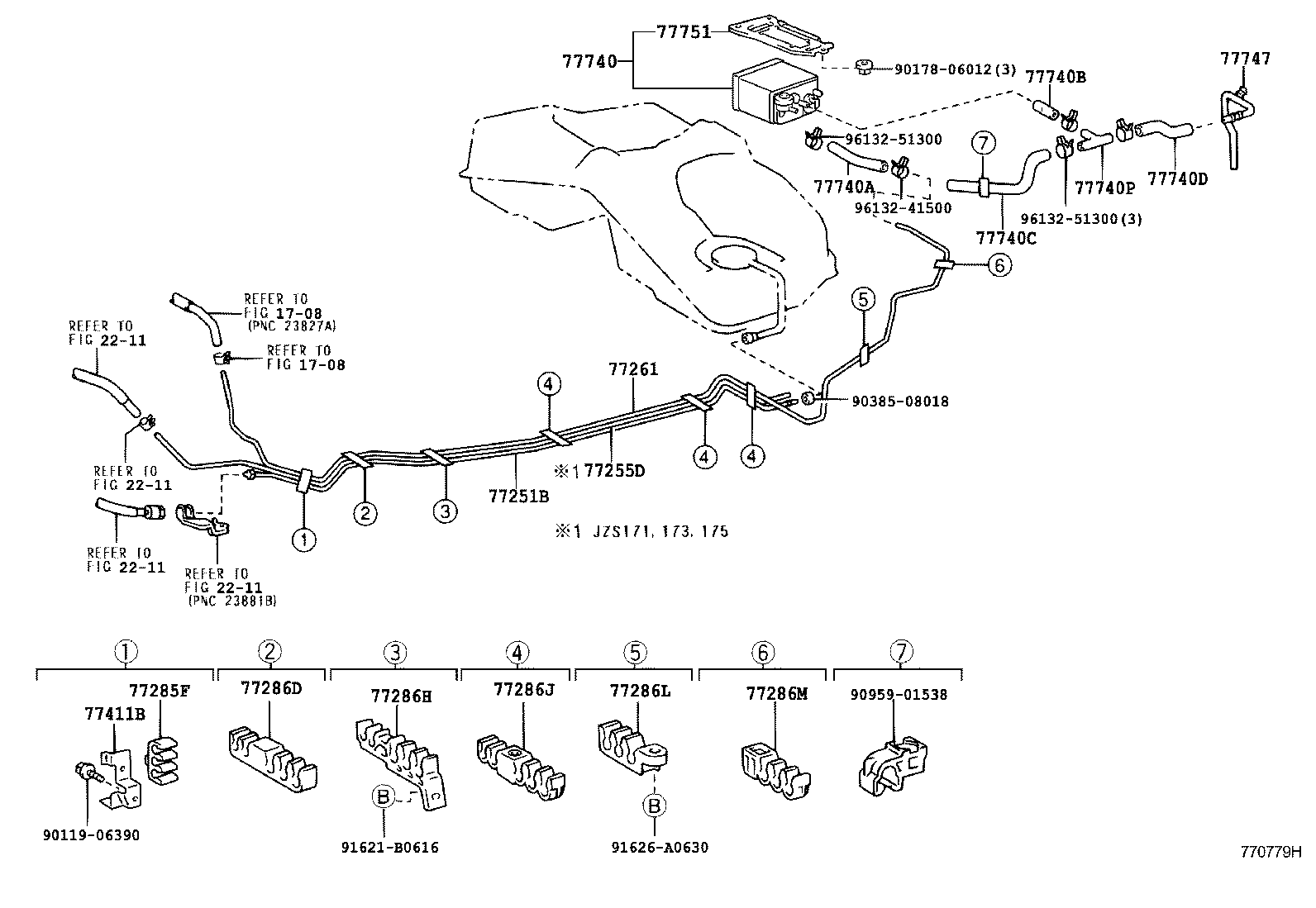

ILLUST NO. 2 OF 2(9909- )GS171,JZS171,173,175,179

Click highlighted areas on diagram

ﾌｭｰｴﾙﾁｭｰﾌﾞ

Part #	Description	Period	Qty
77251B - TUBE, FUEL MAIN
77251-30380	JZS171,175	09/1999 - 08/2001	1
77255D - TUBE, FUEL RETURN
77255-30160	JZS171,175	09/1999 - 08/2001	1
77261 - TUBE SUB-ASSY, FUEL EMISSION
77261-30250	GS171,JZS171,173,175,179	09/1999 - 08/2001	1
77285F - CLAMP, FUEL TUBE, NO.1
77286-30100	GS171,JZS171,173,175,179	09/1999 - 08/2001	1
77286D - CLAMP, FUEL TUBE, NO.2
77285-51010	GS171,JZS171,173,175,179	09/1999 - 08/2001	1
77286H - CLAMP, FUEL TUBE, NO.3
77412-51010	GS171,JZS171,173,175,179	09/1999 - 08/2001	1
77286J - CLAMP, FUEL TUBE, NO.4
77289-51010	GS171,JZS171,173,175,179	09/1999 - 08/2001	3
77286L - CLAMP, FUEL TUBE, NO.5
77298-51010	GS171,JZS171,173,175,179	09/1999 - 08/2001	1
77286M - CLAMP, FUEL TUBE, NO.6
77299-51010	GS171,JZS171,173,175,179	09/1999 - 08/2001	1
77411B - SUPPORT, FUEL TUBE GROMMET, NO.1
77411-22020	GS171,JZS171,173,175,179	09/1999 - 08/2001	1
77740 - CANISTER ASSY, CHARCOAL
77740-30290	GS171,JZS171,173,175,179	09/1999 - 08/2001	1
77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)
23829-46220	GS171,JZS171,173,175,179 長さ=200	09/1999 - 08/2001	1
77740B - HOSE, FUEL, NO.2(FOR CHARCOAL CANISTER)
23826-70020	GS171,JZS171,173,175,179 長さ=44	09/1999 - 08/2001	1
77740C - HOSE, FUEL, NO.3(FOR CHARCOAL CANISTER)
23829-46230	GS171,JZS171,173,175,179	09/1999 - 08/2001	1
77740D - HOSE, FUEL, NO.4(FOR CHARCOAL CANISTER)
23829-46240	GS171,JZS171,173,175,179	09/1999 - 08/2001	1
77740P - WAY, 3(FOR CHARCOAL CANISTER)
90413-07002	GS171,JZS171,173,175,179	09/1999 - 08/2001	1
77747 - PIPE, CHARCOAL CANISTER, NO.1
77747-51010	GS171,JZS171,173,175,179	09/1999 - 08/2001	1
Common parts
90119-06390
90178-06012
90385-08018
90959-01538
91621-B0616
91626-A0630
96132-41500
96132-51300
Linked diagrams
1708
2211
