JZS171-AEAXF (1999)
Toyota Crown/Crown Majesta

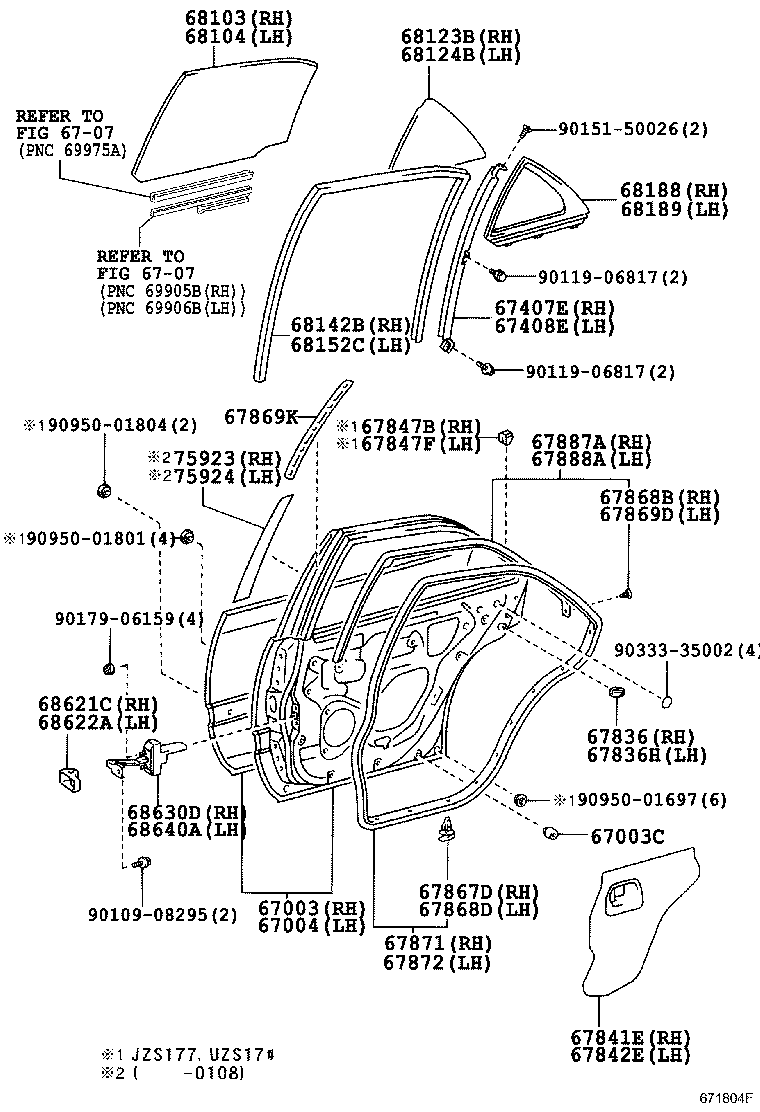

ILLUST NO. 1 OF 3(9909- )SED
ﾄﾞｱﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-30560 |
GS171,JZS171,173,175,179..SED |
1 | ||
| 67003C - CUSHION, REAR DOOR PANEL | ||||
| 90541-10027 |
GS171,JZS17#,UZS17# |
4 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-30560 |
GS171,JZS171,173,175,179..SED |
1 | ||
| 67407E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH | ||||
| 67407-30160 |
GS171,JZS171,173,175,179..SED |
1 | ||
| 67408E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH | ||||
| 67408-30150 |
GS171,JZS171,173,175,179..SED |
1 | ||
| 67836 - COVER, REAR DOOR LOCK CHILD PROTECTION, RH | ||||
| 67836-14010 |
GS171,JZS171,173,175,179 |
1 | ||
| 67836-14010 |
JZS17#,UZS17# |
1 | ||
| 67836H - COVER, REAR DOOR LOCK CHILD PROTECTION, LH | ||||
| 67836-14010 |
JZS17#,UZS17# |
1 | ||
| 67836-14010 |
GS171,JZS171,173,175,179 |
1 | ||
| 67841E - COVER, REAR DOOR SERVICE HOLE, RH | ||||
| 67841-30390 |
GS171,JZS17#,UZS17# |
1 | ||
| 67842E - COVER, REAR DOOR SERVICE HOLE, LH | ||||
| 67842-30250 |
GS171,JZS17#,UZS17# |
1 | ||
| 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
GS171,JZS17#,UZS17# ﾅﾁｭﾗﾙ |
16 | ||
| 67493-32010 |
GS171,JZS17#,UZS17# ｲｴﾛｰ |
1 | ||
| 67868B - CLIP, DOOR GLASS WEATHERSTRIP(FOR REAR DOOR) | ||||
| 90467-05017C0 |
GS171,JZS171,173,175,179 BLACK,TRIM0#,1# |
1 | ||
| 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
GS171,JZS17#,UZS17# ﾅﾁｭﾗﾙ |
16 | ||
| 67493-32010 |
GS171,JZS17#,UZS17# ｲｴﾛｰ |
1 | ||
| 67869D - CLIP, DOOR WEATHERSTRIP | ||||
| 90467-05017C0 |
GS171,JZS171,173,175,179 BLACK,TRIM0#,1# |
1 | ||
| 67869K - CLIP, DOOR WEATHERSTRIP, LH | ||||
| 67869-30080 |
GS171,JZS17#,UZS17# |
2 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-30240 |
JZS171,173,175,179..SED |
1 | ||
| 67871-30241 |
GS171,JZS171,173,175,179..SED |
1 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-30250 |
JZS171,173,175,179..SED |
1 | ||
| 67872-30251 |
GS171,JZS171,173,175,179..SED |
1 | ||
| 67887A - WEATHERSTRIP, REAR DOOR, NO.2 RH | ||||
| 67887-30110 |
JZS171,173,175,179..SED |
1 | ||
| 67887-30111 |
GS171,JZS171,173,175,179..SED |
1 | ||
| 67888A - WEATHERSTRIP, REAR DOOR, NO.2 LH | ||||
| 67888-30111 |
GS171,JZS171,173,175,179..SED |
1 | ||
| 67888-30110 |
JZS171,173,175,179..SED |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68113-30710 |
JZS171,173,175..SED..(ATH,ATHG,ATHV) *UVCT,厚さ=4.0,ﾀﾞｰｸｸﾞﾘｰﾝ |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68114-30630 |
JZS171,173,175..SED..(ATH,ATHG,ATHV) *UVCT,厚さ=4.0,ﾀﾞｰｸｸﾞﾘｰﾝ |
1 | ||
| 68123B - GLASS, REAR DOOR QUARTER WINDOW, RH | ||||
| 68123-30490 |
JZS171,173,175..SED..(ATH,ATHG,ATHV) *UVCT,厚さ=4.0,ﾀﾞｰｸｸﾞﾘｰﾝ |
1 | ||
| 68124B - GLASS, REAR DOOR QUARTER WINDOW, LH | ||||
| 68124-30430 |
JZS171,173,175..SED..(ATH,ATHG,ATHV) *UVCT,厚さ=4.0,ﾀﾞｰｸｸﾞﾘｰﾝ |
1 | ||
| 68142B - RUN, REAR DOOR WINDOW, RH | ||||
| 68142-30161 |
GS171,JZS171,173,175,179..SED |
1 | ||
| 68142-30160 |
JZS171,173,175,179..SED |
1 | ||
| 68142-30160 |
GS171,JZS171,173,175,179..SED |
1 | ||
| 68152C - RUN, REAR DOOR GLASS, LH | ||||
| 68152-30060 |
GS171,JZS171,173,175,179..SED |
1 | ||
| 68152-30060 |
JZS171,173,175,179..SED |
1 | ||
| 68152-30061 |
GS171,JZS171,173,175,179..SED |
1 | ||
| 68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH | ||||
| 68188-30130 |
GS171,JZS171,173,175,179..SED |
1 | ||
| 68189 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH | ||||
| 68189-30110 |
GS171,JZS171,173,175,179..SED |
1 | ||
| 68621C - COVER, REAR DOOR CHECK, RH | ||||
| 68621-33010 |
GS171,JZS17#,UZS17# |
1 | ||
| 68622A - COVER, REAR DOOR CHECK, LH | ||||
| 68622-33010 |
GS171,JZS17#,UZS17# |
1 | ||
| 68630D - CHECK ASSY, REAR DOOR, RH | ||||
| 68630-30180 |
GS171,JZS17#,UZS17# |
1 | ||
| 68640A - CHECK ASSY, REAR DOOR, LH | ||||
| 68640-30080 |
GS171,JZS17#,UZS17# |
1 | ||
| 75923 - TAPE, BLACK OUT, NO.2 RH | ||||
| 75923-30011 |
GS171,JZS17#,UZS17# |
1 | ||
| 75923-30010 |
JZS17#,UZS17# |
1 | ||
| 75924 - TAPE, BLACK OUT, NO.2 LH | ||||
| 75924-30010 |
JZS17#,UZS17# |
1 | ||
| 75924-30011 |
GS171,JZS17#,UZS17# |
1 | ||
| Common parts | ||||
| 90109-08295 | ||||
| 90119-06817 | ||||
| 90151-50026 | ||||
| 90179-06159 | ||||
| 90333-35002 | ||||
| 90950-01697 | ||||
| 90950-01801 | ||||
| 90950-01804 | ||||
| Linked diagrams | ||||
| 6707 | ||||

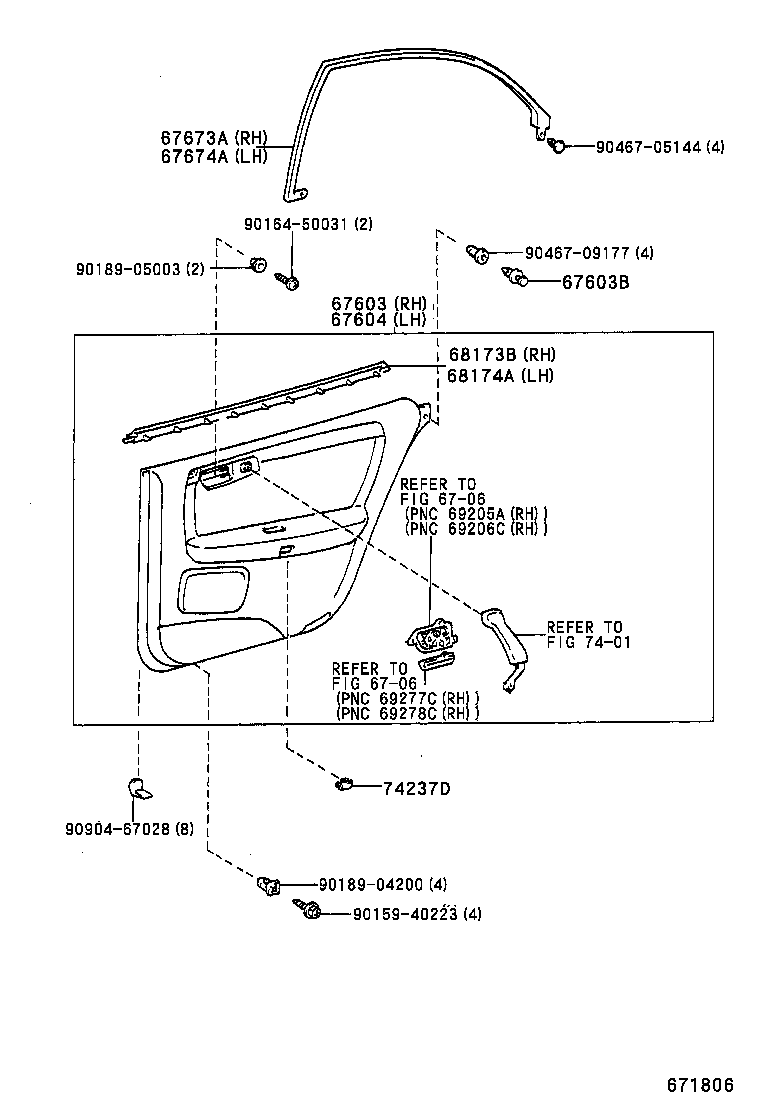

ILLUST NO. 2 OF 3(9909- )
ﾄﾞｱﾄﾘﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-3F320A0 |
JZS171,173,175..SED..(ATH,ATHG,ATHV) ﾄﾞｱﾄﾘﾑ=TYPE D-*104,IVORY,TRIM0# |
1 | ||
| 67630-3F320B0 |
JZS171,173,175..SED..(ATH,ATHG,ATHV) ﾄﾞｱﾄﾘﾑ=TYPE D-*104,DK.CHARCOAL,TRIM1# |
1 | ||
| 67603B - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-07066A0 |
GS171,JZS17#,UZS17# IVORY,TRIM0# |
12 | ||
| 90467-07066B8 |
GS171,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG MD.CHARCOAL,TRIM1# |
12 | ||
| 90467-07066P1 |
JZS171,173,175..ATH,ATHE,ATHG,ATHV DK.CHARCOAL,TRIM1# |
12 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-3F340B0 |
JZS171,173,175..SED..(ATH,ATHG,ATHV) ﾄﾞｱﾄﾘﾑ=TYPE D-*104,DK.CHARCOAL,TRIM1# |
1 | ||
| 67640-3F340A0 |
JZS171,173,175..SED..(ATH,ATHG,ATHV) ﾄﾞｱﾄﾘﾑ=TYPE D-*104,IVORY,TRIM0# |
1 | ||
| 67673A - GARNISH, REAR DOOR FRAME, RH | ||||
| 67673-30030 |
GS171,JZS171,173,175,179..SED |
1 | ||
| 67674A - GARNISH, REAR DOOR FRAME, LH | ||||
| 67674-30030 |
GS171,JZS171,173,175,179..SED |
1 | ||
| 68173B - WEATHERSTRIP, REAR DOOR GLASS, INNER RH | ||||
| 68173-30150 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 68174A - WEATHERSTRIP, REAR DOOR GLASS, INNER LH | ||||
| 68174-30110 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 74237D - CAP, REAR DOOR ARMREST BASE | ||||
| 74237-30030B3 |
GS171,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG MD.CHARCOAL,TRIM1# |
2 | ||
| 74237-30030A0 |
GS171,JZS17#,UZS17# IVORY,TRIM0# |
2 | ||
| 74237-30030B2 |
JZS171,173,175..ATH,ATHE,ATHG,ATHV DK.CHARCOAL,TRIM1# |
2 | ||
| Common parts | ||||
| 90159-40223 | ||||
| 90164-50031 | ||||
| 90189-04200 | ||||
| 90189-05003 | ||||
| 90467-05144 | ||||
| 90467-09177 | ||||
| 90904-67028 | ||||
| Linked diagrams | ||||
| 6706 | ||||
| 7401 | ||||

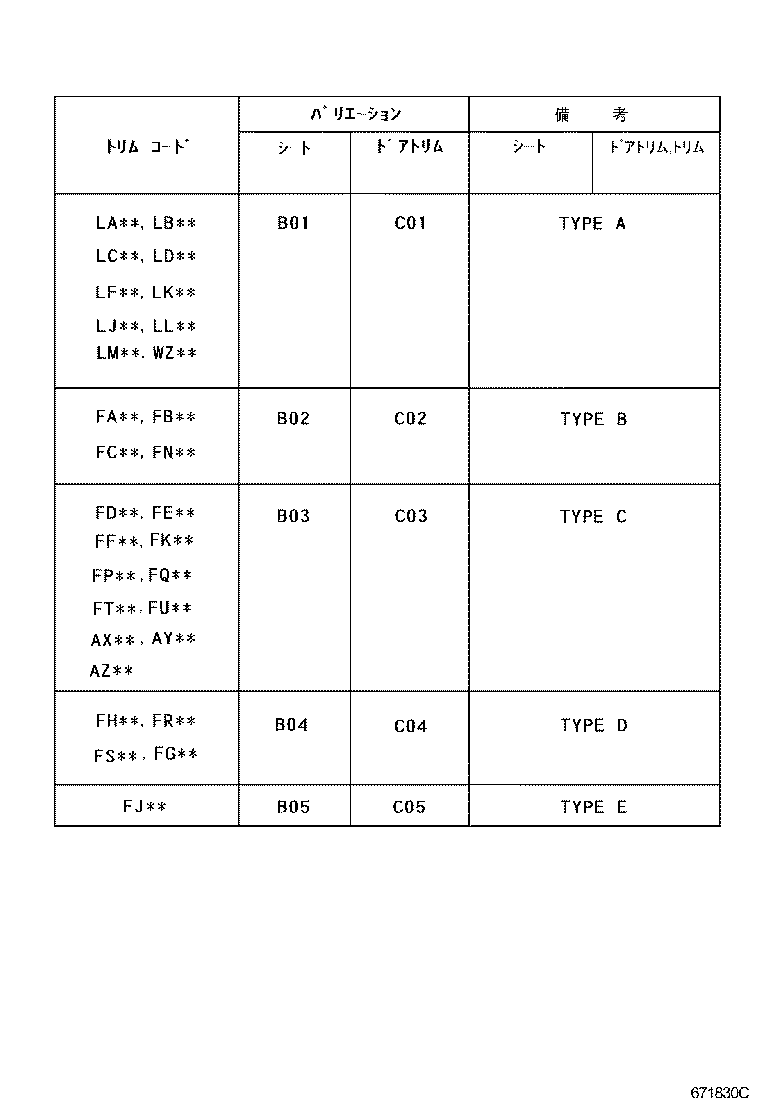

ILLUST NO. 3 OF 3(9909-0108)
