JZS171-AEAXF (1999)

Toyota Crown/Crown Majesta

Production Sep 1999 - Aug 2001
Engine 1JZGE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9909- )

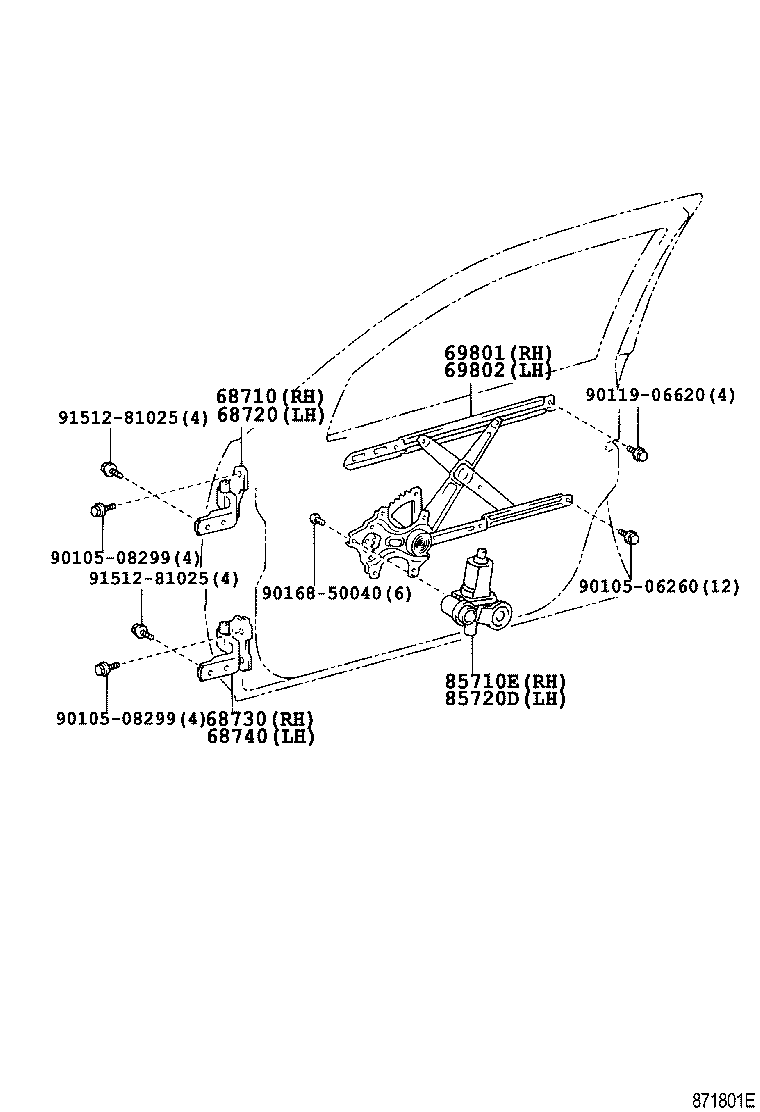

Click highlighted areas on diagram

diagram 68710 68720 68730 68740 69801 69802 85710E 85720D 9010506260 9010508299 9010508299 9011906620 9016850040 9151281025 9151281025
Part # Description Qty Price
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-30180

GS171,JZS17#,UZS17#

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68720-30100

GS171,JZS17#,UZS17#

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68730-30150

GS171,JZS17#,UZS17#

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68730-30150

GS171,JZS17#,UZS17#

 1
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69801-30250

GS171,JZS17#,UZS17#

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69802-30250

GS171,JZS17#,UZS17#

 1
85710E - MOTOR ASSY, POWER WINDOW REGULATOR, RH
85710-30360

GS171,JZS17#,UZS17#

 1
85720D - MOTOR ASSY, POWER WINDOW REGULATOR, LH
85720-30270

GS171,JZS171,173,175,179

 1
Common parts
90105-06260
90105-08299
90119-06620
90168-50040
91512-81025
