JZS171-AEAXF (1999)
Toyota Crown/Crown Majesta

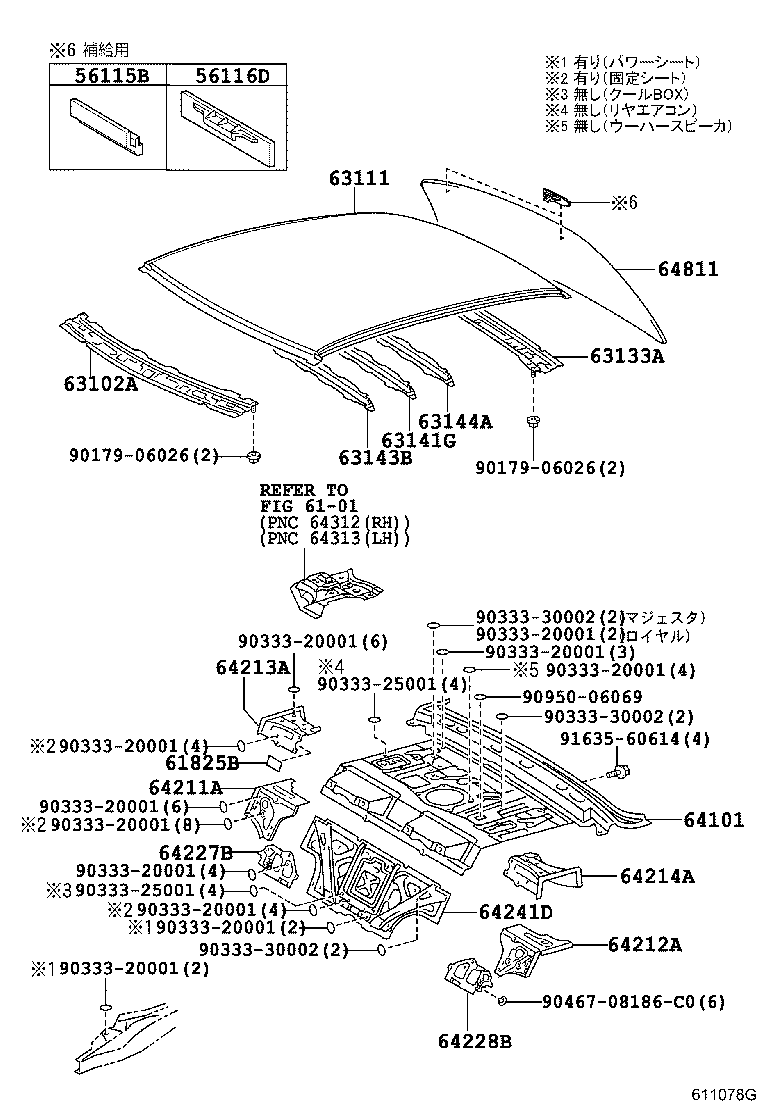

ILLUST NO. 1 OF 2(9909- )GS171,JKS175,JZS171,173,175,179..SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 56115B - STOPPER, BACK WINDOW GLASS, NO.1 | ||||
| 56115-30100 |
GS171,JZS17#,UZS17#..SED |
2 | ||
| 56116D - STOPPER, BACK WINDOW GLASS, NO.2 | ||||
| 56116-22050 |
GS171,JZS17#,UZS17#..SED |
2 | ||
| 61825B - PLATE, NOISE CONTROL, NO.2 | ||||
| 61825-51010 |
GS171,JZS171,173,175,179..SED |
2 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-30190 |
JZS171,173,175,179..SED..(ATH,ATHG,ATHV,ROY,ROYG) ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 63102-30180 |
GS171,JZS171,173,175,179..SED |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-30420 |
GS171,JZS171,173,175,179..SED |
1 | ||
| 63111-30430 |
JZS171,173,175,179..SED..(ATH,ATHG,ATHV,ROY,ROYG) ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 63133A - FRAME, BACK WINDOW, UPPER | ||||
| 63133-30230 |
GS171,JZS171,173,175,179..SED |
1 | ||
| 63141G - REINFORCEMENT, ROOF PANEL, NO.1 | ||||
| 63141-30170 |
GS171,JZS171,173,175,179 |
1 | ||
| 63143B - REINFORCEMENT, ROOF PANEL, NO.3 | ||||
| 63143-30210 |
GS171,JZS171,173,175,179 |
1 | ||
| 63144A - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63144-30110 |
GS171,JZS171,173,175,179..SED |
1 | ||
| 64101 - PANEL SUB-ASSY, UPPER BACK | ||||
| 64101-30690 |
JZS171,173..SED..(ATH,ATHV) ﾌﾟﾚﾐｱﾑｽﾎﾟ-ﾂｾﾚｸｼﾖﾝ *(K) & ｱﾘ(ｴｱ ﾋﾟﾕﾘﾌｱｲﾔ) |
1 | ||
| 64101-30630 |
JZS171,173,175,179..SED..(ATH,ATHG,ATHV,ROY) ｱﾘ(ｳ-ﾊ- ｽﾋﾟ-ｶ) |
1 | ||
| 64101-30630 |
JZS171,173..SED..(ATH,ATHV) ﾌﾟﾚﾐｱﾑｽﾎﾟ-ﾂｾﾚｸｼﾖﾝ *(K) |
1 | ||
| 64101-30650 |
JZS171,173,175,179..SED..(ATH,ATHG,ATHV,ROY) ｱﾘ(ｳ-ﾊ- ｽﾋﾟ-ｶ & ﾘﾔ ｴｱｺﾝ) |
1 | ||
| 64101-30620 |
GS171,JZS171,173..SED |
1 | ||
| 64101-30640 |
GS171,JZS171,173..SED ｱﾘ(ﾘﾔ ｴｱｺﾝ) |
1 | ||
| 64211A - STRAINER, PACKAGE TRAY TO FLOOR, RH | ||||
| 64211-30160 |
GS171,JZS171,173,175,179..SED..(ATH,ATHG,ATHV,ROY,ROYEX) |
1 | ||
| 64212A - STRAINER, PACKAGE TRAY TO FLOOR, LH | ||||
| 64212-30150 |
GS171,JZS171,173,175,179..SED..(ATH,ATHG,ATHV,ROY,ROYEX) |
1 | ||
| 64213A - EXTENSION, PACKAGE TRAY STRAINER, RH | ||||
| 64213-30080 |
GS171,JZS171,173,175,179..SED |
1 | ||
| 64214A - EXTENSION, PACKAGE TRAY STRAINER, LH | ||||
| 64214-30080 |
GS171,JZS171,173,175,179..SED |
1 | ||
| 64227B - EXTENSION, CENTER FLOOR TO BLACE, NO.1 | ||||
| 64227-30080 |
GS171,JZS171,173,175,179..SED |
1 | ||
| 64228B - EXTENSION, CENTER FLOOR TO BRACE, NO.2 | ||||
| 64228-30060 |
GS171,JZS171,173,175,179..SED |
1 | ||
| 64241D - PANEL, ROOM PARTITION | ||||
| 64241-30070 |
GS171,JZS171,173,175,179..SED..(ATH,ATHG,ATHV,ROY,ROYEX) |
1 | ||
| 64811 - GLASS, BACK WINDOW | ||||
| 64801-3A590 |
JZS171,173,175..SED..(ATH,ATHG,ATHV) *TT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 64801-3A580 |
JZS171,173,175..SED..(ATH,ATHG,ATHV) *TT,厚さ=3.5,ｸﾞﾘｰﾝ,ｱﾘ(ﾃﾚﾋﾞ) |
1 | ||
| Common parts | ||||
| 90179-06026 | ||||
| 90333-20001 | ||||
| 90333-25001 | ||||
| 90333-30002 | ||||
| 90467-08186C0 | ||||
| 90950-06069 | ||||
| 91635-60614 | ||||
| Linked diagrams | ||||
| 6101 | ||||

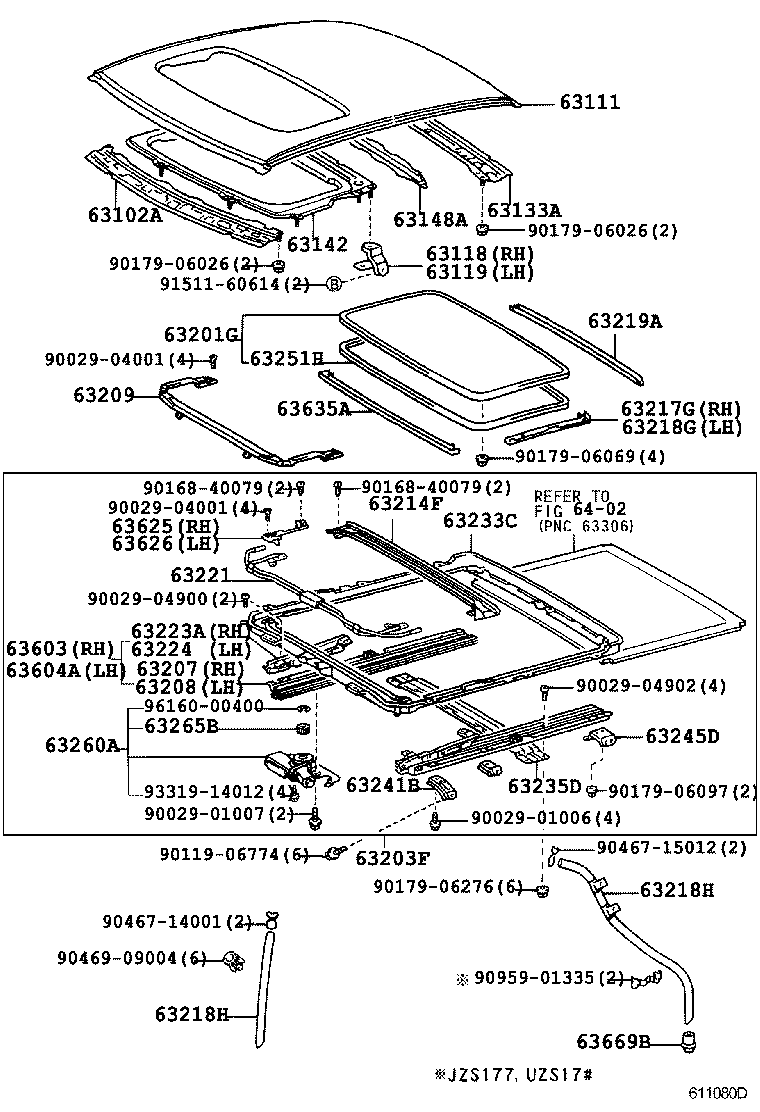

ILLUST NO. 2 OF 2(9909-0108)SED
ｱﾘ(ﾑ-ﾝﾙ-ﾌ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-30190 |
JZS171,173,175,179..SED..(ATH,ATHG,ATHV,ROY,ROYG) ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 63102-30180 |
GS171,JZS171,173,175,179..SED |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-30420 |
GS171,JZS171,173,175,179..SED |
1 | ||
| 63111-30430 |
JZS171,173,175,179..SED..(ATH,ATHG,ATHV,ROY,ROYG) ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 63118 - SUPPORT, ROOF PANEL, RH | ||||
| 63118-30090 |
JZS171,173,175,179..SED..(ATH,ATHG,ATHV,ROY,ROYG) |
1 | ||
| 63119 - SUPPORT, ROOF PANEL, LH | ||||
| 63119-30020 |
JZS171,173,175,179..SED..(ATH,ATHG,ATHV,ROY,ROYG) |
1 | ||
| 63133A - FRAME, BACK WINDOW, UPPER | ||||
| 63133-30230 |
GS171,JZS171,173,175,179..SED |
1 | ||
| 63142 - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63142-30110 |
JZS17#,UZS17#..A,ATH,ATHE,ATHG,ATHV,C,ROY,ROYG |
1 | ||
| 63148A - REINFORCEMENT, ROOF PANEL, NO.7 | ||||
| 63148-30070 |
JZS171,173,175,179..ATH,ATHE,ATHG,ATHV,ROY,ROYG |
1 | ||
| 63201G - GLASS SUB-ASSY, SLIDING ROOF | ||||
| 63201-30110 |
JZS17#,UZS17#..A,ATH,ATHE,ATHG,ATHV,C,ROY,ROYG *TEM,厚さ=4.0,ﾀﾞｰｸｸﾞﾘｰﾝ |
1 | ||
| 63203F - HOUSING SUB-ASSY, SLIDING ROOF | ||||
| 63203-30110 |
JZS171,173,175,179..SED..(ATH,ATHG,ATHV,ROY,ROYG) |
1 | ||
| 63207 - RAIL SUB-ASSY, SLIDING ROOF GUIDE, RH | ||||
| 63207-30100 |
JZS17#,UZS17#..A,ATH,ATHE,ATHG,ATHV,C,ROY,ROYG |
1 | ||
| 63208 - RAIL SUB-ASSY, SLIDING ROOF GUIDE, LH | ||||
| 63208-30100 |
JZS17#,UZS17#..A,ATH,ATHE,ATHG,ATHV,C,ROY,ROYG |
1 | ||
| 63209 - PANEL SUB-ASSY, ROOF WIND DEFLECTOR | ||||
| 63209-30090 |
JZS17#,UZS17#..SED..(A,ATH,ATHG,ATHV,C,ROY,ROYG) |
1 | ||
| 63214F - CHANNEL, ROOF DRIP, REAR | ||||
| 63214-50020 |
JZS17#,UZS17#..A,ATH,ATHE,ATHG,ATHV,C,ROY,ROYG |
1 | ||
| 63217G - GARNISH, SLIDING ROOF SIDE, RH | ||||
| 63217-30080 |
JZS17#,UZS17#..A,ATH,ATHE,ATHG,ATHV,C,ROY,ROYG |
1 | ||
| 63218G - GARNISH, SLIDING ROOF SIDE, LH | ||||
| 63218-30090 |
JZS17#,UZS17#..A,ATH,ATHE,ATHG,ATHV,C,ROY,ROYG |
1 | ||
| 63218H - HOSE, SLIDING ROOF DRAIN | ||||
| 63247-30040 |
JZS171,173,175,179..SED..(ATH,ATHG,ATHV,ROY,ROYG) ﾘﾔ右側 |
1 | ||
| 63220-30060 |
JZS171,173,175,179..SED..(ATH,ATHG,ATHV,ROY,ROYG) ﾌﾛﾝﾄ |
2 | ||
| 63248-30020 |
JZS171,173,175,179..SED..(ATH,ATHG,ATHV,ROY,ROYG) ﾘﾔ左側 |
1 | ||
| 63218H - HOSE, SLIDING ROOF DRAIN | ||||
| 63247-30040 |
JZS171,173,175,179..SED..(ATH,ATHG,ATHV,ROY,ROYG) ﾘﾔ右側 |
1 | ||
| 63220-30060 |
JZS171,173,175,179..SED..(ATH,ATHG,ATHV,ROY,ROYG) ﾌﾛﾝﾄ |
2 | ||
| 63248-30020 |
JZS171,173,175,179..SED..(ATH,ATHG,ATHV,ROY,ROYG) ﾘﾔ左側 |
1 | ||
| 63219A - GARNISH, SLIDING ROOF, REAR | ||||
| 63219-30080 |
JZS17#,UZS17#..A,ATH,ATHE,ATHG,ATHV,C,ROY,ROYG |
1 | ||
| 63221 - CASING, SLIDING ROOF CABLE GUIDE | ||||
| 63221-30100 |
JZS17#,UZS17#..A,ATH,ATHE,ATHG,ATHV,C,ROY,ROYG |
1 | ||
| 63223A - CABLE, SLIDING ROOF DRIVE, RH | ||||
| 63223-30060 |
JZS17#,UZS17#..A,ATH,ATHE,ATHG,ATHV,C,ROY,ROYG |
1 | ||
| 63224 - CABLE, SLIDING ROOF DRIVE, LH | ||||
| 63224-30060 |
JZS17#,UZS17#..A,ATH,ATHE,ATHG,ATHV,C,ROY,ROYG |
1 | ||
| 63233C - PANEL, SLIDING ROOF HOUSING | ||||
| 63233-30100 |
JZS17#,UZS17#..A,ATH,ATHE,ATHG,ATHV,C,ROY,ROYG |
1 | ||
| 63235D - FRAME, SLIDING ROOF HOUSING, CENTER | ||||
| 63235-30040 |
JZS17#,UZS17#..A,ATH,ATHE,ATHG,ATHV,C,ROY,ROYG |
1 | ||
| 63241B - BRACKET, SLIDING ROOF HOUSING, NO.1 | ||||
| 63241-30100 |
JZS171,173,175,179..SED..(ATH,ATHG,ATHV,ROY,ROYG) |
2 | ||
| 63245D - BRACKET, SLIDING ROOF HOUSING REAR MOUNTING, RH | ||||
| 63245-30100 |
JZS171,173,175,179..SED..(ATH,ATHG,ATHV,ROY,ROYG) |
2 | ||
| 63251H - WEATHERSTRIP, SLIDING ROOF | ||||
| 63251-30080 |
JZS17#,UZS17#..A,ATH,ATHE,ATHG,ATHV,C,ROY,ROYG |
1 | ||
| 63260A - GEAR SUB-ASSY, SLIDING ROOF DRIVE | ||||
| 63260-30090 |
JZS171,173,175,179..SED..(ATH,ATHG,ATHV,ROY,ROYG) |
1 | ||
| 63260-30090 |
JZS17#,UZS17#..SED..(A,ATH,ATHG,ATHV,C,ROY,ROYG) |
1 | ||
| 63260-30070 |
JZS17#,UZS17#..SED..(A,ATH,ATHG,ATHV,C,ROY,ROYG) |
1 | ||
| 63265B - GEAR, SLIDING ROOF DRIVE | ||||
| 63265-30020 |
JZS17#,UZS17#..A,ATH,ATHE,ATHG,ATHV,C,ROY,ROYG |
1 | ||
| 63603 - RAIL SUB-ASSY, SLIDING ROOF DRIVE, RH | ||||
| 63603-30100 |
JZS17#,UZS17#..A,ATH,ATHE,ATHG,ATHV,C,ROY,ROYG |
1 | ||
| 63604A - RAIL SUB-ASSY, SLIDING ROOF DRIVE, LH | ||||
| 63604-30030 |
JZS17#,UZS17#..A,ATH,ATHE,ATHG,ATHV,C,ROY,ROYG |
1 | ||
| 63625 - BLOCK, SLIDING ROOF GUIDE, RH | ||||
| 63625-30010 |
JZS17#,UZS17#..A,ATH,ATHE,ATHG,ATHV,C,ROY,ROYG |
1 | ||
| 63626 - BLOCK, SLIDING ROOF GUIDE, LH | ||||
| 63626-30010 |
JZS17#,UZS17#..A,ATH,ATHE,ATHG,ATHV,C,ROY,ROYG |
1 | ||
| 63635A - GARNISH, SLIDING ROOF, FRONT | ||||
| 63635-30060 |
JZS17#,UZS17#..A,ATH,ATHE,ATHG,ATHV,C,ROY,ROYG |
1 | ||
| 63669B - GROMMET, SLIDING ROOF DRAIN | ||||
| 63669-30010 |
JZS171,173,175,179..ATH,ATHE,ATHG,ATHV,ROY,ROYG |
2 | ||
| Common parts | ||||
| 90029-01006 | ||||
| 90029-01007 | ||||
| 90029-04001 | ||||
| 90029-04900 | ||||
| 90029-04902 | ||||
| 90119-06774 | ||||
| 90168-40079 | ||||
| 90179-06026 | ||||
| 90179-06069 | ||||
| 90179-06097 | ||||
| 90179-06276 | ||||
| 90467-14001 | ||||
| 90467-15012 | ||||
| 90469-09004 | ||||
| 90959-01335 | ||||
| 91511-60614 | ||||
| 93319-14012 | ||||
| 96160-00400 | ||||
| Linked diagrams | ||||
| 6402 | ||||
