JZS171-AEAXF (1999)

Toyota Crown/Crown Majesta

Production Sep 1999 - Aug 2001
Engine 1JZGE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9909- )GS171,JZS171..HTWC,TWC

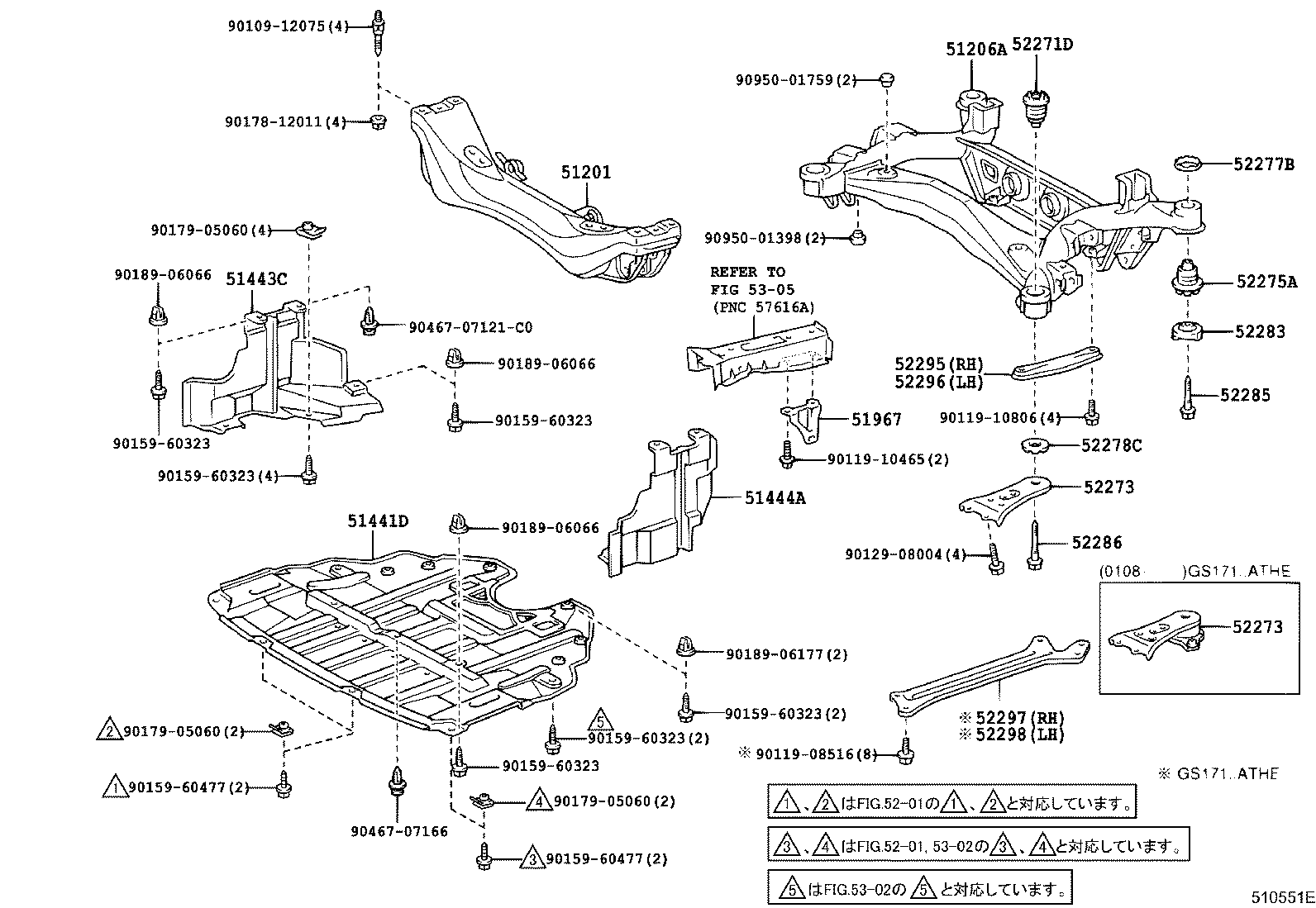

Click highlighted areas on diagram

diagram 51201 51206A 51441D 51443C 51444A 51967 52271D 52273 52273 52275A 52277B 52278C 52283 52285 52286 52295 52296 52297 52298 5305 9010912075 9011908516 9011910465 9011910806 9012908004 9015960323 9015960323 9015960323 9015960323 9015960323 9015960323 9015960477 9015960477 9017812011 9017905060 9017905060 9017905060 9018906066 9018906066 9018906066 9018906177 9046707121C0 9046707166 9095001398 9095001759
Part # Description Qty Price
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51201-51011

GS171,JZS171,175

 1
51206A - MEMBER SUB-ASSY, REAR SUSPENSION
51206-51030

GS171,JZS171,173,175,179

 1
51206-51020

GS171,JZS171,173,175,179

 1
51206-51021

GS171,JZS171,173,175,179

 1
51441D - COVER, ENGINE UNDER
51441-30290

GS171,JZS171..HTWC,TWC

 1
51443C - COVER, ENGINE UNDER, REAR RH
51443-51010

GS171,JZS171,175

 1
51444A - COVER, ENGINE UNDER, REAR LH
51444-51010

GS171,JZS171,175

 1
51967 - HOOK, TRANSPORT, REAR
51967-22070

GS171,JZS171,173,175,179

 1
52271D - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT
52271-51010

GS171,JZS171,173,175,179

 2
52273 - STOPPER, REAR SUSPENSION MEMBER, LOWER
52273-51010

GS171,JZS171,173,175,179

 2
52273 - STOPPER, REAR SUSPENSION MEMBER, LOWER
52273-51010

GS171,JZS171,173,175,179

 2
52275A - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR
52275-30090

JZS171,175..ATH,ATHE,ATHG,ATHV

 2
52277B - STOPPER, REAR SUSPENSION MEMBER, REAR UPPER
52277-30020

GS171,JZS171,173,175,179

 2
52278C - STOPPER, REAR SUSPENSION MEMBER, REAR LOWER
52278-51010

GS171,JZS171,173,175,179

 2
52283 - STOPPER, DIFFERENTIAL SUPPORT MEMBER, LOWER
52283-30050

GS171,JZS17#,UZS17#

 2
52285 - BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.1
52285-30021

GS171,JZS17#,UZS17#

 2
52286 - BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.2
52286-30010

GS171,JZS17#,UZS17#

 2
52295 - BRACE, REAR SUSPENSION MEMBER, RH
52295-50010

GS171,JZS171,173,175,179

 1
52296 - BRACE, REAR SUSPENSION MEMBER, LH
52295-50010

GS171,JZS171,173,175,179

 1
Common parts
90109-12075
90119-08516
90119-10465
90119-10806
90129-08004
90159-60323
90159-60477
90178-12011
90179-05060
90189-06066
90189-06177
90467-07121C0
90467-07166
90950-01398
90950-01759
Linked diagrams
5305
