JZS171-AEAXF (1999)
Toyota Crown/Crown Majesta

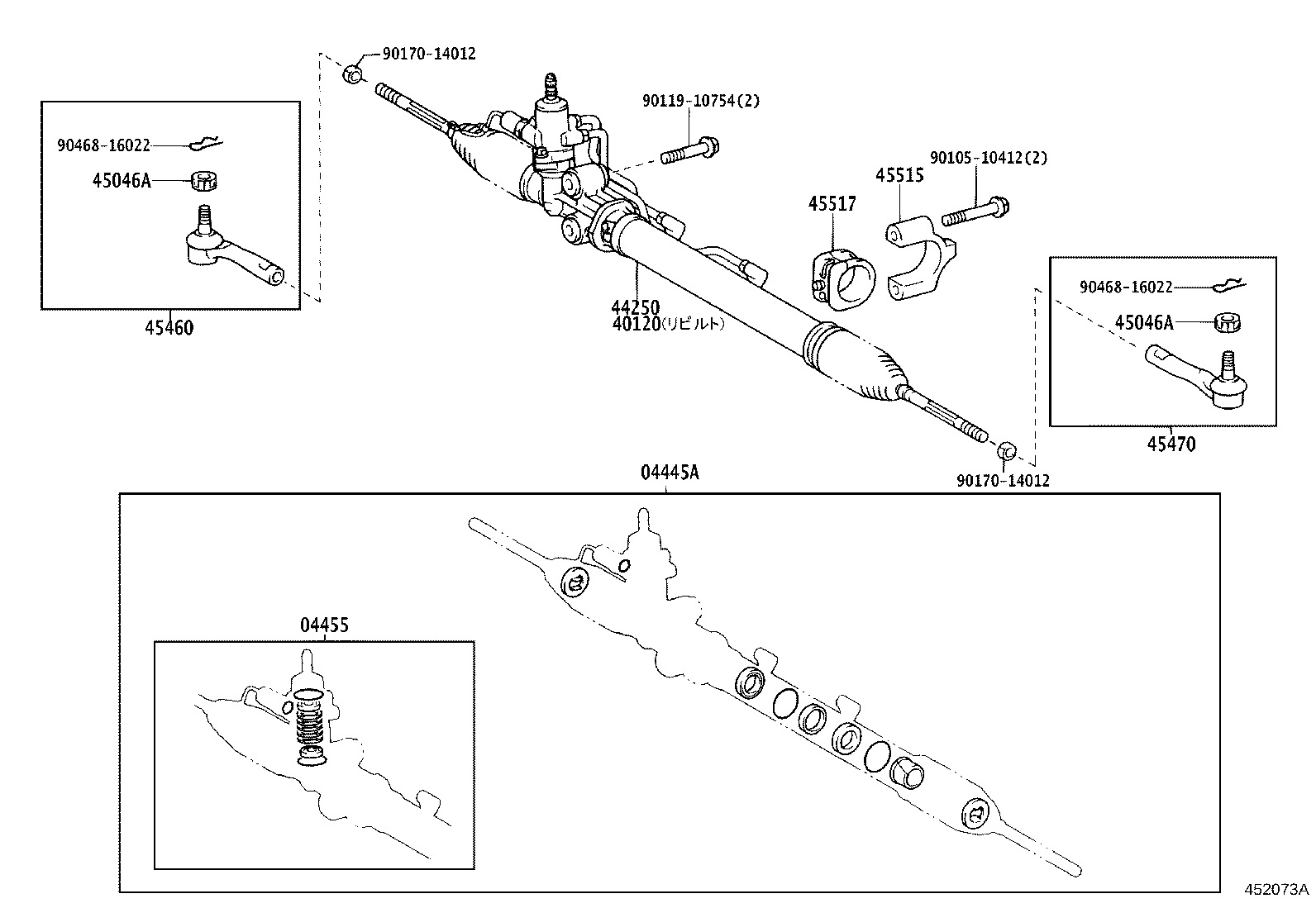

ILLUST NO. 1 OF 2(9909-0108)GS171,JZS171,175
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04445A - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION) | ||||
| 04445-51011 |
GS171,JZS171..HTWC,TWC |
1 | ||
| 04445-51010 |
GS171,JZS171..HTWC,TWC |
1 | ||
| 04455 - GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE | ||||
| 04455-51010 |
GS171,JZS171..HTWC,TWC |
1 | ||
| 40120 - GEAR ASSY,POWER STEERING,REBUILT | ||||
| 40120-30260 |
GS171,JZS171..HTWC,TWC TOYODA KOKI |
1 | ||
| 44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION) | ||||
| 44250-30260 |
GS171,JZS171..HTWC,TWC |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12002 |
GS171,JZS17#,UZS17# |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12002 |
GS171,JZS17#,UZS17# |
2 | ||
| 45460 - ROD ASSY, TIE, RH | ||||
| 45460-39575 |
GS171,JZS171,175 |
1 | ||
| 45470 - ROD ASSY, TIE, LH | ||||
| 45470-39205 |
GS171,JZS171,175 |
1 | ||
| 45515 - BRACKET, STEERING RACK HOUSING, NO.2 | ||||
| 45515-22120 |
GS171,JZS171,175 |
1 | ||
| 45517 - GROMMET, STEERING RACK HOUSING, NO.2 | ||||
| 45517-30020 |
GS171,JZS171,175 |
1 | ||
| Common parts | ||||
| 90105-10412 | ||||
| 90119-10754 | ||||
| 90170-14012 | ||||
| 90468-16022 | ||||

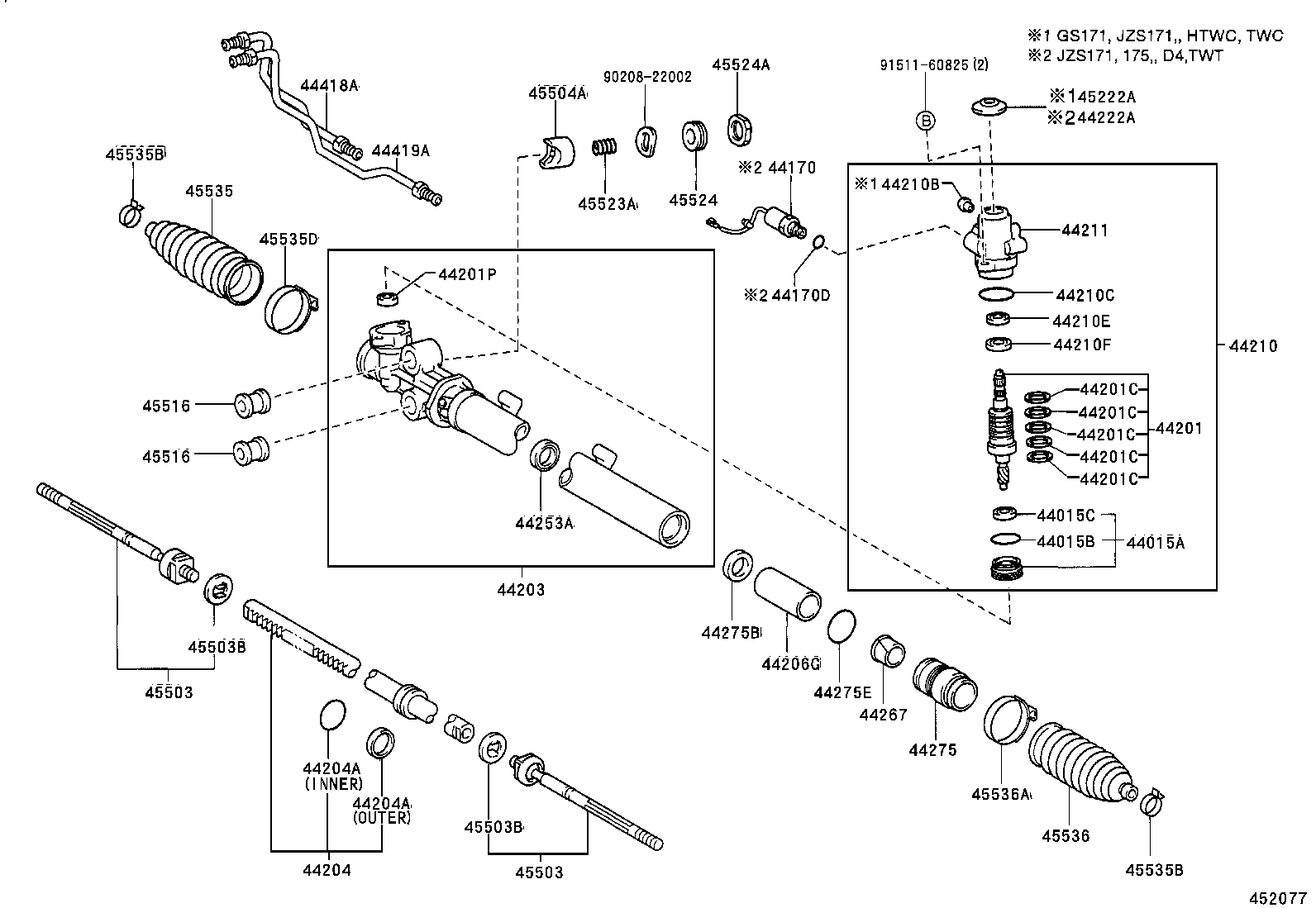

ILLUST NO. 2 OF 2(9909-0108)GS171,JZS171,175
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44015A - NUT SUB-ASSY, BEARING GUIDE | ||||
| 44015-43010 |
GS171,JZS171,173,175,179 |
1 | ||
| 44015B - RING, O(FOR BEARING GUIDE NUT) | ||||
| 90301-43002 |
GS171,JZS171,173,175,179 |
1 | ||
| 44015C - SEAL, OIL(FOR BEARING GUIDE NUT) | ||||
| 90310-25027 |
GS171,JZS171,173,175,179 |
1 | ||
| 44201 - VALVE SUB-ASSY, POWER STEERING CONTROL | ||||
| 44201-30180 |
GS171,JZS171..HTWC,TWC |
1 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33007 |
GS171,JZS171,UZS173..HTWC,TWC |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33007 |
GS171,JZS171,UZS173..HTWC,TWC |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33007 |
GS171,JZS171,UZS173..HTWC,TWC |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33007 |
GS171,JZS171,UZS173..HTWC,TWC |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33007 |
GS171,JZS171,UZS173..HTWC,TWC |
4 | ||
| 44201P - BEARING(FOR POWER STEERING CONTROL VALVE LOWER) | ||||
| 90364-13005 |
GS171,JZS171,173,175,179 |
1 | ||
| 44203 - HOUSING SUB-ASSY, POWER STEERING RACK | ||||
| 44203-30090 |
GS171,JZS171,175 |
1 | ||
| 44203-30091 |
GS171,JZS171,175 |
1 | ||
| 44204 - RACK SUB-ASSY, POWER STEERING | ||||
| 44204-30130 |
GS171,JZS171,175 |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90301-37007 |
GS171,JZS171,173,175,179,UZS173 内側 |
1 | ||
| 90562-41001 |
GS171,JZS171,173,175,179,UZS173 外側 |
1 | ||
| 90301-37009 |
GS171,JZS171,173,175,179,UZS173 内側 |
1 | ||
| 90562-41004 |
GS171,JZS171,173,175,179,UZS173 外側 |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90301-37007 |
GS171,JZS171,173,175,179,UZS173 内側 |
1 | ||
| 90562-41001 |
GS171,JZS171,173,175,179,UZS173 外側 |
1 | ||
| 90301-37009 |
GS171,JZS171,173,175,179,UZS173 内側 |
1 | ||
| 90562-41004 |
GS171,JZS171,173,175,179,UZS173 外側 |
1 | ||
| 44206G - SPACER, NO.1(FOR POWER STEERING CYLINDER TUBE) | ||||
| 90561-30004 |
GS171,JZS171,175 |
1 | ||
| 44210 - VALVE ASSY, POWER STEERING CONTROL | ||||
| 44210-30210 |
GS171,JZS171..HTWC,TWC |
1 | ||
| 44210B - SEAT, UNION(FOR POWER STEERING CONTROL VALVE) | ||||
| 90410-03008 |
GS171,JZS171..HTWC,TWC |
1 | ||
| 44210C - RING, O(FOR POWER STEERING CONTROL VALVE) | ||||
| 90301-51001 |
GS171,JZS171,173,175,179 |
1 | ||
| 44210E - SEAL, OIL(FOR POWER STEERING CONTROL VALVE) | ||||
| 90311-19013 |
GS171,JZS171,173,175,179,UZS173 |
1 | ||
| 44210F - BEARING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90363-19003 |
GS171,JZS171,173,175,179,UZS173 |
1 | ||
| 44211 - HOUSING, CONTROL VALVE | ||||
| 44211-60020 |
GS171,JZS171..HTWC,TWC |
1 | ||
| 44253A - SEAL, OIL(FOR POWER STEERING RACK HOUSING) | ||||
| 90310-26023 |
GS171,JZS171,173,175,179 |
1 | ||
| 44267 - GUIDE, RACK END | ||||
| 44267-22030 |
GS171,JZS171,173,175,179 |
1 | ||
| 44275 - STOPPER, CYLINDER END | ||||
| 44275-22020 |
GS171,JZS171,173,175,179 |
1 | ||
| 44275B - SEAL, OIL(FOR CYLINDER END STOPPER) | ||||
| 90310-26023 |
GS171,JZS171,173,175,179 |
1 | ||
| 44275E - RING, O(FOR RACK END GUIDE) | ||||
| 90301-40004 |
GS171,JZS171,173,175,179 |
1 | ||
| 44418A - TUBE, STEERING RIGHT TURN PRESSURE | ||||
| 44418-30060 |
GS171,JZS171..HTWC,TWC |
1 | ||
| 44419A - TUBE, STEERING LEFT TURN PRESSURE | ||||
| 44419-30060 |
GS171,JZS171..HTWC,TWC |
1 | ||
| 45222A - CLIP, DUST COVER | ||||
| 45222-32010 |
GS171,JZS171..HTWC,TWC |
1 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-29785 |
GS171,JZS171,175 |
2 | ||
| 45503-39105 |
GS171,JZS171,175 |
2 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-29785 |
GS171,JZS171,175 |
2 | ||
| 45503-39105 |
GS171,JZS171,175 |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-14002 |
GS171,JZS171,175 外径=37 |
2 | ||
| 90214-14007 |
GS171,JZS17#,UZS171,175 外径=38 |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-14002 |
GS171,JZS171,175 外径=37 |
2 | ||
| 90214-14007 |
GS171,JZS17#,UZS171,175 外径=38 |
2 | ||
| 45504A - GUIDE SUB-ASSY, RACK | ||||
| 45504-51010 |
GS171,JZS171,173,175,179 |
1 | ||
| 45516 - GROMMET, STEERING RACK HOUSING, NO.1 | ||||
| 45516-53010 |
GS171,JZS171,175..ATH,ATHE,ROY,ROYEX,ROYG |
2 | ||
| 45516 - GROMMET, STEERING RACK HOUSING, NO.1 | ||||
| 45516-53010 |
GS171,JZS171,175..ATH,ATHE,ROY,ROYEX,ROYG |
2 | ||
| 45523A - SPRING(FOR STEERING GEAR RACK GUIDE) | ||||
| 90501-30019 |
GS171,JZS171,173,175,179 |
1 | ||
| 45524 - CAP, STEERING RACK GUIDE SPRING | ||||
| 45524-20040 |
GS171,JZS171,173,175,179 |
1 | ||
| 45524A - NUT(FOR STEERING RACK GUIDE SPRING CAP) | ||||
| 90179-36002 |
GS171,JZS17#,UZS17# |
1 | ||
| 45535 - BOOT, STEERING RACK, NO.1 | ||||
| 45535-30010 |
GS171,JZS17#,UZS17# |
1 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-19012 |
GS171,JZS171,173,175,179 |
2 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-19012 |
GS171,JZS171,173,175,179 |
2 | ||
| 45535D - CLAMP(FOR STEERING RACK BOOT NO.1) | ||||
| 90460-49004 |
GS171,JZS171,173,175,179 |
1 | ||
| 45536 - BOOT, STEERING RACK, NO.2 | ||||
| 45535-30010 |
GS171,JZS171,173,175,179 |
1 | ||
| 45536A - CLAMP(FOR STEERING RACK BOOT NO.2) | ||||
| 90460-49004 |
GS171,JZS171,173,175,179 |
1 | ||
| Common parts | ||||
| 90208-22002 | ||||
| 91511-60825 | ||||
