JZS171-AEAXF (1999)

Toyota Crown/Crown Majesta

Production Sep 1999 - Aug 2001
Engine 1JZGE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9909- )JKS175,JZS171,175..5FC

Click highlighted areas on diagram

A650E

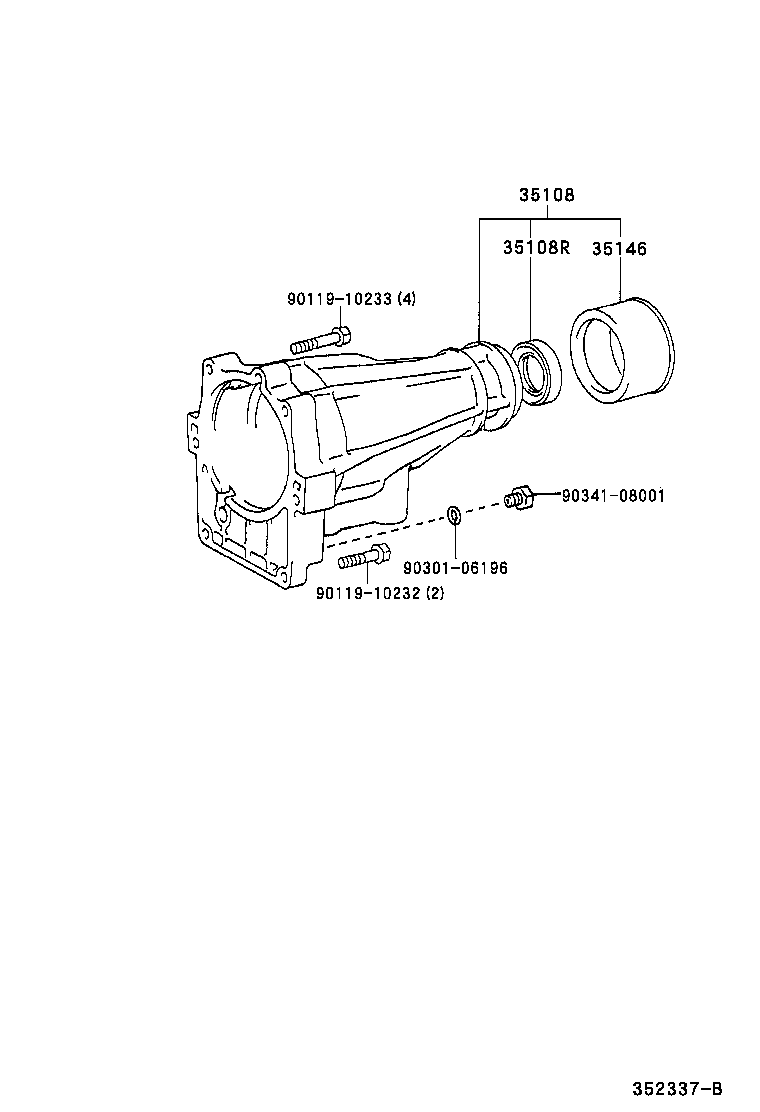

diagram 35108 35108R 35146 9011910232 9011910233 9030106196 9034108001
Part # Description Qty Price
35108 - HOUSING SUB-ASSY, EXTENSION (ATM)
35180-30040

JZS171,175..5FC

 1
35108R - SEAL, OIL (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSING
90311-40001

JZS171,175

 1
35146 - DEFLECTOR, EXTENSION HOUSING DUST (ATM)
33146-30020

GS171,JZS171,175

 1
Common parts
90119-10232
90119-10233
90301-06196
90341-08001
