JZS155-CTPZF (1995)

Toyota Crown/Crown Majesta

Production Aug 1995 - Sep 1999
Engine 2JZGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

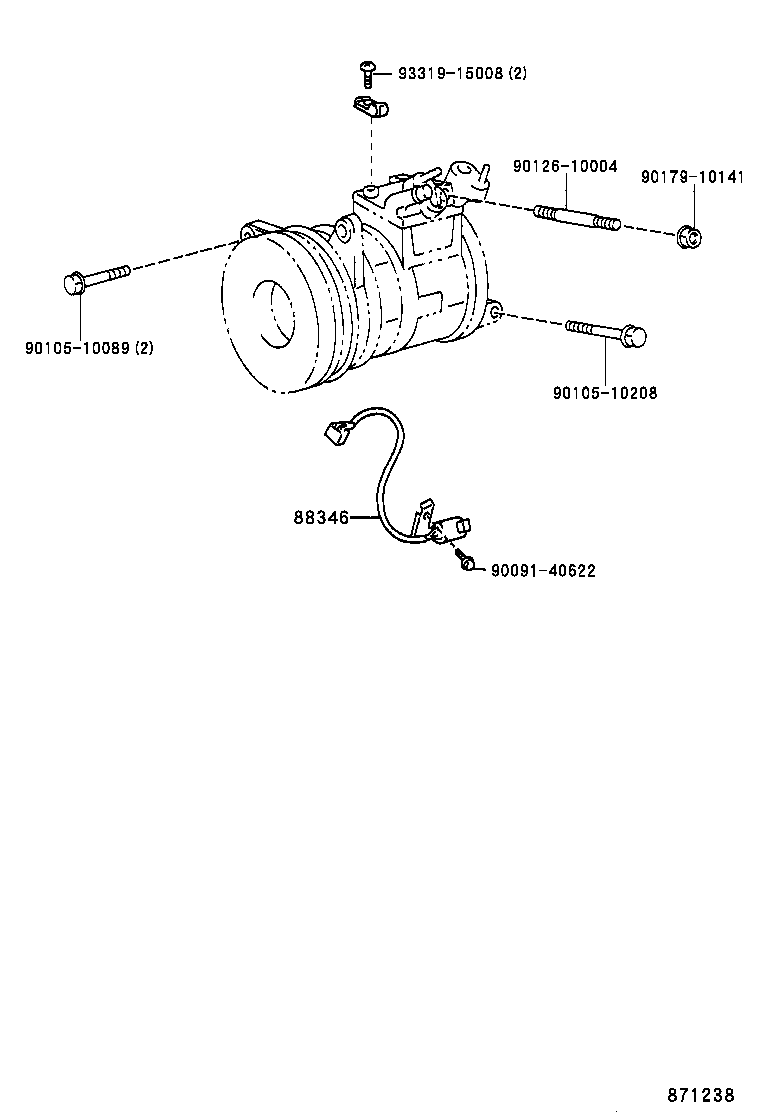

ILLUST NO. 2 OF 2(9508- )JZS15#

Click highlighted areas on diagram

ﾎﾞﾙﾄ

diagram 88346 9009140622 9010510089 9010510208 9012610004 9017910141 9331915008
Part # Description Qty Price
Common parts
90091-40622
90105-10089
90105-10208
90126-10004
90179-10141
93319-15008

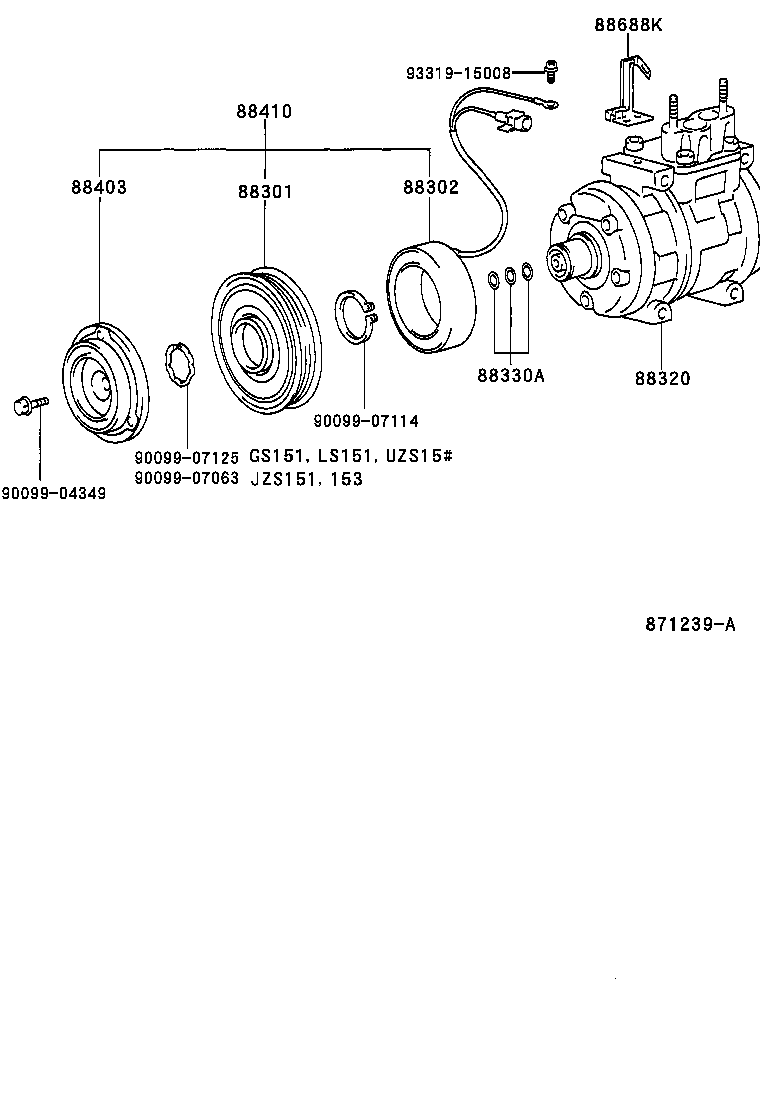

ILLUST NO. 1 OF 2(9508- )

Click highlighted areas on diagram

ｸ-ﾗ ｺﾝﾌﾟﾚﾂｻ & ﾏｸﾞﾈﾂﾄｸﾗﾂﾁ

diagram 88301 88302 88320 88330A 88403 88410 88688K 9009904349 9009907063 9009907114 9009907125 9331915008
Part # Description Qty Price
88301 - ROTOR SUB-ASSY, MAGNET CLUTCH
88412-3A020

JZS155,157;UZS151,157..5FC

 1
88302 - STATOR SUB-ASSY, MAGNET CLUTCH
88411-2A030

GS151,JZS15#,LS151

 1
88411-22310

GS151,JZS155,LS151..LPGTE,TDE,TWC

 1
88411-22310

GS151,JZS15#,LS151..LPGTE,TDE,TWC

 1
88320 - COMPRESSOR ASSY, COOLER
88320-30700

JZS155,157

 1
88330A - WASHER (FOR MAGNET CLUTCH)
88335-14020

GS151,JZS15#,LS151,UZS15#

 1
88403 - HUB SUB-ASSY, MAGNET CLUTCH
88403-16011

JZS155

 1
88403-16011

JZS15#

 1
88403-16011

JZS15#,UZS15#

 1
88410 - CLUTCH ASSY, MAGNET
88410-3A150

JZS155,157

 1
Common parts
90099-04349
90099-07063
90099-07114
90099-07125
93319-15008
