JZS155-CTPZF (1995)

Toyota Crown/Crown Majesta

Production Aug 1995 - Sep 1999
Engine 2JZGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9508- )JZS15#

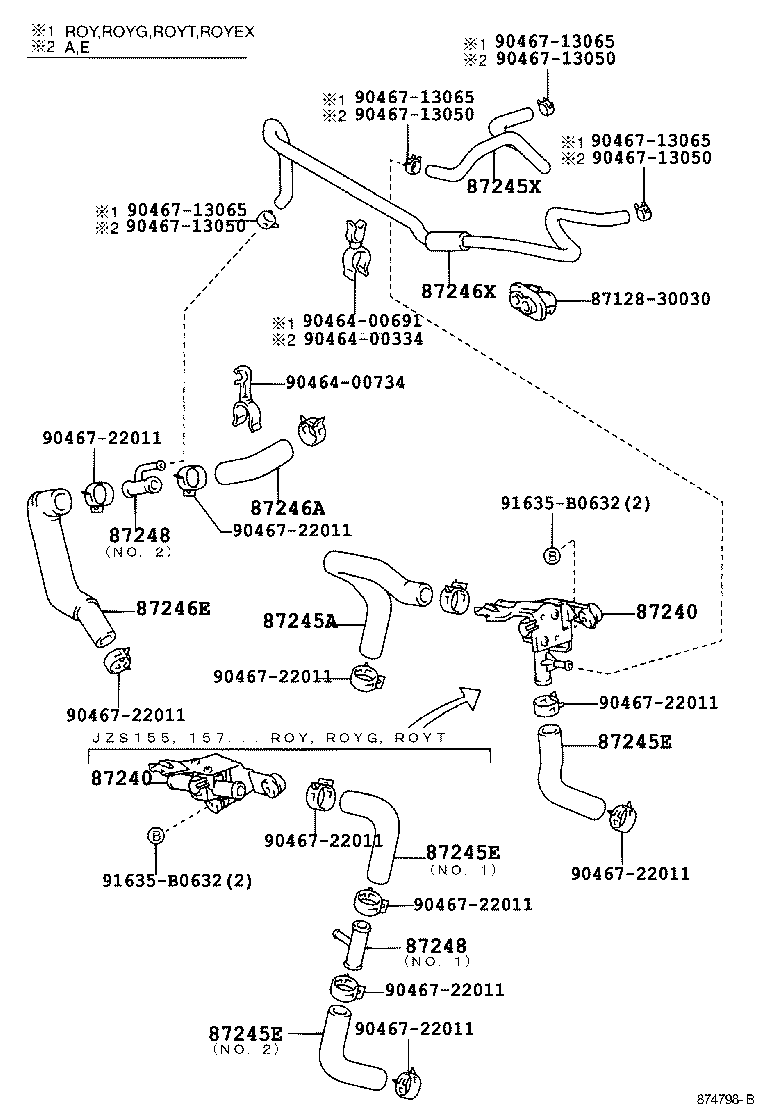

Click highlighted areas on diagram

ｱﾘ(ｵﾝｽｲﾊﾟﾈﾙ ﾋ-ﾀ)

diagram 8712830030 87240 87240 87245A 87245E 87245E 87245E 87245X 87246A 87246E 87246X 87248 87248 9046400334 9046400691 9046400734 9046713050 9046713050 9046713050 9046713050 9046713065 9046713065 9046713065 9046713065 9046722011 9046722011 9046722011 9046722011 9046722011 9046722011 9046722011 9046722011 9046722011 9046722011 91635B0632 91635B0632
Part # Description Qty Price
87240 - VALVE ASSY, HEATER WATER
87240-30690

JZS155..A,E

 1
87240 - VALVE ASSY, HEATER WATER
87240-30690

JZS155..A,E

 1
87245A - HOSE, HEATER WATER, INLET A
87245-3F250

JZS155..A,E

 1
87245E - HOSE, HEATER WATER, INLET E
87245-3F270

JZS155..A,E

 1
87245-3F300

JZS155..A,E

ｱﾘ(ｵﾝｽｲﾊﾟﾈﾙﾋ-ﾀ)

 1
87245E - HOSE, HEATER WATER, INLET E
87245-3F270

JZS155..A,E

 1
87245-3F300

JZS155..A,E

ｱﾘ(ｵﾝｽｲﾊﾟﾈﾙﾋ-ﾀ)

 1
87245E - HOSE, HEATER WATER, INLET E
87245-3F270

JZS155..A,E

 1
87245-3F300

JZS155..A,E

ｱﾘ(ｵﾝｽｲﾊﾟﾈﾙﾋ-ﾀ)

 1
87245X - HOSE, HEATER WATER
87242-30080

JZS155..A,E

ｱﾘ(ｵﾝｽｲﾊﾟﾈﾙﾋ-ﾀ)

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-3F090

JZS155..A,E

 1
87245-3F130

JZS155..A,E

ｱﾘ(ｵﾝｽｲﾊﾟﾈﾙﾋ-ﾀ)

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-3F140

JZS155..A,E

 1
87245-3F310

JZS155..A,E

ｱﾘ(ｵﾝｽｲﾊﾟﾈﾙﾋ-ﾀ)

 1
87246X - HOSE, HEATER WATER
87246-30290

JZS155..A,E

ｱﾘ(ｵﾝｽｲﾊﾟﾈﾙﾋ-ﾀ)

 1
87248 - PIPE SUB-ASSY, WATER
87248-30390

JZS15#

ｱﾘ(ｵﾝｽｲﾊﾟﾈﾙﾋ-ﾀ),NO.2

 1
87248-30410

JZS155..A,E

ｱﾘ(ｵﾝｽｲﾊﾟﾈﾙﾋ-ﾀ),NO.1

 1
87248 - PIPE SUB-ASSY, WATER
87248-30390

JZS15#

ｱﾘ(ｵﾝｽｲﾊﾟﾈﾙﾋ-ﾀ),NO.2

 1
87248-30410

JZS155..A,E

ｱﾘ(ｵﾝｽｲﾊﾟﾈﾙﾋ-ﾀ),NO.1

 1
Common parts
87128-30030
90464-00334
90464-00691
90464-00734
90467-13050
90467-13065
90467-22011
91635-B0632

(9508- )JZS15#

Click highlighted areas on diagram

ﾅｼ(ｵﾝｽｲﾊﾟﾈﾙ ﾋ-ﾀ)

diagram 87240 87240 87245A 87245E 87246A 9046400734 9046722011 9046722011 9046722011 9046722011 9046722011 9046722011 91635B0632 91635B0632
Part # Description Qty Price
87240 - VALVE ASSY, HEATER WATER
87240-30690

JZS155..A,E

 1
87240 - VALVE ASSY, HEATER WATER
87240-30690

JZS155..A,E

 1
87245A - HOSE, HEATER WATER, INLET A
87245-3F250

JZS155..A,E

 1
87245E - HOSE, HEATER WATER, INLET E
87245-3F270

JZS155..A,E

 1
87245-3F300

JZS155..A,E

ｱﾘ(ｵﾝｽｲﾊﾟﾈﾙﾋ-ﾀ)

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-3F090

JZS155..A,E

 1
87245-3F130

JZS155..A,E

ｱﾘ(ｵﾝｽｲﾊﾟﾈﾙﾋ-ﾀ)

 1
Common parts
90464-00734
90467-22011
91635-B0632
