JZS155-CTPZF (1995)

Toyota Crown/Crown Majesta

Production Aug 1995 - Sep 1999
Engine 2JZGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9508- )

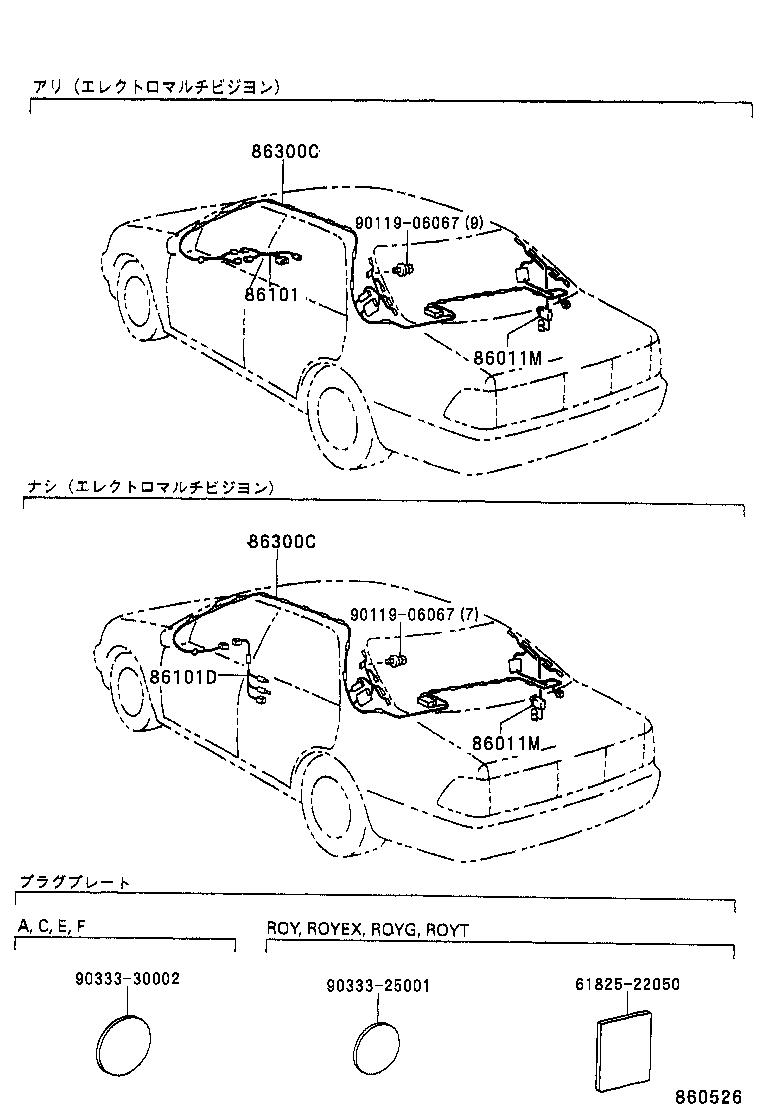

Click highlighted areas on diagram

diagram 6182522050 86011M 86011M 86101 86101D 86300C 86300C 9011906067 9011906067 9033325001 9033330002
Part # Description Qty Price
86011M - FILTER, NOISE
90980-05216

JZS155,UZS15#..A,C,E,F

 1
86011M - FILTER, NOISE
90980-05216

JZS155,UZS15#..A,C,E,F

 1
86101 - CORD SUB-ASSY, ANTENNA
86101-30560

JZS15#,LS151,UZS15#..A,C,E,F,ROY,ROYG,ROYT

 1
86101D - CORD SUB-ASSY, ANTENNA, NO.3
86101-30520

GS151,JZS15#,LS151,UZS15#

 1
86300C - ANTENNA ASSY, AMPLIFIER, NO.2
86300-30890

JZS155,UZS15#..A,C,E,F

ｱﾘ(GPSﾎﾞｲｽﾅﾋﾞｹﾞ-ｼﾖﾝﾂｷ ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ)

 1
86300-30600

JZS155,UZS15#..A,C,E,F

 1
86300-3A110

JZS155,UZS15#..A,C,E,F

ｱﾘ(GPSﾎﾞｲｽﾅﾋﾞｹﾞ-ｼﾖﾝﾂｷ ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ)

 1
86300C - ANTENNA ASSY, AMPLIFIER, NO.2
86300-30890

JZS155,UZS15#..A,C,E,F

ｱﾘ(GPSﾎﾞｲｽﾅﾋﾞｹﾞ-ｼﾖﾝﾂｷ ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ)

 1
86300-30600

JZS155,UZS15#..A,C,E,F

 1
86300-3A110

JZS155,UZS15#..A,C,E,F

ｱﾘ(GPSﾎﾞｲｽﾅﾋﾞｹﾞ-ｼﾖﾝﾂｷ ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ)

 1
Common parts
61825-22050
90119-06067
90333-25001
90333-30002
