JZS155-CTPZF (1995)
Toyota Crown/Crown Majesta

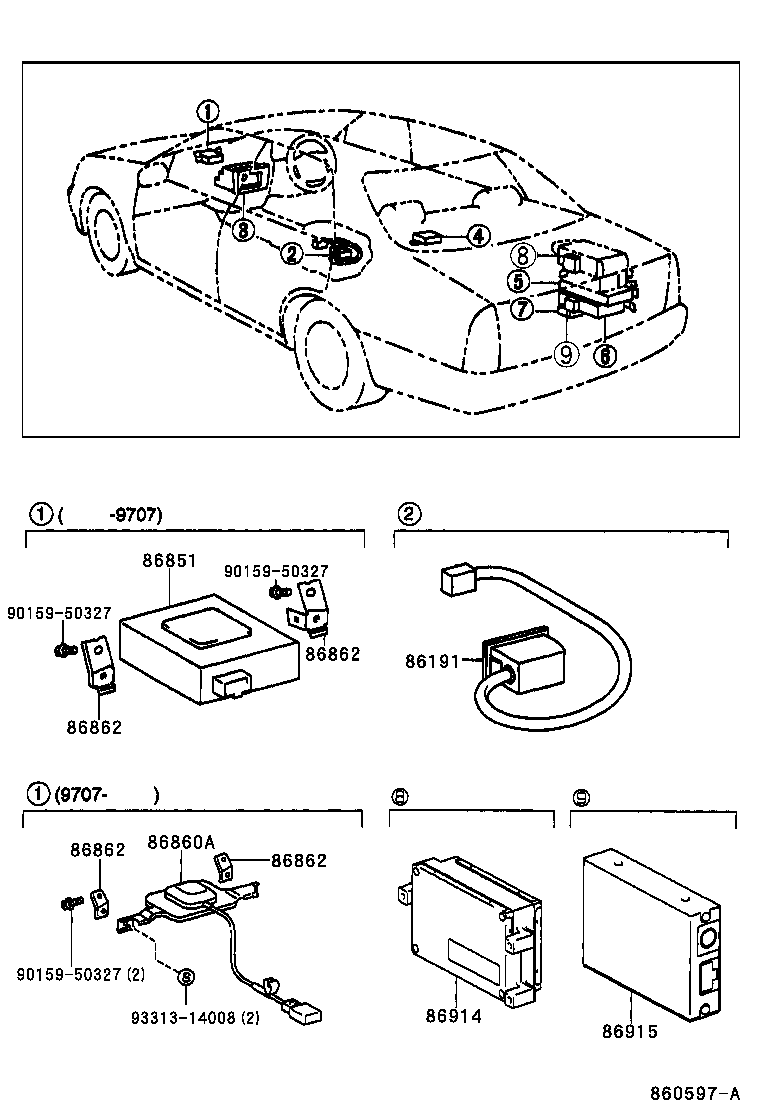

ILLUST NO. 1 OF 3(9508- )JZS15#,LS151,UZS15#..A,C,E,F,ROY,ROYG,ROYT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86191 - TERMINAL, VIDEO(VIDEO ADAPTER) | ||||
| 86191-50030 |
JZS15#,LS151,UZS15#..A,C,E,F,ROY,ROYG,ROYT |
1 | ||
| 86191-30050 |
JZS15#,LS151,UZS15#..A,C,E,F,ROY,ROYG,ROYT |
1 | ||
| 86851 - RECEIVER, NAVIGATION | ||||
| 86851-30020 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 86860A - ANTENNA, NAVIGATION | ||||
| 86861-30040 |
JZS15#,LS151,UZS15#..A,C,E,F,ROY,ROYG,ROYT |
1 | ||
| 86862 - BRACKET, NAVIGATION ANTENNA | ||||
| 86862-30010 |
JZS15#,LS151,UZS15#..A,C,E,F,ROY,ROYG,ROYT ｱﾘ(GPSﾎﾞｲｽﾅﾋﾞｹﾞ-ｼﾖﾝﾂｷ ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ) |
2 | ||
| 86862 - BRACKET, NAVIGATION ANTENNA | ||||
| 86862-30010 |
JZS15#,LS151,UZS15#..A,C,E,F,ROY,ROYG,ROYT ｱﾘ(GPSﾎﾞｲｽﾅﾋﾞｹﾞ-ｼﾖﾝﾂｷ ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ) |
2 | ||
| 86862 - BRACKET, NAVIGATION ANTENNA | ||||
| 86862-30010 |
JZS15#,LS151,UZS15#..A,C,E,F,ROY,ROYG,ROYT ｱﾘ(GPSﾎﾞｲｽﾅﾋﾞｹﾞ-ｼﾖﾝﾂｷ ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ) |
2 | ||
| 86862 - BRACKET, NAVIGATION ANTENNA | ||||
| 86862-30010 |
JZS15#,LS151,UZS15#..A,C,E,F,ROY,ROYG,ROYT ｱﾘ(GPSﾎﾞｲｽﾅﾋﾞｹﾞ-ｼﾖﾝﾂｷ ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ) |
2 | ||
| 86914 - RECEIVER, RADIO BEACON | ||||
| 86914-30010 |
JZS151,153,155,LS151,UZS15#..A,C,E,F,ROY,ROYG,ROYT |
1 | ||
| 86915 - TRANSCEIVER, OPTICAL BEACON | ||||
| 86915-30010 |
JZS151,153,155,LS151,UZS15#..A,C,E,F,ROY,ROYG,ROYT |
1 | ||
| Common parts | ||||
| 90159-50327 | ||||
| 93313-14008 | ||||

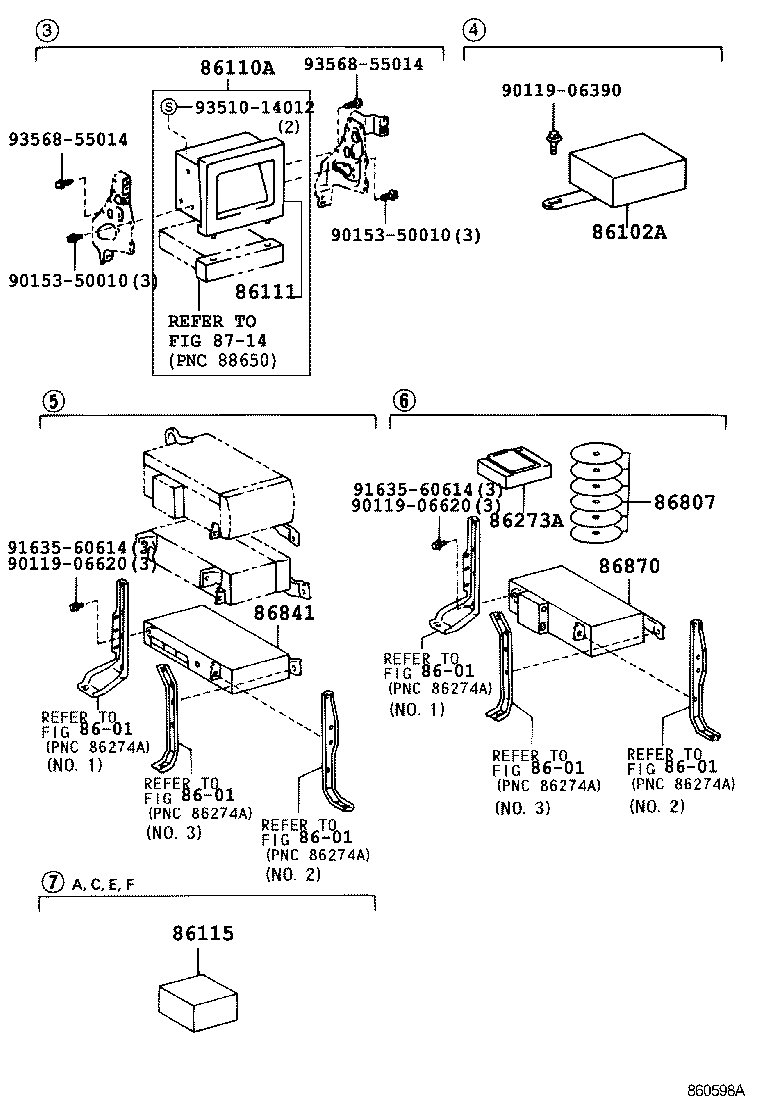

ILLUST NO. 2 OF 3(9508- )JZS15#,LS151,UZS15#..A,C,E,F,ROY,ROYG,ROYT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86102A - SELECTOR SUB-ASSY, ANTENNA | ||||
| 86102-30010 |
JZS15#,LS151,UZS15#..A,C,E,F,ROY,ROYG,ROYT |
1 | ||
| 86110A - CONTROLLER ASSY, MULTI-DISPLAY | ||||
| 86110-30141 |
JZS155,LS151,UZS15#..A,C,E,F,ROY,ROYG,ROYT ｱﾘ(GPSﾎﾞｲｽﾅﾋﾞｹﾞ-ｼﾖﾝﾂｷ ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ) |
1 | ||
| 86110-30220 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 86111 - MULTI-DISPLAY | ||||
| 86111-30120 |
JZS155,UZS15#..A,C,E,F DENSO |
1 | ||
| 86111-30190 |
JZS155,UZS15#..A,C,E,F DENSO |
1 | ||
| 86115 - TRAY, MULTI-DISPLAY COMPUTER | ||||
| 86115-30010 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 86273A - MAGAZINE, DISC PLAYER | ||||
| 86273-30020 |
JZS15#,LS151,UZS15#..A,C,E,F,ROY,ROYG,ROYT |
1 | ||
| 86807 - DISC KIT, CD-ROM | ||||
| 86807-30040 |
JZS15#,LS151,UZS15#..A,C,E,F,ROY,ROYG,ROYT |
1 | ||
| 86807-30070 |
JZS15#,LS151,UZS15#..A,C,E,F,ROY,ROYG,ROYT |
1 | ||
| 86807-30050 |
JZS15#,LS151,UZS15#..A,C,E,F,ROY,ROYG,ROYT |
1 | ||
| 86807-30041 |
JZS15#,LS151,UZS15#..A,C,E,F,ROY,ROYG,ROYT |
1 | ||
| 86807-30080 |
JZS15#,LS151,UZS15#..A,C,E,F,ROY,ROYG,ROYT |
1 | ||
| 86841 - COMPUTER, NAVIGATION | ||||
| 86841-30010 |
JZS15#,LS151,UZS15#..A,C,E,F,ROY,ROYG,ROYT |
1 | ||
| 86841-30011 |
JZS15#,LS151,UZS15#..A,C,E,F,ROY,ROYG,ROYT |
1 | ||
| 86841-30030 |
JZS15#,LS151,UZS15#..A,C,E,F,ROY,ROYG,ROYT |
1 | ||
| 86841-30031 |
JZS15#,LS151,UZS15#..A,C,E,F,ROY,ROYG,ROYT |
1 | ||
| 86841-30032 |
JZS15#,LS151,UZS15#..A,C,E,F,ROY,ROYG,ROYT |
1 | ||
| 86870 - PLAYER ASSY, CD-ROM | ||||
| 86871-30050 |
JZS15#,LS151,UZS15#..A,C,E,F,ROY,ROYG,ROYT |
1 | ||
| Common parts | ||||
| 90119-06390 | ||||
| 90119-06620 | ||||
| 90153-50010 | ||||
| 91635-60614 | ||||
| 93510-14012 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8601 | ||||
| 8714 | ||||

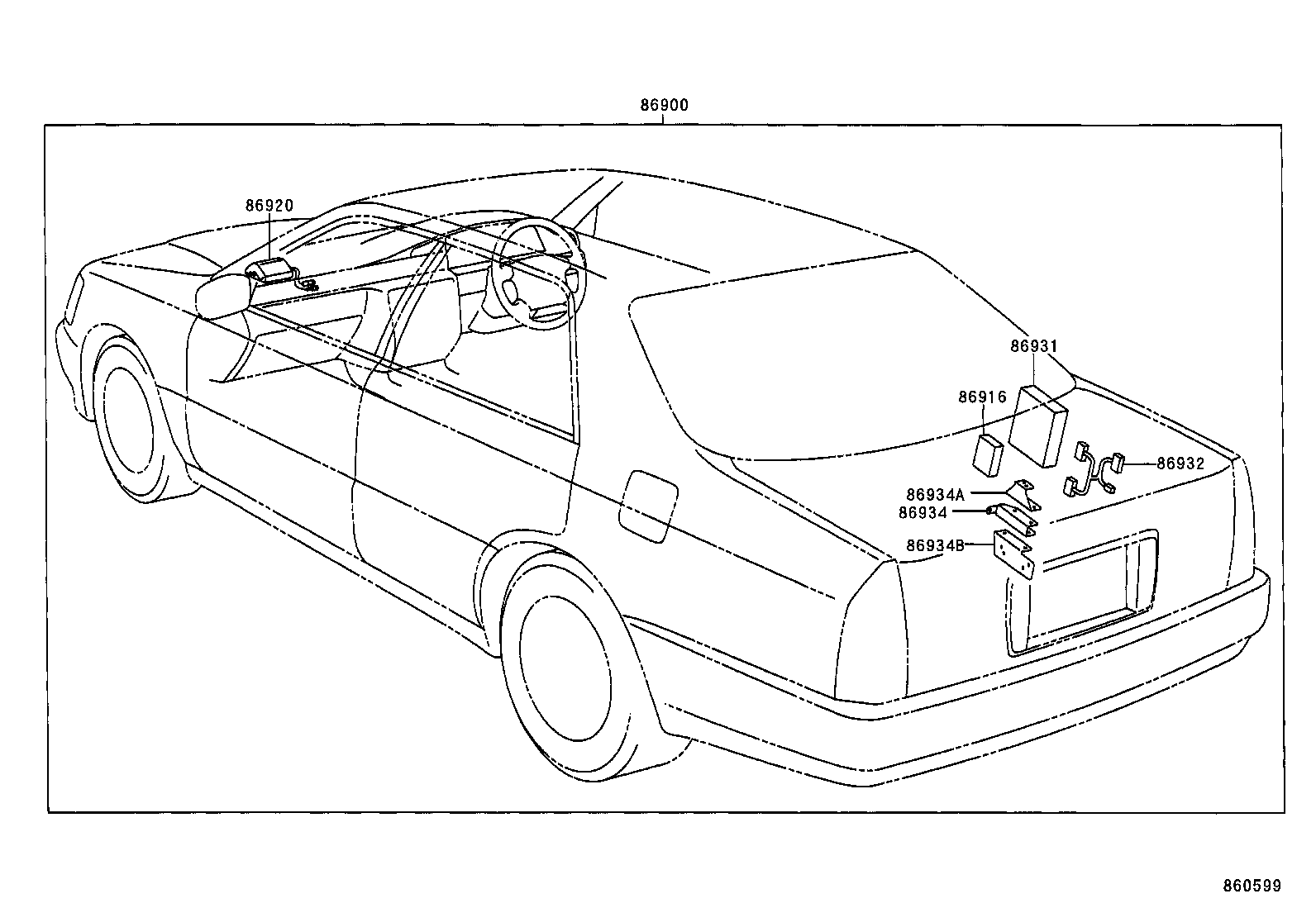

ILLUST NO. 3 OF 3(9604- )JZS15#,LS151,UZS15#..A,C,E,F,ROY,ROYG,ROYT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86900 - COMPUTER ASSY, TRAFFIC INFORMATION | ||||
| 86900-30020 |
JZS15#,LS151,UZS15#..A,C,E,F,ROY,ROYG,ROYT |
1 | ||
| 86916 - SEPARATOR, TRAFFIC INFORMATION FM | ||||
| 86916-30010 |
JZS15#,LS151,UZS15#..A,C,E,F,ROY,ROYG,ROYT |
1 | ||
| 86920 - ANTENNA ASSY, TRAFFIC INFORMATION | ||||
| 86920-30010 |
JZS15#,LS151,UZS15#..A,C,E,F,ROY,ROYG,ROYT |
1 | ||
| 86931 - COMPUTER, TRAFFIC INFORMATION | ||||
| 86931-30010 |
JZS15#,LS151,UZS15#..A,C,E,F,ROY,ROYG,ROYT |
1 | ||
| 86931-30020 |
JZS15#,LS151,UZS15#..A,C,E,F,ROY,ROYG,ROYT |
1 | ||
| 86932 - WIRE, TRAFFIC INFORMATION | ||||
| 86932-30020 |
JZS15#,LS151,UZS15#..A,C,E,F,ROY,ROYG,ROYT |
1 | ||
| 86934 - BRACKET, TRAFFIC INFORMATION, NO.1 | ||||
| 86934-30050 |
JZS15#,LS151,UZS15#..A,C,E,F,ROY,ROYG,ROYT |
1 | ||
| 86934A - BRACKET, TRAFFIC INFORMATION, NO.2 | ||||
| 86934-30060 |
JZS15#,LS151,UZS15#..A,C,E,F,ROY,ROYG,ROYT |
1 | ||
| 86934B - BRACKET, TRAFFIC INFORMATION, NO.3 | ||||
| 86934-30070 |
JZS15#,LS151,UZS15#..A,C,E,F,ROY,ROYG,ROYT |
1 | ||
