JZS155-CTPZF (1995)

Toyota Crown/Crown Majesta

Production Aug 1995 - Sep 1999
Engine 2JZGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9508- )JZS151,155,UZS15#

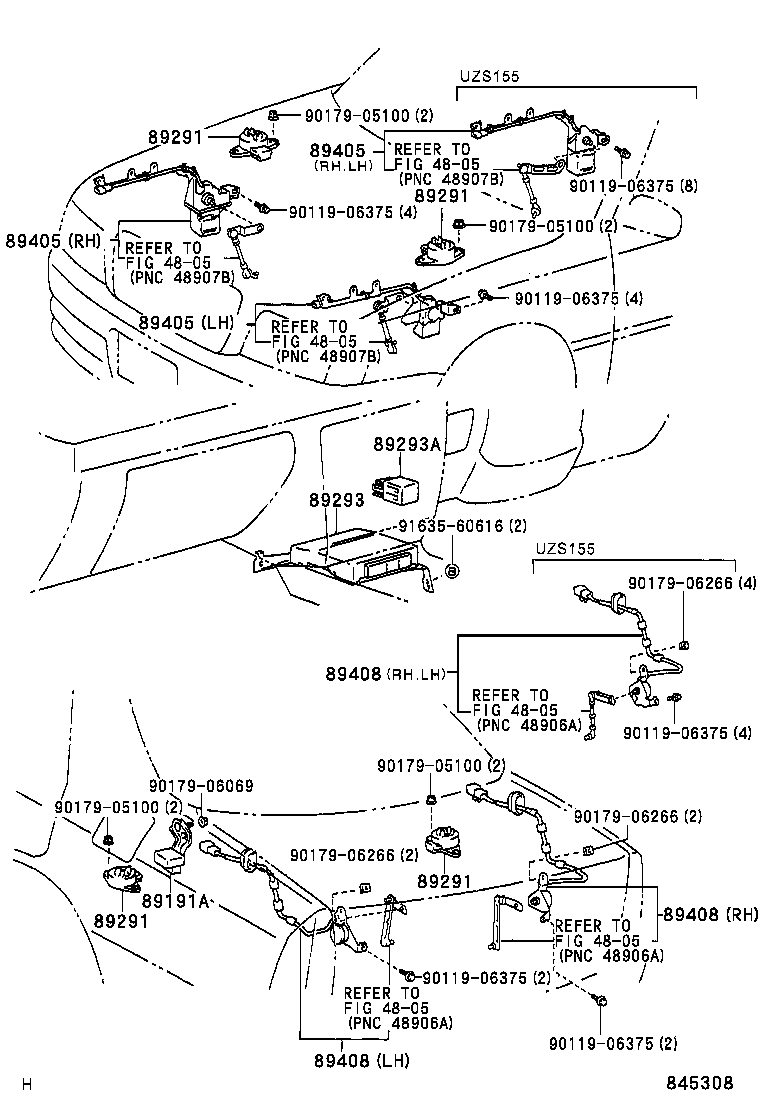

Click highlighted areas on diagram

diagram 4805 4805 4805 4805 4805 4805 89191A 89291 89291 89291 89291 89293 89293A 89405 89405 89405 89408 89408 89408 9011906375 9011906375 9011906375 9011906375 9011906375 9011906375 9017905100 9017905100 9017905100 9017905100 9017906069 9017906266 9017906266 9017906266 9163560616
Part # Description Qty Price
89191A - SENSOR, ACCELERATION
89191-30010

UZS151,155

 1
89291 - ACTUATOR, SUSPENSION CONTROL, FRONT
89291-50050

UZS151,155

 4
89291 - ACTUATOR, SUSPENSION CONTROL, FRONT
89291-50050

UZS151,155

 4
89291 - ACTUATOR, SUSPENSION CONTROL, FRONT
89291-50050

UZS151,155

 4
89291 - ACTUATOR, SUSPENSION CONTROL, FRONT
89291-50050

UZS151,155

 4
89293 - COMPUTER, SUSPENSION CONTROL
89293-30132

UZS151,155

DENSO

 1
89293-30142

UZS151,155

AISIN

 1
89293-30141

UZS151,155

AISIN

 1
89293-30150

UZS151,155

DENSO

 1
89293-30160

UZS151,155

AISIN

 1
89293-30131

UZS151,155

DENSO

 1
89293A - RELAY, SUSPENSION CONTROL
90987-02006

UZS151,155

 1
Common parts
90119-06375
90179-05100
90179-06069
90179-06266
91635-60616
Linked diagrams
4805
