JZS155-CTPZF (1995)
Toyota Crown/Crown Majesta
Production
Aug 1995
-
Sep 1999
Engine
2JZGE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9508- )JZS151,155,LS151,UZS15#

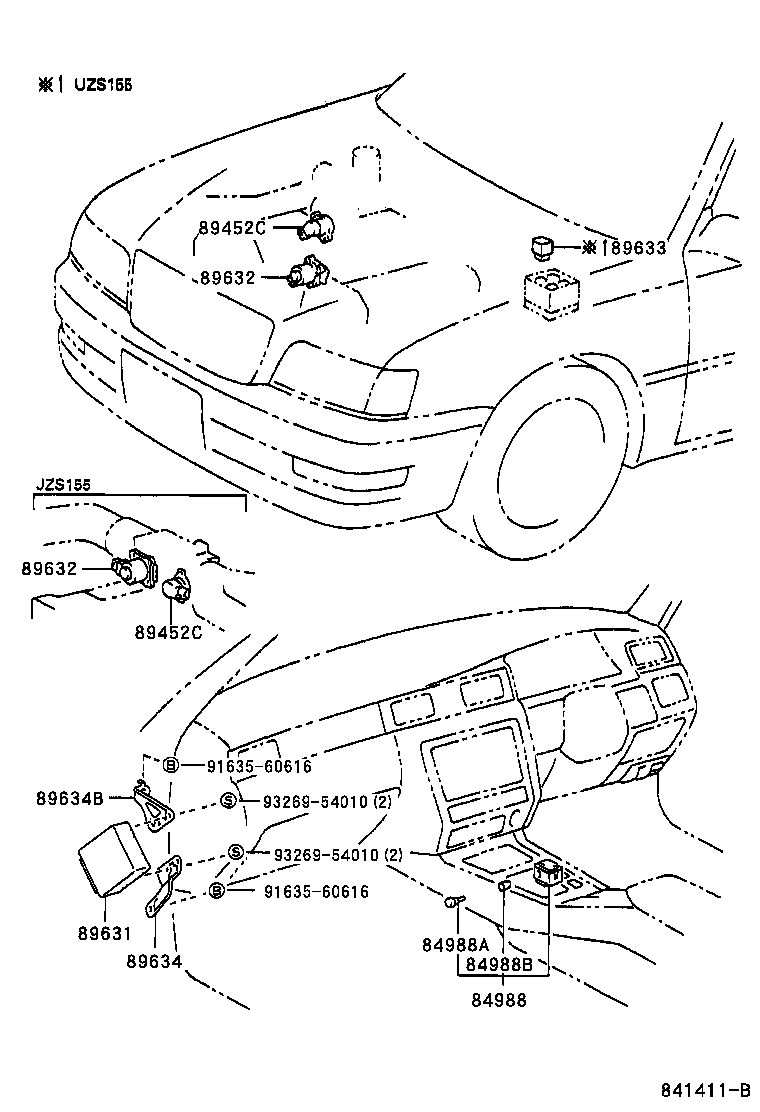

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84988 - SWITCH, TRACTION CONTROL | ||||
| 84988-22010 |
JZS151,155,LS151,UZS151,157 |
1 | ||
| 84988-22010 |
JZS151,155,LS151,UZS151,157..C,F,ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 84988-30060 |
JZS155..A,E |
1 | ||
| 84988A - BULB, TRACTION CONTROL SWITCH | ||||
| 84999-10310 |
JZS151,155,LS151,UZS151,157 14V 0.91W |
1 | ||
| 84988B - CAP, TRACTION CONTROL SWICH BULB | ||||
| 84998-10740 |
JZS151,155,LS151,UZS151,157 |
1 | ||
| 89452C - SENSOR, THROTTLE POSITION | ||||
| 89452-22090 |
JZS151,155 |
1 | ||
| 89452C - SENSOR, THROTTLE POSITION | ||||
| 89452-22090 |
JZS151,155 |
1 | ||
| 89631 - COMPUTER, TRACTION CONTROL | ||||
| 89630-30090 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 89632 - MOTOR, TRACTION THROTTLE VALVE | ||||
| 89632-50020 |
JZS155,UZS15# |
1 | ||
| 89632 - MOTOR, TRACTION THROTTLE VALVE | ||||
| 89632-50020 |
JZS155,UZS15# |
1 | ||
| Common parts | ||||
| 91635-60616 | ||||
| 93269-54010 | ||||
