JZS155-CTPZF (1995)
Toyota Crown/Crown Majesta
ILLUST NO. 7 OF 7(9508- )A,C,E,F
ﾘﾔﾄﾞｱ, ﾘﾔｼ-ﾄ & ﾗﾂｹﾞ-ｼﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82223F - WIRE, SWITCH | ||||
| 82223-30100 |
JZS155..SED..ROY;JZS155..HT..(E,ROY,ROYG);JZS151,LS151,UZS151,155..C,ROY ｱﾘ(ﾘﾔｼ-ﾄﾊﾟﾜ-ｱｼﾞﾔｽﾀ) |
1 | ||
| 82223-30110 |
UZS151,155;JZS151,153,155,LS151..SED..(ROY,ROYG) ｱﾘ(ﾘﾔｼ-ﾄﾋ-ﾀ) |
1 | ||
| 82223-30100 |
JZS155..HT..4FC;JZS155..SED..ROY;JZS151,LS151,UZS15#..C,F,ROY ｱﾘ(ﾘﾔｼ-ﾄﾊﾟﾜ-ｱｼﾞﾔｽﾀ) |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80211 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-30020 |
GS151,JZS15#,LS151,UZS15#..HTWC,TDE,TWC |
1 | ||
| 84030 - SWITCH ASSY,MULTIPLEX NETWORK | ||||
| 84030-30010 |
GS151,JZS15#,LS151,UZS15# |
3 | ||
| 84030 - SWITCH ASSY,MULTIPLEX NETWORK | ||||
| 84030-30010 |
GS151,JZS15#,LS151,UZS15# |
3 | ||
| 84170A - SWITCH ASSY, ROOM LAMP NO.1 | ||||
| 84170-30020B0 |
JZS155,UZS151,155..A,C,ROYG;GS151,JZS151,155,LS151..SED..(ROY,SALEX)..(HTWC,TDE,TWC) LT.BLUISH GRAY,TRIM1# |
2 | ||
| 84170-30020E0 |
JZS155,UZS151,155..A,C,ROYG;GS151,JZS151,155,LS151..SED..(ROY,SALEX)..(HTWC,TDE,TWC) QUARTZ,TRIM4# |
2 | ||
| 84170-30020E0 |
JZS155,UZS151,155..A,C,ROYG;GS151,JZS151,155,LS151..SED..(ROY,SALEX)..(HTWC,TDE,TWC) QUARTZ,TRIM4# |
2 | ||
| 84170A - SWITCH ASSY, ROOM LAMP NO.1 | ||||
| 84170-30020B0 |
JZS155,UZS151,155..A,C,ROYG;GS151,JZS151,155,LS151..SED..(ROY,SALEX)..(HTWC,TDE,TWC) LT.BLUISH GRAY,TRIM1# |
2 | ||
| 84170-30020E0 |
JZS155,UZS151,155..A,C,ROYG;GS151,JZS151,155,LS151..SED..(ROY,SALEX)..(HTWC,TDE,TWC) QUARTZ,TRIM4# |
2 | ||
| 84170-30020E0 |
JZS155,UZS151,155..A,C,ROYG;GS151,JZS151,155,LS151..SED..(ROY,SALEX)..(HTWC,TDE,TWC) QUARTZ,TRIM4# |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-17030 |
JZS155,UZS15#..A,C,E,F |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-17030 |
JZS155,UZS15#..A,C,E,F |
2 | ||
| 84236B - COVER, COURTESY LAMP SWITCH | ||||
| 84236-30010 |
JZS155,UZS15#..A,C,E,F |
2 | ||
| 84236B - COVER, COURTESY LAMP SWITCH | ||||
| 84236-30010 |
JZS155,UZS15#..A,C,E,F |
2 | ||
| 84660R - SWITCH, COOLER(REAR) | ||||
| 84660-30170 |
JZS153..SED..ROY;JZS151,155,157,UZS157..HT..(E,F,ROY) |
1 | ||
| 84660-30120 |
JZS155,UZS15#..A,C,E,F,ROYG ｱﾘ(ﾘﾔｵ-ﾄｴｱｺﾝ) |
1 | ||
| 84660R - SWITCH, COOLER(REAR) | ||||
| 84660-30170 |
JZS153..SED..ROY;JZS151,155,157,UZS157..HT..(E,F,ROY) |
1 | ||
| 84660-30120 |
JZS155,UZS15#..A,C,E,F,ROYG ｱﾘ(ﾘﾔｵ-ﾄｴｱｺﾝ) |
1 | ||
| 84751 - SWITCH, SEAT HEATER | ||||
| 84751-30120 |
UZS151,155;JZS151,153,155,LS151..SED..(ROY,ROYG) |
1 | ||
| 84923 - SWITCH, REAR POWER SEAT | ||||
| 84923-30120 |
JZS151,155,LS151..SED..ROY;JZS155,UZS151,155..HT..(C,ROYG) |
2 | ||
| 84923-30120 |
JZS151,155,LS151..SED..ROY;JZS155,UZS151,155..HT..(C,E,ROYG) |
2 | ||
| 84923-30090 |
UZS151,155;JZS151,153,155,LS151..SED..(ROY,ROYG) ｱﾘ(ﾘﾔｼ-ﾄﾋ-ﾀ) |
1 | ||
| 84923-30120 |
JZS151,155,LS151..HT..(E,ROY) ｱﾘ(ﾘﾔ ﾊﾟﾜ-ｼ-ﾄ) |
2 | ||
| 84923-30120 |
JZS157,UZS15#;JZS155..HT..(A,ROYG);JZS151,155,LS151..SED..ROY |
2 | ||
| 84923C - SWITCH, REAR POWER SEAT RETURN | ||||
| 84923-30200 |
JZS151,155,LS151,UZS151,155..C,E,ROY,ROYG |
1 | ||
| 84923-30200 |
JZS153..SED..ROY;JZS151,155,157,LS151,UZS15#..A,C,E,F,ROY,ROYG |
1 | ||
| 85530B - SOCKET ASSY, POWER OUTLET, REAR NO.1 | ||||
| 85530-30010 |
JZS151,155,LS151,UZS151,155..C,E,ROY,ROYG |
1 | ||
| 85530-30010 |
JZS153..SED..ROY;JZS151,155,157,LS151,UZS15#..A,C,E,F,ROY,ROYG |
1 | ||
| 85535C - COVER, POWER OUTLET SOCKET, REAR | ||||
| 85535-30010 |
JZS153..SED..ROY;JZS151,155,157,LS151,UZS15#..A,C,E,F,ROY,ROYG |
1 | ||
| 85535-30010 |
JZS151,155,LS151,UZS151,155..C,E,ROY,ROYG |
1 | ||
| 85870A - COMPUTER ASSY, VIBRATION SEAT | ||||
| 85870-50050 |
UZS151,155;JZS153..SED..ROY;JZS155..SED..ROYG |
1 | ||
| 89373 - SENSOR, LAMP FAILURE INDICATOR | ||||
| 89373-30210 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| Common parts | ||||
| 90119-06390 | ||||
| 90168-40048 | ||||
| 93313-16014 | ||||
| 93381-15010 | ||||
ILLUST NO. 2 OF 7(9508- )A,C,E,F
ｴﾝｼﾞﾝﾙ-ﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23289A - COVER, FUEL PUMP RESISTOR | ||||
| 23289-50020 |
2JZGE,1UZFE..JZS155,157,UZS15# |
1 | ||
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-46010 |
1G#,1JZGE,2JZGE,2LTE,1UZFE..GS151,JZS15#,LS151,UZS15# |
1 | ||
| 28380A - RESISTER, FUEL PUMP | ||||
| 23080-50040 |
2JZGE,1UZFE..JZS155,UZS151,157..A,C,E,F |
1 | ||
| 47993 - LABEL, BATTERY TERMINAL INSTALL NOTICE | ||||
| 47993-30020 |
JZS155,UZS15#..C,F,ROY,ROYG,ROYT |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-07011 |
GS151,JZS15#,LS151,UZS15# 30A,緑 |
1 | ||
| 90982-09011 |
GS151,JZS15#,LS151,UZS15# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09009 |
GS151,JZS15#,LS151,UZS15# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09013 |
GS151,JZS15#,LS151,UZS15# 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09008 |
GS151,JZS15#,LS151,UZS15# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09010 |
GS151,JZS15#,LS151,UZS15# 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09007 |
UZS151,157..4FC;GS151,JZS15#,LS151,UZS155 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-20010 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 82638 - RETAINER, RELAY BLOCK | ||||
| 82638-30010 |
GS151,JZS15#,LS151,UZS15# NO.1 & NO.2 |
2 | ||
| 82638-30020 |
GS151,JZS15#,LS151,UZS15# NO.3 |
1 | ||
| 82638 - RETAINER, RELAY BLOCK | ||||
| 82638-30010 |
GS151,JZS15#,LS151,UZS15# NO.1 & NO.2 |
2 | ||
| 82638-30020 |
GS151,JZS15#,LS151,UZS15# NO.3 |
1 | ||
| 82638 - RETAINER, RELAY BLOCK | ||||
| 82638-30010 |
GS151,JZS15#,LS151,UZS15# NO.1 & NO.2 |
2 | ||
| 82638-30020 |
GS151,JZS15#,LS151,UZS15# NO.3 |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-3A030 |
JZS155..A,E ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) |
1 | ||
| 82660-3A040 |
JZS155..A,E |
1 | ||
| 82660-3A050 |
JZS155..A,E |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-30430 |
JZS155,UZS15#..A,C,E,F 左側 |
1 | ||
| 82661-30440 |
JZS155,UZS15#..A,C,E,F 右側 |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-30430 |
JZS155,UZS15#..A,C,E,F 左側 |
1 | ||
| 82661-30440 |
JZS155,UZS15#..A,C,E,F 右側 |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-24032 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 82662-30400 |
GS151,JZS15#,LS151 |
1 | ||
| 82662C - COVER, RELAY BLOCK, UPPER, NO.3 | ||||
| 82662-30190 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-30110 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 82663B - COVER, RELAY BLOCK, LOWER, NO.3 | ||||
| 82663-30050 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 82666 - HOLDER, CONNECTOR | ||||
| 82666-30410 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 82683 - PLATE, FUSE BLOCK CAUTION | ||||
| 82683-30140 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 82683-30250 |
JZS155..A |
1 | ||
| 82683-30240 |
JZS155..E |
1 | ||
| 82740 - BLOCK ASSY, ENGINE ROOM RELAY | ||||
| 82740-30040 |
JZS155..A,E |
1 | ||
| 82740-30050 |
JZS155..A,E ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) |
1 | ||
| 82740-30051 |
JZS155..E |
1 | ||
| 82740-30200 |
JZS155..A |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-30010 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 83380A - SWITCH ASSY, PRESSURE | ||||
| 83380-24010 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 84220D - SWITCH ASSY, BRAKE DIFFERENTIAL VALVE | ||||
| 84220-24010 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02012 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 90987-02012 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 90987-02012 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 85915 - RELAY, MAIN | ||||
| 90987-04002 |
JZS151,155,LS151,UZS151,155 |
1 | ||
| 90987-04002 |
UZS151,155;GS151,JZS151,155,LS151..LPGTE,TDE,TWC |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02006 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 85916-30060 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-03003 |
JZS151,155,LS151 |
1 | ||
| 90987-03003 |
JZS151,155,LS151..A,E,ROY,ROYEX,ROYG,ROYT,SPDLX |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 86530-20070 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 88630G - RELAY ASSY, COOLER | ||||
| 90987-02012 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 89438 - SWITCH, POWER STEERING OIL PRESSURE | ||||
| 89438-30020 |
JZS155 |
1 | ||
| 89620 - IGNITER ASSY | ||||
| 89621-30020 |
JZS155..A,E TOYOTA |
1 | ||
| 89621-30020 |
JZS155 TOYOTA |
1 | ||
| 89621-30030 |
JZS155..A,E DENSO |
1 | ||
| 89621-30030 |
JZS155 DENSO |
1 | ||
| 89629 - BRACKET, IGNITER ASSY | ||||
| 89629-30210 |
JZS155..A,E |
2 | ||
| 89960 - COMPUTER ASSY, HEADLAMP LEVELING | ||||
| 89960-30020 |
JZS155,UZS157..A,F |
1 | ||
| 89960-30030 |
UZS151,155 |
1 | ||
| 89960-30021 |
JZS155,UZS157..A,F |
1 | ||
| 89960-30031 |
UZS151,155 |
1 | ||
| Common parts | ||||
| 82715-30330 | ||||
| 82715-30850 | ||||
| 90119-06005 | ||||
| 90119-06484 | ||||
| 90119-06573 | ||||
| 90179-06128 | ||||
| 91635-60620 | ||||
| Linked diagrams | ||||
| 4702 | ||||
| 8202 | ||||
| 8404 | ||||
| 8419 | ||||
| 8714 | ||||
ILLUST NO. 5 OF 7(9508- )
ｶｳﾙ LH, ｺﾝﾋﾞﾈ-ｼﾖﾝ & ﾌﾛｱ SW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82671A - BLOCK, JUNCTION | ||||
| 82671-30360 |
JZS15#,LS151,UZS15#..A,C,E,F,ROY,ROYG,ROYT ｱﾘ(ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ) |
1 | ||
| 82671-30330 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 82734A - BLOCK, CENTER JUNCTION | ||||
| 82734-30010 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01005 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-12070 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 84052-22040 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-30190 |
GS151,JZS15#,LS151,UZS15#..(A,C,E,F,ROY,ROYG,ROYT,SALEX)..(HTWC,TDE,TWC) ｱﾘ(ｺﾝﾗｲﾄ) |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-50130 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 84306-50150 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-3A740 |
JZS155,UZS157..E,F |
1 | ||
| 84310-3A730 |
JZS155..A |
1 | ||
| 84310-3A740 |
JZS155..E |
1 | ||
| 84310-3A730 |
JZS155..E ｱﾘ(*80) |
1 | ||
| 84310-3A850 |
UZS151,155 |
1 | ||
| 84310-3F010 |
JZS155..A,E |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-12200 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 84450-41010 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-30300 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 84727 - SWITCH, SHIFT LOCK CONTROL | ||||
| 84727-30070 |
GS151,JZS15#,LS151,UZS151,157..ATM |
1 | ||
| 84727-30090 |
JZS151,155,UZS157..F,ROYT |
1 | ||
| 84727-30070 |
GS151,JZS15#,LS151,UZS151..ATM..(A,C,E,ROY,ROYEX,ROYG,SALEX,SPDLX) |
1 | ||
| 85431 - SOLENOID, SHIFT LOCK | ||||
| 85431-30050 |
GS151,JZS15#,LS151,UZS15#..ATM |
1 | ||
| 85431-30070 |
GS151,JZS15#,LS151,UZS151..ATM..(A,C,E,ROY,ROYEX,ROYG,SALEX,SPDLX) |
1 | ||
| 85431-30050 |
GS151,JZS15#,LS151,UZS151,155..ATM..(A,C,E,ROY,ROYEX,ROYG,SALEX,SPDLX) |
1 | ||
| 85431-30060 |
JZS151,155,UZS157..F,ROYT |
1 | ||
| 85432 - SOLENOID, KEY INTER LOCK | ||||
| 85432-30040 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 85432-22030 |
GS151,JZS15#,LS151,UZS15#..ATM |
1 | ||
| 85933 - COMPUTER, SHIFT LOCK CONTROL | ||||
| 85933-30100 |
GS151,JZS15#,LS151,UZS151,157..ATM |
1 | ||
| 85933-30100 |
GS151,JZS15#,LS151,UZS151..ATM..(A,C,E,ROY,ROYEX,ROYG,SALEX,SPDLX) |
1 | ||
| 85933-30120 |
JZS151,155,UZS157..F,ROYT |
1 | ||
| 89235 - SWITCH, TILT STEERING | ||||
| 89235-50070 |
JZS155,UZS151,155..A,C,ROYG |
1 | ||
| 89235-50070 |
JZS155,UZS15#..A,C,F,ROYG |
1 | ||
| 89235-50070 |
JZS155,UZS15#..A,C,E,F,ROYG |
1 | ||
| Common parts | ||||
| 90149-40013 | ||||
| 90464-00551 | ||||
| 93319-13008 | ||||
| 93319-14012 | ||||
| 93319-15012 | ||||
| Linked diagrams | ||||
| 8615 | ||||
ILLUST NO. 4 OF 7(9508- )A,C,E,F
ｶｳﾙ RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-12070 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-07011 |
GS151,JZS15#,LS151,UZS15# 30A,緑 |
1 | ||
| 90982-09011 |
GS151,JZS15#,LS151,UZS15# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09009 |
GS151,JZS15#,LS151,UZS15# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09013 |
GS151,JZS15#,LS151,UZS15# 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09008 |
GS151,JZS15#,LS151,UZS15# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09010 |
GS151,JZS15#,LS151,UZS15# 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09007 |
UZS151,157..4FC;GS151,JZS15#,LS151,UZS155 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-30050 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-30020 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 82731 - BLOCK, DRIVER SIDE JUNCTION | ||||
| 82731-30010 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-32110 |
JZS151,153,155,UZS15#..A,C,E,F,ROY,ROYG,ROYT ｱﾘ(ｸﾙ-ｽﾞｺﾝﾄﾛ-ﾙ) |
1 | ||
| 84340-32090 |
GS151,JZS151,153,155,LS151..E,ROY,ROYEX,ROYT,SALEX,SPDLX |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-30070 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 84553 - COVER, PARKING BRAKE SWITCH | ||||
| 84553-30010 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02012 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 85916F - RELAY, CORNERING LAMP | ||||
| 90987-02012 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 85916N - RELAY, TAIL LAMP | ||||
| 90987-02012 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 85930 - RELAY ASSY, POWER WINDOW | ||||
| 90987-02012 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 89221 - COMPUTER, MULTIPLEX NETWORK BODY | ||||
| 89221-30040 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 89221-22110 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 89221-30010 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 89230 - COMPUTER ASSY, TILT STEERING | ||||
| 89230-30180 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 89230-30181 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 89230-30180 |
JZS155,UZS151,155..A,C |
1 | ||
| 89230-30250 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 89233 - SENSOR, TILT POSITION | ||||
| 89233-22010 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 89233-22010 |
JZS155,UZS151,155..A,C |
1 | ||
| 89234 - SENSOR, TELESCOPIC POSITION | ||||
| 89234-30040 |
JZS155,UZS151,155..A,C |
1 | ||
| 89234-30040 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-30530 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 89650-30490 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| Common parts | ||||
| 91635-60616 | ||||
| 93315-14012 | ||||
ILLUST NO. 3 OF 7(9508- )A,C,E,F
ｲﾝﾊﾟﾈ SW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84030 - SWITCH ASSY,MULTIPLEX NETWORK | ||||
| 84030-30010 |
GS151,JZS15#,LS151,UZS15# |
3 | ||
| 84040 - MASTER SWITCH ASSY,MULTIPLEX NETWORK | ||||
| 84040-30010 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 84040-30030 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-30130E0 |
JZS155,UZS15#..A,C,E,F QUARTZ,TRIM4# |
1 | ||
| 84119-30130B0 |
JZS155,UZS15#..A,C,E,F BLUE GRAY,TRIM1# |
1 | ||
| 84120 - SWITCH ASSY, HEAD UP DISPLAY | ||||
| 84120-30010E0 |
JZS155,UZS15#..A,C,E,F QUARTZ,TRIM4# |
1 | ||
| 84120-30010B0 |
JZS155,UZS15#..A,C,E,F BLUE GRAY,TRIM1# |
1 | ||
| 84162A - SWITCH, REAR FOG LAMP | ||||
| 84165-30010B0 |
JZS155,UZS15#..4FC..(A,C,E,F) ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),BLUE GRAY,TRIM1# |
1 | ||
| 84165-30010E0 |
JZS155,UZS15#..4FC..(A,C,E,F) ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),QUARTZ,TRIM4# |
1 | ||
| 84162C - BULB (FOR REAR FOG LAMP SWITCH) | ||||
| 84999-20120 |
JZS153..SALEX;JZS153,UZS151,157..HT..4FC;GS151,JZS151,155,LS151,UZS155 14V 0.7W,ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 84242 - SWITCH, GLOVE BOX LAMP | ||||
| 84242-20030 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-30270 |
GS151,JZS15#,LS151,UZS15#..HTWC,TDE,TWC |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10320 |
GS151,JZS15#,LS151,UZS15#..HTWC,TDE,TWC 14V 0.84W |
1 | ||
| 84840 - SWITCH ASSY, LUGGAGE COMPARTMENT DOOR OPENING | ||||
| 84840-30140B1 |
JZS155,UZS15#..A,C,E,F BLUE GRAY,TRIM1# |
1 | ||
| 84840-30140E0 |
JZS155,UZS15#..A,C,E,F QUARTZ,TRIM4# |
1 | ||
| 84840D - SWITCH ASSY, LUGGAGE DOOR OPENING | ||||
| 84840-30170 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 84841A - SWITCH, FUEL LID OPENER | ||||
| 84841-30040B1 |
JZS155,UZS15#..A,C,E,F BLUE GRAY,TRIM1# |
1 | ||
| 84841-30040E0 |
JZS155,UZS15#..A,C,E,F QUARTZ,TRIM4# |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-30210B0 |
JZS155,UZS15#..A,C,E,F ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ & ﾃﾞﾝﾄﾞｳｶｸﾉｳ ﾄﾞｱﾐﾗ-),BLUE GRAY,TRIM1# |
1 | ||
| 84870-30180E0 |
JZS155,UZS15#..A,C,E,F ｱﾘ(ﾃﾞﾝﾄﾞｳｶｸﾉｳ ﾄﾞｱﾐﾗ-),QUARTZ,TRIM4# |
1 | ||
| 84870-30180B0 |
JZS155,UZS15#..A,C,E,F ｱﾘ(ﾃﾞﾝﾄﾞｳｶｸﾉｳ ﾄﾞｱﾐﾗ-),BLUE GRAY,TRIM1# |
1 | ||
| 84870-30210E0 |
JZS155,UZS15#..A,C,E,F ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ & ﾃﾞﾝﾄﾞｳｶｸﾉｳ ﾄﾞｱﾐﾗ-),QUARTZ,TRIM4# |
1 | ||
| 84870-30350B1 |
JZS155,UZS15#..A,C,E,F BLUE GRAY,TRIM12 |
1 | ||
| 84870-30350E0 |
JZS155,UZS15#..A,C,E,F QUARTZ,TRIM42 |
1 | ||
| 84870-30340B0 |
JZS155,UZS15#..A,C,E,F ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),DK.BLUE GRAY,TRIM17,18 |
1 | ||
| 84870-30340E0 |
JZS155,UZS15#..A,C,E,F ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ & ﾋ-ﾀﾂｷ ﾃﾞﾝﾄﾞｳｶｸﾉｳ ﾄﾞｱﾐﾗ-),QUARTZ,TRIM4# |
1 | ||
| 84870-30350E1 |
JZS155,UZS15#..A,C,E,F ANTELOPE,TRIM43 |
1 | ||
| 84870-30350B0 |
JZS155,UZS15#..A,C,E,F DK.BLUE GRAY,TRIM17,18 |
1 | ||
| 84870-30340E1 |
JZS155,UZS15#..A,C,E,F ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),ANTELOPE,TRIM43 |
1 | ||
| 84870-30340B1 |
JZS155,UZS15#..A,C,E,F ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ & ﾋ-ﾀﾂｷ ﾃﾞﾝﾄﾞｳｶｸﾉｳ ﾄﾞｱﾐﾗ-),BLUE GRAY,TRIM1# |
1 | ||
| 84870-30340B1 |
JZS155,UZS15#..A,C,E,F ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),BLUE GRAY,TRIM12 |
1 | ||
| 84870-30350E0 |
JZS155,UZS15#..A,C,E,F ｱﾘ(ﾋ-ﾀﾂｷ ﾃﾞﾝﾄﾞｳｶｸﾉｳ ﾄﾞｱﾐﾗ-),QUARTZ,TRIM4# |
1 | ||
| 84870-30350B1 |
JZS155,UZS15#..A,C,E,F ｱﾘ(ﾋ-ﾀﾂｷ ﾃﾞﾝﾄﾞｳｶｸﾉｳ ﾄﾞｱﾐﾗ-),BLUE GRAY,TRIM1# |
1 | ||
| 84870-30340E0 |
JZS155,UZS15#..A,C,E,F ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),QUARTZ,TRIM42 |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-30210B0 |
JZS155,UZS15#..A,C,E,F ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ & ﾃﾞﾝﾄﾞｳｶｸﾉｳ ﾄﾞｱﾐﾗ-),BLUE GRAY,TRIM1# |
1 | ||
| 84870-30180E0 |
JZS155,UZS15#..A,C,E,F ｱﾘ(ﾃﾞﾝﾄﾞｳｶｸﾉｳ ﾄﾞｱﾐﾗ-),QUARTZ,TRIM4# |
1 | ||
| 84870-30180B0 |
JZS155,UZS15#..A,C,E,F ｱﾘ(ﾃﾞﾝﾄﾞｳｶｸﾉｳ ﾄﾞｱﾐﾗ-),BLUE GRAY,TRIM1# |
1 | ||
| 84870-30210E0 |
JZS155,UZS15#..A,C,E,F ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ & ﾃﾞﾝﾄﾞｳｶｸﾉｳ ﾄﾞｱﾐﾗ-),QUARTZ,TRIM4# |
1 | ||
| 84870-30350B1 |
JZS155,UZS15#..A,C,E,F BLUE GRAY,TRIM12 |
1 | ||
| 84870-30350E0 |
JZS155,UZS15#..A,C,E,F QUARTZ,TRIM42 |
1 | ||
| 84870-30340B0 |
JZS155,UZS15#..A,C,E,F ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),DK.BLUE GRAY,TRIM17,18 |
1 | ||
| 84870-30340E0 |
JZS155,UZS15#..A,C,E,F ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ & ﾋ-ﾀﾂｷ ﾃﾞﾝﾄﾞｳｶｸﾉｳ ﾄﾞｱﾐﾗ-),QUARTZ,TRIM4# |
1 | ||
| 84870-30350E1 |
JZS155,UZS15#..A,C,E,F ANTELOPE,TRIM43 |
1 | ||
| 84870-30350B0 |
JZS155,UZS15#..A,C,E,F DK.BLUE GRAY,TRIM17,18 |
1 | ||
| 84870-30340E1 |
JZS155,UZS15#..A,C,E,F ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),ANTELOPE,TRIM43 |
1 | ||
| 84870-30340B1 |
JZS155,UZS15#..A,C,E,F ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ & ﾋ-ﾀﾂｷ ﾃﾞﾝﾄﾞｳｶｸﾉｳ ﾄﾞｱﾐﾗ-),BLUE GRAY,TRIM1# |
1 | ||
| 84870-30340B1 |
JZS155,UZS15#..A,C,E,F ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),BLUE GRAY,TRIM12 |
1 | ||
| 84870-30350E0 |
JZS155,UZS15#..A,C,E,F ｱﾘ(ﾋ-ﾀﾂｷ ﾃﾞﾝﾄﾞｳｶｸﾉｳ ﾄﾞｱﾐﾗ-),QUARTZ,TRIM4# |
1 | ||
| 84870-30350B1 |
JZS155,UZS15#..A,C,E,F ｱﾘ(ﾋ-ﾀﾂｷ ﾃﾞﾝﾄﾞｳｶｸﾉｳ ﾄﾞｱﾐﾗ-),BLUE GRAY,TRIM1# |
1 | ||
| 84870-30340E0 |
JZS155,UZS15#..A,C,E,F ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),QUARTZ,TRIM42 |
1 | ||
| 84923C - SWITCH, REAR POWER SEAT RETURN | ||||
| 84923-30200 |
JZS151,155,LS151,UZS151,155..C,E,ROY,ROYG |
1 | ||
| 84923-30200 |
JZS153..SED..ROY;JZS151,155,157,LS151,UZS15#..A,C,E,F,ROY,ROYG |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-17040 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 84999-10250 |
GS151,JZS151,153,155,LS151,UZS15# 14V 1.4W |
1 | ||
| 85500F - CAP, CIGARETTE LIGHTER BULB | ||||
| 84998-10550 |
GS151,JZS151,153,155,LS151,UZS15# |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-28010 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 85515 - STAY, CIGARETTE LIGHTER BEZEL | ||||
| 85515-30040 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-20080 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| Common parts | ||||
| 90164-40103 | ||||
| 90468-04160 | ||||
ILLUST NO. 6 OF 7(9508- )A,C,E,F
ﾙ-ﾌ, ﾌﾛﾝﾄﾄﾞｱ, ﾌﾛﾝﾄｼ-ﾄ & ﾌﾛｱ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-30170 |
GS151,JZS15#,LS151,UZS15#..HT |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-30170 |
GS151,JZS15#,LS151,UZS15#..HT |
2 | ||
| 84742 - SWITCH, SLIDE ROOF LIMIT | ||||
| 84742-30030 |
JZS15#,LS151,UZS15#..HT..(A,C,F,ROY,ROYG,ROYT) |
1 | ||
| 84920C - SWITCH ASSY, POWER SEAT FRONT, RH | ||||
| 84920-30200B1 |
JZS155,UZS151,155..C,E BLUE GRAY,TRIM1# |
1 | ||
| 84920-30200B1 |
JZS155,UZS15#..A,C,E,F BLUE GRAY,TRIM1# |
1 | ||
| 84920-30200E0 |
JZS155,UZS15#..A,C,E,F QUARTZ,TRIM4# |
1 | ||
| 84920-30200B1 |
JZS155,UZS157..A,F BLUE GRAY,TRIM12 |
1 | ||
| 84920-30200B0 |
JZS155,UZS15#..A,C,E,F GRAY,TRIM1# |
1 | ||
| 84920D - SWITCH ASSY, POWER SEAT FRONT, LH | ||||
| 84920-30160B0 |
JZS151,155,LS151,UZS15#..A,C,E,F,ROY,ROYG BLUE GRAY,TRIM1# |
1 | ||
| 84920-30160E0 |
JZS151,155,LS151,UZS15#..A,C,E,F,ROY,ROYG,ROYT QUARTZ,TRIM4# |
1 | ||
| 84920-30160E0 |
JZS151,155,LS151,UZS15#..A,C,E,F,ROY,ROYG QUARTZ,TRIM4# |
1 | ||
| 84921C - KNOB, POWER SEAT SWITCH, RH | ||||
| 84921-24010B0 |
JZS155,UZS157..A,F GRAY,TRIM1#,NO.1 |
1 | ||
| 84921-24010B1 |
JZS155,UZS151,155..C,E BLUE GRAY,TRIM1#,NO.1 |
1 | ||
| 84921-24010B1 |
JZS155,UZS157..A,F BLUE GRAY,TRIM12,NO.1 |
1 | ||
| 84921-24030E0 |
JZS155,UZS15#..A,C,E,F QUARTZ,TRIM4#,NO.2 |
1 | ||
| 84921-24010E0 |
JZS155,UZS15#..A,C,E,F QUARTZ,TRIM4#,NO.1 |
1 | ||
| 84921-24030B1 |
JZS155,UZS157..A,F BLUE GRAY,TRIM12,NO.2 |
1 | ||
| 84921-24010B1 |
JZS155,UZS15#..A,C,E,F BLUE GRAY,TRIM1#,NO.1 |
1 | ||
| 84921-24030B0 |
JZS155,UZS157..A,F GRAY,TRIM1#,NO.2 |
1 | ||
| 84921-24030B1 |
JZS155,UZS151,155..C,E BLUE GRAY,TRIM1#,NO.2 |
1 | ||
| 84921-24030B1 |
JZS155,UZS15#..A,C,E,F BLUE GRAY,TRIM1#,NO.2 |
1 | ||
| 84921C - KNOB, POWER SEAT SWITCH, RH | ||||
| 84921-24010B0 |
JZS155,UZS157..A,F GRAY,TRIM1#,NO.1 |
1 | ||
| 84921-24010B1 |
JZS155,UZS151,155..C,E BLUE GRAY,TRIM1#,NO.1 |
1 | ||
| 84921-24010B1 |
JZS155,UZS157..A,F BLUE GRAY,TRIM12,NO.1 |
1 | ||
| 84921-24030E0 |
JZS155,UZS15#..A,C,E,F QUARTZ,TRIM4#,NO.2 |
1 | ||
| 84921-24010E0 |
JZS155,UZS15#..A,C,E,F QUARTZ,TRIM4#,NO.1 |
1 | ||
| 84921-24030B1 |
JZS155,UZS157..A,F BLUE GRAY,TRIM12,NO.2 |
1 | ||
| 84921-24010B1 |
JZS155,UZS15#..A,C,E,F BLUE GRAY,TRIM1#,NO.1 |
1 | ||
| 84921-24030B0 |
JZS155,UZS157..A,F GRAY,TRIM1#,NO.2 |
1 | ||
| 84921-24030B1 |
JZS155,UZS151,155..C,E BLUE GRAY,TRIM1#,NO.2 |
1 | ||
| 84921-24030B1 |
JZS155,UZS15#..A,C,E,F BLUE GRAY,TRIM1#,NO.2 |
1 | ||
| 84921C - KNOB, POWER SEAT SWITCH, RH | ||||
| 84921-24010B0 |
JZS155,UZS157..A,F GRAY,TRIM1#,NO.1 |
1 | ||
| 84921-24010B1 |
JZS155,UZS151,155..C,E BLUE GRAY,TRIM1#,NO.1 |
1 | ||
| 84921-24010B1 |
JZS155,UZS157..A,F BLUE GRAY,TRIM12,NO.1 |
1 | ||
| 84921-24030E0 |
JZS155,UZS15#..A,C,E,F QUARTZ,TRIM4#,NO.2 |
1 | ||
| 84921-24010E0 |
JZS155,UZS15#..A,C,E,F QUARTZ,TRIM4#,NO.1 |
1 | ||
| 84921-24030B1 |
JZS155,UZS157..A,F BLUE GRAY,TRIM12,NO.2 |
1 | ||
| 84921-24010B1 |
JZS155,UZS15#..A,C,E,F BLUE GRAY,TRIM1#,NO.1 |
1 | ||
| 84921-24030B0 |
JZS155,UZS157..A,F GRAY,TRIM1#,NO.2 |
1 | ||
| 84921-24030B1 |
JZS155,UZS151,155..C,E BLUE GRAY,TRIM1#,NO.2 |
1 | ||
| 84921-24030B1 |
JZS155,UZS15#..A,C,E,F BLUE GRAY,TRIM1#,NO.2 |
1 | ||
| 84921C - KNOB, POWER SEAT SWITCH, RH | ||||
| 84921-24010B0 |
JZS155,UZS157..A,F GRAY,TRIM1#,NO.1 |
1 | ||
| 84921-24010B1 |
JZS155,UZS151,155..C,E BLUE GRAY,TRIM1#,NO.1 |
1 | ||
| 84921-24010B1 |
JZS155,UZS157..A,F BLUE GRAY,TRIM12,NO.1 |
1 | ||
| 84921-24030E0 |
JZS155,UZS15#..A,C,E,F QUARTZ,TRIM4#,NO.2 |
1 | ||
| 84921-24010E0 |
JZS155,UZS15#..A,C,E,F QUARTZ,TRIM4#,NO.1 |
1 | ||
| 84921-24030B1 |
JZS155,UZS157..A,F BLUE GRAY,TRIM12,NO.2 |
1 | ||
| 84921-24010B1 |
JZS155,UZS15#..A,C,E,F BLUE GRAY,TRIM1#,NO.1 |
1 | ||
| 84921-24030B0 |
JZS155,UZS157..A,F GRAY,TRIM1#,NO.2 |
1 | ||
| 84921-24030B1 |
JZS155,UZS151,155..C,E BLUE GRAY,TRIM1#,NO.2 |
1 | ||
| 84921-24030B1 |
JZS155,UZS15#..A,C,E,F BLUE GRAY,TRIM1#,NO.2 |
1 | ||
| 84921D - KNOB, POWER SEAT SWITCH, LH | ||||
| 84921-24020B1 |
JZS155,UZS15#..A,C,E,F BLUE GRAY,TRIM1#,NO.1 |
1 | ||
| 84921-24020B1 |
JZS155,UZS151,157..A,C,F BLUE GRAY,TRIM12,NO.1 |
1 | ||
| 84921-24040B1 |
JZS155,UZS155..C,E BLUE GRAY,TRIM1#,NO.2 |
1 | ||
| 84921-24020B1 |
JZS155,UZS155..C,E BLUE GRAY,TRIM1#,NO.1 |
1 | ||
| 84921-24040B0 |
JZS155,UZS157..A,F GRAY,TRIM1#,NO.2 |
1 | ||
| 84921-24040B1 |
JZS155,UZS151,157..A,C,F BLUE GRAY,TRIM12,NO.2 |
1 | ||
| 84921-24020B1 |
JZS155,UZS157..A,F BLUE GRAY,TRIM12 |
1 | ||
| 84921-24020E0 |
JZS155,UZS15#..A,C,E,F QUARTZ,TRIM4#,NO.1 |
1 | ||
| 84921-24040B1 |
JZS155,UZS15#..A,C,E,F BLUE GRAY,TRIM1#,NO.2 |
1 | ||
| 84921-24020B1 |
JZS155,UZS151,155..C,E BLUE GRAY,TRIM1#,NO.1 |
1 | ||
| 84921-24040B1 |
JZS155,UZS151,155..C,E BLUE GRAY,TRIM1#,NO.2 |
1 | ||
| 84921-24040E0 |
JZS155,UZS15#..A,C,E,F QUARTZ,TRIM4#,NO.2 |
1 | ||
| 84921-24020B0 |
JZS155,UZS157..A,F GRAY,TRIM1#,NO.1 |
1 | ||
| 84921-24040B1 |
JZS155,UZS157..A,F BLUE GRAY,TRIM12,NO.2 |
1 | ||
| 84921D - KNOB, POWER SEAT SWITCH, LH | ||||
| 84921-24020B1 |
JZS155,UZS151,157..A,C,F BLUE GRAY,TRIM12,NO.1 |
1 | ||
| 84921-24040B1 |
JZS155,UZS155..C,E BLUE GRAY,TRIM1#,NO.2 |
1 | ||
| 84921-24020B1 |
JZS155,UZS155..C,E BLUE GRAY,TRIM1#,NO.1 |
1 | ||
| 84921-24040B0 |
JZS155,UZS157..A,F GRAY,TRIM1#,NO.2 |
1 | ||
| 84921-24040B1 |
JZS155,UZS151,157..A,C,F BLUE GRAY,TRIM12,NO.2 |
1 | ||
| 84921-24020B1 |
JZS155,UZS157..A,F BLUE GRAY,TRIM12 |
1 | ||
| 84921-24020E0 |
JZS155,UZS15#..A,C,E,F QUARTZ,TRIM4#,NO.1 |
1 | ||
| 84921-24040B1 |
JZS155,UZS15#..A,C,E,F BLUE GRAY,TRIM1#,NO.2 |
1 | ||
| 84921-24020B1 |
JZS155,UZS15#..A,C,E,F BLUE GRAY,TRIM1#,NO.1 |
1 | ||
| 84921-24020B1 |
JZS155,UZS151,155..C,E BLUE GRAY,TRIM1#,NO.1 |
1 | ||
| 84921-24040B1 |
JZS155,UZS151,155..C,E BLUE GRAY,TRIM1#,NO.2 |
1 | ||
| 84921-24040E0 |
JZS155,UZS15#..A,C,E,F QUARTZ,TRIM4#,NO.2 |
1 | ||
| 84921-24020B0 |
JZS155,UZS157..A,F GRAY,TRIM1#,NO.1 |
1 | ||
| 84921-24040B1 |
JZS155,UZS157..A,F BLUE GRAY,TRIM12,NO.2 |
1 | ||
| 84922 - SWITCH, FRONT POWER SEAT | ||||
| 84922-30150 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 84922 - SWITCH, FRONT POWER SEAT | ||||
| 84922-30150 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 84922 - SWITCH, FRONT POWER SEAT | ||||
| 84922-30150 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 84922C - SWITCH, FRONT POWER SEAT, LH | ||||
| 84922-30180 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 84931B - SWITCH, DOOR CONTROL | ||||
| 84931-30060 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 85921 - RELAY, SLIDING ROOF CONTROL | ||||
| 85921-30050 |
JZS15#,LS151,UZS15#..HT..(A,C,F,ROY,ROYG,ROYT) |
1 | ||
| 89276 - SWITCH, HEIGHT CONTROL | ||||
| 89276-30010 |
UZS151,155 |
1 | ||
| 89276A - COLOR CAP (FOR HEIGHT CONTROL SWITCH BULB) | ||||
| 84998-10670 |
UZS151,155 |
1 | ||
| 89276B - BULB (FOR HEIGHT CONTROL SWITCH) | ||||
| 84999-10820 |
UZS151,155 |
1 | ||
| Common parts | ||||
| 90119-06390 | ||||
| 90119-06746 | ||||
| 90159-40159 | ||||
| 90168-40043 | ||||

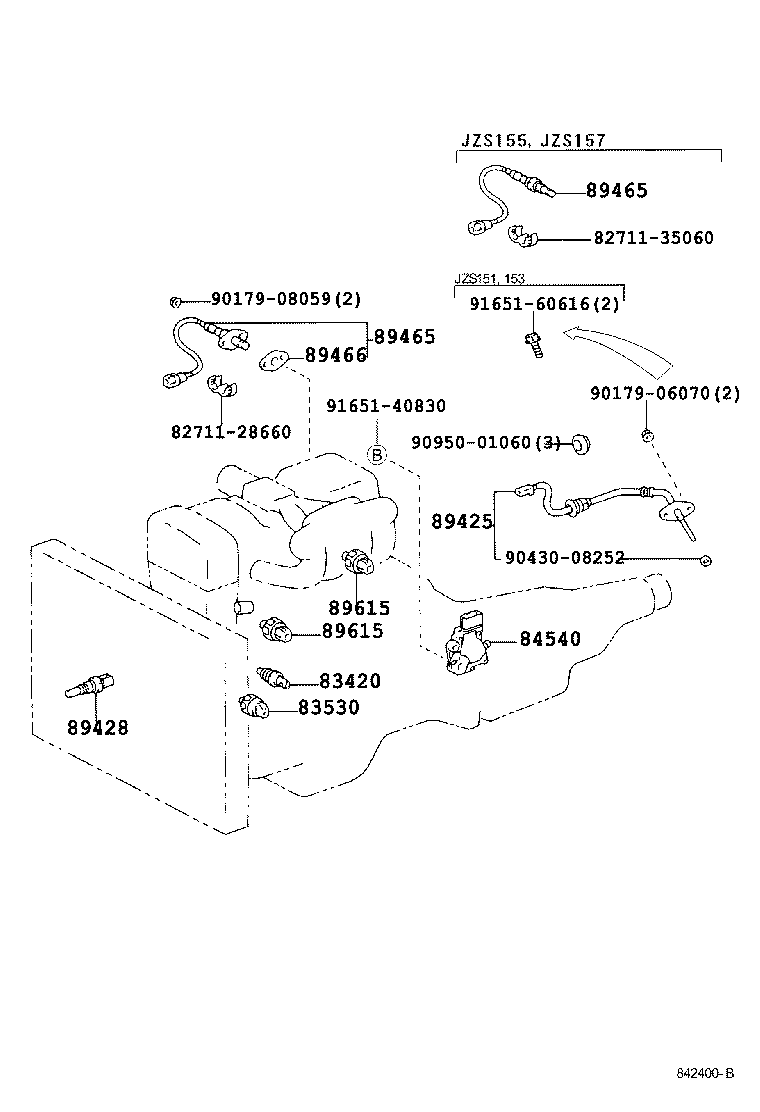

ILLUST NO. 1 OF 7(9508- )JZS15#
ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐﾂｼﾖﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-16040 |
GS151,JZS15#,LS151..HTWC,TDE,TWC |
1 | ||
| 83420-16040 |
JZS15#,LS151 |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-30090 |
GS151,JZS15#,UZS15# |
1 | ||
| 83530-60020 |
JZS15# |
1 | ||
| 83530-28020 |
GS151,JZS15#,UZS15# DENSO |
1 | ||
| 83530-60020 |
GS151,JZS15# YAZAKI |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-30320 |
JZS155,LS151,UZS151,157 |
1 | ||
| 84540-30270 |
JZS15#,LS151,UZS15# |
1 | ||
| 89425 - SENSOR, EXHAUST GAS TEMPERATURE | ||||
| 89425-39575 |
JZS155..A,E |
1 | ||
| 89428 - SWITCH, TEMPERATURE DETECT, NO.2 | ||||
| 89428-24010 |
JZS151,155,UZS155 |
1 | ||
| 89428-24010 |
JZS151,155,UZS155..A,C,E,ROY,ROYEX,ROYG,ROYT |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-30250 |
JZS155 |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-30250 |
JZS155 |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-50010 |
JZS155,UZS15# |
2 | ||
| 89615-12040 |
JZS15# MATSUSHITA |
2 | ||
| 89615-12050 |
JZS15# DENSO |
2 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-50010 |
JZS155,UZS15# |
2 | ||
| 89615-12040 |
JZS15# MATSUSHITA |
2 | ||
| 89615-12050 |
JZS15# DENSO |
2 | ||
| Common parts | ||||
| 82711-28660 | ||||
| 82711-35060 | ||||
| 90179-06070 | ||||
| 90179-08059 | ||||
| 90430-08252 | ||||
| 90950-01060 | ||||
| 91651-40830 | ||||
| 91651-60616 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
