JZS155-CTPZF (1995)
Toyota Crown/Crown Majesta
ILLUST NO. 1 OF 4(9508-9707)
ｽﾍﾟ-ｽﾋﾞｼﾞﾖﾝﾒ-ﾀ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-24070 |
GS151,JZS151,153,155,LS151,UZS15# 12V 1.4W ｿｹｯﾄ付き |
1 | ||
| 83109-30070 |
GS151,JZS151,153,155,LS151,UZS15# 14V 2.0W,ｿｹｯﾄなし |
1 | ||
| 83109-24020 |
GS151,JZS151,153,155,LS151,UZS15# 12V 3.4W ｷｬｯﾌﾟ付き |
1 | ||
| 83119-32010 |
GS151,JZS15#,LS151,UZS15# 14V 3.0W |
1 | ||
| 90981-11018 |
GS151,JZS15#,LS151,UZS15# 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83109-30060 |
GS151,JZS151,153,155,LS151,UZS15# 12V 2.0W ｸﾞﾘｰﾝｷｬｯﾌﾟ付き |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83841-30230 |
JZS155..A,E NO.2 |
1 | ||
| 83161-30020 |
JZS155,UZS15#..A,C,E,F NO.1 |
1 | ||
| 83161-30020 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 83161-30030 |
JZS155,UZS15#..A,C,E,F ｱﾘ(ﾃﾞｼﾞﾀﾙｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83163-30020 |
JZS155,UZS15#..A,C,E,F NO.1 |
1 | ||
| 83811-30220 |
JZS155,UZS151,157..A,C,E,F NO.2 |
1 | ||
| 83811-30220 |
JZS155..A,E NO.2 |
1 | ||
| 83163-30020 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83852-30210 |
JZS155,UZS15#..HT..(A,C,E,F,ROYG) |
1 | ||
| 83146A - COVER, SPEEDMETER | ||||
| 83845-30210 |
JZS155,UZS15#..HT..(A,C,E,F,ROY,ROYG) |
1 | ||
| 83146C - COVER,COMBINATION METER NO.2 | ||||
| 83846-30210 |
JZS155,UZS15#..HT..(A,C,E,F,ROY,ROYG) |
1 | ||
| 83159 - SWITCH, METER, NO.1 | ||||
| 83871-30210 |
JZS155,UZS15#..HT..(A,C,E,F,ROY,ROYG) |
1 | ||
| 83159A - SWITCH, METER, NO.2 | ||||
| 83872-30210 |
JZS155,UZS15#..HT..(A,C,E,F,ROY,ROYG) |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83861-30210 |
JZS155,UZS15#..HT..(A,C,E,F,ROYG) |
1 | ||
| 83861-30470 |
JZS155..HT..4FC ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83248 - CHIME, SPEED WARNING | ||||
| 83248-20010 |
JZS155,UZS15#..HT..(A,C,E,F,ROY,ROYG) |
1 | ||
| 83275 - PLATE,COMPUTER METER CIRCUIT NO.1 | ||||
| 83275-30420 |
JZS155..A,E ｱﾘ(ｴﾚｸﾄﾛ ﾏﾙﾁﾋﾞｼﾞﾖﾝ) |
1 | ||
| 83275-30410 |
JZS155..A,E |
1 | ||
| 83275-30230 |
JZS155..A,E |
1 | ||
| 83276 - PLATE,COMPUTER METER CIRCUIT NO.2 | ||||
| 83276-30210 |
JZS155,UZS15#..HT..(A,C,E,F,ROY,ROYG) ｱﾘ(ﾃﾞｼﾞﾀﾙｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83276-30260 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 86650G - BUZZER ASSY | ||||
| 86650-12040 |
JZS155,UZS15#..HT..(A,C,E,F,ROYG) |
1 | ||
| Common parts | ||||
| 90099-00262 | ||||
| 90099-00963 | ||||
| 90159-40027 | ||||
| 93540-14020 | ||||
| 93568-55016 | ||||
ILLUST NO. 1 OF 4(9508-9707)
ｱﾅﾛｸﾞﾒ-ﾀ:ｱﾘ(ﾀｺﾒ-ﾀ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83132 - CASE, COMBINATION METER | ||||
| 83841-30230 |
JZS155..A,E NO.2 |
1 | ||
| 83161-30020 |
JZS155,UZS15#..A,C,E,F NO.1 |
1 | ||
| 83161-30020 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 83161-30030 |
JZS155,UZS15#..A,C,E,F ｱﾘ(ﾃﾞｼﾞﾀﾙｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83163-30020 |
JZS155,UZS15#..A,C,E,F NO.1 |
1 | ||
| 83811-30220 |
JZS155,UZS151,157..A,C,E,F NO.2 |
1 | ||
| 83811-30220 |
JZS155..A,E NO.2 |
1 | ||
| 83163-30020 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83852-30210 |
JZS155,UZS15#..HT..(A,C,E,F,ROYG) |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83861-30210 |
JZS155,UZS15#..HT..(A,C,E,F,ROYG) |
1 | ||
| 83861-30470 |
JZS155..HT..4FC ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 86650G - BUZZER ASSY | ||||
| 86650-12040 |
JZS155,UZS15#..HT..(A,C,E,F,ROYG) |
1 | ||
| Common parts | ||||
| 83133-28250 | ||||
| 90099-00211 | ||||
| 90099-00227 | ||||
| 90099-00952 | ||||
| 90159-40027 | ||||
| 93568-55016 | ||||
ILLUST NO. 1 OF 4(9707- )
ｽﾍﾟ-ｽﾋﾞｼﾞﾖﾝﾒ-ﾀ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83132D - CASE, COMBINATION METER, NO.2 | ||||
| 83841-30470 |
JZS155..A,E |
1 | ||
| 83133A - PLATE, COMBINATION METER, NO.2 | ||||
| 83811-30410 |
JZS155,UZS15#..HT..(A,C,E,F,ROY,ROYG) |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83852-30210 |
JZS155,UZS15#..HT..(A,C,E,F,ROYG) |
1 | ||
| 83146A - COVER, SPEEDMETER | ||||
| 83845-30210 |
JZS155,UZS15#..HT..(A,C,E,F,ROY,ROYG) |
1 | ||
| 83146C - COVER,COMBINATION METER NO.2 | ||||
| 83846-30210 |
JZS155,UZS15#..HT..(A,C,E,F,ROY,ROYG) |
1 | ||
| 83159 - SWITCH, METER, NO.1 | ||||
| 83871-30210 |
JZS155,UZS15#..HT..(A,C,E,F,ROY,ROYG) |
1 | ||
| 83159A - SWITCH, METER, NO.2 | ||||
| 83872-30210 |
JZS155,UZS15#..HT..(A,C,E,F,ROY,ROYG) |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83861-30210 |
JZS155,UZS15#..HT..(A,C,E,F,ROYG) |
1 | ||
| 83861-30470 |
JZS155..HT..4FC ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83248 - CHIME, SPEED WARNING | ||||
| 83248-20010 |
JZS155,UZS15#..HT..(A,C,E,F,ROY,ROYG) |
1 | ||
| 83275 - PLATE,COMPUTER METER CIRCUIT NO.1 | ||||
| 83275-30420 |
JZS155..A,E ｱﾘ(ｴﾚｸﾄﾛ ﾏﾙﾁﾋﾞｼﾞﾖﾝ) |
1 | ||
| 83275-30410 |
JZS155..A,E |
1 | ||
| 83275-30230 |
JZS155..A,E |
1 | ||
| 83276 - PLATE,COMPUTER METER CIRCUIT NO.2 | ||||
| 83276-30210 |
JZS155,UZS15#..HT..(A,C,E,F,ROY,ROYG) ｱﾘ(ﾃﾞｼﾞﾀﾙｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83276-30260 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 83291 - COMPUTER, COMBINATION METER | ||||
| 83291-30420 |
JZS155..A,E ｱﾘ(ｴﾚｸﾄﾛ ﾏﾙﾁﾋﾞｼﾞﾖﾝ) |
1 | ||
| 83291-30410 |
JZS155..A,E |
1 | ||
| Common parts | ||||
| 90099-00266 | ||||
| 93540-13012 | ||||
| 93540-14020 | ||||
| 93568-55016 | ||||
ILLUST NO. 1 OF 4(9707- )
ｵﾌﾟﾃｨﾄﾛﾝﾒ-ﾀ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-24070 |
GS151,JZS151,153,155,LS151,UZS15# 12V 1.4W ｿｹｯﾄ付き |
1 | ||
| 83109-30070 |
GS151,JZS151,153,155,LS151,UZS15# 14V 2.0W,ｿｹｯﾄなし |
1 | ||
| 83109-24020 |
GS151,JZS151,153,155,LS151,UZS15# 12V 3.4W ｷｬｯﾌﾟ付き |
1 | ||
| 83119-32010 |
GS151,JZS15#,LS151,UZS15# 14V 3.0W |
1 | ||
| 90981-11018 |
GS151,JZS15#,LS151,UZS15# 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83109-30060 |
GS151,JZS151,153,155,LS151,UZS15# 12V 2.0W ｸﾞﾘｰﾝｷｬｯﾌﾟ付き |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83841-30230 |
JZS155..A,E NO.2 |
1 | ||
| 83161-30020 |
JZS155,UZS15#..A,C,E,F NO.1 |
1 | ||
| 83161-30020 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 83161-30030 |
JZS155,UZS15#..A,C,E,F ｱﾘ(ﾃﾞｼﾞﾀﾙｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83163-30020 |
JZS155,UZS15#..A,C,E,F NO.1 |
1 | ||
| 83811-30220 |
JZS155,UZS151,157..A,C,E,F NO.2 |
1 | ||
| 83811-30220 |
JZS155..A,E NO.2 |
1 | ||
| 83163-30020 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83852-30210 |
JZS155,UZS15#..HT..(A,C,E,F,ROYG) |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83861-30210 |
JZS155,UZS15#..HT..(A,C,E,F,ROYG) |
1 | ||
| 83861-30470 |
JZS155..HT..4FC ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83275 - PLATE,COMPUTER METER CIRCUIT NO.1 | ||||
| 83275-30420 |
JZS155..A,E ｱﾘ(ｴﾚｸﾄﾛ ﾏﾙﾁﾋﾞｼﾞﾖﾝ) |
1 | ||
| 83275-30410 |
JZS155..A,E |
1 | ||
| 83275-30230 |
JZS155..A,E |
1 | ||
| Common parts | ||||
| 90099-00211 | ||||
| 90099-00225 | ||||
| 90099-00929 | ||||
ILLUST NO. 1 OF 4(9707- )
ｱﾅﾛｸﾞﾒ-ﾀ:ｱﾘ(ﾀｺﾒｰﾀ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83132 - CASE, COMBINATION METER | ||||
| 83841-30230 |
JZS155..A,E NO.2 |
1 | ||
| 83161-30020 |
JZS155,UZS15#..A,C,E,F NO.1 |
1 | ||
| 83161-30020 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 83161-30030 |
JZS155,UZS15#..A,C,E,F ｱﾘ(ﾃﾞｼﾞﾀﾙｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83163-30020 |
JZS155,UZS15#..A,C,E,F NO.1 |
1 | ||
| 83811-30220 |
JZS155,UZS151,157..A,C,E,F NO.2 |
1 | ||
| 83811-30220 |
JZS155..A,E NO.2 |
1 | ||
| 83163-30020 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83852-30210 |
JZS155,UZS15#..HT..(A,C,E,F,ROYG) |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83861-30210 |
JZS155,UZS15#..HT..(A,C,E,F,ROYG) |
1 | ||
| 83861-30470 |
JZS155..HT..4FC ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 86650G - BUZZER ASSY | ||||
| 86650-12040 |
JZS155,UZS15#..HT..(A,C,E,F,ROYG) |
1 | ||
| Common parts | ||||
| 90099-00211 | ||||
| 90099-00227 | ||||
| 90099-00952 | ||||
| 90159-40027 | ||||
| 93568-55016 | ||||

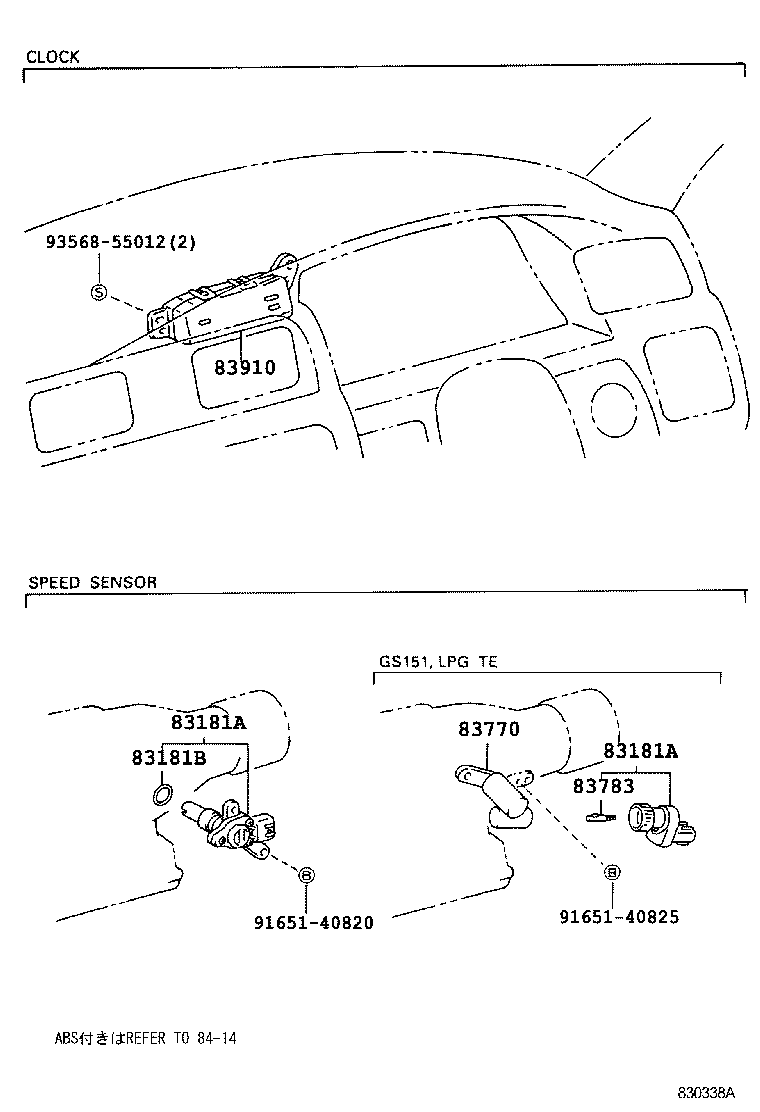

ILLUST NO. 4 OF 4(9508- )
ｸﾛﾂｸ & ｽﾋﾟ-ﾄﾞｾﾝｻ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83910 - CLOCK ASSY | ||||
| 83910-30550 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| Common parts | ||||
| 91651-40820 | ||||
| 91651-40825 | ||||
| 93568-55012 | ||||
ILLUST NO. 1 OF 4(9508-9707)
ｱﾅﾛｸﾞﾒ-ﾀ:ﾅｼ(ﾀｺﾒ-ﾀ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83132 - CASE, COMBINATION METER | ||||
| 83841-30230 |
JZS155..A,E NO.2 |
1 | ||
| 83161-30020 |
JZS155,UZS15#..A,C,E,F NO.1 |
1 | ||
| 83161-30020 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 83161-30030 |
JZS155,UZS15#..A,C,E,F ｱﾘ(ﾃﾞｼﾞﾀﾙｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83163-30020 |
JZS155,UZS15#..A,C,E,F NO.1 |
1 | ||
| 83811-30220 |
JZS155,UZS151,157..A,C,E,F NO.2 |
1 | ||
| 83811-30220 |
JZS155..A,E NO.2 |
1 | ||
| 83163-30020 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83852-30210 |
JZS155,UZS15#..HT..(A,C,E,F,ROYG) |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83861-30210 |
JZS155,UZS15#..HT..(A,C,E,F,ROYG) |
1 | ||
| 83861-30470 |
JZS155..HT..4FC ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 86650G - BUZZER ASSY | ||||
| 86650-12040 |
JZS155,UZS15#..HT..(A,C,E,F,ROYG) |
1 | ||
| Common parts | ||||
| 83133-28250 | ||||
| 90099-00211 | ||||
| 90159-40027 | ||||
| 93568-55016 | ||||
ILLUST NO. 3 OF 4(9508- )
ﾎﾛｸﾞﾗﾑﾍﾂﾄﾞｱﾂﾌﾟﾃﾞｲｽﾌﾟﾚｲ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83116 - BRACKET, SPEEDOMETER | ||||
| 83166-30020 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 83116A - BRACKET, SPEEDOMETER NO.2 | ||||
| 83148-30020 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 83119 - BULB, COMBINATION METER, NO.3 | ||||
| 83169-30020 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83841-30230 |
JZS155..A,E NO.2 |
1 | ||
| 83161-30020 |
JZS155,UZS15#..A,C,E,F NO.1 |
1 | ||
| 83161-30020 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 83161-30030 |
JZS155,UZS15#..A,C,E,F ｱﾘ(ﾃﾞｼﾞﾀﾙｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83132B - CASE, COMBINATION METER NO.3 | ||||
| 83162-30030 |
JZS155,UZS15#..A,C,E,F ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ & GPS ﾎﾞｲｽ ﾅﾋﾞｹﾞ-ｼﾖﾝ) |
1 | ||
| 83162-30020 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83163-30020 |
JZS155,UZS15#..A,C,E,F NO.1 |
1 | ||
| 83811-30220 |
JZS155,UZS151,157..A,C,E,F NO.2 |
1 | ||
| 83811-30220 |
JZS155..A,E NO.2 |
1 | ||
| 83163-30020 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 83133J - CASE, COMBINATION METER NO.3 | ||||
| 83167-30020 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 83141A - COMPUTER, COMBINATION METER MIRROR | ||||
| 83141-30020 |
JZS155,UZS15#..A,C,E,F ｱﾘ(ﾃﾞｼﾞﾀﾙｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83141-30030 |
JZS155,UZS15#..A,C,E,F ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ & GPS ﾎﾞｲｽ ﾅﾋﾞｹﾞ-ｼﾖﾝ) |
1 | ||
| 83142A - WIRE, COMBINATION METER | ||||
| 83142-30020 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 83142-30030 |
JZS155,UZS15#..A,C,E,F ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ & GPS ﾎﾞｲｽ ﾅﾋﾞｹﾞ-ｼﾖﾝ) |
1 | ||
| 83144A - MIRROR, COMBINATION METER | ||||
| 83144-30020 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 83168 - DISPLAY, COMBINATION | ||||
| 83168-30030 |
JZS155,UZS15#..A,C,E,F ｱﾘ(ｴﾚｸﾄﾛ ﾏﾙﾁﾋﾞｼﾞﾖﾝ) |
1 | ||
| 83168-30020 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| Common parts | ||||
| 83540-13016 | ||||
| 90099-00262 | ||||
| 90099-00929 | ||||
| 90099-35035 | ||||
| 90164-50043 | ||||
| 90167-50028 | ||||
| 93540-13016 | ||||
ILLUST NO. 1 OF 4(9707- )
ｱﾅﾛｸﾞﾒｰﾀ:ﾅｼ(ﾀｺﾒｰﾀ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83132 - CASE, COMBINATION METER | ||||
| 83841-30230 |
JZS155..A,E NO.2 |
1 | ||
| 83161-30020 |
JZS155,UZS15#..A,C,E,F NO.1 |
1 | ||
| 83161-30020 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 83161-30030 |
JZS155,UZS15#..A,C,E,F ｱﾘ(ﾃﾞｼﾞﾀﾙｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83163-30020 |
JZS155,UZS15#..A,C,E,F NO.1 |
1 | ||
| 83811-30220 |
JZS155,UZS151,157..A,C,E,F NO.2 |
1 | ||
| 83811-30220 |
JZS155..A,E NO.2 |
1 | ||
| 83163-30020 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83852-30210 |
JZS155,UZS15#..HT..(A,C,E,F,ROYG) |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83861-30210 |
JZS155,UZS15#..HT..(A,C,E,F,ROYG) |
1 | ||
| 83861-30470 |
JZS155..HT..4FC ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 86650G - BUZZER ASSY | ||||
| 86650-12040 |
JZS155,UZS15#..HT..(A,C,E,F,ROYG) |
1 | ||
| Common parts | ||||
| 90099-00211 | ||||
| 90099-00227 | ||||
| 90159-40027 | ||||
| 93568-55016 | ||||
ILLUST NO. 2 OF 4(9508-9707)
ｱﾅﾛｸﾞﾒ-ﾀ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-24070 |
GS151,JZS151,153,155,LS151,UZS15# 12V 1.4W ｿｹｯﾄ付き |
1 | ||
| 83109-30070 |
GS151,JZS151,153,155,LS151,UZS15# 14V 2.0W,ｿｹｯﾄなし |
1 | ||
| 83109-24020 |
GS151,JZS151,153,155,LS151,UZS15# 12V 3.4W ｷｬｯﾌﾟ付き |
1 | ||
| 83119-32010 |
GS151,JZS15#,LS151,UZS15# 14V 3.0W |
1 | ||
| 90981-11018 |
GS151,JZS15#,LS151,UZS15# 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83109-30060 |
GS151,JZS151,153,155,LS151,UZS15# 12V 2.0W ｸﾞﾘｰﾝｷｬｯﾌﾟ付き |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-24070 |
GS151,JZS151,153,155,LS151,UZS15# 12V 1.4W ｿｹｯﾄ付き |
1 | ||
| 83109-30070 |
GS151,JZS151,153,155,LS151,UZS15# 14V 2.0W,ｿｹｯﾄなし |
1 | ||
| 83109-24020 |
GS151,JZS151,153,155,LS151,UZS15# 12V 3.4W ｷｬｯﾌﾟ付き |
1 | ||
| 83119-32010 |
GS151,JZS15#,LS151,UZS15# 14V 3.0W |
1 | ||
| 90981-11018 |
GS151,JZS15#,LS151,UZS15# 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83109-30060 |
GS151,JZS151,153,155,LS151,UZS15# 12V 2.0W ｸﾞﾘｰﾝｷｬｯﾌﾟ付き |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-24070 |
GS151,JZS151,153,155,LS151,UZS15# 12V 1.4W ｿｹｯﾄ付き |
1 | ||
| 83109-30070 |
GS151,JZS151,153,155,LS151,UZS15# 14V 2.0W,ｿｹｯﾄなし |
1 | ||
| 83109-24020 |
GS151,JZS151,153,155,LS151,UZS15# 12V 3.4W ｷｬｯﾌﾟ付き |
1 | ||
| 83119-32010 |
GS151,JZS15#,LS151,UZS15# 14V 3.0W |
1 | ||
| 90981-11018 |
GS151,JZS15#,LS151,UZS15# 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83109-30060 |
GS151,JZS151,153,155,LS151,UZS15# 12V 2.0W ｸﾞﾘｰﾝｷｬｯﾌﾟ付き |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-24070 |
GS151,JZS151,153,155,LS151,UZS15# 12V 1.4W ｿｹｯﾄ付き |
1 | ||
| 83109-30070 |
GS151,JZS151,153,155,LS151,UZS15# 14V 2.0W,ｿｹｯﾄなし |
1 | ||
| 83109-24020 |
GS151,JZS151,153,155,LS151,UZS15# 12V 3.4W ｷｬｯﾌﾟ付き |
1 | ||
| 83119-32010 |
GS151,JZS15#,LS151,UZS15# 14V 3.0W |
1 | ||
| 90981-11018 |
GS151,JZS15#,LS151,UZS15# 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83109-30060 |
GS151,JZS151,153,155,LS151,UZS15# 12V 2.0W ｸﾞﾘｰﾝｷｬｯﾌﾟ付き |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
GS151,JZS151,153,155,LS151,UZS15# 12V 3.4W |
1 | ||
| 83101-14040 |
GS151,JZS15#,LS151,UZS15# 14V 1.4W |
1 | ||
| 83101-32020 |
GS151,JZS15#,LS151,UZS15# ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ,14V 3.0W |
1 | ||
| 83101-24010 |
GS151,JZS15#,LS151,UZS15# ｱﾅﾛｸﾞ ﾒ-ﾀ,14V 3.0W |
1 | ||
| 83101-14040 |
JZS155,UZS15#..HT..(A,C,E,F,ROY,ROYG) |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
GS151,JZS151,153,155,LS151,UZS15# 12V 3.4W |
1 | ||
| 83101-14040 |
GS151,JZS15#,LS151,UZS15# 14V 1.4W |
1 | ||
| 83101-32020 |
GS151,JZS15#,LS151,UZS15# ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ,14V 3.0W |
1 | ||
| 83101-24010 |
GS151,JZS15#,LS151,UZS15# ｱﾅﾛｸﾞ ﾒ-ﾀ,14V 3.0W |
1 | ||
| 83101-14040 |
JZS155,UZS15#..HT..(A,C,E,F,ROY,ROYG) |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
GS151,JZS151,153,155,LS151,UZS15# 12V 3.4W |
1 | ||
| 83101-14040 |
GS151,JZS15#,LS151,UZS15# 14V 1.4W |
1 | ||
| 83101-32020 |
GS151,JZS15#,LS151,UZS15# ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ,14V 3.0W |
1 | ||
| 83101-24010 |
GS151,JZS15#,LS151,UZS15# ｱﾅﾛｸﾞ ﾒ-ﾀ,14V 3.0W |
1 | ||
| 83101-14040 |
JZS155,UZS15#..HT..(A,C,E,F,ROY,ROYG) |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
GS151,JZS151,153,155,LS151,UZS15# 12V 3.4W |
1 | ||
| 83101-14040 |
GS151,JZS15#,LS151,UZS15# 14V 1.4W |
1 | ||
| 83101-32020 |
GS151,JZS15#,LS151,UZS15# ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ,14V 3.0W |
1 | ||
| 83101-24010 |
GS151,JZS15#,LS151,UZS15# ｱﾅﾛｸﾞ ﾒ-ﾀ,14V 3.0W |
1 | ||
| 83101-14040 |
JZS155,UZS15#..HT..(A,C,E,F,ROY,ROYG) |
1 | ||
ILLUST NO. 2 OF 4(9707- )
ｱﾅﾛｸﾞﾒ-ﾀ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-24070 |
GS151,JZS151,153,155,LS151,UZS15# 12V 1.4W ｿｹｯﾄ付き |
1 | ||
| 83109-30070 |
GS151,JZS151,153,155,LS151,UZS15# 14V 2.0W,ｿｹｯﾄなし |
1 | ||
| 83109-24020 |
GS151,JZS151,153,155,LS151,UZS15# 12V 3.4W ｷｬｯﾌﾟ付き |
1 | ||
| 83119-32010 |
GS151,JZS15#,LS151,UZS15# 14V 3.0W |
1 | ||
| 90981-11018 |
GS151,JZS15#,LS151,UZS15# 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83109-30060 |
GS151,JZS151,153,155,LS151,UZS15# 12V 2.0W ｸﾞﾘｰﾝｷｬｯﾌﾟ付き |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-24070 |
GS151,JZS151,153,155,LS151,UZS15# 12V 1.4W ｿｹｯﾄ付き |
1 | ||
| 83109-30070 |
GS151,JZS151,153,155,LS151,UZS15# 14V 2.0W,ｿｹｯﾄなし |
1 | ||
| 83109-24020 |
GS151,JZS151,153,155,LS151,UZS15# 12V 3.4W ｷｬｯﾌﾟ付き |
1 | ||
| 83119-32010 |
GS151,JZS15#,LS151,UZS15# 14V 3.0W |
1 | ||
| 90981-11018 |
GS151,JZS15#,LS151,UZS15# 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83109-30060 |
GS151,JZS151,153,155,LS151,UZS15# 12V 2.0W ｸﾞﾘｰﾝｷｬｯﾌﾟ付き |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-24070 |
GS151,JZS151,153,155,LS151,UZS15# 12V 1.4W ｿｹｯﾄ付き |
1 | ||
| 83109-30070 |
GS151,JZS151,153,155,LS151,UZS15# 14V 2.0W,ｿｹｯﾄなし |
1 | ||
| 83109-24020 |
GS151,JZS151,153,155,LS151,UZS15# 12V 3.4W ｷｬｯﾌﾟ付き |
1 | ||
| 83119-32010 |
GS151,JZS15#,LS151,UZS15# 14V 3.0W |
1 | ||
| 90981-11018 |
GS151,JZS15#,LS151,UZS15# 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83109-30060 |
GS151,JZS151,153,155,LS151,UZS15# 12V 2.0W ｸﾞﾘｰﾝｷｬｯﾌﾟ付き |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-24070 |
GS151,JZS151,153,155,LS151,UZS15# 12V 1.4W ｿｹｯﾄ付き |
1 | ||
| 83109-30070 |
GS151,JZS151,153,155,LS151,UZS15# 14V 2.0W,ｿｹｯﾄなし |
1 | ||
| 83109-24020 |
GS151,JZS151,153,155,LS151,UZS15# 12V 3.4W ｷｬｯﾌﾟ付き |
1 | ||
| 83119-32010 |
GS151,JZS15#,LS151,UZS15# 14V 3.0W |
1 | ||
| 90981-11018 |
GS151,JZS15#,LS151,UZS15# 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83109-30060 |
GS151,JZS151,153,155,LS151,UZS15# 12V 2.0W ｸﾞﾘｰﾝｷｬｯﾌﾟ付き |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-24070 |
GS151,JZS151,153,155,LS151,UZS15# 12V 1.4W ｿｹｯﾄ付き |
1 | ||
| 83109-30070 |
GS151,JZS151,153,155,LS151,UZS15# 14V 2.0W,ｿｹｯﾄなし |
1 | ||
| 83109-24020 |
GS151,JZS151,153,155,LS151,UZS15# 12V 3.4W ｷｬｯﾌﾟ付き |
1 | ||
| 83119-32010 |
GS151,JZS15#,LS151,UZS15# 14V 3.0W |
1 | ||
| 90981-11018 |
GS151,JZS15#,LS151,UZS15# 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83109-30060 |
GS151,JZS151,153,155,LS151,UZS15# 12V 2.0W ｸﾞﾘｰﾝｷｬｯﾌﾟ付き |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-24070 |
GS151,JZS151,153,155,LS151,UZS15# 12V 1.4W ｿｹｯﾄ付き |
1 | ||
| 83109-30070 |
GS151,JZS151,153,155,LS151,UZS15# 14V 2.0W,ｿｹｯﾄなし |
1 | ||
| 83109-24020 |
GS151,JZS151,153,155,LS151,UZS15# 12V 3.4W ｷｬｯﾌﾟ付き |
1 | ||
| 83119-32010 |
GS151,JZS15#,LS151,UZS15# 14V 3.0W |
1 | ||
| 90981-11018 |
GS151,JZS15#,LS151,UZS15# 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83109-30060 |
GS151,JZS151,153,155,LS151,UZS15# 12V 2.0W ｸﾞﾘｰﾝｷｬｯﾌﾟ付き |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
GS151,JZS151,153,155,LS151,UZS15# 12V 3.4W |
1 | ||
| 83101-14040 |
GS151,JZS15#,LS151,UZS15# 14V 1.4W |
1 | ||
| 83101-32020 |
GS151,JZS15#,LS151,UZS15# ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ,14V 3.0W |
1 | ||
| 83101-24010 |
GS151,JZS15#,LS151,UZS15# ｱﾅﾛｸﾞ ﾒ-ﾀ,14V 3.0W |
1 | ||
| 83101-14040 |
JZS155,UZS15#..HT..(A,C,E,F,ROY,ROYG) |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
GS151,JZS151,153,155,LS151,UZS15# 12V 3.4W |
1 | ||
| 83101-14040 |
GS151,JZS15#,LS151,UZS15# 14V 1.4W |
1 | ||
| 83101-32020 |
GS151,JZS15#,LS151,UZS15# ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ,14V 3.0W |
1 | ||
| 83101-24010 |
GS151,JZS15#,LS151,UZS15# ｱﾅﾛｸﾞ ﾒ-ﾀ,14V 3.0W |
1 | ||
| 83101-14040 |
JZS155,UZS15#..HT..(A,C,E,F,ROY,ROYG) |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
GS151,JZS151,153,155,LS151,UZS15# 12V 3.4W |
1 | ||
| 83101-14040 |
GS151,JZS15#,LS151,UZS15# 14V 1.4W |
1 | ||
| 83101-32020 |
GS151,JZS15#,LS151,UZS15# ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ,14V 3.0W |
1 | ||
| 83101-24010 |
GS151,JZS15#,LS151,UZS15# ｱﾅﾛｸﾞ ﾒ-ﾀ,14V 3.0W |
1 | ||
| 83101-14040 |
JZS155,UZS15#..HT..(A,C,E,F,ROY,ROYG) |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
GS151,JZS151,153,155,LS151,UZS15# 12V 3.4W |
1 | ||
| 83101-14040 |
GS151,JZS15#,LS151,UZS15# 14V 1.4W |
1 | ||
| 83101-32020 |
GS151,JZS15#,LS151,UZS15# ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ,14V 3.0W |
1 | ||
| 83101-24010 |
GS151,JZS15#,LS151,UZS15# ｱﾅﾛｸﾞ ﾒ-ﾀ,14V 3.0W |
1 | ||
| 83101-14040 |
JZS155,UZS15#..HT..(A,C,E,F,ROY,ROYG) |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
GS151,JZS151,153,155,LS151,UZS15# 12V 3.4W |
1 | ||
| 83101-14040 |
GS151,JZS15#,LS151,UZS15# 14V 1.4W |
1 | ||
| 83101-32020 |
GS151,JZS15#,LS151,UZS15# ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ,14V 3.0W |
1 | ||
| 83101-24010 |
GS151,JZS15#,LS151,UZS15# ｱﾅﾛｸﾞ ﾒ-ﾀ,14V 3.0W |
1 | ||
| 83101-14040 |
JZS155,UZS15#..HT..(A,C,E,F,ROY,ROYG) |
1 | ||
ILLUST NO. 2 OF 4(9707- )
ｽﾍﾟ-ｽﾋﾞｼﾞﾖﾝﾒ-ﾀ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-24070 |
GS151,JZS151,153,155,LS151,UZS15# 12V 1.4W ｿｹｯﾄ付き |
1 | ||
| 83109-30070 |
GS151,JZS151,153,155,LS151,UZS15# 14V 2.0W,ｿｹｯﾄなし |
1 | ||
| 83109-24020 |
GS151,JZS151,153,155,LS151,UZS15# 12V 3.4W ｷｬｯﾌﾟ付き |
1 | ||
| 83119-32010 |
GS151,JZS15#,LS151,UZS15# 14V 3.0W |
1 | ||
| 90981-11018 |
GS151,JZS15#,LS151,UZS15# 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83109-30060 |
GS151,JZS151,153,155,LS151,UZS15# 12V 2.0W ｸﾞﾘｰﾝｷｬｯﾌﾟ付き |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-24070 |
GS151,JZS151,153,155,LS151,UZS15# 12V 1.4W ｿｹｯﾄ付き |
1 | ||
| 83109-30070 |
GS151,JZS151,153,155,LS151,UZS15# 14V 2.0W,ｿｹｯﾄなし |
1 | ||
| 83109-24020 |
GS151,JZS151,153,155,LS151,UZS15# 12V 3.4W ｷｬｯﾌﾟ付き |
1 | ||
| 83119-32010 |
GS151,JZS15#,LS151,UZS15# 14V 3.0W |
1 | ||
| 90981-11018 |
GS151,JZS15#,LS151,UZS15# 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83109-30060 |
GS151,JZS151,153,155,LS151,UZS15# 12V 2.0W ｸﾞﾘｰﾝｷｬｯﾌﾟ付き |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-24070 |
GS151,JZS151,153,155,LS151,UZS15# 12V 1.4W ｿｹｯﾄ付き |
1 | ||
| 83109-30070 |
GS151,JZS151,153,155,LS151,UZS15# 14V 2.0W,ｿｹｯﾄなし |
1 | ||
| 83109-24020 |
GS151,JZS151,153,155,LS151,UZS15# 12V 3.4W ｷｬｯﾌﾟ付き |
1 | ||
| 83119-32010 |
GS151,JZS15#,LS151,UZS15# 14V 3.0W |
1 | ||
| 90981-11018 |
GS151,JZS15#,LS151,UZS15# 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83109-30060 |
GS151,JZS151,153,155,LS151,UZS15# 12V 2.0W ｸﾞﾘｰﾝｷｬｯﾌﾟ付き |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
GS151,JZS151,153,155,LS151,UZS15# 12V 3.4W |
1 | ||
| 83101-14040 |
GS151,JZS15#,LS151,UZS15# 14V 1.4W |
1 | ||
| 83101-32020 |
GS151,JZS15#,LS151,UZS15# ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ,14V 3.0W |
1 | ||
| 83101-24010 |
GS151,JZS15#,LS151,UZS15# ｱﾅﾛｸﾞ ﾒ-ﾀ,14V 3.0W |
1 | ||
| 83101-14040 |
JZS155,UZS15#..HT..(A,C,E,F,ROY,ROYG) |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
GS151,JZS151,153,155,LS151,UZS15# 12V 3.4W |
1 | ||
| 83101-14040 |
GS151,JZS15#,LS151,UZS15# 14V 1.4W |
1 | ||
| 83101-32020 |
GS151,JZS15#,LS151,UZS15# ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ,14V 3.0W |
1 | ||
| 83101-24010 |
GS151,JZS15#,LS151,UZS15# ｱﾅﾛｸﾞ ﾒ-ﾀ,14V 3.0W |
1 | ||
| 83101-14040 |
JZS155,UZS15#..HT..(A,C,E,F,ROY,ROYG) |
1 | ||
ILLUST NO. 2 OF 4(9508-9707)
ｽﾍﾟ-ｽﾋﾞｼﾞﾖﾝﾒ-ﾀ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-24070 |
GS151,JZS151,153,155,LS151,UZS15# 12V 1.4W ｿｹｯﾄ付き |
1 | ||
| 83109-30070 |
GS151,JZS151,153,155,LS151,UZS15# 14V 2.0W,ｿｹｯﾄなし |
1 | ||
| 83109-24020 |
GS151,JZS151,153,155,LS151,UZS15# 12V 3.4W ｷｬｯﾌﾟ付き |
1 | ||
| 83119-32010 |
GS151,JZS15#,LS151,UZS15# 14V 3.0W |
1 | ||
| 90981-11018 |
GS151,JZS15#,LS151,UZS15# 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83109-30060 |
GS151,JZS151,153,155,LS151,UZS15# 12V 2.0W ｸﾞﾘｰﾝｷｬｯﾌﾟ付き |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-24070 |
GS151,JZS151,153,155,LS151,UZS15# 12V 1.4W ｿｹｯﾄ付き |
1 | ||
| 83109-30070 |
GS151,JZS151,153,155,LS151,UZS15# 14V 2.0W,ｿｹｯﾄなし |
1 | ||
| 83109-24020 |
GS151,JZS151,153,155,LS151,UZS15# 12V 3.4W ｷｬｯﾌﾟ付き |
1 | ||
| 83119-32010 |
GS151,JZS15#,LS151,UZS15# 14V 3.0W |
1 | ||
| 90981-11018 |
GS151,JZS15#,LS151,UZS15# 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83109-30060 |
GS151,JZS151,153,155,LS151,UZS15# 12V 2.0W ｸﾞﾘｰﾝｷｬｯﾌﾟ付き |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-24070 |
GS151,JZS151,153,155,LS151,UZS15# 12V 1.4W ｿｹｯﾄ付き |
1 | ||
| 83109-30070 |
GS151,JZS151,153,155,LS151,UZS15# 14V 2.0W,ｿｹｯﾄなし |
1 | ||
| 83109-24020 |
GS151,JZS151,153,155,LS151,UZS15# 12V 3.4W ｷｬｯﾌﾟ付き |
1 | ||
| 83119-32010 |
GS151,JZS15#,LS151,UZS15# 14V 3.0W |
1 | ||
| 90981-11018 |
GS151,JZS15#,LS151,UZS15# 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83109-30060 |
GS151,JZS151,153,155,LS151,UZS15# 12V 2.0W ｸﾞﾘｰﾝｷｬｯﾌﾟ付き |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-24070 |
GS151,JZS151,153,155,LS151,UZS15# 12V 1.4W ｿｹｯﾄ付き |
1 | ||
| 83109-30070 |
GS151,JZS151,153,155,LS151,UZS15# 14V 2.0W,ｿｹｯﾄなし |
1 | ||
| 83109-24020 |
GS151,JZS151,153,155,LS151,UZS15# 12V 3.4W ｷｬｯﾌﾟ付き |
1 | ||
| 83119-32010 |
GS151,JZS15#,LS151,UZS15# 14V 3.0W |
1 | ||
| 90981-11018 |
GS151,JZS15#,LS151,UZS15# 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83109-30060 |
GS151,JZS151,153,155,LS151,UZS15# 12V 2.0W ｸﾞﾘｰﾝｷｬｯﾌﾟ付き |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
GS151,JZS151,153,155,LS151,UZS15# 12V 3.4W |
1 | ||
| 83101-14040 |
GS151,JZS15#,LS151,UZS15# 14V 1.4W |
1 | ||
| 83101-32020 |
GS151,JZS15#,LS151,UZS15# ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ,14V 3.0W |
1 | ||
| 83101-24010 |
GS151,JZS15#,LS151,UZS15# ｱﾅﾛｸﾞ ﾒ-ﾀ,14V 3.0W |
1 | ||
| 83101-14040 |
JZS155,UZS15#..HT..(A,C,E,F,ROY,ROYG) |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
GS151,JZS151,153,155,LS151,UZS15# 12V 3.4W |
1 | ||
| 83101-14040 |
GS151,JZS15#,LS151,UZS15# 14V 1.4W |
1 | ||
| 83101-32020 |
GS151,JZS15#,LS151,UZS15# ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ,14V 3.0W |
1 | ||
| 83101-24010 |
GS151,JZS15#,LS151,UZS15# ｱﾅﾛｸﾞ ﾒ-ﾀ,14V 3.0W |
1 | ||
| 83101-14040 |
JZS155,UZS15#..HT..(A,C,E,F,ROY,ROYG) |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
GS151,JZS151,153,155,LS151,UZS15# 12V 3.4W |
1 | ||
| 83101-14040 |
GS151,JZS15#,LS151,UZS15# 14V 1.4W |
1 | ||
| 83101-32020 |
GS151,JZS15#,LS151,UZS15# ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ,14V 3.0W |
1 | ||
| 83101-24010 |
GS151,JZS15#,LS151,UZS15# ｱﾅﾛｸﾞ ﾒ-ﾀ,14V 3.0W |
1 | ||
| 83101-14040 |
JZS155,UZS15#..HT..(A,C,E,F,ROY,ROYG) |
1 | ||
ILLUST NO. 2 OF 4(9707- )
ｵﾌﾟﾃｨﾄﾛﾝﾒ-ﾀ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-24070 |
GS151,JZS151,153,155,LS151,UZS15# 12V 1.4W ｿｹｯﾄ付き |
1 | ||
| 83109-30070 |
GS151,JZS151,153,155,LS151,UZS15# 14V 2.0W,ｿｹｯﾄなし |
1 | ||
| 83109-24020 |
GS151,JZS151,153,155,LS151,UZS15# 12V 3.4W ｷｬｯﾌﾟ付き |
1 | ||
| 83119-32010 |
GS151,JZS15#,LS151,UZS15# 14V 3.0W |
1 | ||
| 90981-11018 |
GS151,JZS15#,LS151,UZS15# 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83109-30060 |
GS151,JZS151,153,155,LS151,UZS15# 12V 2.0W ｸﾞﾘｰﾝｷｬｯﾌﾟ付き |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-24070 |
GS151,JZS151,153,155,LS151,UZS15# 12V 1.4W ｿｹｯﾄ付き |
1 | ||
| 83109-30070 |
GS151,JZS151,153,155,LS151,UZS15# 14V 2.0W,ｿｹｯﾄなし |
1 | ||
| 83109-24020 |
GS151,JZS151,153,155,LS151,UZS15# 12V 3.4W ｷｬｯﾌﾟ付き |
1 | ||
| 83119-32010 |
GS151,JZS15#,LS151,UZS15# 14V 3.0W |
1 | ||
| 90981-11018 |
GS151,JZS15#,LS151,UZS15# 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83109-30060 |
GS151,JZS151,153,155,LS151,UZS15# 12V 2.0W ｸﾞﾘｰﾝｷｬｯﾌﾟ付き |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-24070 |
GS151,JZS151,153,155,LS151,UZS15# 12V 1.4W ｿｹｯﾄ付き |
1 | ||
| 83109-30070 |
GS151,JZS151,153,155,LS151,UZS15# 14V 2.0W,ｿｹｯﾄなし |
1 | ||
| 83109-24020 |
GS151,JZS151,153,155,LS151,UZS15# 12V 3.4W ｷｬｯﾌﾟ付き |
1 | ||
| 83119-32010 |
GS151,JZS15#,LS151,UZS15# 14V 3.0W |
1 | ||
| 90981-11018 |
GS151,JZS15#,LS151,UZS15# 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83109-30060 |
GS151,JZS151,153,155,LS151,UZS15# 12V 2.0W ｸﾞﾘｰﾝｷｬｯﾌﾟ付き |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
GS151,JZS151,153,155,LS151,UZS15# 12V 3.4W |
1 | ||
| 83101-14040 |
GS151,JZS15#,LS151,UZS15# 14V 1.4W |
1 | ||
| 83101-32020 |
GS151,JZS15#,LS151,UZS15# ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ,14V 3.0W |
1 | ||
| 83101-24010 |
GS151,JZS15#,LS151,UZS15# ｱﾅﾛｸﾞ ﾒ-ﾀ,14V 3.0W |
1 | ||
| 83101-14040 |
JZS155,UZS15#..HT..(A,C,E,F,ROY,ROYG) |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
GS151,JZS151,153,155,LS151,UZS15# 12V 3.4W |
1 | ||
| 83101-14040 |
GS151,JZS15#,LS151,UZS15# 14V 1.4W |
1 | ||
| 83101-32020 |
GS151,JZS15#,LS151,UZS15# ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ,14V 3.0W |
1 | ||
| 83101-24010 |
GS151,JZS15#,LS151,UZS15# ｱﾅﾛｸﾞ ﾒ-ﾀ,14V 3.0W |
1 | ||
| 83101-14040 |
JZS155,UZS15#..HT..(A,C,E,F,ROY,ROYG) |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
