JZS155-CTPZF (1995)

Toyota Crown/Crown Majesta

Production Aug 1995 - Sep 1999
Engine 2JZGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9508- )A,C,E,F

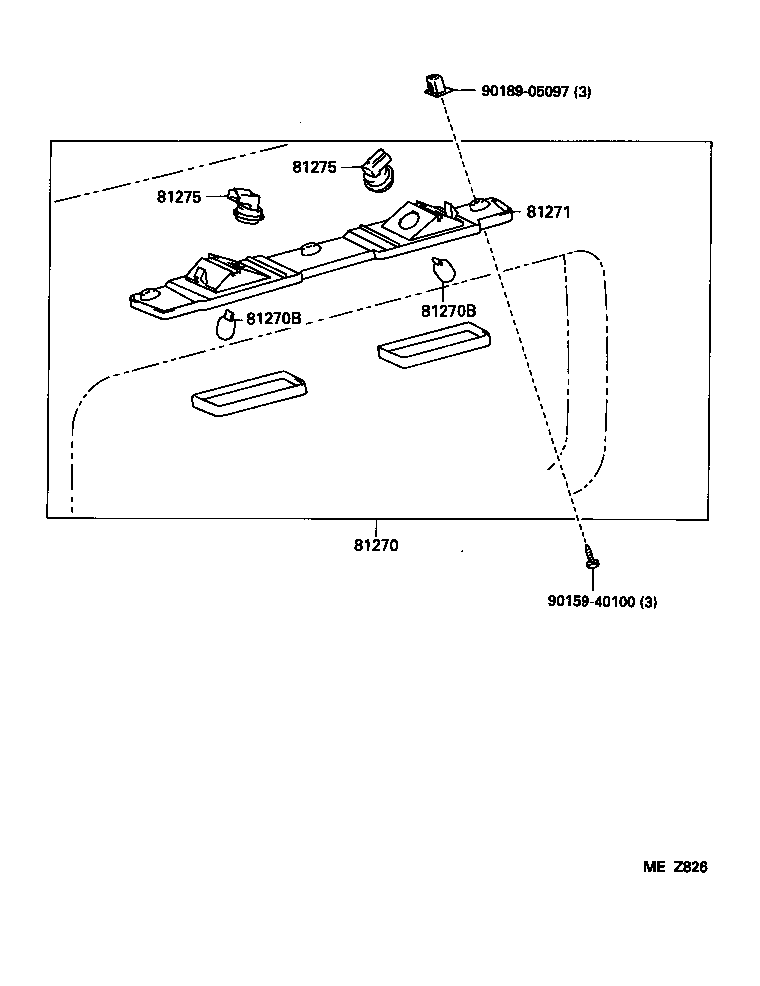

Click highlighted areas on diagram

diagram 81270 81270B 81270B 81271 81275 81275 9015940100 9018905097
Part # Description Qty Price
81270 - LAMP ASSY, LICENSE PLATE
81270-30280

JZS155,UZS15#..A,C,E,F

 1
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-12050

JZS155,UZS15#..A,C,E,F

12V 5W

 2
99132-12050

GS151,JZS15#,LS151,UZS15#

12V 5W

 2
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-12050

JZS155,UZS15#..A,C,E,F

12V 5W

 2
99132-12050

GS151,JZS15#,LS151,UZS15#

12V 5W

 2
81271 - LENS, LICENSE PLATE LAMP
81271-32240

JZS155,UZS15#..A,C,E,F

 1
81275 - SOCKET AND WIRE, LICENSE PLATE LAMP
90075-99005

JZS155,UZS15#..A,C,E,F

 2
81275 - SOCKET AND WIRE, LICENSE PLATE LAMP
90075-99005

JZS155,UZS15#..A,C,E,F

 2
Common parts
90159-40100
90189-05097
