JZS155-CTPZF (1995)
Toyota Crown/Crown Majesta

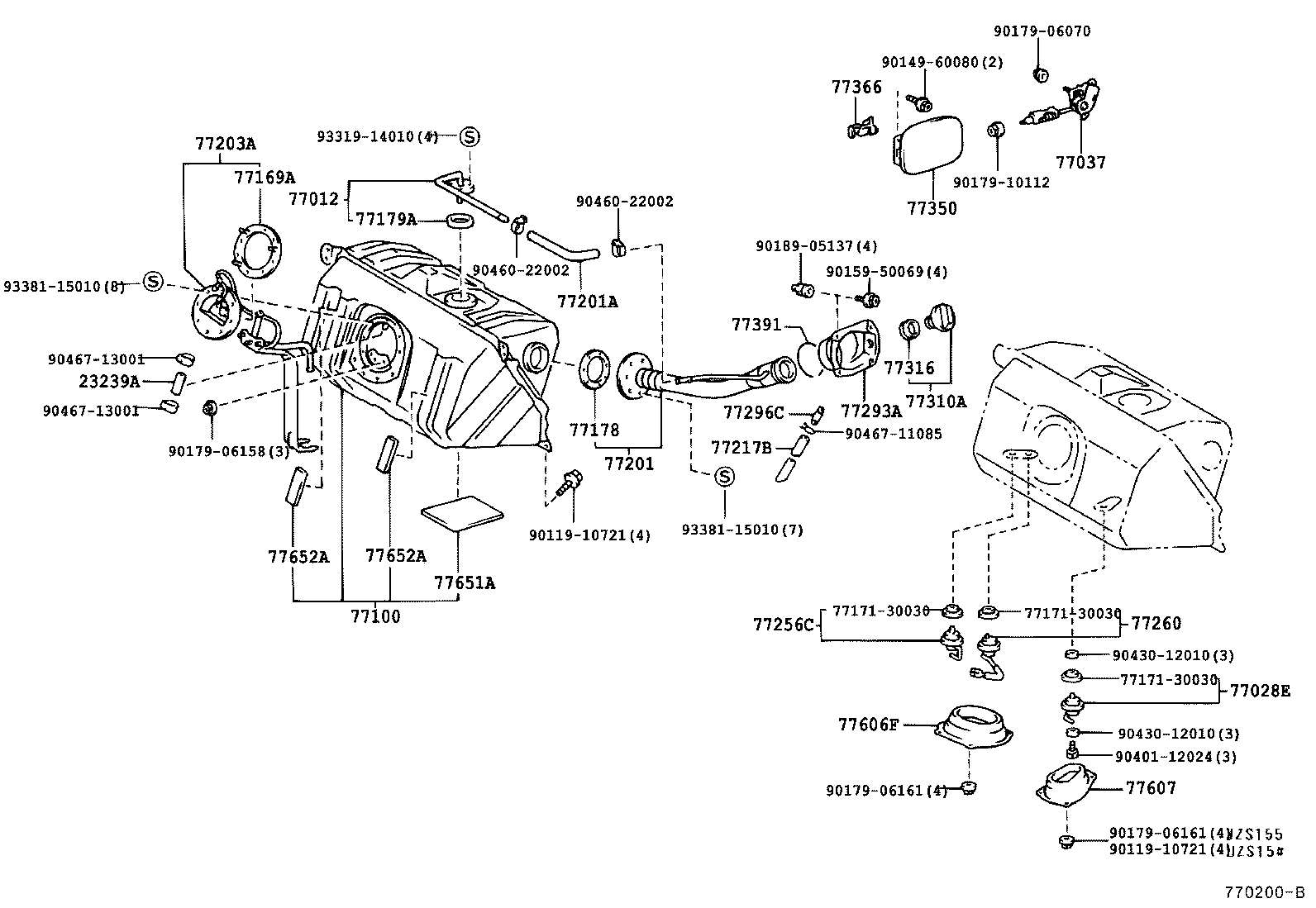

ILLUST NO. 1 OF 2(9508- )A,C,E,F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23239A - HOSE | ||||
| 23239-16010 |
2JZGE,1UZFE..JZS155,UZS15#..A,C,E,F |
1 | ||
| 77012 - TUBE SUB-ASSY, FUEL TANK BREATHER | ||||
| 77012-30080 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 77028E - TUBE SUB-ASSY, FUEL TANK TO CANISTER, REAR | ||||
| 77028-30081 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID | ||||
| 77030-30090 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-30430 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 77001-30430 |
JZS155..A,E |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-50020 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 77169-50020 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77169-14010 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-20040 |
GS151,JZS15#,LS151,UZS15#..HTWC,TDE,TWC |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-30280 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 77201A - HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE) | ||||
| 95311-13026 |
JZS155,UZS15#..A,C,E,F 長さ=260 |
1 | ||
| 77203A - TUBE SUB-ASSY, FUEL SUCTION | ||||
| 23206-50060 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 23206-50060 |
JZS155..A,E |
1 | ||
| 77217B - HOSE, FUEL TANK INLET | ||||
| 77217-30080 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 77256C - TUBE, FUEL RETURN, NO.2 | ||||
| 77208-30040 |
JZS155..A,E |
1 | ||
| 77208-30040 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 77260 - HOSE ASSY, FUEL MAIN | ||||
| 77260-30010 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 77293A - SHIELD, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77293-30030 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 77296C - PLATE, FUEL HOSE GROMMET SUPPORT | ||||
| 77296-22070 |
GS151,JZS15#,LS151,UZS15#..HTWC,TDE,TWC |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77310-48010 |
GS151,JZS15#,UZS15#..HTWC,TWC |
1 | ||
| 77310-16011 |
GS151,JZS15#,UZS15#..HTWC,TWC |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-16010 |
GS151,JZS15#,LS151,UZS15#..HTWC,TDE,TWC |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-30290 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-30010 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-22020 |
GS151,JZS15#,LS151,UZS15#..HTWC,TDE,TWC |
1 | ||
| 77606F - CASE SUB-ASSY, FUEL TANK COVER VENT | ||||
| 77606-30150 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 77607 - CASE SUB-ASSY, FUEL TANK COVER VENT, LH | ||||
| 77607-30010 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-30080 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-30040 |
JZS155,UZS15#..A,C,E,F |
2 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-30040 |
JZS155,UZS15#..A,C,E,F |
2 | ||
| Common parts | ||||
| 77171-30030 | ||||
| 90119-10721 | ||||
| 90149-60080 | ||||
| 90159-50069 | ||||
| 90179-06070 | ||||
| 90179-06158 | ||||
| 90179-06161 | ||||
| 90179-10112 | ||||
| 90189-05137 | ||||
| 90401-12024 | ||||
| 90430-12010 | ||||
| 90460-22002 | ||||
| 90467-11085 | ||||
| 90467-13001 | ||||
| 93319-14010 | ||||
| 93381-15010 | ||||

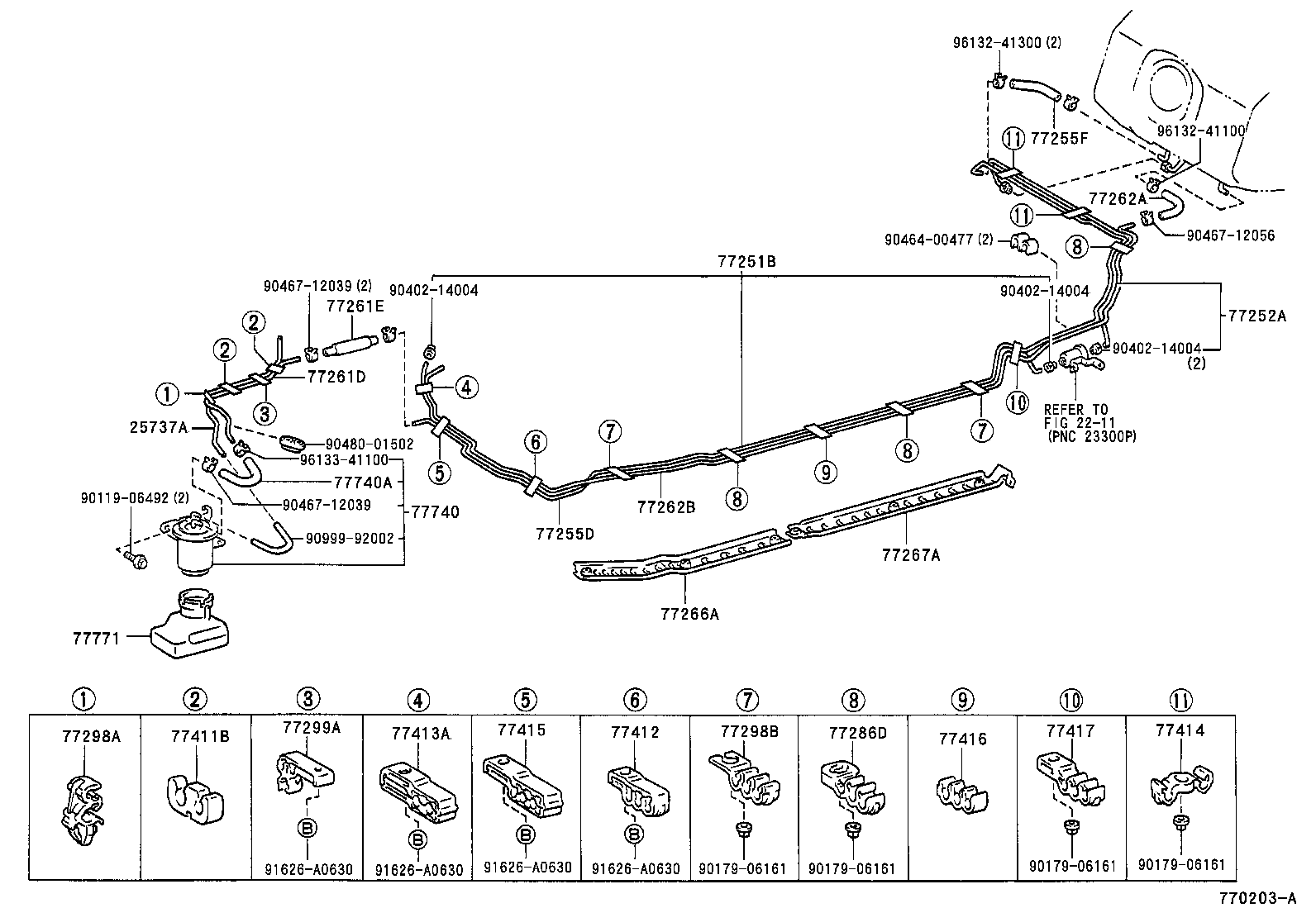

ILLUST NO. 2 OF 2(9508- )A,C,E,F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 25737A - FUEL TUBE, NO.1 | ||||
| 25737-50050 |
2JZGE..JZS155..A,E |
1 | ||
| 25737-50050 |
2JZGE,1UZFE..JZS155,UZS15#..A,C,E,F |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-30220 |
JZS155..A,E |
1 | ||
| 77252A - TUBE, FUEL MAIN, NO.2 | ||||
| 77252-30410 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-30060 |
JZS155..A,E |
1 | ||
| 77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE) | ||||
| 95334-08015 |
JZS155,UZS15#..A,C,E,F 長さ=150 |
1 | ||
| 95334-08015 |
JZS155..A,E 長さ=150 |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-30160 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 77259-30150 |
JZS155,UZS15#..A,C,E,F 長さ=200 |
1 | ||
| 77262A - HOSE, FUEL, NO.1(FOR FUEL TANK TO CANISTER CENTER TUBE) | ||||
| 95333-06020 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 77262B - TUBE, FUEL TANK TO CANISTER, NO.2 | ||||
| 77262-30170 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-30050 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 77267A - PROTECTOR, FUEL TUBE, NO.2 | ||||
| 77267-30060 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-30040 |
JZS155,UZS15#..A,C,E,F |
4 | ||
| 77298A - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-30080 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 77298B - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-30100 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 77299A - CLAMP, FUEL TUBE, NO.5 | ||||
| 77299-30010 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 77411B - SUPPORT, FUEL TUBE GROMMET, NO.1 | ||||
| 77411-50010 |
JZS155,UZS15#..A,C,E,F |
2 | ||
| 77412 - SUPPORT, FUEL TUBE GROMMET, NO.2 | ||||
| 77412-30030 |
JZS155..A,E |
2 | ||
| 77413A - SUPPORT, FUEL TUBE GROMMET, NO.3 | ||||
| 77413-30040 |
JZS155..A,E |
1 | ||
| 77414 - SUPPORT, FUEL TUBE GROMMET, NO.4 | ||||
| 77414-30020 |
JZS155,UZS15#..A,C,E,F |
2 | ||
| 77416 - SUPPORT, FUEL TUBE GROMMET, NO.6 | ||||
| 77416-30040 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 77417 - SUPPORT, FUEL TUBE GROMMET, NO.7 | ||||
| 77417-30040 |
JZS155..A,E |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-30200 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 77279-30070 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 77771 - TANK, CHARCOAL CANISTER | ||||
| 77771-30020 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| Common parts | ||||
| 90119-06492 | ||||
| 90179-06161 | ||||
| 90402-14004 | ||||
| 90464-00477 | ||||
| 90467-12039 | ||||
| 90467-12056 | ||||
| 90480-01502 | ||||
| 90999-92002 | ||||
| 91626-A0630 | ||||
| 96132-41100 | ||||
| 96132-41300 | ||||
| 96133-41100 | ||||
| Linked diagrams | ||||
| 2211 | ||||
