JZS155-CTPZF (1995)
Toyota Crown/Crown Majesta

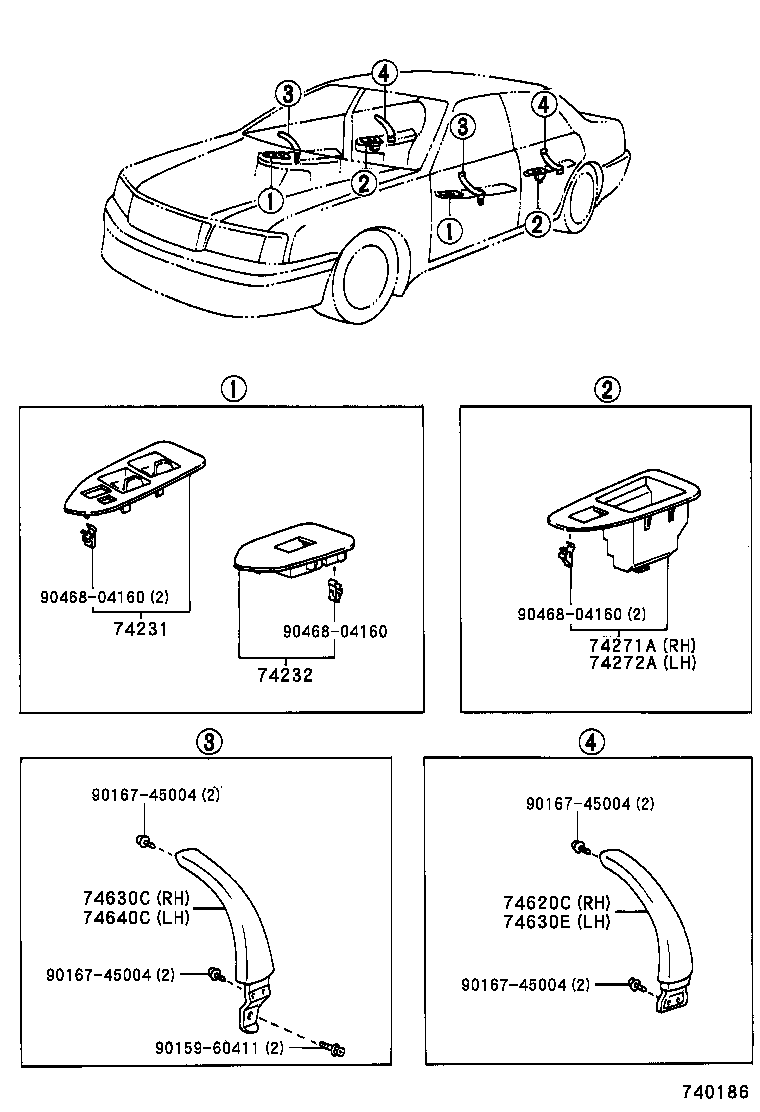

ILLUST NO. 1 OF 2(9508- )HT
ｱ-ﾑﾚｽﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74231 - PANEL, FRONT ARMREST BASE, UPPER RH | ||||
| 74230-30090 |
GS151,JZS15#,LS151,UZS15#..A,C,E,F,ROY,ROYG,ROYT |
1 | ||
| 74232 - PANEL, FRONT ARMREST BASE, UPPER LH | ||||
| 74240-30070 |
GS151,JZS15#,LS151,UZS15#..A,C,E,F,ROY,ROYG,ROYT |
1 | ||
| 74271A - PANEL, REAR DOOR ARMREST BASE, UPPER RH | ||||
| 74270-30040 |
GS151,JZS15#,LS151,UZS15#..A,C,E,F,ROY,ROYG,ROYT |
1 | ||
| 74272A - PANEL, REAR DOOR ARMREST BASE, UPPER LH | ||||
| 74280-30040 |
GS151,JZS15#,LS151,UZS15#..A,C,E,F,ROY,ROYG,ROYT |
1 | ||
| 74620C - GRIP ASSY, ASSIST, REAR RH | ||||
| 74650-30070B1 |
JZS155,UZS15#..A,C,E,F BLUE GRAY,TRIM1# |
1 | ||
| 74650-30070E0 |
JZS155,UZS15#..A,C,E,F QUARTZ,TRIM4# |
1 | ||
| 74630C - GRIP ASSY, DOOR ASSIST, RH | ||||
| 74630-30080E0 |
JZS155,UZS15#..A,C,E,F QUARTZ,TRIM4# |
1 | ||
| 74630-30080B1 |
JZS155,UZS15#..A,C,E,F BLUE GRAY,TRIM1# |
1 | ||
| 74630E - GRIP ASSY, ASSIST, REAR LH | ||||
| 74660-30030B1 |
JZS155,UZS15#..A,C,E,F BLUE GRAY,TRIM1# |
1 | ||
| 74660-30030E0 |
JZS155,UZS15#..A,C,E,F QUARTZ,TRIM4# |
1 | ||
| 74640C - GRIP ASSY, DOOR ASSIST, LH | ||||
| 74640-30070B1 |
JZS155,UZS15#..A,C,E,F BLUE GRAY,TRIM1# |
1 | ||
| 74640-30070E0 |
JZS155,UZS15#..A,C,E,F QUARTZ,TRIM4# |
1 | ||
| 74640-30100B1 |
JZS155,UZS15#..A,C,E,F BLUE GRAY,TRIM1# |
1 | ||
| 74640-30100E0 |
JZS155,UZS15#..A,C,E,F QUARTZ,TRIM4# |
1 | ||
| Common parts | ||||
| 90159-60411 | ||||
| 90167-45004 | ||||
| 90468-04160 | ||||

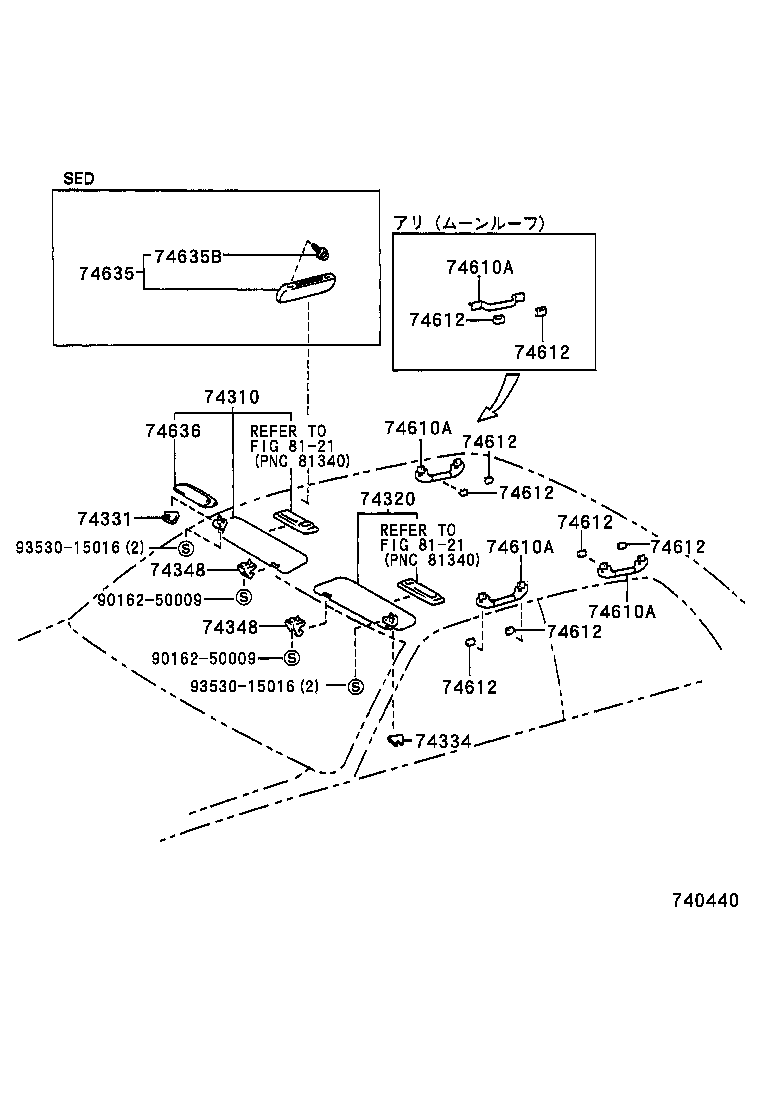

ILLUST NO. 2 OF 2(9508- )
ｻﾝﾊﾞｲｻﾞ-
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74310 - VISOR ASSY, RH | ||||
| 74310-30860B0 |
JZS155,UZS15#..A,C,E,F LT. BLUISH GRAY,TRIM1# |
1 | ||
| 74310-30860E0 |
JZS155,UZS15#..A,C,E,F QUARTZ,TRIM4# |
1 | ||
| 74310-30861E0 |
JZS155,UZS15#..A,C,E,F QUARTZ,TRIM4# |
1 | ||
| 74310-3A041E0 |
JZS155,UZS15#..A,C,E,F QUARTZ,TRIM4# |
1 | ||
| 74310-30861B0 |
JZS155,UZS15#..A,C,E,F LT. BLUISH GRAY,TRIM1# |
1 | ||
| 74310-3A041B0 |
JZS155,UZS15#..A,C,E,F LT. BLUISH GRAY,TRIM1# |
1 | ||
| 74310-3A041B1 |
JZS155,UZS15#..A,C,E,F LT. BLUISH GRAY,TRIM1# |
1 | ||
| 74310-3A041E2 |
JZS155,UZS15#..A,C,E,F QUARTZ,TRIM42 |
1 | ||
| 74320 - VISOR ASSY, LH | ||||
| 74320-30720E0 |
JZS155,UZS15#..A,C,E,F QUARTZ,TRIM4# |
1 | ||
| 74320-30720B0 |
JZS155,UZS15#..A,C,E,F LT. BLUISH GRAY,TRIM1# |
1 | ||
| 74320-30721B0 |
JZS155,UZS15#..A,C,E,F LT. BLUISH GRAY,TRIM1# |
1 | ||
| 74320-30721E0 |
JZS155,UZS15#..A,C,E,F QUARTZ,TRIM4# |
1 | ||
| 74320-30722E0 |
JZS155,UZS15#..A,C,E,F QUARTZ,TRIM4# |
1 | ||
| 74320-30722B0 |
JZS155,UZS15#..A,C,E,F LT. BLUISH GRAY,TRIM1# |
1 | ||
| 74320-30722B1 |
JZS155,UZS15#..A,C,E,F LT. BLUISH GRAY,TRIM1# |
1 | ||
| 74320-30722E2 |
JZS155,UZS15#..A,C,E,F QUARTZ,TRIM4# |
1 | ||
| 74331 - CASE, VISOR ARM, RH | ||||
| 74317-30010B1 |
GS151,JZS15#,LS151,UZS15#..A,C,E,F,ROY,ROYEX,ROYG,SALEX,SPDLX LT.BLUISH GRAY,TRIM1# |
1 | ||
| 74317-30010E0 |
GS151,JZS15#,LS151,UZS15# QUARTZ,TRIM4# |
1 | ||
| 74334 - CASE, VISOR ARM, LH | ||||
| 74317-30010E0 |
GS151,JZS15#,LS151,UZS15# QUARTZ,TRIM4# |
1 | ||
| 74317-30010B1 |
GS151,JZS15#,LS151,UZS15#..A,C,E,F,ROY,ROYEX,ROYG,SALEX,SPDLX LT.BLUISH GRAY,TRIM1# |
1 | ||
| 74348 - HOLDER, VISOR | ||||
| 74348-30020B0 |
GS151,JZS15#,LS151,UZS15#..(A,C,E,F,ROY,ROYEX,ROYG,SALEX,SPDLX)..(HTWC,TDE,TWC) LT.BLUISH GRAY,TRIM1# |
2 | ||
| 74348-30020E0 |
GS151,JZS15#,LS151,UZS15#..HTWC,TDE,TWC QUARTZ,TRIM4# |
2 | ||
| 74348 - HOLDER, VISOR | ||||
| 74348-30020B0 |
GS151,JZS15#,LS151,UZS15#..(A,C,E,F,ROY,ROYEX,ROYG,SALEX,SPDLX)..(HTWC,TDE,TWC) LT.BLUISH GRAY,TRIM1# |
2 | ||
| 74348-30020E0 |
GS151,JZS15#,LS151,UZS15#..HTWC,TDE,TWC QUARTZ,TRIM4# |
2 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74610-30200B0 |
GS151,JZS15#,LS151,UZS15#..A,C,E,F,ROY,ROYEX,ROYG,SALEX,SPDLX LT.BLUISH GRAY,TRIM1# |
3 | ||
| 74610-30190B0 |
JZS15#,LS151,UZS15#..HT..(A,C,F,ROY,ROYG) ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),LT.BLUISH GRAY,TRIM1# |
3 | ||
| 74610-30190E0 |
JZS15#,LS151,UZS15#..HT..(A,C,F,ROY,ROYG,ROYT) ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),QUARTZ,TRIM4# |
3 | ||
| 74610-30200E0 |
GS151,JZS15#,LS151,UZS15# QUARTZ,TRIM4# |
3 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74610-30200B0 |
GS151,JZS15#,LS151,UZS15#..A,C,E,F,ROY,ROYEX,ROYG,SALEX,SPDLX LT.BLUISH GRAY,TRIM1# |
3 | ||
| 74610-30190B0 |
JZS15#,LS151,UZS15#..HT..(A,C,F,ROY,ROYG) ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),LT.BLUISH GRAY,TRIM1# |
3 | ||
| 74610-30190E0 |
JZS15#,LS151,UZS15#..HT..(A,C,F,ROY,ROYG,ROYT) ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),QUARTZ,TRIM4# |
3 | ||
| 74610-30200E0 |
GS151,JZS15#,LS151,UZS15# QUARTZ,TRIM4# |
3 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74610-30200B0 |
GS151,JZS15#,LS151,UZS15#..A,C,E,F,ROY,ROYEX,ROYG,SALEX,SPDLX LT.BLUISH GRAY,TRIM1# |
3 | ||
| 74610-30190B0 |
JZS15#,LS151,UZS15#..HT..(A,C,F,ROY,ROYG) ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),LT.BLUISH GRAY,TRIM1# |
3 | ||
| 74610-30190E0 |
JZS15#,LS151,UZS15#..HT..(A,C,F,ROY,ROYG,ROYT) ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),QUARTZ,TRIM4# |
3 | ||
| 74610-30200E0 |
GS151,JZS15#,LS151,UZS15# QUARTZ,TRIM4# |
3 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74610-30200B0 |
GS151,JZS15#,LS151,UZS15#..A,C,E,F,ROY,ROYEX,ROYG,SALEX,SPDLX LT.BLUISH GRAY,TRIM1# |
3 | ||
| 74610-30190B0 |
JZS15#,LS151,UZS15#..HT..(A,C,F,ROY,ROYG) ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),LT.BLUISH GRAY,TRIM1# |
3 | ||
| 74610-30190E0 |
JZS15#,LS151,UZS15#..HT..(A,C,F,ROY,ROYG,ROYT) ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),QUARTZ,TRIM4# |
3 | ||
| 74610-30200E0 |
GS151,JZS15#,LS151,UZS15# QUARTZ,TRIM4# |
3 | ||
| 74612 - COVER, ASSIST GRIP | ||||
| 74612-50020B1 |
JZS15#,LS151,UZS15#..HT..(A,C,F,ROY,ROYG) ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),LT.BLUISH GRAY,TRIM1# |
6 | ||
| 74612-30160E0 |
GS151,JZS15#,LS151,UZS15# QUARTZ,TRIM4# |
6 | ||
| 74612-50020E0 |
JZS15#,LS151,UZS15#..HT..(A,C,F,ROY,ROYG,ROYT) ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),QUARTZ,TRIM4# |
6 | ||
| 74612-30160B0 |
GS151,JZS15#,LS151,UZS15#..A,C,E,F,ROY,ROYEX,ROYG,SALEX,SPDLX LT.BLUISH GRAY,TRIM1# |
6 | ||
| 74612 - COVER, ASSIST GRIP | ||||
| 74612-50020B1 |
JZS15#,LS151,UZS15#..HT..(A,C,F,ROY,ROYG) ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),LT.BLUISH GRAY,TRIM1# |
6 | ||
| 74612-30160E0 |
GS151,JZS15#,LS151,UZS15# QUARTZ,TRIM4# |
6 | ||
| 74612-50020E0 |
JZS15#,LS151,UZS15#..HT..(A,C,F,ROY,ROYG,ROYT) ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),QUARTZ,TRIM4# |
6 | ||
| 74612-30160B0 |
GS151,JZS15#,LS151,UZS15#..A,C,E,F,ROY,ROYEX,ROYG,SALEX,SPDLX LT.BLUISH GRAY,TRIM1# |
6 | ||
| 74612 - COVER, ASSIST GRIP | ||||
| 74612-50020B1 |
JZS15#,LS151,UZS15#..HT..(A,C,F,ROY,ROYG) ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),LT.BLUISH GRAY,TRIM1# |
6 | ||
| 74612-30160E0 |
GS151,JZS15#,LS151,UZS15# QUARTZ,TRIM4# |
6 | ||
| 74612-50020E0 |
JZS15#,LS151,UZS15#..HT..(A,C,F,ROY,ROYG,ROYT) ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),QUARTZ,TRIM4# |
6 | ||
| 74612-30160B0 |
GS151,JZS15#,LS151,UZS15#..A,C,E,F,ROY,ROYEX,ROYG,SALEX,SPDLX LT.BLUISH GRAY,TRIM1# |
6 | ||
| 74612 - COVER, ASSIST GRIP | ||||
| 74612-50020B1 |
JZS15#,LS151,UZS15#..HT..(A,C,F,ROY,ROYG) ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),LT.BLUISH GRAY,TRIM1# |
6 | ||
| 74612-30160E0 |
GS151,JZS15#,LS151,UZS15# QUARTZ,TRIM4# |
6 | ||
| 74612-50020E0 |
JZS15#,LS151,UZS15#..HT..(A,C,F,ROY,ROYG,ROYT) ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),QUARTZ,TRIM4# |
6 | ||
| 74612-30160B0 |
GS151,JZS15#,LS151,UZS15#..A,C,E,F,ROY,ROYEX,ROYG,SALEX,SPDLX LT.BLUISH GRAY,TRIM1# |
6 | ||
| 74612 - COVER, ASSIST GRIP | ||||
| 74612-50020B1 |
JZS15#,LS151,UZS15#..HT..(A,C,F,ROY,ROYG) ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),LT.BLUISH GRAY,TRIM1# |
6 | ||
| 74612-30160E0 |
GS151,JZS15#,LS151,UZS15# QUARTZ,TRIM4# |
6 | ||
| 74612-50020E0 |
JZS15#,LS151,UZS15#..HT..(A,C,F,ROY,ROYG,ROYT) ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),QUARTZ,TRIM4# |
6 | ||
| 74612-30160B0 |
GS151,JZS15#,LS151,UZS15#..A,C,E,F,ROY,ROYEX,ROYG,SALEX,SPDLX LT.BLUISH GRAY,TRIM1# |
6 | ||
| 74612 - COVER, ASSIST GRIP | ||||
| 74612-50020B1 |
JZS15#,LS151,UZS15#..HT..(A,C,F,ROY,ROYG) ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),LT.BLUISH GRAY,TRIM1# |
6 | ||
| 74612-30160E0 |
GS151,JZS15#,LS151,UZS15# QUARTZ,TRIM4# |
6 | ||
| 74612-50020E0 |
JZS15#,LS151,UZS15#..HT..(A,C,F,ROY,ROYG,ROYT) ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),QUARTZ,TRIM4# |
6 | ||
| 74612-30160B0 |
GS151,JZS15#,LS151,UZS15#..A,C,E,F,ROY,ROYEX,ROYG,SALEX,SPDLX LT.BLUISH GRAY,TRIM1# |
6 | ||
| 74612 - COVER, ASSIST GRIP | ||||
| 74612-50020B1 |
JZS15#,LS151,UZS15#..HT..(A,C,F,ROY,ROYG) ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),LT.BLUISH GRAY,TRIM1# |
6 | ||
| 74612-30160E0 |
GS151,JZS15#,LS151,UZS15# QUARTZ,TRIM4# |
6 | ||
| 74612-50020E0 |
JZS15#,LS151,UZS15#..HT..(A,C,F,ROY,ROYG,ROYT) ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),QUARTZ,TRIM4# |
6 | ||
| 74612-30160B0 |
GS151,JZS15#,LS151,UZS15#..A,C,E,F,ROY,ROYEX,ROYG,SALEX,SPDLX LT.BLUISH GRAY,TRIM1# |
6 | ||
| 74612 - COVER, ASSIST GRIP | ||||
| 74612-50020B1 |
JZS15#,LS151,UZS15#..HT..(A,C,F,ROY,ROYG) ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),LT.BLUISH GRAY,TRIM1# |
6 | ||
| 74612-30160E0 |
GS151,JZS15#,LS151,UZS15# QUARTZ,TRIM4# |
6 | ||
| 74612-50020E0 |
JZS15#,LS151,UZS15#..HT..(A,C,F,ROY,ROYG,ROYT) ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),QUARTZ,TRIM4# |
6 | ||
| 74612-30160B0 |
GS151,JZS15#,LS151,UZS15#..A,C,E,F,ROY,ROYEX,ROYG,SALEX,SPDLX LT.BLUISH GRAY,TRIM1# |
6 | ||
| 74636 - GRIP, BACK DOOR ASSIST | ||||
| 74636-30010E0 |
GS151,JZS15#,LS151,UZS15#..(A,C,E,F,ROY,ROYEX,ROYG,ROYT,SALEX)..(HTWC,TDE,TWC) QUARTZ,TRIM4# |
1 | ||
| 74636-30010B3 |
GS151,JZS15#,LS151,UZS15#..(A,C,E,F,ROY,ROYEX,ROYG,SALEX)..(HTWC,TDE,TWC) LT.BLUISH GRAY,TRIM1# |
1 | ||
| 74636-30010B0 |
GS151,JZS15#,LS151,UZS15#..(A,C,E,F,ROY,ROYEX,ROYG,SALEX)..(HTWC,TDE,TWC) LT. BLUISH GRAY,TRIM1# |
1 | ||
| 74636-30010E2 |
GS151,JZS15#,LS151,UZS15#..(A,C,E,F,ROY,ROYEX,ROYG,ROYT,SALEX)..(HTWC,TDE,TWC) QUARTZ,TRIM4# |
1 | ||
| Common parts | ||||
| 90162-50009 | ||||
| 93530-15016 | ||||
| Linked diagrams | ||||
| 8121 | ||||
