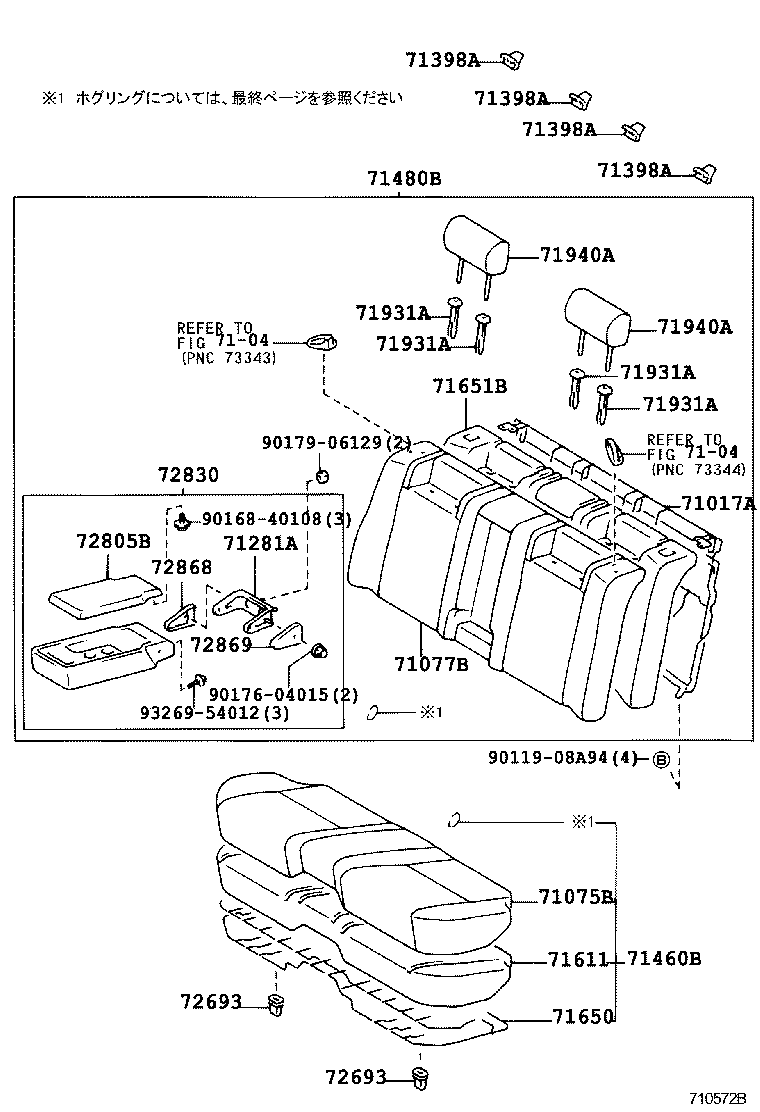

JZS155-CTPZF (1995)
Toyota Crown/Crown Majesta
(9508- )A,E,F
ｲﾂﾀｲ ｺﾃｲｼｷ ﾘﾔｼ-ﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71017A - FRAME SUB-ASSY, REAR SEAT BACK | ||||
| 71017-30590 |
JZS155,UZS157..A,E,F |
1 | ||
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-3A090E0 |
JZS155,UZS157..A,E,F ｼ-ﾄ = TYPE A-*104,ANTELOPE,TRIM4# |
1 | ||
| 71075-3A090B0 |
JZS155,UZS157..A,E,F ｼ-ﾄ = TYPE A-*104,DK.BLUE GRAY,TRIM1# |
1 | ||
| 71075-3A200B1 |
JZS155,UZS157..A,E,F ｼ-ﾄ = TYPE A-*104,DK. BLUE GRAY,TRIM1# |
1 | ||
| 71075-3A200E0 |
JZS155,UZS157..A,E,F ｼ-ﾄ = TYPE A-*104,ANTELOPE,TRIM4# |
1 | ||
| 71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE) | ||||
| 71077-3F170B0 |
JZS155,UZS157..A,E,F ｼ-ﾄ = TYPE A-*104,DK.BLUE GRAY,TRIM1# |
1 | ||
| 71077-3F170E0 |
JZS155,UZS157..A,E,F ｼ-ﾄ = TYPE A-*104,ANTELOPE,TRIM4# |
1 | ||
| 71077-3F280B1 |
JZS155,UZS157..A,E,F ｼ-ﾄ = TYPE A-*104,DK. BLUE GRAY,TRIM1# |
1 | ||
| 71077-3F280E0 |
JZS155,UZS157..A,E,F ｼ-ﾄ = TYPE A-*104,ANTELOPE,TRIM4# |
1 | ||
| 71281A - HINGE, REAR SEAT CENTER ARMREST | ||||
| 71281-30030 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 71398A - HOLDER, REAR SEAT BACK | ||||
| 71398-24010 |
JZS155,UZS157..A,E,F |
4 | ||
| 71398A - HOLDER, REAR SEAT BACK | ||||
| 71398-24010 |
JZS155,UZS157..A,E,F |
4 | ||
| 71398A - HOLDER, REAR SEAT BACK | ||||
| 71398-24010 |
JZS155,UZS157..A,E,F |
4 | ||
| 71398A - HOLDER, REAR SEAT BACK | ||||
| 71398-24010 |
JZS155,UZS157..A,E,F |
4 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71460-3A350B0 |
JZS155,UZS157..A,E,F ***,DK.BLUE GRAY,TRIM1# |
1 | ||
| 71460-3A350E0 |
JZS155,UZS157..A,E,F ***,ANTELOPE,TRIM4# |
1 | ||
| 71460-3A351E0 |
JZS155,UZS157..A,E,F ***,ｼ-ﾄ = TYPE A-*104,ANTELOPE,TRIM4# |
1 | ||
| 71460-3A351B0 |
JZS155,UZS157..A,E,F ***,ｼ-ﾄ = TYPE A-*104,DK.BLUE GRAY,TRIM1# |
1 | ||
| 71460-3A460E0 |
JZS155,UZS157..A,E,F ***,ｼ-ﾄ = TYPE A-*104,ANTELOPE,TRIM4# |
1 | ||
| 71460-3A460B1 |
JZS155,UZS157..A,E,F ***,ｼ-ﾄ = TYPE A-*104,DK. BLUE GRAY,TRIM1# |
1 | ||
| 71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71480-3F390E0 |
JZS155,UZS157..A,E,F ***,ｼ-ﾄ = TYPE A-*104,DK.BLUE GRAY,TRIM4# |
1 | ||
| 71480-3F390B0 |
JZS155,UZS157..A,E,F ***,ｼ-ﾄ = TYPE A-*104,DK.BLUE GRAY,TRIM1# |
1 | ||
| 71480-3F510E0 |
JZS155,UZS157..A,E,F ***,ｼ-ﾄ = TYPE A-*104,ANTELOPE,TRIM4# |
1 | ||
| 71480-3F510B1 |
JZS155,UZS157..A,E,F ***,ｼ-ﾄ = TYPE A-*104,DK. BLUE GRAY,TRIM1# |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71611-30690 |
JZS155,UZS157..A,E,F |
1 | ||
| 71650 - SPRING ASSY, REAR SEAT CUSHION | ||||
| 71650-30431 |
JZS155,UZS157..A,E,F |
1 | ||
| 71650-30430 |
JZS155,UZS157..A,E,F |
1 | ||
| 71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE) | ||||
| 71651-30800 |
JZS155,UZS157..A,E,F |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-12070P6 |
JZS155,UZS15#..A,C,E,F ﾛｯｸ付,BLUE GRAY,TRIM12 |
2 | ||
| 71931-12040B2 |
JZS155,UZS15#..A,C,E,F ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71930-12070B2 |
JZS155,UZS15#..A,C,E,F ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71931-12040P6 |
JZS155,UZS15#..A,C,E,F ﾛｯｸ無,BLUE GRAY,TRIM12 |
2 | ||
| 71930-12070E0 |
GS151,JZS15#,LS151,UZS15# ﾛｯｸ付,QUARTZ,TRIM4# |
2 | ||
| 71931-12040P6 |
GS151,JZS15#,LS151,UZS15#..A,C,E,F,ROY,ROYEX,ROYG,SALEX,SPDLX ﾛｯｸ無,BLUE GRAY,TRIM1# |
2 | ||
| 71930-12070P6 |
GS151,JZS15#,LS151,UZS15#..A,C,E,F,ROY,ROYEX,ROYG,SALEX,SPDLX ﾛｯｸ付,BLUE GRAY,TRIM1# |
2 | ||
| 71931-12040E0 |
GS151,JZS15#,LS151,UZS15# ﾛｯｸ無,QUARTZ,TRIM4# |
2 | ||
| 71930-12070E0 |
JZS155,UZS157..A,F ﾛｯｸ付,ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),QUARTZ,TRIM4# |
2 | ||
| 71930-12070E0 |
JZS155..E ﾛｯｸ付,F-3 ﾊﾟﾂｹ-ｼﾞ-*104,QUARTZ,TRIM4# |
2 | ||
| 71931-12040E0 |
JZS155,UZS157..A,F ﾛｯｸ無,ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),QUARTZ,TRIM4# |
2 | ||
| 71931-12040P6 |
JZS155,UZS157..A,F ﾛｯｸ無,ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),BLUE GRAY,TRIM1# |
2 | ||
| 71931-12040E0 |
JZS155..E ﾛｯｸ無,F-3 ﾊﾟﾂｹ-ｼﾞ-*104,QUARTZ,TRIM4# |
2 | ||
| 71930-12070P6 |
JZS155,UZS157..A,F ﾛｯｸ付,ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),BLUE GRAY,TRIM1# |
2 | ||
| 71931-12040P6 |
JZS155..E ﾛｯｸ無,F-3 ﾊﾟﾂｹ-ｼﾞ-*104,BLUE GRAY,TRIM1# |
2 | ||
| 71930-12070P6 |
JZS155..E ﾛｯｸ付,F-3 ﾊﾟﾂｹ-ｼﾞ-*104,BLUE GRAY,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-12070P6 |
JZS155,UZS15#..A,C,E,F ﾛｯｸ付,BLUE GRAY,TRIM12 |
2 | ||
| 71931-12040B2 |
JZS155,UZS15#..A,C,E,F ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71930-12070B2 |
JZS155,UZS15#..A,C,E,F ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71931-12040P6 |
JZS155,UZS15#..A,C,E,F ﾛｯｸ無,BLUE GRAY,TRIM12 |
2 | ||
| 71930-12070E0 |
GS151,JZS15#,LS151,UZS15# ﾛｯｸ付,QUARTZ,TRIM4# |
2 | ||
| 71931-12040P6 |
GS151,JZS15#,LS151,UZS15#..A,C,E,F,ROY,ROYEX,ROYG,SALEX,SPDLX ﾛｯｸ無,BLUE GRAY,TRIM1# |
2 | ||
| 71930-12070P6 |
GS151,JZS15#,LS151,UZS15#..A,C,E,F,ROY,ROYEX,ROYG,SALEX,SPDLX ﾛｯｸ付,BLUE GRAY,TRIM1# |
2 | ||
| 71931-12040E0 |
GS151,JZS15#,LS151,UZS15# ﾛｯｸ無,QUARTZ,TRIM4# |
2 | ||
| 71930-12070E0 |
JZS155,UZS157..A,F ﾛｯｸ付,ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),QUARTZ,TRIM4# |
2 | ||
| 71930-12070E0 |
JZS155..E ﾛｯｸ付,F-3 ﾊﾟﾂｹ-ｼﾞ-*104,QUARTZ,TRIM4# |
2 | ||
| 71931-12040E0 |
JZS155,UZS157..A,F ﾛｯｸ無,ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),QUARTZ,TRIM4# |
2 | ||
| 71931-12040P6 |
JZS155,UZS157..A,F ﾛｯｸ無,ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),BLUE GRAY,TRIM1# |
2 | ||
| 71931-12040E0 |
JZS155..E ﾛｯｸ無,F-3 ﾊﾟﾂｹ-ｼﾞ-*104,QUARTZ,TRIM4# |
2 | ||
| 71930-12070P6 |
JZS155,UZS157..A,F ﾛｯｸ付,ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),BLUE GRAY,TRIM1# |
2 | ||
| 71931-12040P6 |
JZS155..E ﾛｯｸ無,F-3 ﾊﾟﾂｹ-ｼﾞ-*104,BLUE GRAY,TRIM1# |
2 | ||
| 71930-12070P6 |
JZS155..E ﾛｯｸ付,F-3 ﾊﾟﾂｹ-ｼﾞ-*104,BLUE GRAY,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-12070P6 |
JZS155,UZS15#..A,C,E,F ﾛｯｸ付,BLUE GRAY,TRIM12 |
2 | ||
| 71931-12040B2 |
JZS155,UZS15#..A,C,E,F ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71930-12070B2 |
JZS155,UZS15#..A,C,E,F ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71931-12040P6 |
JZS155,UZS15#..A,C,E,F ﾛｯｸ無,BLUE GRAY,TRIM12 |
2 | ||
| 71930-12070E0 |
GS151,JZS15#,LS151,UZS15# ﾛｯｸ付,QUARTZ,TRIM4# |
2 | ||
| 71931-12040P6 |
GS151,JZS15#,LS151,UZS15#..A,C,E,F,ROY,ROYEX,ROYG,SALEX,SPDLX ﾛｯｸ無,BLUE GRAY,TRIM1# |
2 | ||
| 71930-12070P6 |
GS151,JZS15#,LS151,UZS15#..A,C,E,F,ROY,ROYEX,ROYG,SALEX,SPDLX ﾛｯｸ付,BLUE GRAY,TRIM1# |
2 | ||
| 71931-12040E0 |
GS151,JZS15#,LS151,UZS15# ﾛｯｸ無,QUARTZ,TRIM4# |
2 | ||
| 71930-12070E0 |
JZS155,UZS157..A,F ﾛｯｸ付,ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),QUARTZ,TRIM4# |
2 | ||
| 71930-12070E0 |
JZS155..E ﾛｯｸ付,F-3 ﾊﾟﾂｹ-ｼﾞ-*104,QUARTZ,TRIM4# |
2 | ||
| 71931-12040E0 |
JZS155,UZS157..A,F ﾛｯｸ無,ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),QUARTZ,TRIM4# |
2 | ||
| 71931-12040P6 |
JZS155,UZS157..A,F ﾛｯｸ無,ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),BLUE GRAY,TRIM1# |
2 | ||
| 71931-12040E0 |
JZS155..E ﾛｯｸ無,F-3 ﾊﾟﾂｹ-ｼﾞ-*104,QUARTZ,TRIM4# |
2 | ||
| 71930-12070P6 |
JZS155,UZS157..A,F ﾛｯｸ付,ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),BLUE GRAY,TRIM1# |
2 | ||
| 71931-12040P6 |
JZS155..E ﾛｯｸ無,F-3 ﾊﾟﾂｹ-ｼﾞ-*104,BLUE GRAY,TRIM1# |
2 | ||
| 71930-12070P6 |
JZS155..E ﾛｯｸ付,F-3 ﾊﾟﾂｹ-ｼﾞ-*104,BLUE GRAY,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-12070P6 |
JZS155,UZS15#..A,C,E,F ﾛｯｸ付,BLUE GRAY,TRIM12 |
2 | ||
| 71931-12040B2 |
JZS155,UZS15#..A,C,E,F ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71930-12070B2 |
JZS155,UZS15#..A,C,E,F ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71931-12040P6 |
JZS155,UZS15#..A,C,E,F ﾛｯｸ無,BLUE GRAY,TRIM12 |
2 | ||
| 71930-12070E0 |
GS151,JZS15#,LS151,UZS15# ﾛｯｸ付,QUARTZ,TRIM4# |
2 | ||
| 71931-12040P6 |
GS151,JZS15#,LS151,UZS15#..A,C,E,F,ROY,ROYEX,ROYG,SALEX,SPDLX ﾛｯｸ無,BLUE GRAY,TRIM1# |
2 | ||
| 71930-12070P6 |
GS151,JZS15#,LS151,UZS15#..A,C,E,F,ROY,ROYEX,ROYG,SALEX,SPDLX ﾛｯｸ付,BLUE GRAY,TRIM1# |
2 | ||
| 71931-12040E0 |
GS151,JZS15#,LS151,UZS15# ﾛｯｸ無,QUARTZ,TRIM4# |
2 | ||
| 71930-12070E0 |
JZS155,UZS157..A,F ﾛｯｸ付,ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),QUARTZ,TRIM4# |
2 | ||
| 71930-12070E0 |
JZS155..E ﾛｯｸ付,F-3 ﾊﾟﾂｹ-ｼﾞ-*104,QUARTZ,TRIM4# |
2 | ||
| 71931-12040E0 |
JZS155,UZS157..A,F ﾛｯｸ無,ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),QUARTZ,TRIM4# |
2 | ||
| 71931-12040P6 |
JZS155,UZS157..A,F ﾛｯｸ無,ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),BLUE GRAY,TRIM1# |
2 | ||
| 71931-12040E0 |
JZS155..E ﾛｯｸ無,F-3 ﾊﾟﾂｹ-ｼﾞ-*104,QUARTZ,TRIM4# |
2 | ||
| 71930-12070P6 |
JZS155,UZS157..A,F ﾛｯｸ付,ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),BLUE GRAY,TRIM1# |
2 | ||
| 71931-12040P6 |
JZS155..E ﾛｯｸ無,F-3 ﾊﾟﾂｹ-ｼﾞ-*104,BLUE GRAY,TRIM1# |
2 | ||
| 71930-12070P6 |
JZS155..E ﾛｯｸ付,F-3 ﾊﾟﾂｹ-ｼﾞ-*104,BLUE GRAY,TRIM1# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-30690B0 |
JZS155,UZS15#..A,C,E,F BLUE GRAY,TRIM1# |
2 | ||
| 71940-30690E0 |
JZS155,UZS15#..A,C,E,F QUARTZ,TRIM4# |
2 | ||
| 71940-30700B0 |
JZS155,UZS151,155..C,E F-3 ﾊﾟﾂｹ-ｼﾞ-*104;ｱﾘ(ｼ-ﾄﾋ-ﾀ(ﾘﾔ)),BLUE GRAY,TRIM1# |
2 | ||
| 71940-30700E0 |
JZS155,UZS157..A,E,F QUARTZ,TRIM4# |
1 | ||
| 71940-30700B0 |
JZS155,UZS157..A,E,F BLUE GRAY,TRIM1# |
1 | ||
| 71940-30740B0 |
JZS155,UZS15#..A,C,F ﾎﾝｶﾞﾜ ｼ-ﾄ,BLUE GRAY,TRIM1# |
2 | ||
| 71940-30700E0 |
JZS155,UZS151,155..C,E F-3 ﾊﾟﾂｹ-ｼﾞ-*104;ｱﾘ(ｼ-ﾄﾋ-ﾀ(ﾘﾔ)),QUARTZ,TRIM4# |
2 | ||
| 71940-30680B0 |
UZS151,155 ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),BLUE GRAY,TRIM1# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-30690B0 |
JZS155,UZS15#..A,C,E,F BLUE GRAY,TRIM1# |
2 | ||
| 71940-30690E0 |
JZS155,UZS15#..A,C,E,F QUARTZ,TRIM4# |
2 | ||
| 71940-30700B0 |
JZS155,UZS151,155..C,E F-3 ﾊﾟﾂｹ-ｼﾞ-*104;ｱﾘ(ｼ-ﾄﾋ-ﾀ(ﾘﾔ)),BLUE GRAY,TRIM1# |
2 | ||
| 71940-30700E0 |
JZS155,UZS157..A,E,F QUARTZ,TRIM4# |
1 | ||
| 71940-30700B0 |
JZS155,UZS157..A,E,F BLUE GRAY,TRIM1# |
1 | ||
| 71940-30740B0 |
JZS155,UZS15#..A,C,F ﾎﾝｶﾞﾜ ｼ-ﾄ,BLUE GRAY,TRIM1# |
2 | ||
| 71940-30700E0 |
JZS155,UZS151,155..C,E F-3 ﾊﾟﾂｹ-ｼﾞ-*104;ｱﾘ(ｼ-ﾄﾋ-ﾀ(ﾘﾔ)),QUARTZ,TRIM4# |
2 | ||
| 71940-30680B0 |
UZS151,155 ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),BLUE GRAY,TRIM1# |
2 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-30030 |
JZS155,UZS157..A,E,F |
2 | ||
| 72693-14050 |
JZS153..SED..ROY;JZS151,155,LS151,UZS15#..A,C,E,F,ROY,ROYG ｱﾘ(ﾘﾔ ﾊﾟﾜ-ｼ-ﾄ) |
4 | ||
| 72693-14050 |
GS151,JZS15#,LS151,UZS157..HT..(A,E,F,ROY,ROYEX,ROYT) |
2 | ||
| 72693-14050 |
JZS151,155,LS151..HT..(E,ROY) ｱﾘ(ﾘﾔ ﾊﾟﾜ-ｼ-ﾄ) |
4 | ||
| 72693-14050 |
JZS155,UZS151,155..C,ROYG;JZS151,155,LS151..SED..ROY |
4 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-30030 |
JZS155,UZS157..A,E,F |
2 | ||
| 72693-14050 |
JZS153..SED..ROY;JZS151,155,LS151,UZS15#..A,C,E,F,ROY,ROYG ｱﾘ(ﾘﾔ ﾊﾟﾜ-ｼ-ﾄ) |
4 | ||
| 72693-14050 |
GS151,JZS15#,LS151,UZS157..HT..(A,E,F,ROY,ROYEX,ROYT) |
2 | ||
| 72693-14050 |
JZS151,155,LS151..HT..(E,ROY) ｱﾘ(ﾘﾔ ﾊﾟﾜ-ｼ-ﾄ) |
4 | ||
| 72693-14050 |
JZS155,UZS151,155..C,ROYG;JZS151,155,LS151..SED..ROY |
4 | ||
| 72805B - DOOR SUB-ASSY, REAR SEAT CENTER ARMREST | ||||
| 72805-30110B0 |
JZS155..E ｼ-ﾄ = TYPE A-*104 & ｱﾘ(ﾘﾔ ﾊﾟﾜ-ｼ-ﾄ),BLUE GRAY,TRIM1# |
1 | ||
| 72805-30110B0 |
UZS151,155 ｼ-ﾄ = TYPE A-*104,BLUE GRAY,TRIM1# |
1 | ||
| 72805-30110E0 |
JZS155..E ｼ-ﾄ = TYPE A-*104 & ｱﾘ(ﾘﾔ ﾊﾟﾜ-ｼ-ﾄ),QUARTZ,TRIM4# |
1 | ||
| 72805-30130B0 |
UZS151,155 ｼ-ﾄ = TYPE E-*104 & ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),BLUE GRAY,TRIM1# |
1 | ||
| 72805-30120E0 |
JZS155,UZS157..A,E,F ｼ-ﾄ = TYPE A-*104,QUARTZ,TRIM4# |
1 | ||
| 72805-30150B0 |
JZS155,UZS157..A,E,F ｼ-ﾄ = TYPE A-*104,BLUE GRAY,TRIM1# |
1 | ||
| 72805-30110E0 |
UZS151,155 ｼ-ﾄ = TYPE A-*104,QUARTZ,TRIM4# |
1 | ||
| 72805-30140E0 |
JZS155,UZS151,155..C,E ｼ-ﾄ = TYPE A-*104 & ｱﾘ(ﾘﾔ ﾊﾟﾜ-ｼ-ﾄ),QUARTZ,TRIM4# |
1 | ||
| 72805-30150E0 |
JZS155,UZS157..A,E,F ｼ-ﾄ = TYPE A-*104,QUARTZ,TRIM4# |
1 | ||
| 72805-30120B0 |
JZS155,UZS157..A,E,F ｼ-ﾄ = TYPE A-*104,BLUE GRAY,TRIM1# |
1 | ||
| 72805-30140B0 |
JZS155,UZS151,155..C,E ｼ-ﾄ = TYPE A-*104 & ｱﾘ(ﾘﾔ ﾊﾟﾜ-ｼ-ﾄ),BLUE GRAY,TRIM1# |
1 | ||
| 72805-30160B0 |
JZS155,UZS15#..A,C,F ｼ-ﾄ = TYPE E-*104,BLUE GRAY,TRIM1# |
1 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72830-3A200B0 |
JZS155..E ｼ-ﾄ = TYPE A-*104 & ｱﾘ(ﾘﾔ ﾊﾟﾜ-ｼ-ﾄ),BLUE GRAY,TRIM1# |
1 | ||
| 72830-3A190E0 |
UZS151,155 ｼ-ﾄ = TYPE A-*104 & ｱﾘ(ﾘﾔ ｼ-ﾄﾋ-ﾀ),QUARTZ,TRIM4# |
1 | ||
| 72830-3A200B0 |
UZS151,155 ｼ-ﾄ = TYPE A-*104,BLUE GRAY,TRIM1# |
1 | ||
| 72830-3A210B0 |
JZS155,UZS157..A,E,F ｼ-ﾄ = TYPE A-*104,BLUE GRAY,TRIM1# |
1 | ||
| 72830-3A200E0 |
JZS155..E ｼ-ﾄ = TYPE A-*104 & ｱﾘ(ﾘﾔ ﾊﾟﾜ-ｼ-ﾄ),QUARTZ,TRIM4# |
1 | ||
| 72830-3A200E0 |
UZS151,155 ｼ-ﾄ = TYPE A-*104,QUARTZ,TRIM4# |
1 | ||
| 72830-3A190B0 |
UZS151,155 ｼ-ﾄ = TYPE A-*104 & ｱﾘ(ﾘﾔ ｼ-ﾄﾋ-ﾀ),BLUE GRAY,TRIM1# |
1 | ||
| 72830-3A230B0 |
UZS151,155 ｼ-ﾄ = TYPE E-*104 & ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),BLUE GRAY,TRIM1# |
1 | ||
| 72830-3A210E0 |
JZS155,UZS157..A,E,F ｼ-ﾄ = TYPE A-*104,QUARTZ,TRIM4# |
1 | ||
| 72830-3A250E0 |
JZS155,UZS157..A,E,F ｼ-ﾄ = TYPE A-*104,QUARTZ,TRIM4# |
1 | ||
| 72830-3A240E0 |
JZS155,UZS151,155..C,E ｼ-ﾄ = TYPE A-*104 & ｱﾘ(ﾘﾔ ﾊﾟﾜ-ｼ-ﾄ),QUARTZ,TRIM4# |
1 | ||
| 72830-3A240B0 |
JZS155,UZS151,155..C,E ｼ-ﾄ = TYPE A-*104 & ｱﾘ(ﾘﾔ ﾊﾟﾜ-ｼ-ﾄ),BLUE GRAY,TRIM1# |
1 | ||
| 72830-3A310B0 |
UZS151,155 ｼ-ﾄ = TYPE A-*104 & ｱﾘ(ｼ-ﾄ ﾋ-ﾀ),BLUE GRAY,TRIM1# |
1 | ||
| 72830-3A260B0 |
JZS155,UZS15#..A,C,F ｼ-ﾄ = TYPE E-*104,BLUE GRAY,TRIM1# |
1 | ||
| 72830-3A310E0 |
UZS151,155 ｼ-ﾄ = TYPE A-*104 & ｱﾘ(ｼ-ﾄ ﾋ-ﾀ),QUARTZ,TRIM4# |
1 | ||
| 72830-3A250B0 |
JZS155,UZS157..A,E,F ｼ-ﾄ = TYPE A-*104,BLUE GRAY,TRIM1# |
1 | ||
| 72868 - COVER, CENTER ARMREST HINGE, RH | ||||
| 72868-30010B0 |
UZS151,155 BLUE GRAY,TRIM1# |
1 | ||
| 72868-30010E0 |
JZS155..E ｱﾘ(ﾘﾔ ﾊﾟﾜ-ｼ-ﾄ),QUARTZ,TRIM4# |
1 | ||
| 72868-30010E0 |
UZS151,155 QUARTZ,TRIM4# |
1 | ||
| 72868-30010B0 |
JZS155..E ｱﾘ(ﾘﾔ ﾊﾟﾜ-ｼ-ﾄ),BLUE GRAY,TRIM1# |
1 | ||
| 72868-30070B0 |
UZS151,155 ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),BLUE GRAY,TRIM1# |
1 | ||
| 72868-30080E0 |
JZS155,UZS151,155..C,E ｱﾘ(ﾘﾔ ﾊﾟﾜ-ｼ-ﾄ),QUARTZ,TRIM4# |
1 | ||
| 72868-30090B0 |
JZS155,UZS15#..A,C,F ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),BLUE GRAY,TRIM1# |
1 | ||
| 72868-30080B0 |
JZS155,UZS151,155..C,E ｱﾘ(ﾘﾔ ﾊﾟﾜ-ｼ-ﾄ),BLUE GRAY,TRIM1# |
1 | ||
| 72868-30040E0 |
GS151,JZS157,UZS157;JZS151,153,LS151..SALEX,SPDLX;JZS151,153,155,LS151..HT..(A,E,ROY,ROYEX,ROYT) QUARTZ,TRIM4# |
1 | ||
| 72868-30040B1 |
GS151,JZS157,UZS157;JZS151,153,LS151..SALEX,SPDLX;JZS151,153,155,LS151..HT..(A,E,ROY,ROYEX) BLUE GRAY,TRIM1# |
1 | ||
| 72869 - COVER, CENTER ARMREST HINGE, LH | ||||
| 72869-30010E0 |
JZS155..E ｱﾘ(ﾘﾔ ﾊﾟﾜ-ｼ-ﾄ),QUARTZ,TRIM4# |
1 | ||
| 72869-30010E0 |
UZS151,155 QUARTZ,TRIM4# |
1 | ||
| 72869-30050B0 |
UZS151,155 ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),BLUE GRAY,TRIM1# |
1 | ||
| 72869-30010B1 |
UZS151,155 BLUE GRAY,TRIM1# |
1 | ||
| 72869-30010B1 |
JZS155..E ｱﾘ(ﾘﾔ ﾊﾟﾜ-ｼ-ﾄ),BLUE GRAY,TRIM1# |
1 | ||
| 72869-30070B0 |
JZS155,UZS15#..A,C,F ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),BLUE GRAY,TRIM1# |
1 | ||
| 72869-30060E0 |
JZS155,UZS151,155..C,E ｱﾘ(ﾘﾔ ﾊﾟﾜ-ｼ-ﾄ),QUARTZ,TRIM4# |
1 | ||
| 72869-30060B0 |
JZS155,UZS151,155..C,E ｱﾘ(ﾘﾔ ﾊﾟﾜ-ｼ-ﾄ),BLUE GRAY,TRIM1# |
1 | ||
| 72869-30020E0 |
GS151,JZS157,UZS157;JZS151,153,LS151..SALEX,SPDLX;JZS151,153,155,LS151..HT..(A,E,ROY,ROYEX,ROYT) QUARTZ,TRIM4# |
1 | ||
| 72869-30020B1 |
GS151,JZS157,UZS157;JZS151,153,LS151..SALEX,SPDLX;JZS151,153,155,LS151..HT..(A,E,ROY,ROYEX) BLUE GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-08A94 | ||||
| 90168-40108 | ||||
| 90176-04015 | ||||
| 90179-06129 | ||||
| 93269-54012 | ||||
| Linked diagrams | ||||
| 7104 | ||||

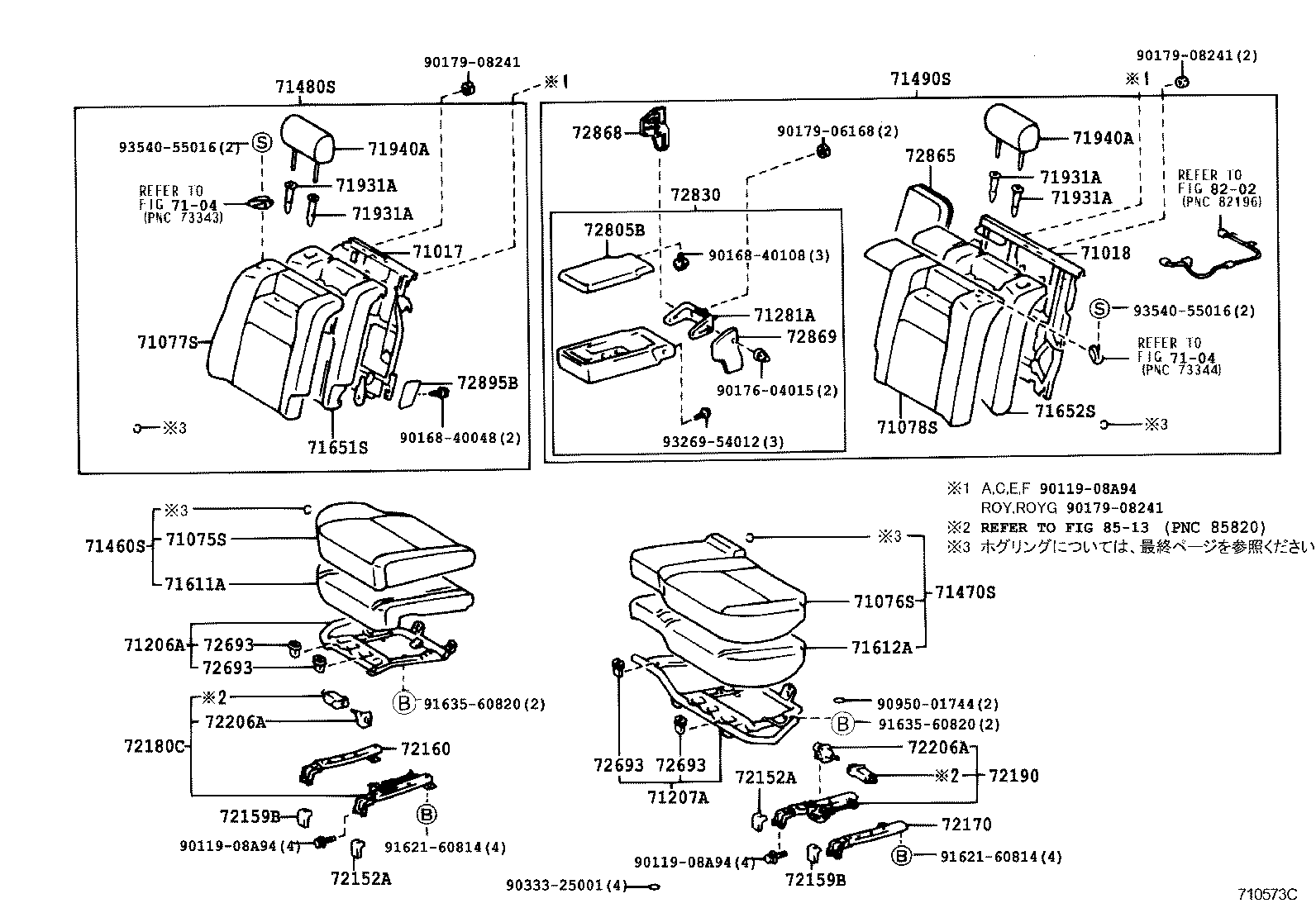

(9508- )
ﾘﾔ ﾊﾟﾜ-ｼ-ﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-30630 |
JZS155..E ｱﾘ(ﾘﾔ ﾊﾟﾜ-ｼ-ﾄ) |
1 | ||
| 71017-30630 |
JZS155,UZS151,155..C,E |
1 | ||
| 71017-30630 |
JZS155,UZS15#..A,C,F |
1 | ||
| 71017-30630 |
UZS151,155 |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-30200 |
JZS155..E ｱﾘ(ﾘﾔ ﾊﾟﾜ-ｼ-ﾄ) |
1 | ||
| 71018-30200 |
JZS155,UZS151,155..C,E |
1 | ||
| 71018-30200 |
JZS155,UZS15#..A,C,F |
1 | ||
| 71018-30200 |
UZS151,155 |
1 | ||
| 71075S - COVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE) | ||||
| 71075-3A080E0 |
JZS155,UZS151,155..C,E ANTELOPE,TRIM4# |
1 | ||
| 71075-3A100B0 |
UZS151,155 ｱﾘ(ﾘﾔ ｼ-ﾄﾋ-ﾀ),DK.BLUE GRAY,TRIM1# |
1 | ||
| 71075-3A080B0 |
JZS155,UZS151,155..C,E DK.BLUE GRAY,TRIM1# |
1 | ||
| 71075-3A100E0 |
UZS151,155 ｱﾘ(ﾘﾔ ｼ-ﾄﾋ-ﾀ),ANTELOPE,TRIM4# |
1 | ||
| 71075-3A190E0 |
JZS155,UZS151,155..C,E ｼ-ﾄ = TYPE A-*104,ANTELOPE,TRIM4# |
1 | ||
| 71075-3A180B0 |
UZS151,155 ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),DK. BLUE GRAY,TRIM1# |
1 | ||
| 71075-3A210B0 |
JZS155,UZS15#..A,C,F ｼ-ﾄ = TYPE E-*104,DK. BLUE GRAY,TRIM1# |
1 | ||
| 71075-3A270B0 |
UZS151,155 ｱﾘ(ｼ-ﾄﾋ-ﾀ) & ｼ-ﾄ = TYPE A-*104,DK. BLUE GRAY,TRIM1# |
1 | ||
| 71075-3A270E0 |
UZS151,155 ｱﾘ(ｼ-ﾄﾋ-ﾀ) & ｼ-ﾄ = TYPE A-*104,ANTELOPE,TRIM4# |
1 | ||
| 71075-3A190B0 |
JZS155,UZS151,155..C,E ｼ-ﾄ = TYPE A-*104,DK. BLUE GRAY,TRIM1# |
1 | ||
| 71076S - COVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71076-30260B0 |
JZS155,UZS151,155..C,E F-3 ﾊﾟﾂｹ-ｼﾞ-*104,DK.BLUE GRAY,TRIM1# |
1 | ||
| 71076-30260E0 |
JZS155,UZS151,155..C,E F-3 ﾊﾟﾂｹ-ｼﾞ-*104,ANTELOPE,TRIM4# |
1 | ||
| 71076-30280B0 |
UZS151,155 ｱﾘ(ﾘﾔ ｼ-ﾄﾋ-ﾀ),DK.BLUE GRAY,TRIM1# |
1 | ||
| 71076-30280E0 |
UZS151,155 ｱﾘ(ﾘﾔ ｼ-ﾄﾋ-ﾀ),ANTELOPE,TRIM4# |
1 | ||
| 71076-30390B0 |
JZS155,UZS15#..A,C,F ｼ-ﾄ = TYPE E-*104,DK. BLUE GRAY,TRIM1# |
1 | ||
| 71076-30380B0 |
JZS155,UZS151,155..C,E ｼ-ﾄ = TYPE A-*104,DK. BLUE GRAY,TRIM1# |
1 | ||
| 71076-30430E0 |
UZS151,155 ｱﾘ(ｼ-ﾄﾋ-ﾀ) & ｼ-ﾄ = TYPE A-*104,ANTELOPE,TRIM4# |
1 | ||
| 71076-30430B0 |
UZS151,155 ｱﾘ(ｼ-ﾄﾋ-ﾀ) & ｼ-ﾄ = TYPE A-*104,DK. BLUE GRAY,TRIM1# |
1 | ||
| 71076-30380E0 |
JZS155,UZS151,155..C,E ｼ-ﾄ = TYPE A-*104,ANTELOPE,TRIM4# |
1 | ||
| 71076-30370B0 |
UZS151,155 ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),DK. BLUE GRAY,TRIM1# |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-3F180B0 |
UZS151,155 ｱﾘ(ﾘﾔ ｼ-ﾄﾋ-ﾀ),DK.BLUE GRAY,TRIM1# |
1 | ||
| 71077-3F160E0 |
JZS155,UZS151,155..C,E ANTELOPE,TRIM4# |
1 | ||
| 71077-3F180E0 |
UZS151,155 ｱﾘ(ﾘﾔ ｼ-ﾄﾋ-ﾀ),ANTELOPE,TRIM4# |
1 | ||
| 71077-3F160B0 |
JZS155,UZS151,155..C,E DK.BLUE GRAY,TRIM1# |
1 | ||
| 71077-3F270B0 |
JZS155,UZS151,155..C,E ｼ-ﾄ = TYPE A-*104,DK. BLUE GRAY,TRIM1# |
1 | ||
| 71077-3F260B0 |
UZS151,155 ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),DK. BLUE GRAY,TRIM1# |
1 | ||
| 71077-3F350B0 |
UZS151,155 ｱﾘ(ｼ-ﾄﾋ-ﾀ) & ｼ-ﾄ = TYPE A-*104,DK.BLUE GRAY,TRIM1# |
1 | ||
| 71077-3F290B0 |
JZS155,UZS15#..A,C,F ｼ-ﾄ = TYPE E-*104,DK. BLUE GRAY,TRIM1# |
1 | ||
| 71077-3F270E0 |
JZS155,UZS151,155..C,E ｼ-ﾄ = TYPE A-*104,ANTELOPE,TRIM4# |
1 | ||
| 71077-3F350E0 |
UZS151,155 ｱﾘ(ｼ-ﾄﾋ-ﾀ) & ｼ-ﾄ = TYPE A-*104,ANTELOPE,TRIM4# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-30320B0 |
JZS155,UZS151,155..C,E DK.BLUE GRAY,TRIM1# |
1 | ||
| 71078-30320E0 |
JZS155,UZS151,155..C,E ANTELOPE,TRIM4# |
1 | ||
| 71078-30330B0 |
UZS151,155 ｱﾘ(ﾘﾔ ｼ-ﾄﾋ-ﾀ),DK.BLUE GRAY,TRIM1# |
1 | ||
| 71078-30330E0 |
UZS151,155 ｱﾘ(ﾘﾔ ｼ-ﾄﾋ-ﾀ),ANTELOPE,TRIM4# |
1 | ||
| 71078-30440B0 |
JZS155,UZS151,155..C,E ｼ-ﾄ = TYPE A-*104,DK.BLUE GRAY,TRIM1# |
1 | ||
| 71078-30430B0 |
UZS151,155 ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),DK. BLUE GRAY,TRIM1# |
1 | ||
| 71078-30440E0 |
JZS155,UZS151,155..C,E ｼ-ﾄ = TYPE A-*104,ANTELOPE,TRIM4# |
1 | ||
| 71078-30450B0 |
JZS155,UZS15#..A,C,F ｼ-ﾄ = TYPE E-*104,DK.BLUE GRAY,TRIM1# |
1 | ||
| 71078-30490E0 |
UZS151,155 ｱﾘ(ｼ-ﾄﾋ-ﾀ) & ｼ-ﾄ = TYPE A-*104,ANTELOPE,TRIM4# |
1 | ||
| 71078-30490B0 |
UZS151,155 ｱﾘ(ｼ-ﾄﾋ-ﾀ) & ｼ-ﾄ = TYPE A-*104,DK.BLUE GRAY,TRIM1# |
1 | ||
| 71206A - BRACKET SUB-ASSY, REAR SEAT STOPPER, RH | ||||
| 71206-30040 |
JZS157,UZS15#;JZS155..A,ROYG;JZS151,153,155,LS151..SED..ROY |
1 | ||
| 71206-30040 |
JZS151,155,LS151..HT..(E,ROY) ｱﾘ(ﾘﾔ ﾊﾟﾜ-ｼ-ﾄ) |
1 | ||
| 71206-30040 |
JZS151,155,LS151..SED..ROY;JZS155,UZS151,155..C,E,ROYG |
1 | ||
| 71206-30040 |
JZS155,UZS151,155..C,ROYG;JZS151,155,LS151..SED..ROY |
1 | ||
| 71207A - BRACKET SUB-ASSY, REAR SEAT STOPPER, LH | ||||
| 71207-30040 |
JZS155,UZS151,155..C,ROYG;JZS151,155,LS151..SED..ROY |
1 | ||
| 71207-30040 |
JZS151,155,LS151..SED..ROY;JZS155,UZS151,155..C,E,ROYG |
1 | ||
| 71207-30040 |
JZS151,155,LS151..HT..(E,ROY) ｱﾘ(ﾘﾔ ﾊﾟﾜ-ｼ-ﾄ) |
1 | ||
| 71207-30040 |
JZS157,UZS15#;JZS155..A,ROYG;JZS151,153,155,LS151..SED..ROY |
1 | ||
| 71281A - HINGE, REAR SEAT CENTER ARMREST | ||||
| 71281-30030 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 71460S - CUSHION ASSY, REAR SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71460-3A340B0 |
JZS155,UZS151,155..C,E ***,DK.BLUE GRAY,TRIM1# |
1 | ||
| 71460-3A340E0 |
JZS155,UZS151,155..C,E ***,ANTELOPE,TRIM4# |
1 | ||
| 71460-3A330B0 |
UZS151,155 ***,ｱﾘ(ﾘﾔ ｼ-ﾄﾋ-ﾀ),DK.BLUE GRAY,TRIM1# |
1 | ||
| 71460-3A330E0 |
UZS151,155 ***,ｱﾘ(ﾘﾔ ｼ-ﾄﾋ-ﾀ),ANTELOPE,TRIM4# |
1 | ||
| 71460-3A450E0 |
JZS155,UZS151,155..C,E ***,ｼ-ﾄ = TYPE A-*104,ANTELOPE,TRIM4# |
1 | ||
| 71460-3A430B0 |
UZS151,155 ***,ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),DK. BLUE GRAY,TRIM1# |
1 | ||
| 71460-3A440B0 |
UZS151,155 ***,ｱﾘ(ｼ-ﾄﾋ-ﾀ) & ｼ-ﾄ = TYPE A-*104,DK. BLUE GRAY,TRIM1# |
1 | ||
| 71460-3A450B0 |
JZS155,UZS151,155..C,E ***,ｼ-ﾄ = TYPE A-*104,DK. BLUE GRAY,TRIM1# |
1 | ||
| 71460-3A470B0 |
JZS155,UZS15#..A,C,F ***,ｼ-ﾄ = TYPE E-*104,DK. BLUE GRAY,TRIM1# |
1 | ||
| 71460-3A440E0 |
UZS151,155 ***,ｱﾘ(ｼ-ﾄﾋ-ﾀ) & ｼ-ﾄ = TYPE A-*104,ANTELOPE,TRIM4# |
1 | ||
| 71470S - CUSHION ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71470-30340E0 |
JZS155,UZS151,155..C,E ***,ANTELOPE,TRIM4# |
1 | ||
| 71470-30330E0 |
UZS151,155 ***,ｱﾘ(ﾘﾔ ｼ-ﾄﾋ-ﾀ),ANTELOPE,TRIM4# |
1 | ||
| 71470-30330B0 |
UZS151,155 ***,ｱﾘ(ﾘﾔ ｼ-ﾄﾋ-ﾀ),DK.BLUE GRAY,TRIM1# |
1 | ||
| 71470-30340B0 |
JZS155,UZS151,155..C,E ***,DK.BLUE GRAY,TRIM1# |
1 | ||
| 71470-30380B0 |
UZS151,155 ***,ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),DK. BLUE GRAY,TRIM1# |
1 | ||
| 71470-30390B0 |
UZS151,155 ***,ｱﾘ(ｼ-ﾄﾋ-ﾀ) & ｼ-ﾄ = TYPE A-*104,DK. BLUE GRAY,TRIM1# |
1 | ||
| 71470-30400E0 |
JZS155,UZS151,155..C,E ***,ｼ-ﾄ = TYPE A-*104,ANTELOPE,TRIM4# |
1 | ||
| 71470-30410B0 |
JZS155,UZS15#..A,C,F ***,ｼ-ﾄ = TYPE E-*104,DK. BLUE GRAY,TRIM1# |
1 | ||
| 71470-30400B0 |
JZS155,UZS151,155..C,E ***,ｼ-ﾄ = TYPE A-*104,DK. BLUE GRAY,TRIM1# |
1 | ||
| 71470-30390E0 |
UZS151,155 ***,ｱﾘ(ｼ-ﾄﾋ-ﾀ) & ｼ-ﾄ = TYPE A-*104,ANTELOPE,TRIM4# |
1 | ||
| 71480S - BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE) | ||||
| 71480-3F380B0 |
JZS155,UZS151,155..C,E ***,DK.BLUE GRAY,TRIM1# |
1 | ||
| 71480-3F380E0 |
JZS155,UZS151,155..C,E ***,ANTELOPE,TRIM4# |
1 | ||
| 71480-3F490B0 |
UZS151,155 ***,ｱﾘ(ｼ-ﾄﾋ-ﾀ) & ｼ-ﾄ = TYPE A-*104,DK. BLUE GRAY,TRIM1# |
1 | ||
| 71480-3F370E0 |
UZS151,155 ***,ｱﾘ(ﾘﾔ ｼ-ﾄﾋ-ﾀ),ANTELOPE,TRIM4# |
1 | ||
| 71480-3F370B0 |
UZS151,155 ***,ｱﾘ(ﾘﾔ ｼ-ﾄﾋ-ﾀ),DK.BLUE GRAY,TRIM1# |
1 | ||
| 71480-3F520B0 |
JZS155,UZS15#..A,C,F ***,ｼ-ﾄ = TYPE E-*104,DK. BLUE GRAY,TRIM1# |
1 | ||
| 71480-3F400B0 |
UZS151,155 ***,ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),DK. BLUE GRAY,TRIM1# |
1 | ||
| 71480-3F490E0 |
UZS151,155 ***,ｱﾘ(ｼ-ﾄﾋ-ﾀ) & ｼ-ﾄ = TYPE A-*104,ANTELOPE,TRIM4# |
1 | ||
| 71480-3F500E0 |
JZS155,UZS151,155..C,E ***,ｼ-ﾄ = TYPE A-*104,ANTELOPE,TRIM4# |
1 | ||
| 71480-3F500B0 |
JZS155,UZS151,155..C,E ***,ｼ-ﾄ = TYPE A-*104,DK. BLUE GRAY,TRIM1# |
1 | ||
| 71490S - BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71490-30400B0 |
UZS151,155 ***,ｱﾘ(ﾘﾔ ｼ-ﾄﾋ-ﾀ),DK.BLUE GRAY,TRIM1# |
1 | ||
| 71490-30410E0 |
JZS155,UZS151,155..C,E ***,ANTELOPE,TRIM4# |
1 | ||
| 71490-30410B0 |
JZS155,UZS151,155..C,E ***,DK.BLUE GRAY,TRIM1# |
1 | ||
| 71490-30580B0 |
JZS155,UZS15#..A,C,F ***,ｼ-ﾄ = TYPE E-*104,DK. BLUE GRAY,TRIM1# |
1 | ||
| 71490-30560E0 |
UZS151,155 ***,ｱﾘ(ｼ-ﾄﾋ-ﾀ) & ｼ-ﾄ = TYPE A-*104,ANTELOPE,TRIM4# |
1 | ||
| 71490-30400E0 |
UZS151,155 ***,ｱﾘ(ﾘﾔ ｼ-ﾄﾋ-ﾀ),ANTELOPE,TRIM4# |
1 | ||
| 71490-30550B0 |
UZS151,155 ***,ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),DK. BLUE GRAY,TRIM1# |
1 | ||
| 71490-30570E0 |
JZS155,UZS151,155..C,E ***,ｼ-ﾄ = TYPE A-*104,ANTELOPE,TRIM4# |
1 | ||
| 71490-30570B0 |
JZS155,UZS151,155..C,E ***,ｼ-ﾄ = TYPE A-*104,DK. BLUE GRAY,TRIM1# |
1 | ||
| 71490-30560B0 |
UZS151,155 ***,ｱﾘ(ｼ-ﾄﾋ-ﾀ) & ｼ-ﾄ = TYPE A-*104,DK. BLUE GRAY,TRIM1# |
1 | ||
| 71611A - PAD, REAR SEAT CUSHION, RH | ||||
| 71503-30030 |
JZS155,UZS151,155..C,E |
1 | ||
| 71503-30060 |
UZS151,155 ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ) |
1 | ||
| 71503-30030 |
UZS151,155 |
1 | ||
| 71503-30030 |
JZS155..E ｱﾘ(ﾘﾔ ﾊﾟﾜ-ｼ-ﾄ) |
1 | ||
| 71503-30070 |
JZS155,UZS15#..A,C,F ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ) |
1 | ||
| 71612A - PAD, REAR SEAT CUSHION, LH | ||||
| 71504-30040 |
UZS151,155 ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ) |
1 | ||
| 71504-30020 |
UZS151,155 |
1 | ||
| 71504-30020 |
JZS155,UZS151,155..C,E |
1 | ||
| 71504-30050 |
JZS155,UZS15#..A,C,F ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ) |
1 | ||
| 71504-30020 |
JZS155..E ｱﾘ(ﾘﾔ ﾊﾟﾜ-ｼ-ﾄ) |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-30890 |
UZS151,155 ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ) |
1 | ||
| 71651-3A010 |
JZS155,UZS15#..A,C,F ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ) |
1 | ||
| 71651-30780 |
JZS155,UZS151,155..C,E |
1 | ||
| 71651-30780 |
UZS151,155 |
1 | ||
| 71651-30780 |
JZS155..E ｱﾘ(ﾘﾔ ﾊﾟﾜ-ｼ-ﾄ) |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-30410 |
JZS155,UZS151,155..C,E |
1 | ||
| 71652-30410 |
JZS155..E ｱﾘ(ﾘﾔ ﾊﾟﾜ-ｼ-ﾄ) |
1 | ||
| 71652-30410 |
UZS151,155 |
1 | ||
| 71652-30400 |
UZS151,155 ｱﾘ(ﾘﾔ ｼ-ﾄﾋ-ﾀ) |
1 | ||
| 71652-30440 |
UZS151,155 ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ) |
1 | ||
| 71652-30450 |
JZS155,UZS15#..A,C,F ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ) |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-12070P6 |
JZS155,UZS15#..A,C,E,F ﾛｯｸ付,BLUE GRAY,TRIM12 |
2 | ||
| 71931-12040B2 |
JZS155,UZS15#..A,C,E,F ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71930-12070B2 |
JZS155,UZS15#..A,C,E,F ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71931-12040P6 |
JZS155,UZS15#..A,C,E,F ﾛｯｸ無,BLUE GRAY,TRIM12 |
2 | ||
| 71930-12070E0 |
GS151,JZS15#,LS151,UZS15# ﾛｯｸ付,QUARTZ,TRIM4# |
2 | ||
| 71931-12040P6 |
GS151,JZS15#,LS151,UZS15#..A,C,E,F,ROY,ROYEX,ROYG,SALEX,SPDLX ﾛｯｸ無,BLUE GRAY,TRIM1# |
2 | ||
| 71930-12070P6 |
GS151,JZS15#,LS151,UZS15#..A,C,E,F,ROY,ROYEX,ROYG,SALEX,SPDLX ﾛｯｸ付,BLUE GRAY,TRIM1# |
2 | ||
| 71931-12040E0 |
GS151,JZS15#,LS151,UZS15# ﾛｯｸ無,QUARTZ,TRIM4# |
2 | ||
| 71930-12070E0 |
JZS155,UZS157..A,F ﾛｯｸ付,ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),QUARTZ,TRIM4# |
2 | ||
| 71930-12070E0 |
JZS155..E ﾛｯｸ付,F-3 ﾊﾟﾂｹ-ｼﾞ-*104,QUARTZ,TRIM4# |
2 | ||
| 71931-12040E0 |
JZS155,UZS157..A,F ﾛｯｸ無,ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),QUARTZ,TRIM4# |
2 | ||
| 71931-12040P6 |
JZS155,UZS157..A,F ﾛｯｸ無,ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),BLUE GRAY,TRIM1# |
2 | ||
| 71931-12040E0 |
JZS155..E ﾛｯｸ無,F-3 ﾊﾟﾂｹ-ｼﾞ-*104,QUARTZ,TRIM4# |
2 | ||
| 71930-12070P6 |
JZS155,UZS157..A,F ﾛｯｸ付,ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),BLUE GRAY,TRIM1# |
2 | ||
| 71931-12040P6 |
JZS155..E ﾛｯｸ無,F-3 ﾊﾟﾂｹ-ｼﾞ-*104,BLUE GRAY,TRIM1# |
2 | ||
| 71930-12070P6 |
JZS155..E ﾛｯｸ付,F-3 ﾊﾟﾂｹ-ｼﾞ-*104,BLUE GRAY,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-12070P6 |
JZS155,UZS15#..A,C,E,F ﾛｯｸ付,BLUE GRAY,TRIM12 |
2 | ||
| 71931-12040B2 |
JZS155,UZS15#..A,C,E,F ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71930-12070B2 |
JZS155,UZS15#..A,C,E,F ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71931-12040P6 |
JZS155,UZS15#..A,C,E,F ﾛｯｸ無,BLUE GRAY,TRIM12 |
2 | ||
| 71930-12070E0 |
GS151,JZS15#,LS151,UZS15# ﾛｯｸ付,QUARTZ,TRIM4# |
2 | ||
| 71931-12040P6 |
GS151,JZS15#,LS151,UZS15#..A,C,E,F,ROY,ROYEX,ROYG,SALEX,SPDLX ﾛｯｸ無,BLUE GRAY,TRIM1# |
2 | ||
| 71930-12070P6 |
GS151,JZS15#,LS151,UZS15#..A,C,E,F,ROY,ROYEX,ROYG,SALEX,SPDLX ﾛｯｸ付,BLUE GRAY,TRIM1# |
2 | ||
| 71931-12040E0 |
GS151,JZS15#,LS151,UZS15# ﾛｯｸ無,QUARTZ,TRIM4# |
2 | ||
| 71930-12070E0 |
JZS155,UZS157..A,F ﾛｯｸ付,ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),QUARTZ,TRIM4# |
2 | ||
| 71930-12070E0 |
JZS155..E ﾛｯｸ付,F-3 ﾊﾟﾂｹ-ｼﾞ-*104,QUARTZ,TRIM4# |
2 | ||
| 71931-12040E0 |
JZS155,UZS157..A,F ﾛｯｸ無,ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),QUARTZ,TRIM4# |
2 | ||
| 71931-12040P6 |
JZS155,UZS157..A,F ﾛｯｸ無,ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),BLUE GRAY,TRIM1# |
2 | ||
| 71931-12040E0 |
JZS155..E ﾛｯｸ無,F-3 ﾊﾟﾂｹ-ｼﾞ-*104,QUARTZ,TRIM4# |
2 | ||
| 71930-12070P6 |
JZS155,UZS157..A,F ﾛｯｸ付,ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),BLUE GRAY,TRIM1# |
2 | ||
| 71931-12040P6 |
JZS155..E ﾛｯｸ無,F-3 ﾊﾟﾂｹ-ｼﾞ-*104,BLUE GRAY,TRIM1# |
2 | ||
| 71930-12070P6 |
JZS155..E ﾛｯｸ付,F-3 ﾊﾟﾂｹ-ｼﾞ-*104,BLUE GRAY,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-12070P6 |
JZS155,UZS15#..A,C,E,F ﾛｯｸ付,BLUE GRAY,TRIM12 |
2 | ||
| 71931-12040B2 |
JZS155,UZS15#..A,C,E,F ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71930-12070B2 |
JZS155,UZS15#..A,C,E,F ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71931-12040P6 |
JZS155,UZS15#..A,C,E,F ﾛｯｸ無,BLUE GRAY,TRIM12 |
2 | ||
| 71930-12070E0 |
GS151,JZS15#,LS151,UZS15# ﾛｯｸ付,QUARTZ,TRIM4# |
2 | ||
| 71931-12040P6 |
GS151,JZS15#,LS151,UZS15#..A,C,E,F,ROY,ROYEX,ROYG,SALEX,SPDLX ﾛｯｸ無,BLUE GRAY,TRIM1# |
2 | ||
| 71930-12070P6 |
GS151,JZS15#,LS151,UZS15#..A,C,E,F,ROY,ROYEX,ROYG,SALEX,SPDLX ﾛｯｸ付,BLUE GRAY,TRIM1# |
2 | ||
| 71931-12040E0 |
GS151,JZS15#,LS151,UZS15# ﾛｯｸ無,QUARTZ,TRIM4# |
2 | ||
| 71930-12070E0 |
JZS155,UZS157..A,F ﾛｯｸ付,ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),QUARTZ,TRIM4# |
2 | ||
| 71930-12070E0 |
JZS155..E ﾛｯｸ付,F-3 ﾊﾟﾂｹ-ｼﾞ-*104,QUARTZ,TRIM4# |
2 | ||
| 71931-12040E0 |
JZS155,UZS157..A,F ﾛｯｸ無,ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),QUARTZ,TRIM4# |
2 | ||
| 71931-12040P6 |
JZS155,UZS157..A,F ﾛｯｸ無,ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),BLUE GRAY,TRIM1# |
2 | ||
| 71931-12040E0 |
JZS155..E ﾛｯｸ無,F-3 ﾊﾟﾂｹ-ｼﾞ-*104,QUARTZ,TRIM4# |
2 | ||
| 71930-12070P6 |
JZS155,UZS157..A,F ﾛｯｸ付,ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),BLUE GRAY,TRIM1# |
2 | ||
| 71931-12040P6 |
JZS155..E ﾛｯｸ無,F-3 ﾊﾟﾂｹ-ｼﾞ-*104,BLUE GRAY,TRIM1# |
2 | ||
| 71930-12070P6 |
JZS155..E ﾛｯｸ付,F-3 ﾊﾟﾂｹ-ｼﾞ-*104,BLUE GRAY,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-12070P6 |
JZS155,UZS15#..A,C,E,F ﾛｯｸ付,BLUE GRAY,TRIM12 |
2 | ||
| 71931-12040B2 |
JZS155,UZS15#..A,C,E,F ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71930-12070B2 |
JZS155,UZS15#..A,C,E,F ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71931-12040P6 |
JZS155,UZS15#..A,C,E,F ﾛｯｸ無,BLUE GRAY,TRIM12 |
2 | ||
| 71930-12070E0 |
GS151,JZS15#,LS151,UZS15# ﾛｯｸ付,QUARTZ,TRIM4# |
2 | ||
| 71931-12040P6 |
GS151,JZS15#,LS151,UZS15#..A,C,E,F,ROY,ROYEX,ROYG,SALEX,SPDLX ﾛｯｸ無,BLUE GRAY,TRIM1# |
2 | ||
| 71930-12070P6 |
GS151,JZS15#,LS151,UZS15#..A,C,E,F,ROY,ROYEX,ROYG,SALEX,SPDLX ﾛｯｸ付,BLUE GRAY,TRIM1# |
2 | ||
| 71931-12040E0 |
GS151,JZS15#,LS151,UZS15# ﾛｯｸ無,QUARTZ,TRIM4# |
2 | ||
| 71930-12070E0 |
JZS155,UZS157..A,F ﾛｯｸ付,ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),QUARTZ,TRIM4# |
2 | ||
| 71930-12070E0 |
JZS155..E ﾛｯｸ付,F-3 ﾊﾟﾂｹ-ｼﾞ-*104,QUARTZ,TRIM4# |
2 | ||
| 71931-12040E0 |
JZS155,UZS157..A,F ﾛｯｸ無,ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),QUARTZ,TRIM4# |
2 | ||
| 71931-12040P6 |
JZS155,UZS157..A,F ﾛｯｸ無,ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),BLUE GRAY,TRIM1# |
2 | ||
| 71931-12040E0 |
JZS155..E ﾛｯｸ無,F-3 ﾊﾟﾂｹ-ｼﾞ-*104,QUARTZ,TRIM4# |
2 | ||
| 71930-12070P6 |
JZS155,UZS157..A,F ﾛｯｸ付,ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),BLUE GRAY,TRIM1# |
2 | ||
| 71931-12040P6 |
JZS155..E ﾛｯｸ無,F-3 ﾊﾟﾂｹ-ｼﾞ-*104,BLUE GRAY,TRIM1# |
2 | ||
| 71930-12070P6 |
JZS155..E ﾛｯｸ付,F-3 ﾊﾟﾂｹ-ｼﾞ-*104,BLUE GRAY,TRIM1# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-30690B0 |
JZS155,UZS15#..A,C,E,F BLUE GRAY,TRIM1# |
2 | ||
| 71940-30690E0 |
JZS155,UZS15#..A,C,E,F QUARTZ,TRIM4# |
2 | ||
| 71940-30700B0 |
JZS155,UZS151,155..C,E F-3 ﾊﾟﾂｹ-ｼﾞ-*104;ｱﾘ(ｼ-ﾄﾋ-ﾀ(ﾘﾔ)),BLUE GRAY,TRIM1# |
2 | ||
| 71940-30700E0 |
JZS155,UZS157..A,E,F QUARTZ,TRIM4# |
1 | ||
| 71940-30700B0 |
JZS155,UZS157..A,E,F BLUE GRAY,TRIM1# |
1 | ||
| 71940-30740B0 |
JZS155,UZS15#..A,C,F ﾎﾝｶﾞﾜ ｼ-ﾄ,BLUE GRAY,TRIM1# |
2 | ||
| 71940-30700E0 |
JZS155,UZS151,155..C,E F-3 ﾊﾟﾂｹ-ｼﾞ-*104;ｱﾘ(ｼ-ﾄﾋ-ﾀ(ﾘﾔ)),QUARTZ,TRIM4# |
2 | ||
| 71940-30680B0 |
UZS151,155 ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),BLUE GRAY,TRIM1# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-30690B0 |
JZS155,UZS15#..A,C,E,F BLUE GRAY,TRIM1# |
2 | ||
| 71940-30690E0 |
JZS155,UZS15#..A,C,E,F QUARTZ,TRIM4# |
2 | ||
| 71940-30700B0 |
JZS155,UZS151,155..C,E F-3 ﾊﾟﾂｹ-ｼﾞ-*104;ｱﾘ(ｼ-ﾄﾋ-ﾀ(ﾘﾔ)),BLUE GRAY,TRIM1# |
2 | ||
| 71940-30700E0 |
JZS155,UZS157..A,E,F QUARTZ,TRIM4# |
1 | ||
| 71940-30700B0 |
JZS155,UZS157..A,E,F BLUE GRAY,TRIM1# |
1 | ||
| 71940-30740B0 |
JZS155,UZS15#..A,C,F ﾎﾝｶﾞﾜ ｼ-ﾄ,BLUE GRAY,TRIM1# |
2 | ||
| 71940-30700E0 |
JZS155,UZS151,155..C,E F-3 ﾊﾟﾂｹ-ｼﾞ-*104;ｱﾘ(ｼ-ﾄﾋ-ﾀ(ﾘﾔ)),QUARTZ,TRIM4# |
2 | ||
| 71940-30680B0 |
UZS151,155 ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),BLUE GRAY,TRIM1# |
2 | ||
| 72152A - COVER, REAR SEAT TRACK BRACKET, INNER | ||||
| 72159-30050E2 |
JZS155,UZS151,155..C,E QUARTZ,TRIM4# |
2 | ||
| 72159-30050B2 |
JZS155,UZS151,155..C,E BLUE GRAY,TRIM1# |
2 | ||
| 72159-30050E2 |
JZS155,UZS151,155..A,C,E QUARTZ,TRIM4# |
2 | ||
| 72159-30050B2 |
UZS157..5FC;JZS155,UZS151,155..A,C,E BLUE GRAY,TRIM1# |
2 | ||
| 72152A - COVER, REAR SEAT TRACK BRACKET, INNER | ||||
| 72159-30050E2 |
JZS155,UZS151,155..C,E QUARTZ,TRIM4# |
2 | ||
| 72159-30050B2 |
JZS155,UZS151,155..C,E BLUE GRAY,TRIM1# |
2 | ||
| 72159-30050E2 |
JZS155,UZS151,155..A,C,E QUARTZ,TRIM4# |
2 | ||
| 72159-30050B2 |
UZS157..5FC;JZS155,UZS151,155..A,C,E BLUE GRAY,TRIM1# |
2 | ||
| 72159B - COVER, REAR SEAT TRACK BRACKET, OUTER | ||||
| 72159-30050E2 |
JZS155,UZS151,155..A,C,E QUARTZ,TRIM4# |
2 | ||
| 72159-30050B2 |
UZS157..5FC;JZS155,UZS151,155..A,C,E BLUE GRAY,TRIM1# |
2 | ||
| 72159-30050B2 |
JZS155,UZS151,155..C,E BLUE GRAY,TRIM1# |
2 | ||
| 72159-30050E2 |
JZS155,UZS151,155..C,E QUARTZ,TRIM4# |
2 | ||
| 72159B - COVER, REAR SEAT TRACK BRACKET, OUTER | ||||
| 72159-30050E2 |
JZS155,UZS151,155..A,C,E QUARTZ,TRIM4# |
2 | ||
| 72159-30050B2 |
UZS157..5FC;JZS155,UZS151,155..A,C,E BLUE GRAY,TRIM1# |
2 | ||
| 72159-30050B2 |
JZS155,UZS151,155..C,E BLUE GRAY,TRIM1# |
2 | ||
| 72159-30050E2 |
JZS155,UZS151,155..C,E QUARTZ,TRIM4# |
2 | ||
| 72160 - TRACK ASSY, REAR SEAT, OUTER RH | ||||
| 72160-30100 |
JZS155,UZS151,155..C,E |
1 | ||
| 72160-30100 |
JZS155,UZS15#..A,C,F |
1 | ||
| 72160-30100 |
UZS151,155 |
1 | ||
| 72160-30100 |
JZS155..E ｱﾘ(ﾘﾔ ﾊﾟﾜ-ｼ-ﾄ) |
1 | ||
| 72170 - TRACK ASSY, REAR SEAT, OUTER LH | ||||
| 72170-30100 |
JZS155,UZS151,155..C,E |
1 | ||
| 72170-30100 |
UZS151,155 |
1 | ||
| 72170-30100 |
JZS155..E ｱﾘ(ﾘﾔ ﾊﾟﾜ-ｼ-ﾄ) |
1 | ||
| 72170-30100 |
JZS155,UZS15#..A,C,F |
1 | ||
| 72180C - TRACK ASSY, REAR SEAT, INNER RH | ||||
| 72180-30060 |
JZS155..E ｱﾘ(ﾘﾔ ﾊﾟﾜ-ｼ-ﾄ) |
1 | ||
| 72180-30060 |
JZS155,UZS15#..A,C,F |
1 | ||
| 72180-30060 |
JZS155,UZS151,155..C,E |
1 | ||
| 72180-30060 |
UZS151,155 |
1 | ||
| 72190 - TRACK ASSY, REAR SEAT INNER, LH | ||||
| 72190-30070 |
JZS155,UZS151,155..C,E |
1 | ||
| 72190-30070 |
JZS155..E ｱﾘ(ﾘﾔ ﾊﾟﾜ-ｼ-ﾄ) |
1 | ||
| 72190-30070 |
UZS151,155 |
1 | ||
| 72190-30070 |
JZS155,UZS15#..A,C,F |
1 | ||
| 72206A - HOUSING SUB-ASSY, POWER SEAT, NO.2 | ||||
| 72206-30050 |
JZS151,155,LS151..SED..ROY;JZS155,UZS151,155..C,E,ROYG |
2 | ||
| 72206-30050 |
JZS155,UZS151,155..C,ROYG;JZS151,155,LS151..SED..ROY |
2 | ||
| 72206-30050 |
JZS151,155,LS151..HT..(E,ROY) ｱﾘ(ﾘﾔ ﾊﾟﾜ-ｼ-ﾄ) |
2 | ||
| 72206-30050 |
JZS157,UZS15#;JZS155..A,ROYG;JZS151,153,155,LS151..SED..ROY |
2 | ||
| 72206A - HOUSING SUB-ASSY, POWER SEAT, NO.2 | ||||
| 72206-30050 |
JZS151,155,LS151..SED..ROY;JZS155,UZS151,155..C,E,ROYG |
2 | ||
| 72206-30050 |
JZS155,UZS151,155..C,ROYG;JZS151,155,LS151..SED..ROY |
2 | ||
| 72206-30050 |
JZS151,155,LS151..HT..(E,ROY) ｱﾘ(ﾘﾔ ﾊﾟﾜ-ｼ-ﾄ) |
2 | ||
| 72206-30050 |
JZS157,UZS15#;JZS155..A,ROYG;JZS151,153,155,LS151..SED..ROY |
2 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-30030 |
JZS155,UZS157..A,E,F |
2 | ||
| 72693-14050 |
JZS153..SED..ROY;JZS151,155,LS151,UZS15#..A,C,E,F,ROY,ROYG ｱﾘ(ﾘﾔ ﾊﾟﾜ-ｼ-ﾄ) |
4 | ||
| 72693-14050 |
GS151,JZS15#,LS151,UZS157..HT..(A,E,F,ROY,ROYEX,ROYT) |
2 | ||
| 72693-14050 |
JZS151,155,LS151..HT..(E,ROY) ｱﾘ(ﾘﾔ ﾊﾟﾜ-ｼ-ﾄ) |
4 | ||
| 72693-14050 |
JZS155,UZS151,155..C,ROYG;JZS151,155,LS151..SED..ROY |
4 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-30030 |
JZS155,UZS157..A,E,F |
2 | ||
| 72693-14050 |
JZS153..SED..ROY;JZS151,155,LS151,UZS15#..A,C,E,F,ROY,ROYG ｱﾘ(ﾘﾔ ﾊﾟﾜ-ｼ-ﾄ) |
4 | ||
| 72693-14050 |
GS151,JZS15#,LS151,UZS157..HT..(A,E,F,ROY,ROYEX,ROYT) |
2 | ||
| 72693-14050 |
JZS151,155,LS151..HT..(E,ROY) ｱﾘ(ﾘﾔ ﾊﾟﾜ-ｼ-ﾄ) |
4 | ||
| 72693-14050 |
JZS155,UZS151,155..C,ROYG;JZS151,155,LS151..SED..ROY |
4 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-30030 |
JZS155,UZS157..A,E,F |
2 | ||
| 72693-14050 |
JZS153..SED..ROY;JZS151,155,LS151,UZS15#..A,C,E,F,ROY,ROYG ｱﾘ(ﾘﾔ ﾊﾟﾜ-ｼ-ﾄ) |
4 | ||
| 72693-14050 |
GS151,JZS15#,LS151,UZS157..HT..(A,E,F,ROY,ROYEX,ROYT) |
2 | ||
| 72693-14050 |
JZS151,155,LS151..HT..(E,ROY) ｱﾘ(ﾘﾔ ﾊﾟﾜ-ｼ-ﾄ) |
4 | ||
| 72693-14050 |
JZS155,UZS151,155..C,ROYG;JZS151,155,LS151..SED..ROY |
4 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-30030 |
JZS155,UZS157..A,E,F |
2 | ||
| 72693-14050 |
JZS153..SED..ROY;JZS151,155,LS151,UZS15#..A,C,E,F,ROY,ROYG ｱﾘ(ﾘﾔ ﾊﾟﾜ-ｼ-ﾄ) |
4 | ||
| 72693-14050 |
GS151,JZS15#,LS151,UZS157..HT..(A,E,F,ROY,ROYEX,ROYT) |
2 | ||
| 72693-14050 |
JZS151,155,LS151..HT..(E,ROY) ｱﾘ(ﾘﾔ ﾊﾟﾜ-ｼ-ﾄ) |
4 | ||
| 72693-14050 |
JZS155,UZS151,155..C,ROYG;JZS151,155,LS151..SED..ROY |
4 | ||
| 72805B - DOOR SUB-ASSY, REAR SEAT CENTER ARMREST | ||||
| 72805-30110B0 |
JZS155..E ｼ-ﾄ = TYPE A-*104 & ｱﾘ(ﾘﾔ ﾊﾟﾜ-ｼ-ﾄ),BLUE GRAY,TRIM1# |
1 | ||
| 72805-30110B0 |
UZS151,155 ｼ-ﾄ = TYPE A-*104,BLUE GRAY,TRIM1# |
1 | ||
| 72805-30110E0 |
JZS155..E ｼ-ﾄ = TYPE A-*104 & ｱﾘ(ﾘﾔ ﾊﾟﾜ-ｼ-ﾄ),QUARTZ,TRIM4# |
1 | ||
| 72805-30130B0 |
UZS151,155 ｼ-ﾄ = TYPE E-*104 & ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),BLUE GRAY,TRIM1# |
1 | ||
| 72805-30120E0 |
JZS155,UZS157..A,E,F ｼ-ﾄ = TYPE A-*104,QUARTZ,TRIM4# |
1 | ||
| 72805-30150B0 |
JZS155,UZS157..A,E,F ｼ-ﾄ = TYPE A-*104,BLUE GRAY,TRIM1# |
1 | ||
| 72805-30110E0 |
UZS151,155 ｼ-ﾄ = TYPE A-*104,QUARTZ,TRIM4# |
1 | ||
| 72805-30140E0 |
JZS155,UZS151,155..C,E ｼ-ﾄ = TYPE A-*104 & ｱﾘ(ﾘﾔ ﾊﾟﾜ-ｼ-ﾄ),QUARTZ,TRIM4# |
1 | ||
| 72805-30150E0 |
JZS155,UZS157..A,E,F ｼ-ﾄ = TYPE A-*104,QUARTZ,TRIM4# |
1 | ||
| 72805-30120B0 |
JZS155,UZS157..A,E,F ｼ-ﾄ = TYPE A-*104,BLUE GRAY,TRIM1# |
1 | ||
| 72805-30140B0 |
JZS155,UZS151,155..C,E ｼ-ﾄ = TYPE A-*104 & ｱﾘ(ﾘﾔ ﾊﾟﾜ-ｼ-ﾄ),BLUE GRAY,TRIM1# |
1 | ||
| 72805-30160B0 |
JZS155,UZS15#..A,C,F ｼ-ﾄ = TYPE E-*104,BLUE GRAY,TRIM1# |
1 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72830-3A210E0 |
JZS155,UZS157..A,E,F ｼ-ﾄ = TYPE A-*104,QUARTZ,TRIM4# |
1 | ||
| 72830-3A200B0 |
JZS155..E ｼ-ﾄ = TYPE A-*104 & ｱﾘ(ﾘﾔ ﾊﾟﾜ-ｼ-ﾄ),BLUE GRAY,TRIM1# |
1 | ||
| 72830-3A190E0 |
UZS151,155 ｼ-ﾄ = TYPE A-*104 & ｱﾘ(ﾘﾔ ｼ-ﾄﾋ-ﾀ),QUARTZ,TRIM4# |
1 | ||
| 72830-3A200B0 |
UZS151,155 ｼ-ﾄ = TYPE A-*104,BLUE GRAY,TRIM1# |
1 | ||
| 72830-3A210B0 |
JZS155,UZS157..A,E,F ｼ-ﾄ = TYPE A-*104,BLUE GRAY,TRIM1# |
1 | ||
| 72830-3A200E0 |
JZS155..E ｼ-ﾄ = TYPE A-*104 & ｱﾘ(ﾘﾔ ﾊﾟﾜ-ｼ-ﾄ),QUARTZ,TRIM4# |
1 | ||
| 72830-3A200E0 |
UZS151,155 ｼ-ﾄ = TYPE A-*104,QUARTZ,TRIM4# |
1 | ||
| 72830-3A190B0 |
UZS151,155 ｼ-ﾄ = TYPE A-*104 & ｱﾘ(ﾘﾔ ｼ-ﾄﾋ-ﾀ),BLUE GRAY,TRIM1# |
1 | ||
| 72830-3A230B0 |
UZS151,155 ｼ-ﾄ = TYPE E-*104 & ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),BLUE GRAY,TRIM1# |
1 | ||
| 72830-3A250E0 |
JZS155,UZS157..A,E,F ｼ-ﾄ = TYPE A-*104,QUARTZ,TRIM4# |
1 | ||
| 72830-3A240E0 |
JZS155,UZS151,155..C,E ｼ-ﾄ = TYPE A-*104 & ｱﾘ(ﾘﾔ ﾊﾟﾜ-ｼ-ﾄ),QUARTZ,TRIM4# |
1 | ||
| 72830-3A240B0 |
JZS155,UZS151,155..C,E ｼ-ﾄ = TYPE A-*104 & ｱﾘ(ﾘﾔ ﾊﾟﾜ-ｼ-ﾄ),BLUE GRAY,TRIM1# |
1 | ||
| 72830-3A310B0 |
UZS151,155 ｼ-ﾄ = TYPE A-*104 & ｱﾘ(ｼ-ﾄ ﾋ-ﾀ),BLUE GRAY,TRIM1# |
1 | ||
| 72830-3A260B0 |
JZS155,UZS15#..A,C,F ｼ-ﾄ = TYPE E-*104,BLUE GRAY,TRIM1# |
1 | ||
| 72830-3A310E0 |
UZS151,155 ｼ-ﾄ = TYPE A-*104 & ｱﾘ(ｼ-ﾄ ﾋ-ﾀ),QUARTZ,TRIM4# |
1 | ||
| 72830-3A250B0 |
JZS155,UZS157..A,E,F ｼ-ﾄ = TYPE A-*104,BLUE GRAY,TRIM1# |
1 | ||
| 72865 - BOARD, CENTER ARMREST, NO.1 | ||||
| 72865-30150B0 |
JZS155,UZS151,155..C,E BLUE GRAY,TRIM1# |
1 | ||
| 72865-30050B0 |
JZS155,UZS151,155..C,E BLUE GRAY,TRIM1# |
1 | ||
| 72865-30040B0 |
UZS151,155 ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),BLUE GRAY,TRIM1# |
1 | ||
| 72865-30050E0 |
JZS155,UZS151,155..C,E QUARTZ,TRIM4# |
1 | ||
| 72865-30150E0 |
JZS155,UZS151,155..C,E QUARTZ,TRIM4# |
1 | ||
| 72865-30060B0 |
JZS155,UZS15#..A,C,F ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),BLUE GRAY,TRIM1# |
1 | ||
| 72868 - COVER, CENTER ARMREST HINGE, RH | ||||
| 72868-30010B0 |
UZS151,155 BLUE GRAY,TRIM1# |
1 | ||
| 72868-30010E0 |
JZS155..E ｱﾘ(ﾘﾔ ﾊﾟﾜ-ｼ-ﾄ),QUARTZ,TRIM4# |
1 | ||
| 72868-30010E0 |
UZS151,155 QUARTZ,TRIM4# |
1 | ||
| 72868-30010B0 |
JZS155..E ｱﾘ(ﾘﾔ ﾊﾟﾜ-ｼ-ﾄ),BLUE GRAY,TRIM1# |
1 | ||
| 72868-30070B0 |
UZS151,155 ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),BLUE GRAY,TRIM1# |
1 | ||
| 72868-30080E0 |
JZS155,UZS151,155..C,E ｱﾘ(ﾘﾔ ﾊﾟﾜ-ｼ-ﾄ),QUARTZ,TRIM4# |
1 | ||
| 72868-30090B0 |
JZS155,UZS15#..A,C,F ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),BLUE GRAY,TRIM1# |
1 | ||
| 72868-30080B0 |
JZS155,UZS151,155..C,E ｱﾘ(ﾘﾔ ﾊﾟﾜ-ｼ-ﾄ),BLUE GRAY,TRIM1# |
1 | ||
| 72868-30040E0 |
GS151,JZS157,UZS157;JZS151,153,LS151..SALEX,SPDLX;JZS151,153,155,LS151..HT..(A,E,ROY,ROYEX,ROYT) QUARTZ,TRIM4# |
1 | ||
| 72868-30040B1 |
GS151,JZS157,UZS157;JZS151,153,LS151..SALEX,SPDLX;JZS151,153,155,LS151..HT..(A,E,ROY,ROYEX) BLUE GRAY,TRIM1# |
1 | ||
| 72869 - COVER, CENTER ARMREST HINGE, LH | ||||
| 72869-30010E0 |
JZS155..E ｱﾘ(ﾘﾔ ﾊﾟﾜ-ｼ-ﾄ),QUARTZ,TRIM4# |
1 | ||
| 72869-30010E0 |
UZS151,155 QUARTZ,TRIM4# |
1 | ||
| 72869-30050B0 |
UZS151,155 ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),BLUE GRAY,TRIM1# |
1 | ||
| 72869-30010B1 |
UZS151,155 BLUE GRAY,TRIM1# |
1 | ||
| 72869-30010B1 |
JZS155..E ｱﾘ(ﾘﾔ ﾊﾟﾜ-ｼ-ﾄ),BLUE GRAY,TRIM1# |
1 | ||
| 72869-30070B0 |
JZS155,UZS15#..A,C,F ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),BLUE GRAY,TRIM1# |
1 | ||
| 72869-30060E0 |
JZS155,UZS151,155..C,E ｱﾘ(ﾘﾔ ﾊﾟﾜ-ｼ-ﾄ),QUARTZ,TRIM4# |
1 | ||
| 72869-30060B0 |
JZS155,UZS151,155..C,E ｱﾘ(ﾘﾔ ﾊﾟﾜ-ｼ-ﾄ),BLUE GRAY,TRIM1# |
1 | ||
| 72869-30020E0 |
GS151,JZS157,UZS157;JZS151,153,LS151..SALEX,SPDLX;JZS151,153,155,LS151..HT..(A,E,ROY,ROYEX,ROYT) QUARTZ,TRIM4# |
1 | ||
| 72869-30020B1 |
GS151,JZS157,UZS157;JZS151,153,LS151..SALEX,SPDLX;JZS151,153,155,LS151..HT..(A,E,ROY,ROYEX) BLUE GRAY,TRIM1# |
1 | ||
| 72895B - CASE, REAR SEAT BELT, RH | ||||
| 72895-30010B2 |
JZS155,UZS151,155..C,E DK.BLUE GRAY,TRIM1# |
1 | ||
| 72895-30060B0 |
JZS155,UZS151,155..C,E ｱﾘ(ﾘﾔ ﾊﾟﾜ-ｼ-ﾄ),DK. BLUE GRAY,TRIM1# |
1 | ||
| 72895-30050B0 |
UZS151,155 ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),DK. BLUE GRAY,TRIM1# |
1 | ||
| 72895-30070B0 |
JZS155,UZS15#..A,C,F ﾎﾝｶﾞﾜ ｼ-ﾄ,DK. BLUE GRAY,TRIM1# |
1 | ||
| 72895-30060E0 |
JZS155,UZS151,155..C,E ANTELOPE,TRIM4# |
1 | ||
| 72895-30010E2 |
JZS155,UZS151,155..C,E ANTELOPE,TRIM4# |
1 | ||
| Common parts | ||||
| 90119-08A94 | ||||
| 90168-40048 | ||||
| 90168-40108 | ||||
| 90176-04015 | ||||
| 90179-06168 | ||||
| 90179-08241 | ||||
| 90333-25001 | ||||
| 90950-01744 | ||||
| 91621-60814 | ||||
| 91635-60820 | ||||
| 93269-54012 | ||||
| 93540-55016 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8202 | ||||
| 8513 | ||||
(9508- )
ﾎｸﾞﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
