JZS155-CTPZF (1995)

Toyota Crown/Crown Majesta

Production Aug 1995 - Sep 1999
Engine 2JZGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9508- )HT

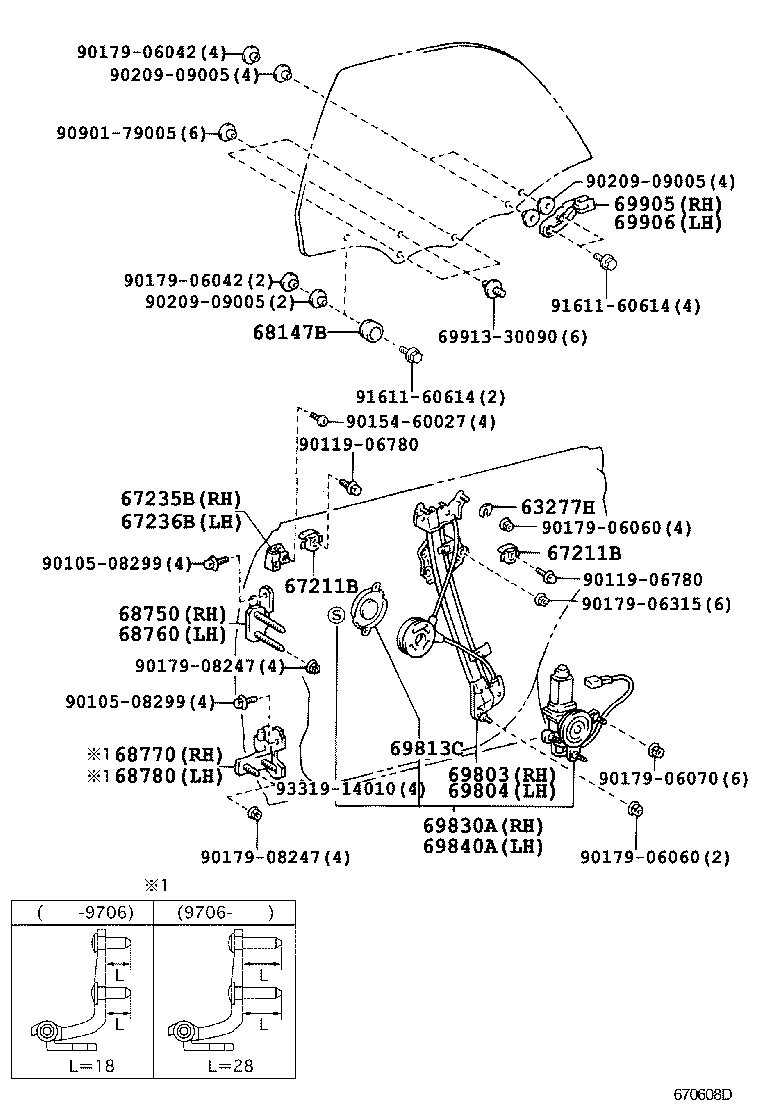

Click highlighted areas on diagram

diagram 63277H 67211B 67211B 67235B 67236B 68147B 68750 68760 68770 68780 69803 69804 69813C 69830A 69840A 69905 69906 6991330090 9010508299 9010508299 9011906780 9011906780 9015460027 9017906042 9017906042 9017906060 9017906060 9017906070 9017906315 9017908247 9017908247 9020909005 9020909005 9020909005 9090179005 9161160614 9161160614 9331914010
Part # Description Qty Price
63277H - SHIM, WINDOW REGULATOR
63277-30060

GS151,JZS15#,LS151,UZS15#..HT

 1
67211B - STOP, REAR DOOR WINDOW, UPPER
67211-22040

GS151,JZS15#,LS151,UZS15#..HT

 4
67211B - STOP, REAR DOOR WINDOW, UPPER
67211-22040

GS151,JZS15#,LS151,UZS15#..HT

 4
67235B - STABILIZER, DOOR GLASS FEMALE, RH
67236-30081

GS151,JZS15#,LS151,UZS15#..HT

 1
67236-30080

GS151,JZS15#,LS151,UZS15#..HT

 1
67236B - STABILIZER, DOOR GLASS FEMALE, LH
67235-30090

GS151,JZS15#,LS151,UZS15#..HT

 1
67235-30091

GS151,JZS15#,LS151,UZS15#..HT

 1
68147B - STOP, REAR DOOR GLASS, UPPER
68147-30020

GS151,JZS15#,LS151,UZS15#..HT

 2
68750 - HINGE ASSY, REAR DOOR, UPPER RH
68750-30100

GS151,JZS15#,LS151,UZS15#..HT

 1
68760 - HINGE ASSY, REAR DOOR, UPPER LH
68760-30110

GS151,JZS15#,LS151,UZS15#..HT

 1
68770 - HINGE ASSY, REAR DOOR, LOWER RH
68770-30080

GS151,JZS15#,LS151,UZS15#..HT

 1
68770-50030

GS151,JZS15#,LS151,UZS15#..HT

 1
68780 - HINGE ASSY, REAR DOOR, LOWER LH
68780-50030

GS151,JZS15#,LS151,UZS15#..HT

 1
68780-30100

GS151,JZS15#,LS151,UZS15#..HT

 1
69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH
69803-30220

GS151,JZS15#,LS151,UZS15#..HT

 1
69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH
69804-30220

GS151,JZS15#,LS151,UZS15#..HT

 1
69813C - PLATE, REAR DOOR POWER WINDOW REGULATOR BASE
69811-32050

GS151,JZS15#,LS151,UZS15#..HT

 2
69830A - REGULATOR ASSY, REAR DOOR WINDOW, RH
69830-30280

GS151,JZS15#,LS151,UZS15#..HT

 1
69840A - REGULATOR ASSY, REAR DOOR WINDOW, LH
69840-30280

GS151,JZS15#,LS151,UZS15#..HT

 1
69905 - BRACKET SUB-ASSY, REAR DOOR GLASS, RH
69905-30080

GS151,JZS15#,LS151,UZS15#..HT

 1
69906 - BRACKET SUB-ASSY, REAR DOOR GLASS, LH
69906-30070

GS151,JZS15#,LS151,UZS15#..HT

 1
Common parts
69913-30090
90105-08299
90119-06780
90154-60027
90179-06042
90179-06060
90179-06070
90179-06315
90179-08247
90209-09005
90901-79005
91611-60614
93319-14010
