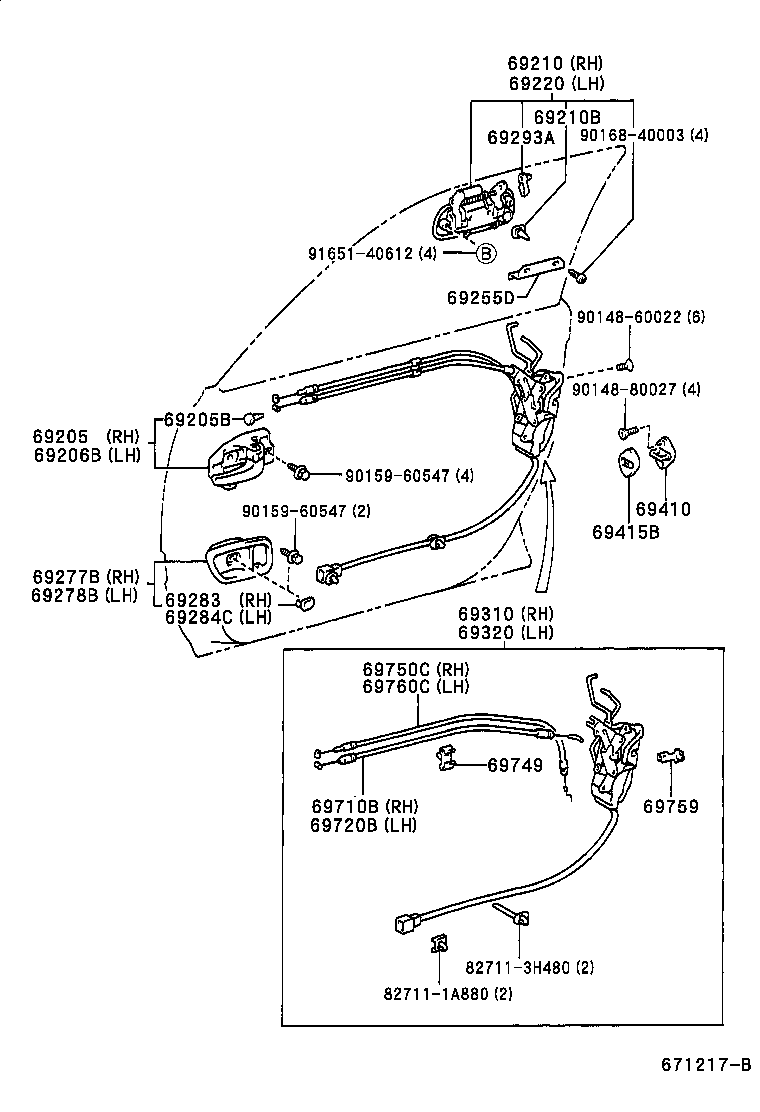

JZS155-CTPZF (1995)
Toyota Crown/Crown Majesta
(9707- )HT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH | ||||
| 69205-30110B1 |
JZS155,UZS15#..A,C,E,F BLUE GRAY,TRIM1# |
1 | ||
| 69205-30160B1 |
JZS155,UZS15#..A,C,E,F BLUE GRAY,TRIM1# |
1 | ||
| 69205-30160E0 |
JZS155,UZS15#..A,C,E,F QUARTZ,TRIM4# |
1 | ||
| 69205-30110E0 |
JZS155,UZS15#..A,C,E,F QUARTZ,TRIM4# |
1 | ||
| 69205B - CUSHION(FOR FRONT DOOR INSIDE HANDLE) | ||||
| 90541-04014 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| 69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH | ||||
| 69206-30110E0 |
JZS155,UZS15#..A,C,E,F QUARTZ,TRIM4# |
1 | ||
| 69206-30110B1 |
JZS155,UZS15#..A,C,E,F BLUE GRAY,TRIM1# |
1 | ||
| 69206-30160E0 |
JZS155,UZS15#..A,C,E,F QUARTZ,TRIM4# |
1 | ||
| 69206-30160B1 |
JZS155,UZS15#..A,C,E,F BLUE GRAY,TRIM1# |
1 | ||
| 69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 69210-30231 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 69210-30230 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 69210B - CUSHION(FOR FRONT DOOR OUTSIDE HANDLE) | ||||
| 90541-04022 |
GS151,JZS15#,LS151,UZS15#..HT |
4 | ||
| 69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH | ||||
| 69220-30211 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 69220-30210 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 69255D - PROTECTOR, DOOR OUTSIDE HANDLE | ||||
| 69255-30020 |
GS151,JZS15#,LS151,UZS15#..HT |
2 | ||
| 69277B - BEZEL, FRONT DOOR INSIDE HANDLE, RH | ||||
| 69277-30130E0 |
JZS155,UZS15#..A,C,E,F QUARTZ,TRIM4# |
1 | ||
| 69277-30130B1 |
JZS155,UZS15#..A,C,E,F BLUE GRAY,TRIM1# |
1 | ||
| 69277-30160E0 |
JZS155,UZS15#..A,C,E,F QUARTZ,TRIM4# |
1 | ||
| 69277-30160B1 |
JZS155,UZS15#..A,C,E,F BLUE GRAY,TRIM1# |
1 | ||
| 69278B - BEZEL, FRONT DOOR INSIDE HANDLE, LH | ||||
| 69278-30070E0 |
JZS155,UZS15#..A,C,E,F QUARTZ,TRIM4# |
1 | ||
| 69278-30070B1 |
JZS155,UZS15#..A,C,E,F BLUE GRAY,TRIM1# |
1 | ||
| 69278-30100B1 |
JZS155,UZS15#..A,C,E,F BLUE GRAY,TRIM1# |
1 | ||
| 69278-30100E0 |
JZS155,UZS15#..A,C,E,F QUARTZ,TRIM4# |
1 | ||
| 69283 - PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH | ||||
| 69283-30030B1 |
JZS155,UZS15#..A,C,E,F BLUE GRAY,TRIM1# |
1 | ||
| 69283-30030B1 |
JZS155,UZS15#..A,C,E,F BLUE GRAY,TRIM1# |
2 | ||
| 69283-30030E0 |
JZS155,UZS15#..A,C,E,F QUARTZ,TRIM4# |
2 | ||
| 69283-30030E0 |
JZS155,UZS15#..A,C,E,F QUARTZ,TRIM4# |
1 | ||
| 69284C - PLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH | ||||
| 69284-30030E0 |
JZS155,UZS15#..A,C,E,F QUARTZ,TRIM4# |
2 | ||
| 69283-30030B1 |
JZS155,UZS15#..A,C,E,F BLUE GRAY,TRIM1# |
1 | ||
| 69284-30030B1 |
JZS155,UZS15#..A,C,E,F BLUE GRAY,TRIM1# |
2 | ||
| 69283-30030E0 |
JZS155,UZS15#..A,C,E,F QUARTZ,TRIM4# |
1 | ||
| 69293A - SNAP, FRONT DOOR OUTSIDE HANDLE | ||||
| 69293-12060 |
GS151,JZS15#,LS151,UZS15# 左側 |
1 | ||
| 69293-12050 |
GS151,JZS15#,LS151,UZS15# 右側 |
1 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69030-30800 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 69030-30850 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69040-30810 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 69040-30760 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER | ||||
| 69410-50010 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| 69415B - COVER, DOOR LOCK STRIKER, FRONT | ||||
| 69415-50010 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| 69710B - CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH | ||||
| 69710-30140 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 69720B - CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH | ||||
| 69710-30140 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 69749 - CLAMP, FRONT DOOR LOCK LINK | ||||
| 69749-32030 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| 69750C - CABLE ASSY, FRONT DOOR INSIDE LOCKING, RH | ||||
| 69750-30080 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1 | ||||
| 69759-24020 |
GS151,JZS15#,LS151,UZS15# 左側 |
1 | ||
| 69759-24010 |
GS151,JZS15#,LS151,UZS15# 右側 |
1 | ||
| 69760C - CABLE ASSY, FRONT DOOR INSIDE LOCKING LH | ||||
| 69750-30080 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| Common parts | ||||
| 82711-1A880 | ||||
| 82711-3H480 | ||||
| 90148-60022 | ||||
| 90148-80027 | ||||
| 90159-60547 | ||||
| 90168-40003 | ||||
| 91651-40612 | ||||
(9508-9707)HT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH | ||||
| 69205-30110B1 |
JZS155,UZS15#..A,C,E,F BLUE GRAY,TRIM1# |
1 | ||
| 69205-30160B1 |
JZS155,UZS15#..A,C,E,F BLUE GRAY,TRIM1# |
1 | ||
| 69205-30160E0 |
JZS155,UZS15#..A,C,E,F QUARTZ,TRIM4# |
1 | ||
| 69205-30110E0 |
JZS155,UZS15#..A,C,E,F QUARTZ,TRIM4# |
1 | ||
| 69205B - CUSHION(FOR FRONT DOOR INSIDE HANDLE) | ||||
| 90541-04014 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| 69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH | ||||
| 69206-30110E0 |
JZS155,UZS15#..A,C,E,F QUARTZ,TRIM4# |
1 | ||
| 69206-30110B1 |
JZS155,UZS15#..A,C,E,F BLUE GRAY,TRIM1# |
1 | ||
| 69206-30160E0 |
JZS155,UZS15#..A,C,E,F QUARTZ,TRIM4# |
1 | ||
| 69206-30160B1 |
JZS155,UZS15#..A,C,E,F BLUE GRAY,TRIM1# |
1 | ||
| 69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 69210-30231 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 69210-30230 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 69210B - CUSHION(FOR FRONT DOOR OUTSIDE HANDLE) | ||||
| 90541-04022 |
GS151,JZS15#,LS151,UZS15#..HT |
4 | ||
| 69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH | ||||
| 69220-30211 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 69220-30210 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 69255D - PROTECTOR, DOOR OUTSIDE HANDLE | ||||
| 69255-30020 |
GS151,JZS15#,LS151,UZS15#..HT |
2 | ||
| 69273A - SNAP, DOOR INSIDE HANDLE ROD(FOR FRONT DOOR) | ||||
| 69759-14050 |
GS151,JZS15#,LS151,UZS15#..HT 左側 |
1 | ||
| 69759-24070 |
GS151,JZS15#,LS151,UZS15#..HT 右側 |
1 | ||
| 69277B - BEZEL, FRONT DOOR INSIDE HANDLE, RH | ||||
| 69277-30130E0 |
JZS155,UZS15#..A,C,E,F QUARTZ,TRIM4# |
1 | ||
| 69277-30130B1 |
JZS155,UZS15#..A,C,E,F BLUE GRAY,TRIM1# |
1 | ||
| 69277-30160E0 |
JZS155,UZS15#..A,C,E,F QUARTZ,TRIM4# |
1 | ||
| 69277-30160B1 |
JZS155,UZS15#..A,C,E,F BLUE GRAY,TRIM1# |
1 | ||
| 69278B - BEZEL, FRONT DOOR INSIDE HANDLE, LH | ||||
| 69278-30070E0 |
JZS155,UZS15#..A,C,E,F QUARTZ,TRIM4# |
1 | ||
| 69278-30070B1 |
JZS155,UZS15#..A,C,E,F BLUE GRAY,TRIM1# |
1 | ||
| 69278-30100B1 |
JZS155,UZS15#..A,C,E,F BLUE GRAY,TRIM1# |
1 | ||
| 69278-30100E0 |
JZS155,UZS15#..A,C,E,F QUARTZ,TRIM4# |
1 | ||
| 69283 - PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH | ||||
| 69283-30030B1 |
JZS155,UZS15#..A,C,E,F BLUE GRAY,TRIM1# |
1 | ||
| 69283-30030B1 |
JZS155,UZS15#..A,C,E,F BLUE GRAY,TRIM1# |
2 | ||
| 69283-30030E0 |
JZS155,UZS15#..A,C,E,F QUARTZ,TRIM4# |
2 | ||
| 69283-30030E0 |
JZS155,UZS15#..A,C,E,F QUARTZ,TRIM4# |
1 | ||
| 69284C - PLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH | ||||
| 69284-30030E0 |
JZS155,UZS15#..A,C,E,F QUARTZ,TRIM4# |
2 | ||
| 69283-30030B1 |
JZS155,UZS15#..A,C,E,F BLUE GRAY,TRIM1# |
1 | ||
| 69284-30030B1 |
JZS155,UZS15#..A,C,E,F BLUE GRAY,TRIM1# |
2 | ||
| 69283-30030E0 |
JZS155,UZS15#..A,C,E,F QUARTZ,TRIM4# |
1 | ||
| 69293A - SNAP, FRONT DOOR OUTSIDE HANDLE | ||||
| 69293-12060 |
GS151,JZS15#,LS151,UZS15# 左側 |
1 | ||
| 69293-12050 |
GS151,JZS15#,LS151,UZS15# 右側 |
1 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69030-30800 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 69030-30850 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69040-30810 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 69040-30760 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 69377 - SNAP, FRONT DOOR LOCK CONTROL ROD | ||||
| 69759-24060 |
GS151,JZS15#,LS151,UZS15#..HT |
2 | ||
| 69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER | ||||
| 69410-50010 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| 69415B - COVER, DOOR LOCK STRIKER, FRONT | ||||
| 69415-50010 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| 69710 - LINK ASSY, FRONT DOOR OPEN CONTROL, RH | ||||
| 69710-30120 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 69711B - LINK, FRONT DOOR LOCK REMOTE CONTROL, RH | ||||
| 69711-30120 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 69712A - LINK, FRONT DOOR LOCK REMOTE CONTROL, LH | ||||
| 69712-30130 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 69720 - LINK ASSY, FRONT DOOR OPEN CONTROL, LH | ||||
| 69720-30040 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 69731 - LINK, FRONT DOOR INSIDE LOCKING, NO.1 RH | ||||
| 69731-30020 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 69732 - LINK, FRONT DOOR INSIDE LOCKING, NO.1 LH | ||||
| 69732-30020 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 69749 - CLAMP, FRONT DOOR LOCK LINK | ||||
| 69749-32030 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| 69753 - BELLCRANK, DOOR LOCK CONTROL, RH | ||||
| 69753-22050 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 69754C - BELLCRANK, DOOR LOCK CONTROL, LH | ||||
| 69754-22020 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1 | ||||
| 69759-24020 |
GS151,JZS15#,LS151,UZS15# 左側 |
1 | ||
| 69759-24010 |
GS151,JZS15#,LS151,UZS15# 右側 |
1 | ||
| 69759A - SILENCER, SEPARATION DOOR LOCK LINK | ||||
| 69759-24020 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 69759H - SNAP, DOOR LOCK CONTROL LINK, NO.2 | ||||
| 69759-24050 |
GS151,JZS15#,LS151,UZS15#..HT |
2 | ||
| 69759K - SNAP, DOOR LOCK CONTROL LINK | ||||
| 69759-20410 |
GS151,JZS15#,LS151,UZS15#..HT |
2 | ||
| 69759L - SNAP, DOOR LOCK CONTROL LINK | ||||
| 69759-24080 |
GS151,JZS15#,LS151,UZS15#..HT 右側 |
1 | ||
| 69759-24090 |
GS151,JZS15#,LS151,UZS15#..HT 左側 |
1 | ||
| 69759S - SNAP, FRONT DOOR INSIDE HANDLE | ||||
| 69759-24010 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| Common parts | ||||
| 82711-1A880 | ||||
| 82711-3H480 | ||||
| 90148-60022 | ||||
| 90148-80027 | ||||
| 90163-50009 | ||||
| 90467-08117 | ||||
| 91651-40612 | ||||
| Linked diagrams | ||||
| 8401 | ||||
