JZS155-CTPZF (1995)

Toyota Crown/Crown Majesta

Production Aug 1995 - Sep 1999
Engine 2JZGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9508- )

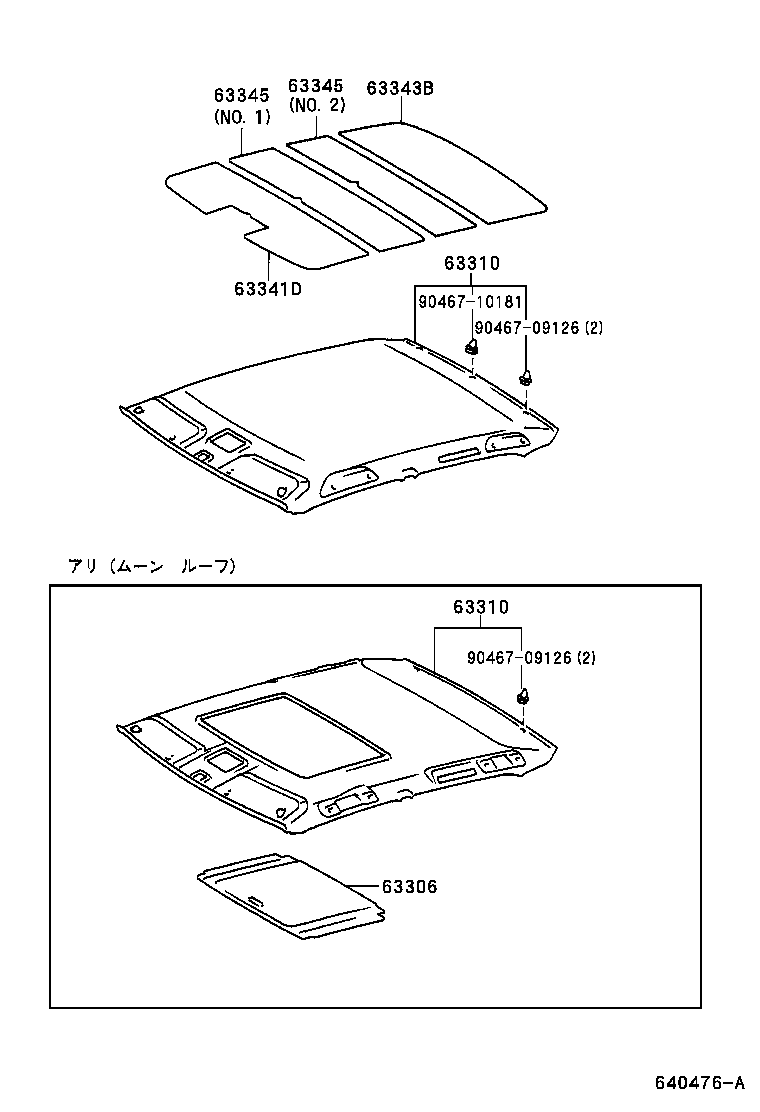

Click highlighted areas on diagram

diagram 63306 63310 63310 63341D 63343B 63345 63345 9046709126 9046709126 9046710181
Part # Description Qty Price
63306 - TRIM SUB-ASSY, SUNSHADE
63306-30080E0

JZS15#,LS151,UZS15#..HT..(A,C,F,ROY,ROYG,ROYT)

QUARTZ,TRIM40,41

 1
63306-30080B0

JZS15#,LS151,UZS15#..HT..(A,C,F,ROY,ROYG)

LT. BLUISH GRAY,TRIM1#

 1
63306-30080E2

JZS15#,LS151,UZS15#..HT..(A,C,F,ROY,ROYG,ROYT)

QUARTZ,TRIM4#

 1
63306-30080E0

JZS15#,LS151,UZS15#..HT..(A,C,F,ROY,ROYG,ROYT)

QUARTZ,TRIM4#

 1
63306-30080B3

JZS15#,LS151,UZS15#..HT..(A,C,F,ROY,ROYG)

LT. BLUISH GRAY,TRIM1#

 1
63310 - HEADLINING ASSY, ROOF
63310-30700E0

JZS155,UZS157..E,F

QUARTZ,TRIM4#

 1
63310-30700B0

JZS155,UZS157..E,F

LT. BLUISH GRAY,TRIM1#

 1
63310-30710E0

JZS155,UZS15#..A,C,F

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ & ﾘﾔ ｸ-ﾗ),QUARTZ,TRIM4#

 1
63310-30690B0

JZS155,UZS15#..A,C,E,F

ｱﾘ(ﾘﾔ ｸ-ﾗ),LT. BLUISH GRAY,TRIM1#

 1
63310-30690E0

JZS155,UZS15#..A,C,E,F

ｱﾘ(ﾘﾔ ｸ-ﾗ),QUARTZ,TRIM4#

 1
63310-30710B0

JZS155,UZS15#..A,C,F

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ & ﾘﾔ ｸ-ﾗ),LT. BLUISH GRAY,TRIM1#

 1
63310 - HEADLINING ASSY, ROOF
63310-30700E0

JZS155,UZS157..E,F

QUARTZ,TRIM4#

 1
63310-30700B0

JZS155,UZS157..E,F

LT. BLUISH GRAY,TRIM1#

 1
63310-30710E0

JZS155,UZS15#..A,C,F

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ & ﾘﾔ ｸ-ﾗ),QUARTZ,TRIM4#

 1
63310-30690B0

JZS155,UZS15#..A,C,E,F

ｱﾘ(ﾘﾔ ｸ-ﾗ),LT. BLUISH GRAY,TRIM1#

 1
63310-30690E0

JZS155,UZS15#..A,C,E,F

ｱﾘ(ﾘﾔ ｸ-ﾗ),QUARTZ,TRIM4#

 1
63310-30710B0

JZS155,UZS15#..A,C,F

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ & ﾘﾔ ｸ-ﾗ),LT. BLUISH GRAY,TRIM1#

 1
63341D - PAD, ROOF SILENCER, FRONT
63341-30260

JZS155,UZS15#..A,C,E,F

 1
63343B - PAD, ROOF SILENCER, REAR
63343-30180

JZS155,UZS15#..A,C,E,F

 1
63345 - PAD, ROOF SILENCER, NO.5
63345-30080

JZS155,UZS15#..A,C,E,F

 2
63345-30090

GS151,JZS15#,LS151,UZS15#

NO.1 & NO.2

 2
63345 - PAD, ROOF SILENCER, NO.5
63345-30080

JZS155,UZS15#..A,C,E,F

 2
63345-30090

GS151,JZS15#,LS151,UZS15#

NO.1 & NO.2

 2
Common parts
90467-09126
90467-10181
