JZS155-CTPZF (1995)
Toyota Crown/Crown Majesta
Production
Aug 1995
-
Sep 1999
Engine
2JZGE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9508- )A,C,E,F

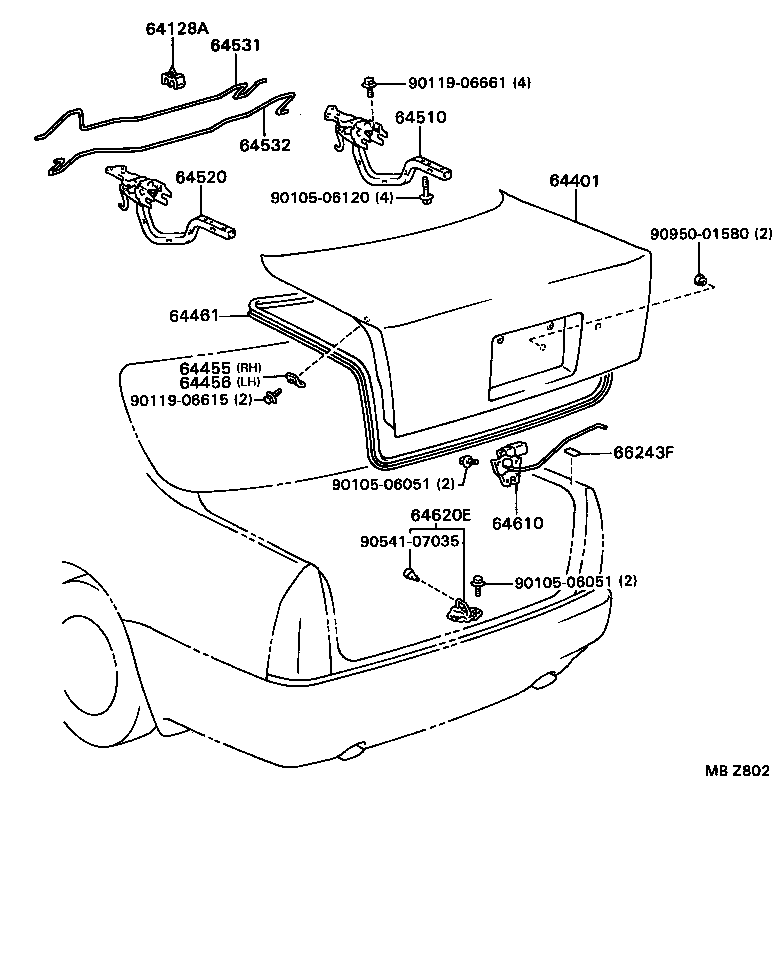

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64128A - SUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR, NO.2 | ||||
| 64128-30050 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 64401 - PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64401-30860 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 64401-30861 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 64455 - CUSHION, LUGGAGE COMPARTMENT DOOR SIDE, RH | ||||
| 64455-50010 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 64456 - CUSHION, LUGGAGE COMPARTMENT DOOR SIDE, LH | ||||
| 64456-50010 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 64461 - WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR | ||||
| 64461-30260 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 64510 - HINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH | ||||
| 64510-30170 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 64510-30170 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 64520 - HINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH | ||||
| 64510-30170 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 64510-30170 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 64531 - BAR, LUGGAGE DOOR HINGE TORSION, RH | ||||
| 64531-30230 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 64532 - BAR, LUGGAGE DOOR HINGE TORSION, LH | ||||
| 64532-30230 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 64610 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64600-30110 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 64620E - STRIKER ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64620-30100 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 64620-30100 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 66243F - PROTECTOR, REAR BODY, NO.1 | ||||
| 66244-30030 |
JZS155,UZS15#..A,C,E,F |
2 | ||
| Common parts | ||||
| 90105-06051 | ||||
| 90105-06120 | ||||
| 90119-06615 | ||||
| 90119-06661 | ||||
| 90541-07035 | ||||
| 90950-01580 | ||||
