JZS155-CTPZF (1995)
Toyota Crown/Crown Majesta

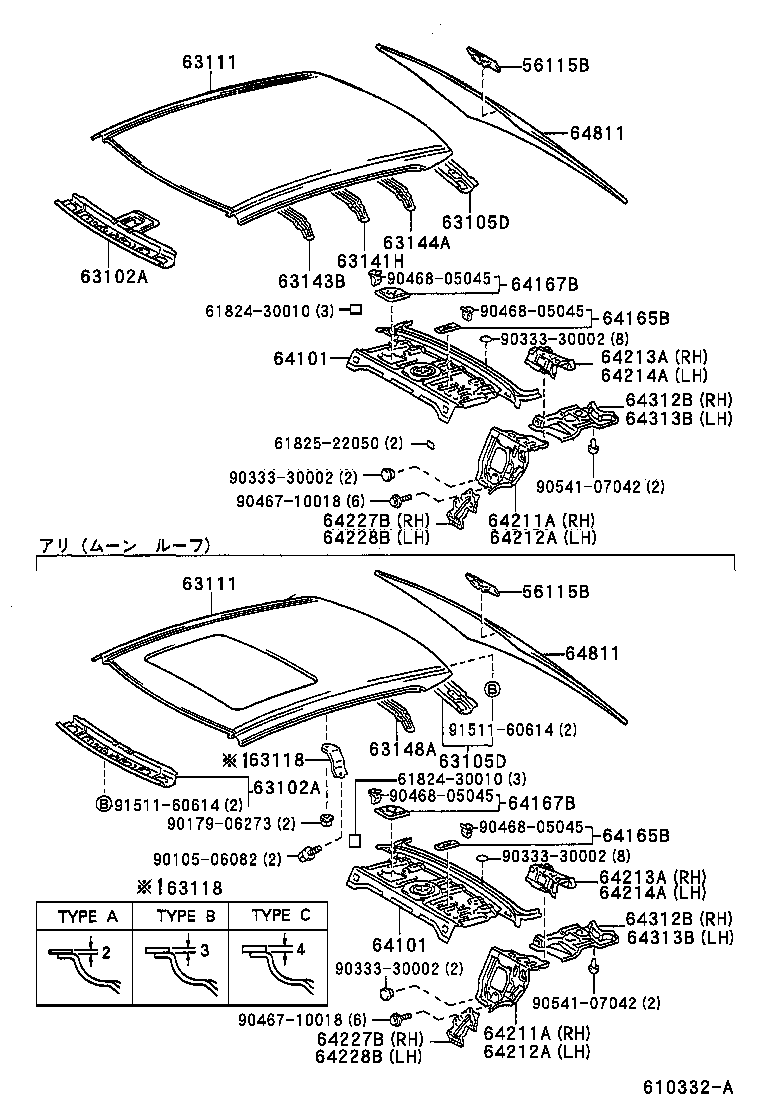

ILLUST NO. 1 OF 2(9508- )A,C,E,F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 56115B - STOPPER, BACK WINDOW GLASS, NO.1 | ||||
| 56115-30040 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| 56115B - STOPPER, BACK WINDOW GLASS, NO.1 | ||||
| 56115-30040 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-30120 |
JZS155,UZS151,157..A,C,F ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ) |
1 | ||
| 63102-30110 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-30120 |
JZS155,UZS151,157..A,C,F ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ) |
1 | ||
| 63102-30110 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 63105D - FRAME SUB-ASSY, BACK WINDOW, UPPER | ||||
| 63105-30020 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 63105D - FRAME SUB-ASSY, BACK WINDOW, UPPER | ||||
| 63105-30020 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-30903 |
JZS155,UZS15#..A,C,F ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ) |
1 | ||
| 63111-30340 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-30903 |
JZS155,UZS15#..A,C,F ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ) |
1 | ||
| 63111-30340 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 63118 - SUPPORT, ROOF PANEL, RH | ||||
| 63118-30060 |
JZS155,UZS15#..A,C,F ﾀｲﾌﾟ B |
1 | ||
| 63118-30070 |
JZS155,UZS15#..A,C,F ﾀｲﾌﾟ C |
1 | ||
| 63118-30030 |
JZS155,UZS15#..A,C,F ﾀｲﾌﾟ A |
1 | ||
| 63118 - SUPPORT, ROOF PANEL, RH | ||||
| 63118-30060 |
JZS155,UZS15#..A,C,F ﾀｲﾌﾟ B |
1 | ||
| 63118-30070 |
JZS155,UZS15#..A,C,F ﾀｲﾌﾟ C |
1 | ||
| 63118-30030 |
JZS155,UZS15#..A,C,F ﾀｲﾌﾟ A |
1 | ||
| 63141H - REINFORCEMENT, ROOF PANEL, CENTER | ||||
| 63141-30140 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 63143B - REINFORCEMENT, ROOF PANEL, NO.3 | ||||
| 63143-30180 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 63144A - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63144-30070 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 63148A - REINFORCEMENT, ROOF PANEL, NO.7 | ||||
| 63148-30050 |
JZS155,UZS15#..A,C,F |
1 | ||
| 64101 - PANEL SUB-ASSY, UPPER BACK | ||||
| 64101-30430 |
JZS155,UZS157..A,E,F ｱﾘ(ｽ-ﾊﾟ- ﾗｲﾌﾞ ｻｳﾝﾄﾞ ｼｽﾃﾑ);ｱﾘ(7 ｽﾋﾟ-ｶ) |
1 | ||
| 64101-30460 |
JZS155..E ｱﾘ(ﾘﾔ ｴｱｺﾝ & ﾘﾔ ﾊﾟﾜ- ｼ-ﾄ) |
1 | ||
| 64101-30460 |
UZS151,155 |
1 | ||
| 64101-30440 |
JZS155,UZS157..E,F |
1 | ||
| 64101-30460 |
JZS155,UZS15#..A,C,E,F ｱﾘ(ﾘﾔ ｴｱｺﾝ & ﾘﾔ ﾊﾟﾜ- ｼ-ﾄ) |
1 | ||
| 64101-30450 |
JZS155,UZS157..E,F ｱﾘ(ﾘﾔ ｴｱｺﾝ) |
1 | ||
| 64101 - PANEL SUB-ASSY, UPPER BACK | ||||
| 64101-30430 |
JZS155,UZS157..A,E,F ｱﾘ(ｽ-ﾊﾟ- ﾗｲﾌﾞ ｻｳﾝﾄﾞ ｼｽﾃﾑ);ｱﾘ(7 ｽﾋﾟ-ｶ) |
1 | ||
| 64101-30460 |
JZS155..E ｱﾘ(ﾘﾔ ｴｱｺﾝ & ﾘﾔ ﾊﾟﾜ- ｼ-ﾄ) |
1 | ||
| 64101-30460 |
UZS151,155 |
1 | ||
| 64101-30440 |
JZS155,UZS157..E,F |
1 | ||
| 64101-30460 |
JZS155,UZS15#..A,C,E,F ｱﾘ(ﾘﾔ ｴｱｺﾝ & ﾘﾔ ﾊﾟﾜ- ｼ-ﾄ) |
1 | ||
| 64101-30450 |
JZS155,UZS157..E,F ｱﾘ(ﾘﾔ ｴｱｺﾝ) |
1 | ||
| 64165B - COVER, UPPER BACK PANEL HOLE, NO.1 | ||||
| 64165-30060 |
JZS155,UZS157..E,F |
1 | ||
| 64165B - COVER, UPPER BACK PANEL HOLE, NO.1 | ||||
| 64165-30060 |
JZS155,UZS157..E,F |
1 | ||
| 64167B - COVER, UPPER BACK PANEL HOLE, NO.3 | ||||
| 64167-30050 |
GS151,JZS15#,LS151,UZS157..HT..(E,F,ROY,ROYEX,ROYT) |
1 | ||
| 64167B - COVER, UPPER BACK PANEL HOLE, NO.3 | ||||
| 64167-30050 |
GS151,JZS15#,LS151,UZS157..HT..(E,F,ROY,ROYEX,ROYT) |
1 | ||
| 64211A - STRAINER, PACKAGE TRAY TO FLOOR, RH | ||||
| 64211-30902 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 64211A - STRAINER, PACKAGE TRAY TO FLOOR, RH | ||||
| 64211-30902 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 64212A - STRAINER, PACKAGE TRAY TO FLOOR, LH | ||||
| 64212-30902 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 64212A - STRAINER, PACKAGE TRAY TO FLOOR, LH | ||||
| 64212-30902 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 64213A - EXTENSION, PACKAGE TRAY STRAINER, RH | ||||
| 64213-30901 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 64213A - EXTENSION, PACKAGE TRAY STRAINER, RH | ||||
| 64213-30901 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 64214A - EXTENSION, PACKAGE TRAY STRAINER, LH | ||||
| 64214-30901 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 64214A - EXTENSION, PACKAGE TRAY STRAINER, LH | ||||
| 64214-30901 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 64227B - EXTENSION, CENTER FLOOR TO BLACE, NO.1 | ||||
| 64227-30050 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 64227B - EXTENSION, CENTER FLOOR TO BLACE, NO.1 | ||||
| 64227-30050 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 64228B - EXTENSION, CENTER FLOOR TO BRACE, NO.2 | ||||
| 64228-30030 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 64228B - EXTENSION, CENTER FLOOR TO BRACE, NO.2 | ||||
| 64228-30030 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 64312B - BRACKET, PACKAGE TRAY, RH | ||||
| 64312-30150 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 64312B - BRACKET, PACKAGE TRAY, RH | ||||
| 64312-30150 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 64313B - BRACKET, PACKAGE TRAY, LH | ||||
| 64313-30150 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 64313B - BRACKET, PACKAGE TRAY, LH | ||||
| 64313-30150 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 64811 - GLASS, BACK WINDOW | ||||
| 64801-3A160 |
JZS155,UZS15#..A,C,E,F *EHTT,厚さ=3.5,ﾌﾞﾛﾝｽﾞ,ｱﾘ(ｴﾚｸﾄﾛ ﾏﾙﾁ ﾋﾞｼﾞﾖﾝ) |
1 | ||
| 64801-3A170 |
JZS155,UZS15#..A,C,E,F *EHTT,厚さ=3.5,ｸﾞﾘｰﾝ,ｱﾘ(ｴﾚｸﾄﾛ ﾏﾙﾁ ﾋﾞｼﾞﾖﾝ) |
1 | ||
| 64801-30690 |
JZS155,UZS15#..A,C,E,F *EHTT,厚さ=3.5,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 64801-3A310 |
JZS155..E *UVCEHTT,厚さ=3.5,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 64801-3A310 |
JZS155,UZS15#..A,C,F *UVCEHTT,厚さ=3.5,ﾌﾞﾛﾝｽﾞ,ｱﾘ(ｴﾚｸﾄﾛ ﾏﾙﾁ ﾋﾞｼﾞﾖﾝ) |
1 | ||
| 64801-3A330 |
JZS155,UZS15#..A,C,F *UVCEHTT,厚さ=3.5,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 64801-3A150 |
JZS155,UZS15#..A,C,E,F *EHTT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 64801-3A340 |
JZS155,UZS15#..A,C,F *UVCEHTT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 64801-3A460 |
JZS155,UZS15#..A,C,E,F *UVCEHTT,厚さ=3.5,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 64801-3A470 |
JZS155,UZS15#..A,C,E,F *UVCEHTT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 64801-3A480 |
JZS155,UZS15#..4FC..(A,C,E,F) *UVCEHTT,厚さ=3.5,ﾌﾞﾛﾝｽﾞ,ｱﾘ(ｴﾚｸﾄﾛ ﾏﾙﾁ ﾋﾞｼﾞﾖﾝ) |
1 | ||
| 64801-3A490 |
JZS155,UZS15#..4FC..(A,C,E,F) *UVCEHTT,厚さ=3.5,ｸﾞﾘｰﾝ,ｱﾘ(ｴﾚｸﾄﾛ ﾏﾙﾁ ﾋﾞｼﾞﾖﾝ) |
1 | ||
| 64801-3A320 |
JZS155,UZS15#..A,C,F *UVCEHTT,厚さ=3.5,ｸﾞﾘｰﾝ,ｱﾘ(ｴﾚｸﾄﾛ ﾏﾙﾁ ﾋﾞｼﾞﾖﾝ) |
1 | ||
| 64801-3A480 |
JZS155,UZS151,157..C,E,F *UVCEHTT,厚さ=3.5,ﾌﾞﾛﾝｽﾞ,ｱﾘ(ｴﾚｸﾄﾛ ﾏﾙﾁﾋﾞｼﾞﾖﾝ) |
1 | ||
| 64801-3A490 |
JZS155,UZS151,157..C,E,F *UVCEHTT,厚さ=3.5,ｸﾞﾘｰﾝ,ｱﾘ(ｴﾚｸﾄﾛ ﾏﾙﾁﾋﾞｼﾞﾖﾝ) |
1 | ||
| 64811 - GLASS, BACK WINDOW | ||||
| 64801-3A160 |
JZS155,UZS15#..A,C,E,F *EHTT,厚さ=3.5,ﾌﾞﾛﾝｽﾞ,ｱﾘ(ｴﾚｸﾄﾛ ﾏﾙﾁ ﾋﾞｼﾞﾖﾝ) |
1 | ||
| 64801-3A170 |
JZS155,UZS15#..A,C,E,F *EHTT,厚さ=3.5,ｸﾞﾘｰﾝ,ｱﾘ(ｴﾚｸﾄﾛ ﾏﾙﾁ ﾋﾞｼﾞﾖﾝ) |
1 | ||
| 64801-30690 |
JZS155,UZS15#..A,C,E,F *EHTT,厚さ=3.5,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 64801-3A310 |
JZS155..E *UVCEHTT,厚さ=3.5,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 64801-3A310 |
JZS155,UZS15#..A,C,F *UVCEHTT,厚さ=3.5,ﾌﾞﾛﾝｽﾞ,ｱﾘ(ｴﾚｸﾄﾛ ﾏﾙﾁ ﾋﾞｼﾞﾖﾝ) |
1 | ||
| 64801-3A330 |
JZS155,UZS15#..A,C,F *UVCEHTT,厚さ=3.5,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 64801-3A150 |
JZS155,UZS15#..A,C,E,F *EHTT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 64801-3A340 |
JZS155,UZS15#..A,C,F *UVCEHTT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 64801-3A460 |
JZS155,UZS15#..A,C,E,F *UVCEHTT,厚さ=3.5,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 64801-3A470 |
JZS155,UZS15#..A,C,E,F *UVCEHTT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 64801-3A480 |
JZS155,UZS15#..4FC..(A,C,E,F) *UVCEHTT,厚さ=3.5,ﾌﾞﾛﾝｽﾞ,ｱﾘ(ｴﾚｸﾄﾛ ﾏﾙﾁ ﾋﾞｼﾞﾖﾝ) |
1 | ||
| 64801-3A490 |
JZS155,UZS15#..4FC..(A,C,E,F) *UVCEHTT,厚さ=3.5,ｸﾞﾘｰﾝ,ｱﾘ(ｴﾚｸﾄﾛ ﾏﾙﾁ ﾋﾞｼﾞﾖﾝ) |
1 | ||
| 64801-3A320 |
JZS155,UZS15#..A,C,F *UVCEHTT,厚さ=3.5,ｸﾞﾘｰﾝ,ｱﾘ(ｴﾚｸﾄﾛ ﾏﾙﾁ ﾋﾞｼﾞﾖﾝ) |
1 | ||
| 64801-3A480 |
JZS155,UZS151,157..C,E,F *UVCEHTT,厚さ=3.5,ﾌﾞﾛﾝｽﾞ,ｱﾘ(ｴﾚｸﾄﾛ ﾏﾙﾁﾋﾞｼﾞﾖﾝ) |
1 | ||
| 64801-3A490 |
JZS155,UZS151,157..C,E,F *UVCEHTT,厚さ=3.5,ｸﾞﾘｰﾝ,ｱﾘ(ｴﾚｸﾄﾛ ﾏﾙﾁﾋﾞｼﾞﾖﾝ) |
1 | ||
| Common parts | ||||
| 61824-30010 | ||||
| 61825-22050 | ||||
| 90105-06082 | ||||
| 90179-06273 | ||||
| 90333-30002 | ||||
| 90467-10018 | ||||
| 90468-05045 | ||||
| 90541-07042 | ||||
| 91511-60614 | ||||

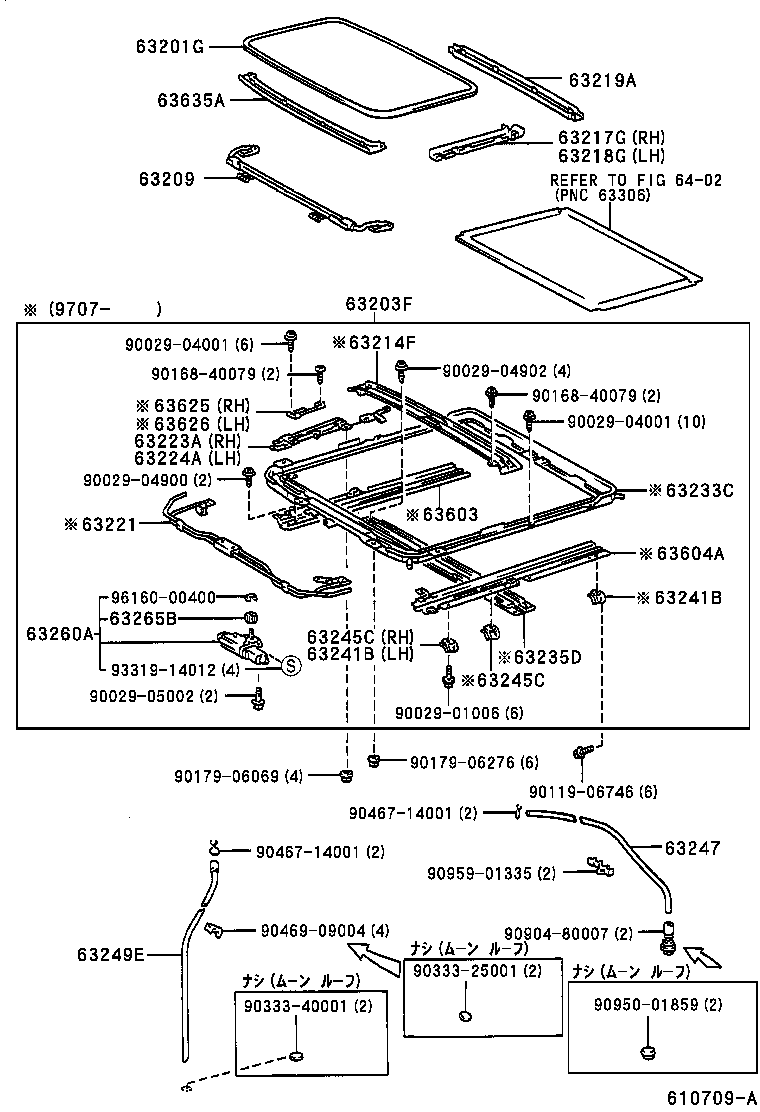

ILLUST NO. 2 OF 2(9508- )A,C,E,F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63201G - GLASS SUB-ASSY, SLIDING ROOF | ||||
| 63201-30050 |
JZS15#,LS151,UZS15#..HT..(A,C,F,ROY,ROYG,ROYT) *TT,厚さ=4.0,ｸﾞﾚｰ |
1 | ||
| 63203F - HOUSING SUB-ASSY, SLIDING ROOF | ||||
| 63203-30070 |
JZS15#,LS151,UZS15#..HT..(A,C,F,ROY,ROYG,ROYT) |
1 | ||
| 63203-30080 |
JZS15#,LS151,UZS15#..HT..(A,C,F,ROY,ROYG,ROYT) |
1 | ||
| 63209 - PANEL SUB-ASSY, ROOF WIND DEFLECTOR | ||||
| 63209-30060 |
JZS15#,LS151,UZS15#..HT..(A,C,F,ROY,ROYG,ROYT) |
1 | ||
| 63209-30080 |
JZS15#,LS151,UZS15#..HT..(A,C,F,ROY,ROYG,ROYT) |
1 | ||
| 63214F - CHANNEL, ROOF DRIP, REAR | ||||
| 63214-50020 |
JZS15#,LS151,UZS15#..HT..(A,C,F,ROY,ROYG,ROYT) |
1 | ||
| 63217G - GARNISH, SLIDING ROOF SIDE, RH | ||||
| 63217-30060 |
JZS15#,LS151,UZS15#..HT..(A,C,F,ROY,ROYG,ROYT) |
1 | ||
| 63218G - GARNISH, SLIDING ROOF SIDE, LH | ||||
| 63218-30070 |
JZS15#,LS151,UZS15#..HT..(A,C,F,ROY,ROYG,ROYT) |
1 | ||
| 63219A - GARNISH, SLIDING ROOF, REAR | ||||
| 63219-30060 |
JZS15#,LS151,UZS15#..HT..(A,C,F,ROY,ROYG,ROYT) |
1 | ||
| 63221 - CASING, SLIDING ROOF CABLE GUIDE | ||||
| 63221-30060 |
JZS15#,LS151,UZS15#..HT..(A,C,F,ROY,ROYG,ROYT) |
1 | ||
| 63223A - CABLE, SLIDING ROOF DRIVE, RH | ||||
| 63223-50040 |
JZS15#,LS151,UZS15#..HT..(A,C,F,ROY,ROYG,ROYT) |
1 | ||
| 63224A - CABLE, SLIDING ROOF DRIVE, LH | ||||
| 63224-30060 |
JZS155,UZS15#..A,C,F NO.1 |
1 | ||
| 63224-50040 |
JZS155,UZS15#..A,C,F NO.2 |
1 | ||
| 63233C - PANEL, SLIDING ROOF HOUSING | ||||
| 63233-30060 |
JZS15#,LS151,UZS15#..HT..(A,C,F,ROY,ROYG,ROYT) |
1 | ||
| 63235D - FRAME, SLIDING ROOF HOUSING, CENTER | ||||
| 63235-30040 |
JZS15#,LS151,UZS15#..HT..(A,C,F,ROY,ROYG,ROYT) |
1 | ||
| 63241B - BRACKET, SLIDING ROOF HOUSING, NO.1 | ||||
| 63241-30060 |
JZS155,UZS15#..A,C,F |
3 | ||
| 63241B - BRACKET, SLIDING ROOF HOUSING, NO.1 | ||||
| 63241-30060 |
JZS155,UZS15#..A,C,F |
3 | ||
| 63245C - BRACKET, REMOVABLE ROOF, NO.1 | ||||
| 63245-30050 |
JZS155,UZS15#..A,C,F |
3 | ||
| 63245C - BRACKET, REMOVABLE ROOF, NO.1 | ||||
| 63245-30050 |
JZS155,UZS15#..A,C,F |
3 | ||
| 63247 - HOSE, SLIDING ROOF HOUSING DRAIN | ||||
| 63247-30020 |
JZS155,UZS15#..A,C,F |
2 | ||
| 63249E - HOSE, SLIDING ROOF DRAIN | ||||
| 63220-30040 |
JZS15#,LS151,UZS15#..HT..(A,C,F,ROY,ROYG,ROYT) 長さ=1560,右側 |
1 | ||
| 63249-30130 |
JZS15#,LS151,UZS15#..HT..(A,C,F,ROY,ROYG,ROYT) 長さ=1560 |
2 | ||
| 63240-30040 |
JZS15#,LS151,UZS15#..HT..(A,C,F,ROY,ROYG,ROYT) 長さ=1560,左側 |
1 | ||
| 63260A - GEAR SUB-ASSY, SLIDING ROOF DRIVE | ||||
| 63260-30060 |
JZS15#,LS151,UZS15#..HT..(A,C,F,ROY,ROYG,ROYT) |
1 | ||
| 63260-30050 |
JZS15#,LS151,UZS15#..HT..(A,C,F,ROY,ROYG,ROYT) |
1 | ||
| 63265B - GEAR, SLIDING ROOF DRIVE | ||||
| 63265-30020 |
JZS15#,LS151,UZS15#..HT..(A,C,F,ROY,ROYG,ROYT) |
1 | ||
| 63265-20010 |
JZS15#,LS151,UZS15#..HT..(A,C,F,ROY,ROYG,ROYT) |
1 | ||
| 63603 - RAIL SUB-ASSY, SLIDING ROOF DRIVE, RH | ||||
| 63603-30040 |
JZS15#,LS151,UZS15#..HT..(A,C,F,ROY,ROYG,ROYT) |
1 | ||
| 63604A - RAIL SUB-ASSY, SLIDING ROOF DRIVE, LH | ||||
| 63604-30040 |
JZS15#,LS151,UZS15#..HT..(A,C,F,ROY,ROYG,ROYT) |
1 | ||
| 63625 - BLOCK, SLIDING ROOF GUIDE, RH | ||||
| 63625-50030 |
JZS15#,LS151,UZS15#..HT..(A,C,F,ROY,ROYG,ROYT) |
1 | ||
| 63626 - BLOCK, SLIDING ROOF GUIDE, LH | ||||
| 63626-50020 |
JZS15#,LS151,UZS15#..HT..(A,C,F,ROY,ROYG,ROYT) |
1 | ||
| 63635A - GARNISH, SLIDING ROOF, FRONT | ||||
| 63635-30040 |
JZS15#,LS151,UZS15#..HT..(A,C,F,ROY,ROYG,ROYT) |
1 | ||
| Common parts | ||||
| 90029-01006 | ||||
| 90029-04001 | ||||
| 90029-04900 | ||||
| 90029-04902 | ||||
| 90029-05002 | ||||
| 90119-06746 | ||||
| 90168-40079 | ||||
| 90179-06069 | ||||
| 90179-06276 | ||||
| 90333-25001 | ||||
| 90333-40001 | ||||
| 90467-14001 | ||||
| 90469-09004 | ||||
| 90904-80007 | ||||
| 90950-01859 | ||||
| 90959-01335 | ||||
| 93319-14012 | ||||
| 96160-00400 | ||||
| Linked diagrams | ||||
| 6402 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
