Toyota Crown/crown majesta JZS155 REAR BUMPER & BUMPER STAY

Part #	Description	Period	Qty
52015A - ARM SUB-ASSY, REAR BUMPER, RH
52015-30210	JZS155,UZS15#..A,C,E,F	08/1995 - 12/2999	1
52016A - ARM SUB-ASSY, REAR BUMPER, LH
52016-30170	JZS155,UZS15#..A,C,E,F	08/1995 - 12/2999	1
52159 - COVER, REAR BUMPER
52159-30260F0	JZS155,UZS15#..A,C,E,F GREENISH GRAY,6P7	09/1996 - 07/1997	1
52159-30260B2	JZS155,UZS15#..A,C,E,F DK.BL.GRAY ME,8L1	08/1995 - 07/1997	1
52159-30260B3	JZS155,UZS15#..A,C,E,F GRAY MM,199	08/1995 - 09/1999	1
52159-30260E0	JZS155,UZS15#..A,C,E,F GRAYISH BROWN M.M.,3N0	07/1997 - 08/1998	1
52159-30260C0	JZS155,UZS15#..A,C,E,F BLACK,202	08/1995 - 09/1999	1
52159-30260B1	JZS155,UZS15#..A,C,E,F YELLOW SILVER ME.,051	08/1995 - 09/1999	1
52159-30260B2	JZS155,UZS15#..A,C,E,F DK.BL.GRAY ME,8L4	07/1997 - 09/1999	1
52159-30260K0	JZS155,UZS15#..A,C,E,F DK. GRAY M.M.,6N9	08/1995 - 09/1999	1
52171A - REINFORCEMENT, REAR BUMPER, NO.1
52171-30150	JZS155,UZS15#..A,C,E,F	08/1995 - 09/1999	1
52179B - PLATE, REAR BUMPER BAR
52179-30130	JZS155,UZS15#..A,C,E,F	08/1995 - 12/2999	1
52185B - BRACKET, REAR BUMPER SIDE MOUNTING, RH
52185-30100	JZS155,UZS15#..A,C,E,F	08/1995 - 12/2999	1
52186B - BRACKET, REAR BUMPER SIDE MOUNTING, LH
52186-30050	JZS155,UZS15#..A,C,E,F	08/1995 - 12/2999	1
52575 - RETAINER, REAR BUMPER SIDE, RH
52575-30131	JZS155,UZS15#..A,C,E,F	08/1995 - 09/1999	1
52576 - RETAINER, REAR BUMPER SIDE, LH
52576-30121	JZS155,UZS15#..A,C,E,F	08/1995 - 09/1999	1
52581 - PROTECTOR, REAR BUMPER, RH
52581-30050	JZS155,UZS15#..A,C,E,F	08/1995 - 12/2999	1
52582 - PROTECTOR, REAR BUMPER, LH
52582-30040	JZS155,UZS15#..A,C,E,F	08/1995 - 12/2999	1
52615 - ABSORBER, REAR BUMPER ENERGY
52615-30170	JZS155,UZS15#..A,C,E,F	08/1995 - 09/1999	1
52751 - MOULDING, REAR BUMPER
52751-30120	JZS155,UZS15#..A,C,E,F	08/1995 - 09/1999	1
Common parts
90109-06283
90119-06699
90119-06812
90159-60215
90179-06259
90179-08117
90467-06015C0
90901-89026

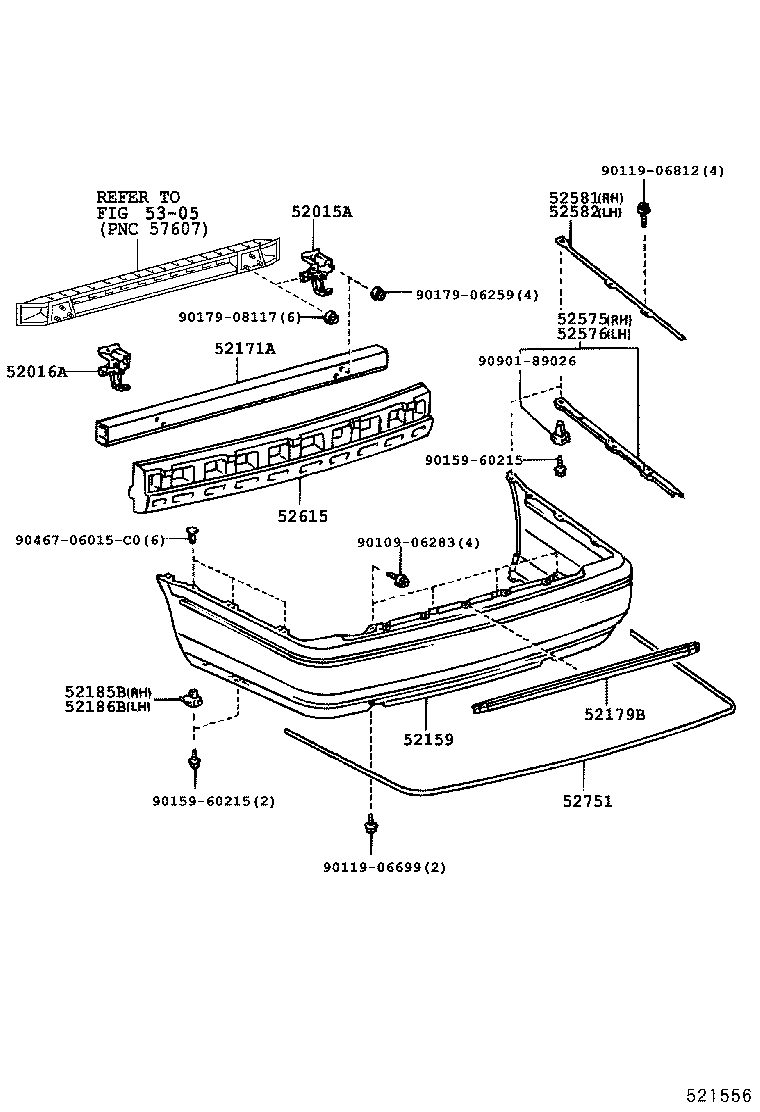

Linked diagrams
5305

JZS155-CTPZF (1995)

(9508- )A,C,E,F
