JZS155-CTPZF (1995)
Toyota Crown/Crown Majesta
Production
Aug 1995
-
Sep 1999
Engine
2JZGE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9508- )A,C,E,F

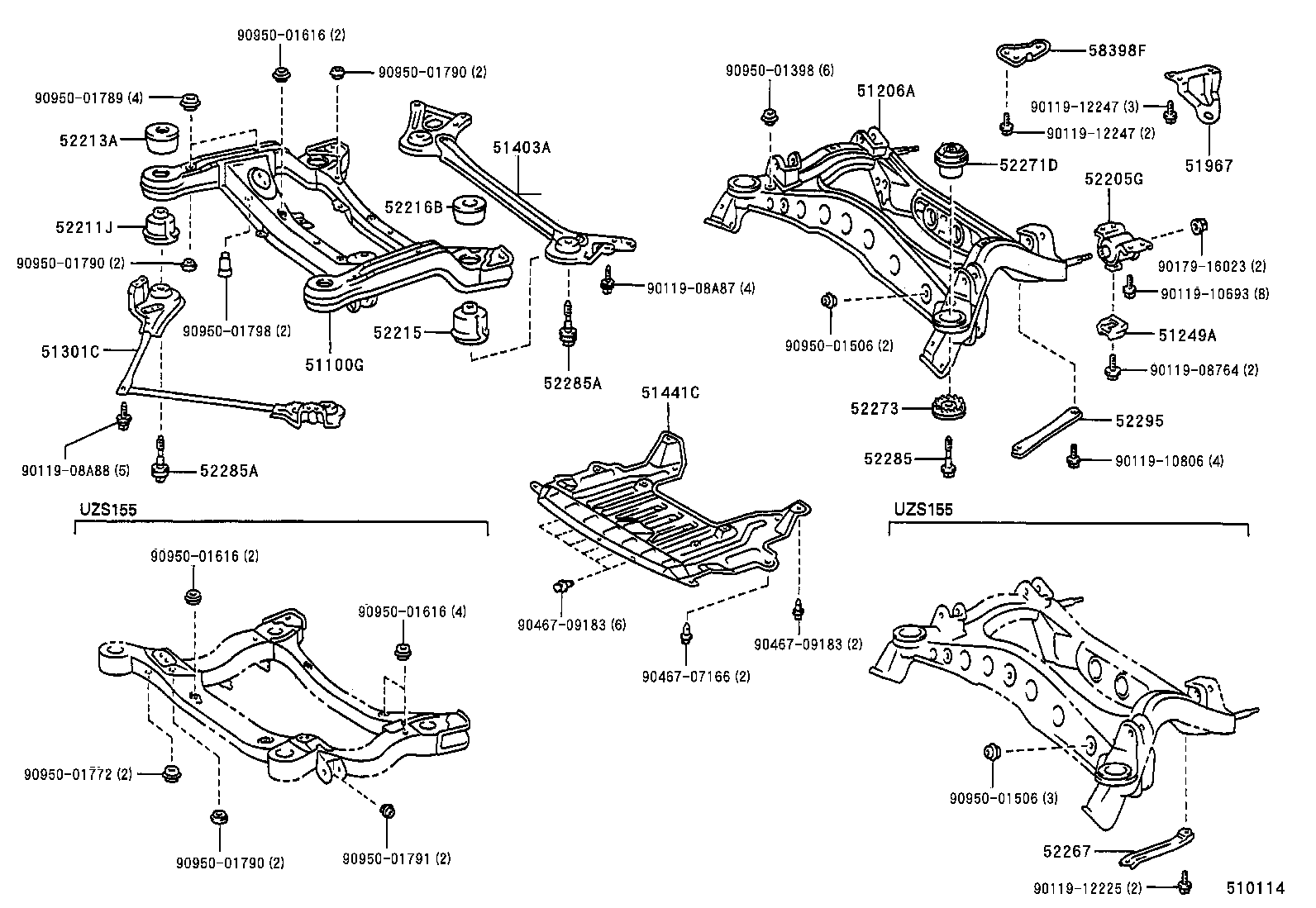

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51100G - FRAME ASSY, FRONT | ||||
| 51100-30650 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 51100-30651 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 51206A - MEMBER SUB-ASSY, REAR SUSPENSION | ||||
| 51206-30040 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 51249A - DAMPER, REAR SUSPENSION MEMBER | ||||
| 51249-30030 |
JZS155..A,E |
2 | ||
| 51301C - ROD SUB-ASSY, FRONT FRAME | ||||
| 51301-30030 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 51403A - BRACE SUB-ASSY, FRONT SUSPENSION MEMBER, RH | ||||
| 51403-30010 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 51441C - COVER, ENGINE UNDER, RH | ||||
| 51441-30180 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 51967 - HOOK, TRANSPORT, REAR | ||||
| 51968-30030 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 52205G - CUSHION SUB-ASSY, BODY MOUNTING, LOWER | ||||
| 52205-30170 |
JZS155..A,E |
2 | ||
| 52205-30200 |
JZS155..A,E |
2 | ||
| 52211J - CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT | ||||
| 52211-30060 |
JZS155,UZS151,157..A,C,E,F |
2 | ||
| 52213A - STOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT | ||||
| 52213-30010 |
JZS155,UZS151,157..A,C,E,F |
2 | ||
| 52215 - CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR | ||||
| 52215-30060 |
JZS155,UZS151,157..A,C,E,F |
2 | ||
| 52216B - STOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR | ||||
| 52213-30020 |
JZS155,UZS151,157..A,C,E,F |
2 | ||
| 52271D - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT | ||||
| 52271-30050 |
JZS155,UZS151,157..A,C,E,F |
2 | ||
| 52273 - STOPPER, REAR SUSPENSION MEMBER, LOWER | ||||
| 52273-30040 |
JZS155,UZS151,157..A,C,E,F |
2 | ||
| 52285 - BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.1 | ||||
| 52285-30021 |
JZS155,UZS15#..A,C,E,F |
2 | ||
| 52285A - BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.1 | ||||
| 52285-30011 |
JZS155,UZS15#..A,C,E,F |
4 | ||
| 52285A - BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.1 | ||||
| 52285-30011 |
JZS155,UZS15#..A,C,E,F |
4 | ||
| 52295 - BRACE, REAR SUSPENSION MEMBER, RH | ||||
| 52295-50010 |
JZS155,UZS151,157..A,C,E,F |
2 | ||
| 58398F - COVER, FLOOR UNDER, NO.1 | ||||
| 58398-30011 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| Common parts | ||||
| 90119-08764 | ||||
| 90119-08A87 | ||||
| 90119-08A88 | ||||
| 90119-10693 | ||||
| 90119-10806 | ||||
| 90119-12225 | ||||
| 90119-12247 | ||||
| 90179-16023 | ||||
| 90467-07166 | ||||
| 90467-09183 | ||||
| 90950-01398 | ||||
| 90950-01506 | ||||
| 90950-01616 | ||||
| 90950-01772 | ||||
| 90950-01789 | ||||
| 90950-01790 | ||||
| 90950-01791 | ||||
| 90950-01798 | ||||
