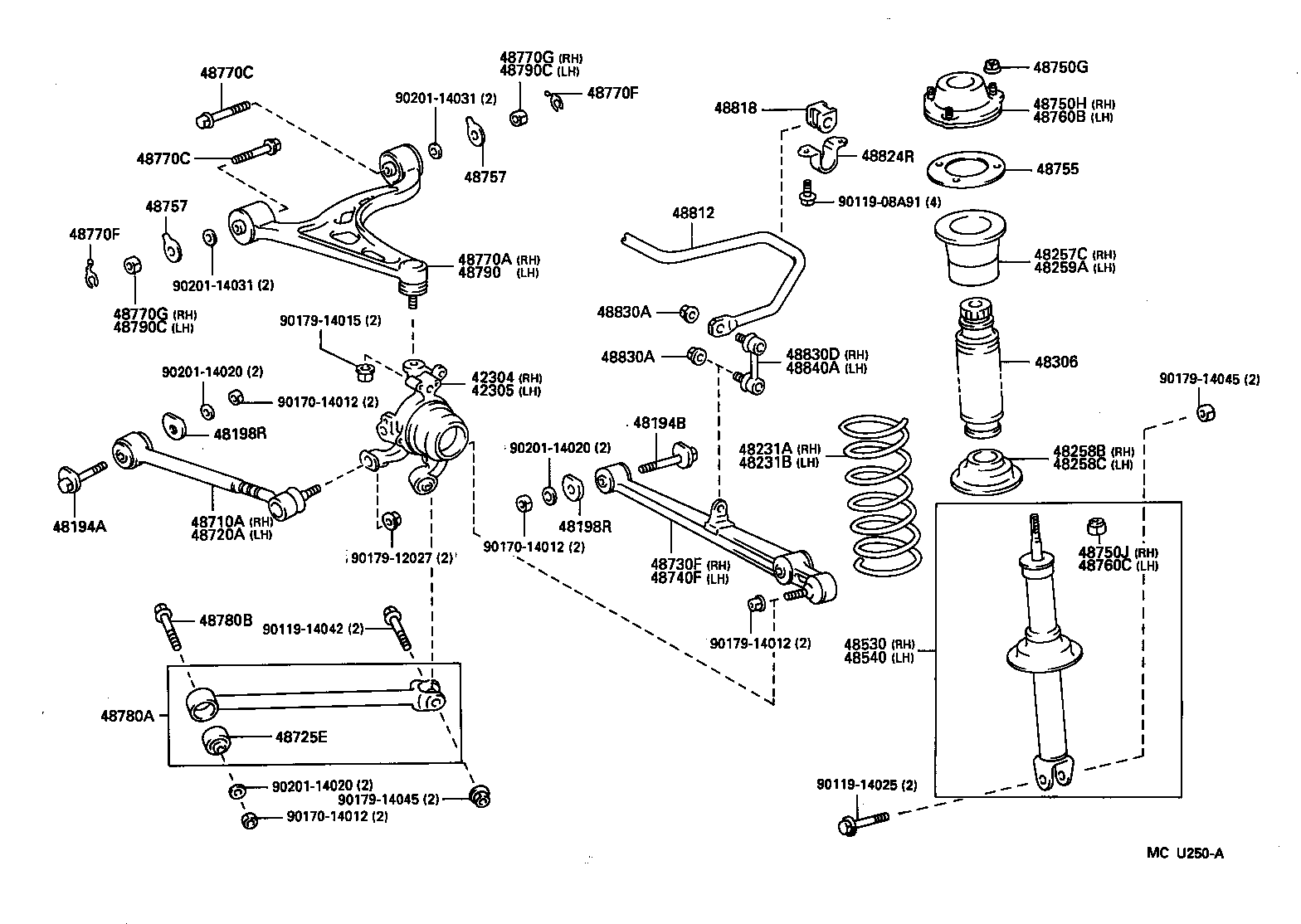

JZS155-CTPZF (1995)
Toyota Crown/Crown Majesta
(9508- )A,E,F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42304 - CARRIER SUB-ASSY, REAR AXLE, RH | ||||
| 42304-30010 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 42305 - CARRIER SUB-ASSY, REAR AXLE, LH | ||||
| 42305-30010 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 48194A - CAM, REAR SUSPENSION CAMBER ADJUST, NO.1 | ||||
| 48190-22021 |
JZS155,UZS151,157..A,C,E,F |
2 | ||
| 48194B - CAM, REAR SUSPENSION CAMBER ADJUST, NO.3 | ||||
| 48190-24030 |
JZS155,UZS151,157..A,C,E,F |
2 | ||
| 48198R - CAM, REAR SUSPENSION CAMBER ADJUST, NO.2 | ||||
| 48198-14010 |
JZS155,UZS151,157..A,C,E,F |
4 | ||
| 48198R - CAM, REAR SUSPENSION CAMBER ADJUST, NO.2 | ||||
| 48198-14010 |
JZS155,UZS151,157..A,C,E,F |
4 | ||
| 48231A - SPRING, COIL, REAR RH | ||||
| 48231-30800 |
JZS155,UZS157..A,E,F |
1 | ||
| 48231-3A120 |
JZS155..A,E |
1 | ||
| 48231-30800 |
JZS155..A,E |
1 | ||
| 48231B - SPRING, COIL, REAR LH | ||||
| 48231-30800 |
JZS155,UZS157..A,E,F |
1 | ||
| 48231-30800 |
JZS155..A,E |
1 | ||
| 48231-3A120 |
JZS155..A,E |
1 | ||
| 48257C - INSULATOR, REAR COIL SPRING, UPPER RH | ||||
| 48257-30050 |
JZS155,UZS157..A,E,F |
1 | ||
| 48258B - INSULATOR, REAR COIL SPRING, LOWER RH | ||||
| 48258-30040 |
JZS155,UZS157..A,E,F |
1 | ||
| 48258C - INSULATOR, REAR COIL SPRING, LOWER LH | ||||
| 48258-30040 |
JZS155,UZS157..A,E,F |
1 | ||
| 48259A - INSULATOR, REAR COIL SPRING, UPPER LH | ||||
| 48257-30050 |
JZS155,UZS157..A,E,F |
1 | ||
| 48306 - BUMPER SUB-ASSY, REAR SPRING | ||||
| 48306-30180 |
JZS155,UZS157..A,E,F |
2 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48530-39315 |
JZS155,UZS157..A,E,F ﾏｰｸ 48530−30220 |
1 | ||
| 48530-39315 |
JZS155..A,E ﾏｰｸ 48530−30220 |
1 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48530-39315 |
JZS155..A,E ﾏｰｸ 48530−30220 |
1 | ||
| 48530-39315 |
JZS155,UZS157..A,E,F |
1 | ||
| 48710A - ARM ASSY, REAR SUSPENSION, NO.1 RH | ||||
| 48710-30160 |
JZS155,UZS157..A,E,F |
1 | ||
| 48720A - ARM ASSY, REAR SUSPENSION, NO.1 LH | ||||
| 48710-30160 |
JZS155,UZS157..A,E,F |
1 | ||
| 48710-30160 |
JZS155..E |
1 | ||
| 48720-30150 |
JZS155,UZS151,157..A,C,F |
1 | ||
| 48725E - BUSH, REAR STRUT ROD | ||||
| 48725-24070 |
JZS155,UZS157..A,E,F |
2 | ||
| 48730F - ARM ASSY, REAR SUSPENSION, NO.2 RH | ||||
| 48730-30060 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 48740F - ARM ASSY, REAR SUSPENSION, NO.2 LH | ||||
| 48740-30070 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 48750G - NUT(FOR REAR SUSPENSION SUPPORT) | ||||
| 90179-08222 |
JZS155,UZS157..A,E,F |
6 | ||
| 48750H - SUPPORT ASSY, REAR SUSPENSION, RH | ||||
| 48071-30010 |
JZS155,UZS157..A,E,F |
1 | ||
| 48750J - NUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH) | ||||
| 94187-11200 |
GS151,JZS15#,LS151,UZS157 |
1 | ||
| 48755 - SUPPORT, REAR SUSPENSION | ||||
| 48755-30020 |
JZS155,UZS157..A,E,F |
2 | ||
| 48757 - ATTACHMENT, REAR SUSPENSION ARM | ||||
| 48757-24010 |
JZS155,UZS15#..A,C,E,F |
4 | ||
| 48757 - ATTACHMENT, REAR SUSPENSION ARM | ||||
| 48757-24010 |
JZS155,UZS15#..A,C,E,F |
4 | ||
| 48760B - SUPPORT ASSY REAR SUSPENSION, LH | ||||
| 48071-30010 |
JZS155,UZS157..A,E,F |
1 | ||
| 48760C - NUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH) | ||||
| 94187-11200 |
GS151,JZS15#,LS151,UZS157 |
1 | ||
| 48770A - ARM ASSY, UPPER CONTROL, REAR RH | ||||
| 48770-30020 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 48770C - BOLT(FOR REAR UPPER CONTROL ARM) | ||||
| 90119-14040 |
JZS155,UZS15#..A,C,E,F |
4 | ||
| 48770C - BOLT(FOR REAR UPPER CONTROL ARM) | ||||
| 90119-14040 |
JZS155,UZS15#..A,C,E,F |
4 | ||
| 48770F - RING, E(FOR REAR UPPER CONTROL ARM) | ||||
| 90523-16001 |
JZS155,UZS15#..A,C,E,F |
4 | ||
| 48770F - RING, E(FOR REAR UPPER CONTROL ARM) | ||||
| 90523-16001 |
JZS155,UZS15#..A,C,E,F |
4 | ||
| 48770G - NUT, NO.2(FOR REAR UPPER CONTROL ARM RH) | ||||
| 90179-14054 |
JZS155,UZS151,157..A,C,E,F |
2 | ||
| 48770G - NUT, NO.2(FOR REAR UPPER CONTROL ARM RH) | ||||
| 90179-14054 |
JZS155,UZS151,157..A,C,E,F |
2 | ||
| 48780A - ROD ASSY, STRUT, REAR | ||||
| 48780-30020 |
JZS155,UZS157..A,E,F |
2 | ||
| 48780B - BOLT(FOR STRUT ROD) | ||||
| 90105-14065 |
JZS155,UZS151,157..A,C,E,F |
2 | ||
| 90105-14065 |
JZS155,UZS151,157..A,C,E,F BODY SIDE |
2 | ||
| 48790 - ARM ASSY, UPPER CONTROL, REAR LH | ||||
| 48790-30020 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 48790C - NUT, NO.2(FOR REAR UPPER CONTROL ARM LH) | ||||
| 90179-14054 |
JZS155,UZS151,157..A,C,E,F |
2 | ||
| 48790C - NUT, NO.2(FOR REAR UPPER CONTROL ARM LH) | ||||
| 90179-14054 |
JZS155,UZS151,157..A,C,E,F |
2 | ||
| 48812 - BAR, STABILIZER, REAR | ||||
| 48812-30290 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 48818 - BUSH, STABILIZER, REAR | ||||
| 48818-30070 |
JZS155,UZS151,157..A,C,E,F |
2 | ||
| 48824R - BRACKET, STABILIZER(FOR REAR) | ||||
| 48824-30090 |
JZS155,UZS15#..A,C,E,F |
2 | ||
| 48830A - NUT(FOR REAR STABILIZER LINK) | ||||
| 90179-10054 |
JZS155,UZS151,157..A,C,E,F |
4 | ||
| 48830A - NUT(FOR REAR STABILIZER LINK) | ||||
| 90179-10054 |
JZS155,UZS151,157..A,C,E,F |
4 | ||
| 48830D - LINK ASSY, REAR STABILIZER, RH | ||||
| 48830-30060 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 48840A - LINK ASSY, REAR STABILIZER, LH | ||||
| 48830-30060 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| Common parts | ||||
| 90119-08A91 | ||||
| 90119-14025 | ||||
| 90119-14042 | ||||
| 90170-14012 | ||||
| 90179-12027 | ||||
| 90179-14012 | ||||
| 90179-14015 | ||||
| 90179-14045 | ||||
| 90201-14020 | ||||
| 90201-14031 | ||||
