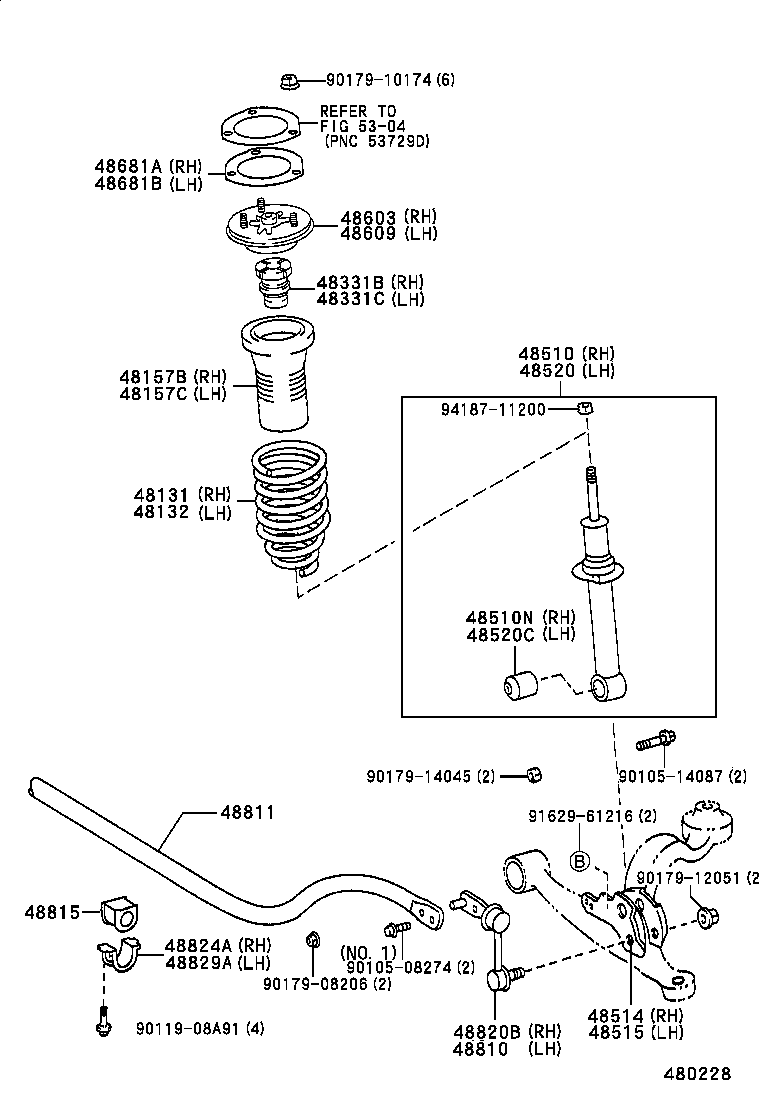

JZS155-CTPZF (1995)
Toyota Crown/Crown Majesta
(9508- )A,E,F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48131 - SPRING, FRONT COIL, RH | ||||
| 48131-3A350 |
JZS155..A,E 長さ=357 |
1 | ||
| 48131-3A070 |
JZS155..A,E |
1 | ||
| 48132 - SPRING, FRONT COIL, LH | ||||
| 48131-3A360 |
JZS155..A,E 長さ=357 |
1 | ||
| 48131-3A080 |
JZS155..A,E |
1 | ||
| 48157B - INSULATOR, FRONT COIL SPRING, UPPER RH | ||||
| 48157-30040 |
JZS155,UZS157..A,E,F |
1 | ||
| 48157C - INSULATOR, FRONT COIL SPRING, UPPER LH | ||||
| 48157-30040 |
JZS155,UZS157..A,E,F |
1 | ||
| 48331B - BUMPER, FRONT SPRING, RH | ||||
| 48331-30120 |
JZS155,UZS157..A,E,F |
1 | ||
| 48331C - BUMPER, FRONT SPRING, LH | ||||
| 48331-30120 |
JZS155,UZS157..A,E,F |
1 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-39375 |
JZS155,UZS157..A,E,F ﾏｰｸ 48510−30280 |
1 | ||
| 48510-39375 |
JZS155..A,E ﾏｰｸ 48510−30280 |
1 | ||
| 48510N - BUSH(FOR FRONT SHOCK ABSORBER RH) | ||||
| 90389-14028 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 48514 - BRACKET, FRONT SHOCK ABSORBER, LOWER RH | ||||
| 48514-30030 |
JZS155,UZS157..A,E,F |
1 | ||
| 48515 - BRACKET, FRONT SHOCK ABSORBER, LOWER LH | ||||
| 48515-30030 |
JZS155,UZS157..A,E,F |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48510-39375 |
JZS155,UZS157..A,E,F ﾏｰｸ 48510−30280 |
1 | ||
| 48510-39375 |
JZS155..A,E ﾏｰｸ 48510−30280 |
1 | ||
| 48520C - BUSH(FOR FRONT SHOCK ABSORBER LH) | ||||
| 90389-14028 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH | ||||
| 48609-30020 |
JZS155,UZS157..A,E,F |
1 | ||
| 48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH | ||||
| 48609-30020 |
JZS155,UZS157..A,E,F |
1 | ||
| 48681A - GASKET, FRONT SUSPENSION SUPPORT, RH | ||||
| 48681-30020 |
JZS155,UZS157..A,E,F |
1 | ||
| 48681-30010 |
UZS151,155 |
1 | ||
| 48681B - GASKET, FRONT SUSPENSION SUPPORT, LH | ||||
| 48681-30010 |
UZS151,155 |
1 | ||
| 48681-30020 |
JZS155,UZS157..A,E,F |
1 | ||
| 48810 - LINK ASSY, FRONT STABILIZER, LH | ||||
| 48810-30010 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-30490 |
JZS155,UZS157..A,E,F |
1 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-30440 |
JZS155,UZS157..A,E,F |
2 | ||
| 48815-30430 |
UZS151,155 |
2 | ||
| 48820B - LINK ASSY, FRONT STABILIZER, RH | ||||
| 48820-30030 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 48824A - BRACKET, FRONT STABILIZER, NO.1 RH | ||||
| 48824-30100 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 48829A - BRACKET, FRONT STABILIZER, NO.1 LH | ||||
| 48824-30100 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| Common parts | ||||
| 90105-08274 | ||||
| 90105-14087 | ||||
| 90119-08A91 | ||||
| 90179-08206 | ||||
| 90179-10174 | ||||
| 90179-12051 | ||||
| 90179-14045 | ||||
| 91629-61216 | ||||
| 94187-11200 | ||||
| Linked diagrams | ||||
| 5304 | ||||
