JZS155-CTPZF (1995)

Toyota Crown/Crown Majesta

Production Aug 1995 - Sep 1999
Engine 2JZGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9508- )JZS155,UZS151,157..A,C,E,F

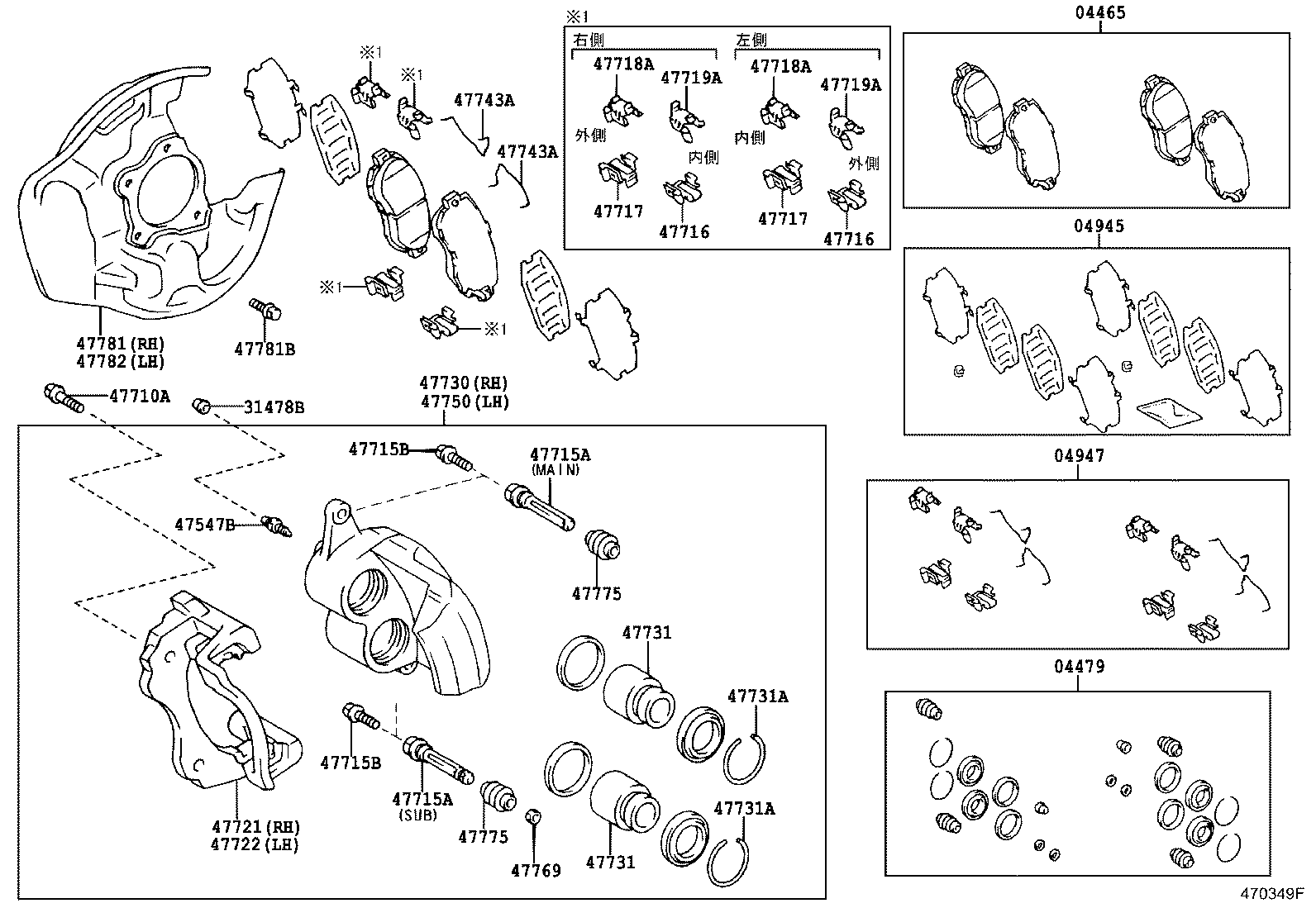

Click highlighted areas on diagram

diagram 04465 04479 04945 04947 31478B 47547B 47710A 47715A 47715A 47715B 47715B 47716 47716 47717 47717 47718A 47718A 47719A 47719A 47721 47722 47730 47731 47731 47731A 47731A 47743A 47743A 47750 47769 47775 47775 47781 47781B 47782
Part # Description Qty Price
04465 - PAD KIT, DISC BRAKE, FRONT
04465-30080

GS151,JZS15#,LS151,UZS151,157..(HTWC,TDE,TWC)..WIB

ﾏｰｸ NBK PN529

 1
04479 - CYLINDER KIT, DISC BRAKE, FRONT
04479-30190

JZS155,UZS15#..A,C,E,F

 1
04945 - SHIM KIT, ANTI SQUEAL, FRONT
04945-33020

GS151,JZS15#,LS151,UZS151,157..(HTWC,TDE,TWC)..WIB

 1
04947 - FITTING KIT, DISC BRAKE, FRONT
04947-30080

JZS155,UZS151,157..A,C,E,F

 1
31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
31478-30010

GS151,JZS15#,LS151,UZS15#

 2
47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE)
47547-27030

GS151,JZS15#,LS151,UZS15#..(HTWC,TDE,TWC)..WIB

 2
47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
90105-12228

GS151,JZS15#,LS151,UZS15#

*12−1.25PX32−24

 4
47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE
47715-30060

JZS155,UZS15#..A,C,E,F

ﾒｲﾝ ﾋﾟﾝ側

 2
47715-22070

GS151,JZS15#,LS151,UZS15#..(HTWC,TDE,TWC)..WIB

ｻﾌﾞ ﾋﾟﾝ側

 2
47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE
47715-30060

JZS155,UZS15#..A,C,E,F

ﾒｲﾝ ﾋﾟﾝ側

 2
47715-22070

GS151,JZS15#,LS151,UZS15#..(HTWC,TDE,TWC)..WIB

ｻﾌﾞ ﾋﾟﾝ側

 2
47715B - BOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)
90105-08164

GS151,JZS15#,LS151,UZS15#..(HTWC,TDE,TWC)..WIB

 4
47715B - BOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)
90105-08164

GS151,JZS15#,LS151,UZS15#..(HTWC,TDE,TWC)..WIB

 4
47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)
47716-30160

GS151,JZS15#,LS151,UZS151,157..(HTWC,TDE,TWC)..WIB

 2
47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)
47716-30160

GS151,JZS15#,LS151,UZS151,157..(HTWC,TDE,TWC)..WIB

 2
47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)
47716-30170

GS151,JZS15#,LS151,UZS151,157..(HTWC,TDE,TWC)..WIB

 2
47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)
47716-30170

GS151,JZS15#,LS151,UZS151,157..(HTWC,TDE,TWC)..WIB

 2
47718A - PLATE, PAD SUPPORT, NO.3(FOR FRONT DISC BRAKE)
47717-30050

GS151,JZS15#,LS151,UZS151,157..(HTWC,TDE,TWC)..WIB

 2
47718A - PLATE, PAD SUPPORT, NO.3(FOR FRONT DISC BRAKE)
47717-30050

GS151,JZS15#,LS151,UZS151,157..(HTWC,TDE,TWC)..WIB

 2
47719A - PLATE, PAD SUPPORT, NO.4(FOR FRONT DISC BRAKE)
47717-30060

GS151,JZS15#,LS151,UZS151,157..(HTWC,TDE,TWC)..WIB

 2
47719A - PLATE, PAD SUPPORT, NO.4(FOR FRONT DISC BRAKE)
47717-30060

GS151,JZS15#,LS151,UZS151,157..(HTWC,TDE,TWC)..WIB

 2
47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH
47721-30140

JZS155,UZS151,157..A,C,E,F

 1
47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH
47722-30060

JZS155,UZS151,157..A,C,E,F

 1
47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH
47730-30490

JZS155,UZS151,157..A,C,E,F

 1
47730-30390

JZS155,UZS151,157..A,C,E,F

 1
47731 - PISTON, FRONT DISC BRAKE
47731-30140

JZS155,UZS15#..A,C,E,F

 4
47731-30170

JZS155,UZS151,157..A,C,E,F

 4
47731 - PISTON, FRONT DISC BRAKE
47731-30140

JZS155,UZS15#..A,C,E,F

 4
47731-30170

JZS155,UZS151,157..A,C,E,F

 4
47731A - RING, SET(FOR FRONT DISC BRAKE PISTON)
90520-52006

JZS155,UZS15#..A,C,E,F

 4
47731A - RING, SET(FOR FRONT DISC BRAKE PISTON)
90520-52006

JZS155,UZS15#..A,C,E,F

 4
47743A - SPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)
47743-30020

JZS155,UZS15#..A,C,E,F

 4
47743A - SPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)
47743-30020

JZS155,UZS15#..A,C,E,F

 4
47750 - CYLINDER ASSY, DISC BRAKE, LH
47750-30490

JZS155,UZS151,157..A,C,E,F

 1
47750-30390

JZS155,UZS151,157..A,C,E,F

 1
47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)
47769-50010

GS151,JZS15#,LS151,UZS15#..(HTWC,TDE,TWC)..WIB

 2
47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE)
47775-30070

GS151,JZS15#,LS151,UZS15#..(HTWC,TDE,TWC)..WIB

 4
47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE)
47775-30070

GS151,JZS15#,LS151,UZS15#..(HTWC,TDE,TWC)..WIB

 4
47781 - COVER, DISC BRAKE DUST, FRONT RH
47781-30160

JZS155,UZS151,157..A,C,E,F

 1
47781B - BOLT(FOR DUST COVER SETTING)
90148-60028

GS151,JZS15#,LS151,UZS15#

*6−1.0PX14−10.5

 8
90119-06227

GS151,JZS15#,LS151,UZS15#

*6−1.0PX14−7.5

 8
90119-06227

JZS155..A,E;JZS153,UZS15#

*6−1.0PX14−7.5

 8
47782 - COVER, DISC BRAKE DUST, FRONT LH
47782-30160

JZS155,UZS151,157..A,C,E,F

 1
