JZS155-CTPZF (1995)

Toyota Crown/Crown Majesta

Production Aug 1995 - Sep 1999
Engine 2JZGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9508- )A,E

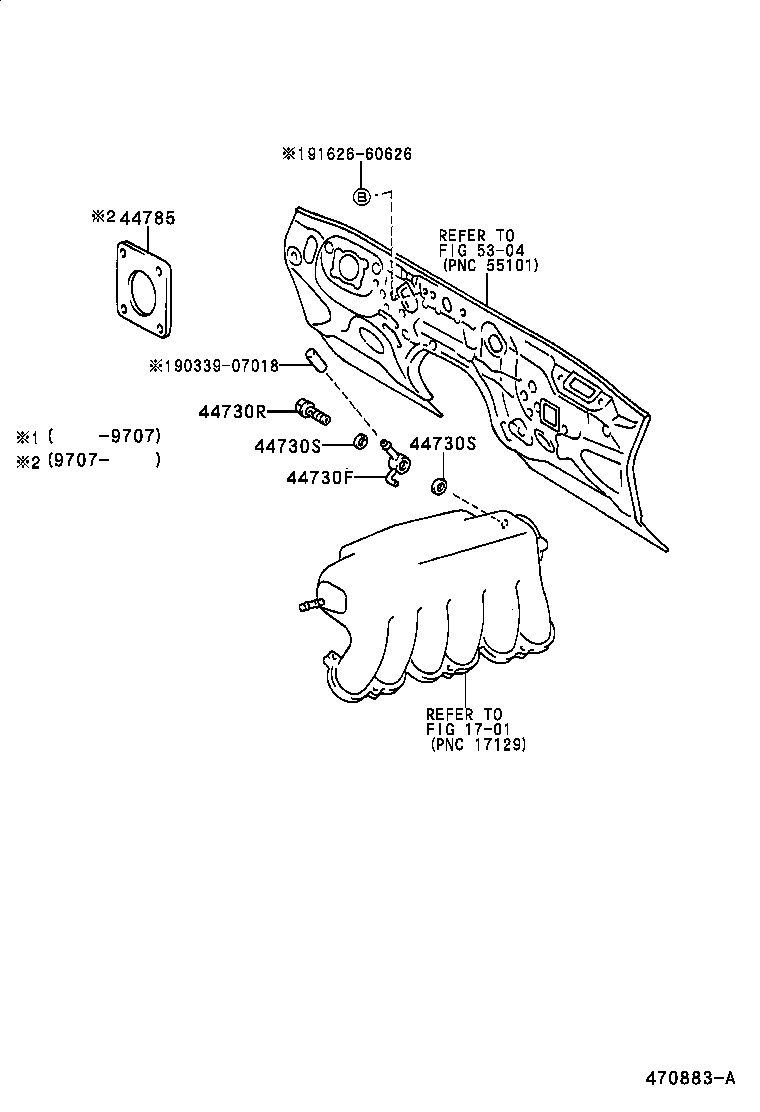

Click highlighted areas on diagram

ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ)

diagram 1701 44730F 44730R 44730S 44730S 44785 5304 9033907018 9162660626
Part # Description Qty Price
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90405-09160

JZS155,157

 1
44730R - BOLT, UNION(FOR VACUUM HOSE UNION)
90401-12012

JZS155,157

 1
44730S - GASKET(FOR VACUUM HOSE UNION)
90430-12005

JZS155,157

 2
44730S - GASKET(FOR VACUUM HOSE UNION)
90430-12005

JZS155,157

 2
44785 - GASKET, BRAKE BOOSTER
44785-30030

JZS155..A,E;UZS151,157..5FC

 1
Common parts
90339-07018
91626-60626
Linked diagrams
1701
5304

(9508- )A,E

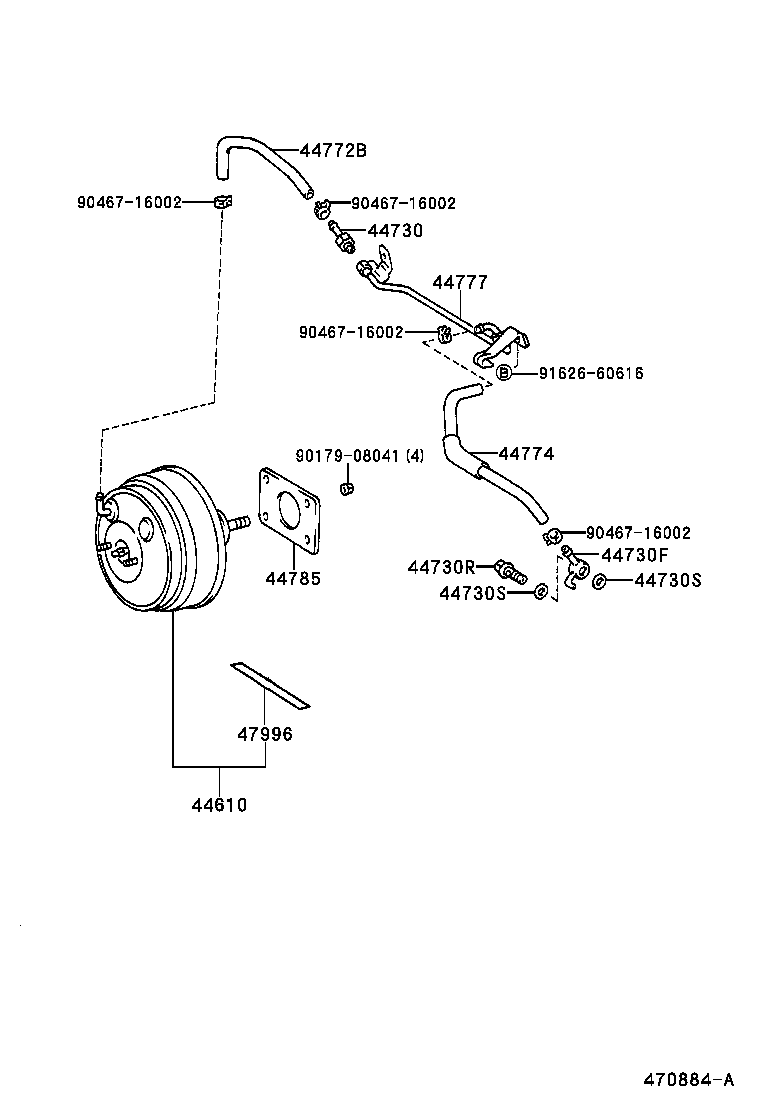

Click highlighted areas on diagram

diagram 44610 44730 44730F 44730R 44730S 44730S 44772B 44774 44777 44785 47996 9017908041 9046716002 9046716002 9046716002 9046716002 9162660616
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-3A060

JZS155..A,E

 1
44610-3A180

JZS155..A,E

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-22120

JZS155..A,E

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90405-09160

JZS155,157

 1
44730R - BOLT, UNION(FOR VACUUM HOSE UNION)
90401-12012

JZS155,157

 1
44730S - GASKET(FOR VACUUM HOSE UNION)
90430-12005

JZS155,157

 2
44730S - GASKET(FOR VACUUM HOSE UNION)
90430-12005

JZS155,157

 2
44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER
44772-30160

JZS155..A,E

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-30040

JZS155..A,E

 1
44777 - CONNECTOR, VACUUM HOSE, NO.1
44777-30160

JZS155..A,E

 1
44785 - GASKET, BRAKE BOOSTER
44785-30030

JZS155..A,E;UZS151,157..5FC

 1
47996 - LABEL, BRAKE BLEED NOTICE
47996-50050

JZS155

 1
Common parts
90179-08041
90467-16002
91626-60616
