JZS155-CTPZF (1995)
Toyota Crown/Crown Majesta

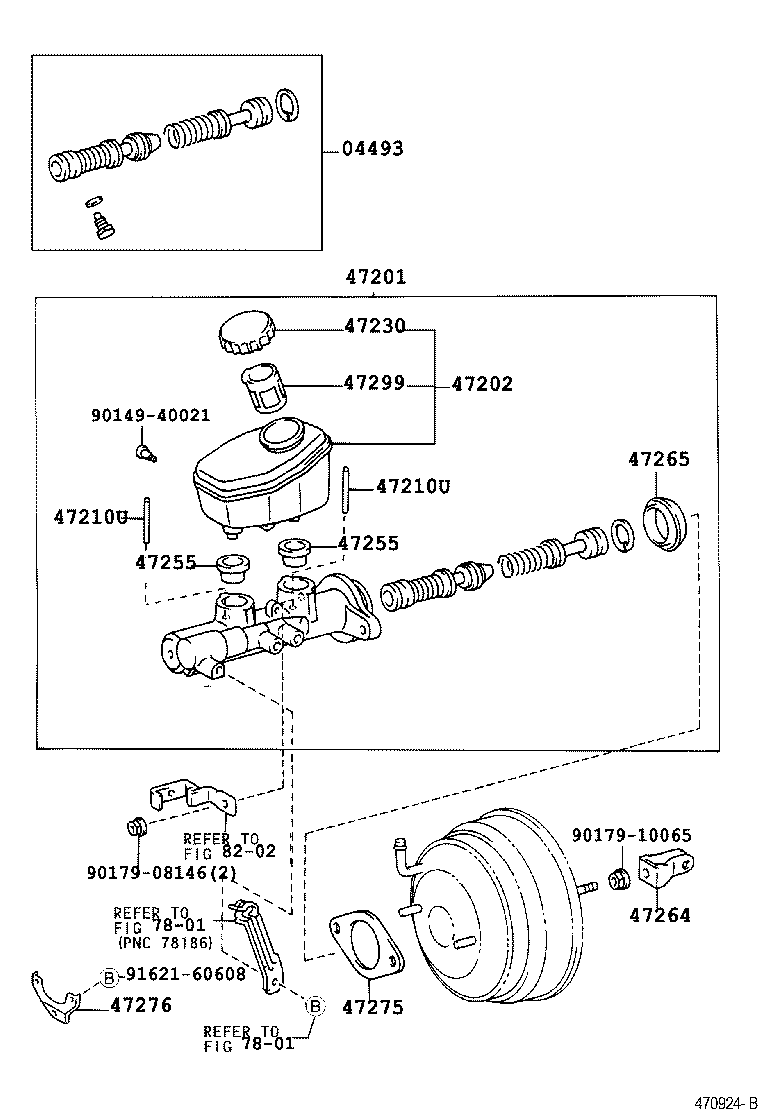

ILLUST NO. 1 OF 2(9508-9707)A,C,E,F ; (9707- )UZS15#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04493 - CYLINDER KIT, BRAKE MASTER | ||||
| 04493-24070 |
JZS155..A,E ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ) |
1 | ||
| 04493-30232 |
GS151,JZS15# |
1 | ||
| 04493-30250 |
JZS155..A,E |
1 | ||
| 04493 - CYLINDER KIT, BRAKE MASTER | ||||
| 04493-24070 |
JZS155..A,E ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ) |
1 | ||
| 04493-30232 |
GS151,JZS15# |
1 | ||
| 04493-30250 |
JZS155..A,E |
1 | ||
(9508-9707)JZS151,155 ; (9707- )JZS151
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04493 - CYLINDER KIT, BRAKE MASTER | ||||
| 04493-24070 |
JZS155..A,E ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ) |
1 | ||
| 04493-30232 |
GS151,JZS15# |
1 | ||
| 04493-30250 |
JZS155..A,E |
1 | ||
| 47201 - CYLINDER SUB-ASSY, BRAKE MASTER | ||||
| 47201-39025 |
JZS155..A,E ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ) |
1 | ||
| 47201-30480 |
JZS155..A,E |
1 | ||
| 47201-30710 |
JZS155..A,E |
1 | ||
| 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-30040 |
JZS155..A,E ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ) |
1 | ||
| 47220-30120 |
JZS155 |
1 | ||
| 47220-30060 |
JZS155..A,E |
1 | ||
| 47210J - GASKET(FOR MASTER CYLINDER) | ||||
| 90430-06104 |
JZS151,155 ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ) |
2 | ||
| 90430-06104 |
GS151,JZS15#,LS151 |
1 | ||
| 90430-06104 |
JZS155 ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ) |
2 | ||
| 47210T - BOLT(FOR BRAKE MASTER CYLINDER) | ||||
| 90101-06035 |
JZS155..A,E ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ) |
2 | ||
| 90109-06077 |
GS151,JZS15#,LS151 |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 84460-24020 |
JZS155..A,E ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ) |
1 | ||
| 47230-24010 |
GS151,JZS15#,LS151 |
1 | ||
| 47230-24010 |
GS151,JZS15#,LS151 |
1 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-16010 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-16010 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| 47264 - CLEVIS, MASTER CYLINDER PUSH ROD | ||||
| 47264-28010 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 47265 - BOOT, MASTER CYLINDER | ||||
| 47265-20050 |
GS151,JZS15#,LS151 |
1 | ||
| 47275 - GASKET, BRAKE MASTER CYLINDER | ||||
| 47275-24020 |
JZS155..A,E ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ) |
1 | ||
| 47275-12020 |
GS151,JZS15#,LS151 |
1 | ||
| 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47299-20060 |
LS151;JZS155..A,E |
1 | ||
| 47299-20060 |
JZS151,155,LS151 ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ) |
1 | ||
| 47299-24010 |
GS151,JZS15#,LS151 |
1 | ||
| 47299-24010 |
GS151,JZS15# |
1 | ||
| Common parts | ||||
| 90149-40006 | ||||
| 90179-08146 | ||||
| 90179-10065 | ||||
| Linked diagrams | ||||
| 7801 | ||||
| 8202 | ||||
ILLUST NO. 2 OF 2(9508-9609)JZS155,UZS151,157..A,C,E,F ; (9609-9707)A,E
ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31478N - CAP, BLEEDER PLUG(FOR BRAKE BOOSTER ACCUMULATOR) | ||||
| 31478-30010 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 31478P - CAP, BLEEDER PLUG(FOR BRAKE BOOSTER PUMP) | ||||
| 31478-50010 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 44517 - RING, BRAKE ACTUATOR BACK-UP | ||||
| 44517-24010 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 44517A - RING, O(FOR BRAKE ACTUATOR PRESSURE SWITCH) | ||||
| 96761-24011 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 44517B - GASKET(FOR BRAKE ACTUATOR PRESSURE SWITCH) | ||||
| 90430-22010 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 44519 - BOLT, BRAKE ACTUATOR | ||||
| 44519-24010 |
JZS155,UZS15#..A,C,E,F |
2 | ||
| 44519A - BOLT(FOR BRAKE BOOSTER PUMP) | ||||
| 44519-24020 |
JZS155,UZS15#..A,C,E,F |
4 | ||
| 44519A - BOLT(FOR BRAKE BOOSTER PUMP) | ||||
| 44519-24020 |
JZS155,UZS15#..A,C,E,F |
4 | ||
| 44551C - TUBE, BRAKE ACTUATOR, NO.1 | ||||
| 44551-30050 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 44571A - HOSE, BRAKE ACTUATOR, NO.1 | ||||
| 44571-24010 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 44591A - BRACKET, BRAKE ACTUATOR, NO.1 | ||||
| 44591-30120 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 44592A - BRACKET, BRAKE ACTUATOR, NO.2 | ||||
| 44592-30050 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 44593A - BRACKET, BRAKE ACTUATOR, NO.3 | ||||
| 44593-30020 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 44597D - CLAMP, BRAKE ACTUATOR CONNECTOR, NO.1 | ||||
| 44597-30070 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 44597E - CLAMP, BRAKE ACTUATOR CONNECTOR, NO.2 | ||||
| 44597-30080 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 44597F - CLAMP, BRAKE ACTUATOR CONNECTOR, NO.3 | ||||
| 44597-30010 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 44598C - COVER, BRAKE ACTUATOR | ||||
| 44598-24040 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 44731D - BRACKET, BRAKE BOOSTER | ||||
| 44731-30070 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 47070B - PUMP ASSY, BRAKE BOOSTER W/ACCUMULATOR | ||||
| 47070-30030 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 47070-30030 |
JZS155..A,E |
1 | ||
| 47070C - WIRE, BRAKE BOOSTER ACCUMULATOR COIL LEAD | ||||
| G2049-30030 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| G2049-30030 |
JZS155..A,E |
1 | ||
| 47201 - CYLINDER SUB-ASSY, BRAKE MASTER | ||||
| 47201-39025 |
JZS155..A,E ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ) |
1 | ||
| 47201-30480 |
JZS155..A,E |
1 | ||
| 47201-30710 |
JZS155..A,E |
1 | ||
| 47201B - RING, O(FOR BRAKE MASTER CYLINDER) | ||||
| 96761-19035 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-30040 |
JZS155..A,E ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ) |
1 | ||
| 47220-30120 |
JZS155 |
1 | ||
| 47220-30060 |
JZS155..A,E |
1 | ||
| 47210G - RING, O(FOR DIFFERENTIAL VALVE SWITCH) | ||||
| 96761-19014 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 47210J - GASKET(FOR MASTER CYLINDER) | ||||
| 90430-06104 |
JZS151,155 ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ) |
2 | ||
| 90430-06104 |
GS151,JZS15#,LS151 |
1 | ||
| 90430-06104 |
JZS155 ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ) |
2 | ||
| 47210L - BRAKE BOOSTER ASSY, W/MASTER CYLINDER | ||||
| 47210-30040 |
JZS155..A,E |
1 | ||
| 47210-30040 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 47210T - BOLT(FOR BRAKE MASTER CYLINDER) | ||||
| 90101-06035 |
JZS155..A,E ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ) |
2 | ||
| 90109-06077 |
GS151,JZS15#,LS151 |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 84460-24020 |
JZS155..A,E ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ) |
1 | ||
| 47230-24010 |
GS151,JZS15#,LS151 |
1 | ||
| 47230-24010 |
GS151,JZS15#,LS151 |
1 | ||
| 47233 - BRACKET, RESERVOIR | ||||
| 47233-30030 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-16010 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-16010 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| 47261 - ROD, MASTER CYLINDER PUSH | ||||
| 47261-24120 |
JZS155,UZS15#..A,C,E,F 長さ=36.6 |
1 | ||
| 47261-24150 |
JZS155,UZS15#..A,C,E,F 長さ=37.5 |
1 | ||
| 47261-24110 |
JZS155,UZS15#..A,C,E,F 長さ=36.3 |
1 | ||
| 47261-24130 |
JZS155,UZS15#..A,C,E,F 長さ=36.9 |
1 | ||
| 47261-24210 |
JZS155,UZS15#..A,C,E,F 長さ=37.35 |
1 | ||
| 47261-24140 |
JZS155,UZS15#..A,C,E,F 長さ=37.2 |
1 | ||
| 47261-24170 |
JZS155,UZS15#..A,C,E,F 長さ=38.1 |
1 | ||
| 47261-24190 |
JZS155,UZS15#..A,C,E,F 長さ=36.75 |
1 | ||
| 47261-24160 |
JZS155,UZS15#..A,C,E,F 長さ=37.8 |
1 | ||
| 47261-24180 |
JZS155,UZS15#..A,C,E,F 長さ=36.45 |
1 | ||
| 47261-24200 |
JZS155,UZS15#..A,C,E,F 長さ=37.05 |
1 | ||
| 47261-24230 |
JZS155,UZS15#..A,C,E,F 長さ=37.95 |
1 | ||
| 47261-24220 |
JZS155,UZS15#..A,C,E,F 長さ=37.65 |
1 | ||
| 47264 - CLEVIS, MASTER CYLINDER PUSH ROD | ||||
| 47264-28010 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 47275 - GASKET, BRAKE MASTER CYLINDER | ||||
| 47275-24020 |
JZS155..A,E ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ) |
1 | ||
| 47275-12020 |
GS151,JZS15#,LS151 |
1 | ||
| 47547K - PLUG, BLEEDER(FOR BRAKE BOOSTER ACCUMULATOR) | ||||
| 47547-26010 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 47547-20010 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 47547-20010 |
JZS155..A,E |
1 | ||
| 47547L - PLUG, BLEEDER(FOR BRAKE BOOSTER PUMP) | ||||
| 47547-27030 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 47950D - ACCUMULATOR ASSY, BRAKE BOOSTER | ||||
| 47950-24020 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 47950E - SPRING, COMPRESSION(FOR BRAKE BOOSTER ACCUMULATOR) | ||||
| 90501-12147 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 47950F - RING, O(FOR BRAKE BOOSTER ACCUMULATOR) | ||||
| 90301-08006 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 47950G - RING(FOR BRAKE BOOSTER ACCUMULATOR) | ||||
| 90562-09006 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 47955A - PIPE, BRAKE BOOSTER ACCUMULATOR | ||||
| 47955-24010 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 47960A - PUMP ASSY, BRAKE BOOSTER | ||||
| 47960-30010 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 47960B - RING, O(FOR BRAKE BOOSTER PUMP OIL PRESSURE SENSOR) | ||||
| 90301-15014 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 47960C - SPACER(FOR BRAKE BOOSTER PUMP OIL PRESSURE SENSOR) | ||||
| 90561-16009 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 47962A - COLLAR, BRAKE BOOSTER PUMP | ||||
| 47962-24010 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 47963A - SHAFT, BRAKE BOOSTER PUMP | ||||
| 47963-24010 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 47964A - WASHER, BRAKE BOOSTER PUMP | ||||
| 47964-24010 |
JZS155,UZS15#..A,C,E,F |
2 | ||
| 47964A - WASHER, BRAKE BOOSTER PUMP | ||||
| 47964-24010 |
JZS155,UZS15#..A,C,E,F |
2 | ||
| 47965A - BUSH, BRAKE BOOSTER PUMP | ||||
| 47965-24010 |
JZS155,UZS15#..A,C,E,F |
3 | ||
| 47965A - BUSH, BRAKE BOOSTER PUMP | ||||
| 47965-24010 |
JZS155,UZS15#..A,C,E,F |
3 | ||
| 47965A - BUSH, BRAKE BOOSTER PUMP | ||||
| 47965-24010 |
JZS155,UZS15#..A,C,E,F |
3 | ||
| 47966A - PIPE, BRAKE BOOSTER PUMP OIL | ||||
| 47966-24010 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 47967A - BRACKET, BRAKE BOOSTER PUMP, NO.1 | ||||
| 47967-30010 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 47968A - BRACKET, BRAKE BOOSTER PUMP, NO.2 | ||||
| 47968-30010 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 47997A - LABEL, ACCUMULATOR CAUTION, NO.1 | ||||
| 47997-24020 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 47997B - LABEL, ACCUMULATOR CAUTION, NO,2 | ||||
| 47997-24010 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 89637D - SENSOR, OIL PRESSURE | ||||
| 89637-30010 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 89637-30010 |
JZS155..A,E |
1 | ||
| 89637-30030 |
JZS155,UZS151,157..C,F,ROY,ROYG,ROYT |
1 | ||
| 89639B - WIRE, BRAKE CONTROL | ||||
| 89639-30040 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 89639-30040 |
JZS155..A,E |
1 | ||
| Common parts | ||||
| 90119-06539 | ||||
| 90119-06716 | ||||
| 90119-06717 | ||||
| 90149-40028 | ||||
| 90179-08121 | ||||
| 90179-10065 | ||||
| 90464-00657 | ||||
| 91511-A0610 | ||||
| 91611-60665 | ||||
| 91651-G0612 | ||||
| 93219-14006 | ||||
| 93381-16010 | ||||
| Linked diagrams | ||||
| 7801 | ||||
| 8401 | ||||
ILLUST NO. 2 OF 2(9707- )JZS155,UZS151,157..C,F,ROY,ROYG,ROYT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44519 - BOLT, BRAKE ACTUATOR | ||||
| 44519-24010 |
JZS155,UZS15#..A,C,E,F |
2 | ||
| 44519 - BOLT, BRAKE ACTUATOR | ||||
| 44519-24010 |
JZS155,UZS15#..A,C,E,F |
2 | ||
| 44519 - BOLT, BRAKE ACTUATOR | ||||
| 44519-24010 |
JZS155,UZS15#..A,C,E,F |
2 | ||
| 44519A - BOLT(FOR BRAKE BOOSTER PUMP) | ||||
| 44519-24020 |
JZS155,UZS15#..A,C,E,F |
4 | ||
| 44551C - TUBE, BRAKE ACTUATOR, NO.1 | ||||
| 44551-30050 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 44571A - HOSE, BRAKE ACTUATOR, NO.1 | ||||
| 44571-24010 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 44591A - BRACKET, BRAKE ACTUATOR, NO.1 | ||||
| 44591-30120 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 47070B - PUMP ASSY, BRAKE BOOSTER W/ACCUMULATOR | ||||
| 47070-30030 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 47070-30030 |
JZS155..A,E |
1 | ||
| 47201 - CYLINDER SUB-ASSY, BRAKE MASTER | ||||
| 47201-39025 |
JZS155..A,E ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ) |
1 | ||
| 47201-30480 |
JZS155..A,E |
1 | ||
| 47201-30710 |
JZS155..A,E |
1 | ||
| 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-30040 |
JZS155..A,E ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ) |
1 | ||
| 47220-30120 |
JZS155 |
1 | ||
| 47220-30060 |
JZS155..A,E |
1 | ||
| 47210L - BRAKE BOOSTER ASSY, W/MASTER CYLINDER | ||||
| 47210-30040 |
JZS155..A,E |
1 | ||
| 47210-30040 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 84460-24020 |
JZS155..A,E ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ) |
1 | ||
| 47230-24010 |
GS151,JZS15#,LS151 |
1 | ||
| 47230-24010 |
GS151,JZS15#,LS151 |
1 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-16010 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-16010 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| 47264 - CLEVIS, MASTER CYLINDER PUSH ROD | ||||
| 47264-28010 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 47265 - BOOT, MASTER CYLINDER | ||||
| 47265-20050 |
GS151,JZS15#,LS151 |
1 | ||
| 47950D - ACCUMULATOR ASSY, BRAKE BOOSTER | ||||
| 47950-24020 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 47950E - SPRING, COMPRESSION(FOR BRAKE BOOSTER ACCUMULATOR) | ||||
| 90501-12147 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 47950F - RING, O(FOR BRAKE BOOSTER ACCUMULATOR) | ||||
| 90301-08006 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 47955A - PIPE, BRAKE BOOSTER ACCUMULATOR | ||||
| 47955-24010 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 47960A - PUMP ASSY, BRAKE BOOSTER | ||||
| 47960-30010 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 47960B - RING, O(FOR BRAKE BOOSTER PUMP OIL PRESSURE SENSOR) | ||||
| 90301-15014 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 47960C - SPACER(FOR BRAKE BOOSTER PUMP OIL PRESSURE SENSOR) | ||||
| 90561-16009 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 47962A - COLLAR, BRAKE BOOSTER PUMP | ||||
| 47962-24010 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 47962A - COLLAR, BRAKE BOOSTER PUMP | ||||
| 47962-24010 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 47963A - SHAFT, BRAKE BOOSTER PUMP | ||||
| 47963-24010 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 47964A - WASHER, BRAKE BOOSTER PUMP | ||||
| 47964-24010 |
JZS155,UZS15#..A,C,E,F |
2 | ||
| 47964A - WASHER, BRAKE BOOSTER PUMP | ||||
| 47964-24010 |
JZS155,UZS15#..A,C,E,F |
2 | ||
| 47965A - BUSH, BRAKE BOOSTER PUMP | ||||
| 47965-24010 |
JZS155,UZS15#..A,C,E,F |
3 | ||
| 47965A - BUSH, BRAKE BOOSTER PUMP | ||||
| 47965-24010 |
JZS155,UZS15#..A,C,E,F |
3 | ||
| 47965A - BUSH, BRAKE BOOSTER PUMP | ||||
| 47965-24010 |
JZS155,UZS15#..A,C,E,F |
3 | ||
| 47967A - BRACKET, BRAKE BOOSTER PUMP, NO.1 | ||||
| 47967-30010 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 47968A - BRACKET, BRAKE BOOSTER PUMP, NO.2 | ||||
| 47968-30010 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 47997A - LABEL, ACCUMULATOR CAUTION, NO.1 | ||||
| 47997-24020 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 47997B - LABEL, ACCUMULATOR CAUTION, NO,2 | ||||
| 47997-24010 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 89637D - SENSOR, OIL PRESSURE | ||||
| 89637-30010 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 89637-30010 |
JZS155..A,E |
1 | ||
| 89637-30030 |
JZS155,UZS151,157..C,F,ROY,ROYG,ROYT |
1 | ||
| 89639B - WIRE, BRAKE CONTROL | ||||
| 89639-30040 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 89639-30040 |
JZS155..A,E |
1 | ||
| Common parts | ||||
| 90149-40006 | ||||
| 90149-40028 | ||||
| 90179-08121 | ||||
| 90179-10065 | ||||
| 90464-00657 | ||||
| 91611-60665 | ||||
| 93319-15008 | ||||
| 94130-60500 | ||||
| Linked diagrams | ||||
| 8401 | ||||
(9707- )JZS155
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04493 - CYLINDER KIT, BRAKE MASTER | ||||
| 04493-24070 |
JZS155..A,E ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ) |
1 | ||
| 04493-30232 |
GS151,JZS15# |
1 | ||
| 04493-30250 |
JZS155..A,E |
1 | ||
| 47201 - CYLINDER SUB-ASSY, BRAKE MASTER | ||||
| 47201-39025 |
JZS155..A,E ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ) |
1 | ||
| 47201-30480 |
JZS155..A,E |
1 | ||
| 47201-30710 |
JZS155..A,E |
1 | ||
| 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-30040 |
JZS155..A,E ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ) |
1 | ||
| 47220-30120 |
JZS155 |
1 | ||
| 47220-30060 |
JZS155..A,E |
1 | ||
| 47210U - PIN, STRAIGHT(FOR BRAKE MASTER CYLINDER) | ||||
| 90029-14204 |
JZS155 |
2 | ||
| 47210U - PIN, STRAIGHT(FOR BRAKE MASTER CYLINDER) | ||||
| 90029-14204 |
JZS155 |
2 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 84460-24020 |
JZS155..A,E ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ) |
1 | ||
| 47230-24010 |
GS151,JZS15#,LS151 |
1 | ||
| 47230-24010 |
GS151,JZS15#,LS151 |
1 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-16010 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-16010 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| 47264 - CLEVIS, MASTER CYLINDER PUSH ROD | ||||
| 47264-28010 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 47265 - BOOT, MASTER CYLINDER | ||||
| 47265-20050 |
GS151,JZS15#,LS151 |
1 | ||
| 47275 - GASKET, BRAKE MASTER CYLINDER | ||||
| 47275-24020 |
JZS155..A,E ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ) |
1 | ||
| 47275-12020 |
GS151,JZS15#,LS151 |
1 | ||
| 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47299-20060 |
LS151;JZS155..A,E |
1 | ||
| 47299-20060 |
JZS151,155,LS151 ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ) |
1 | ||
| 47299-24010 |
GS151,JZS15#,LS151 |
1 | ||
| 47299-24010 |
GS151,JZS15# |
1 | ||
| Common parts | ||||
| 90149-40021 | ||||
| 90179-08146 | ||||
| 90179-10065 | ||||
| 91621-60608 | ||||
| Linked diagrams | ||||
| 7801 | ||||
| 8202 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
