JZS155-CTPZF (1995)
Toyota Crown/Crown Majesta

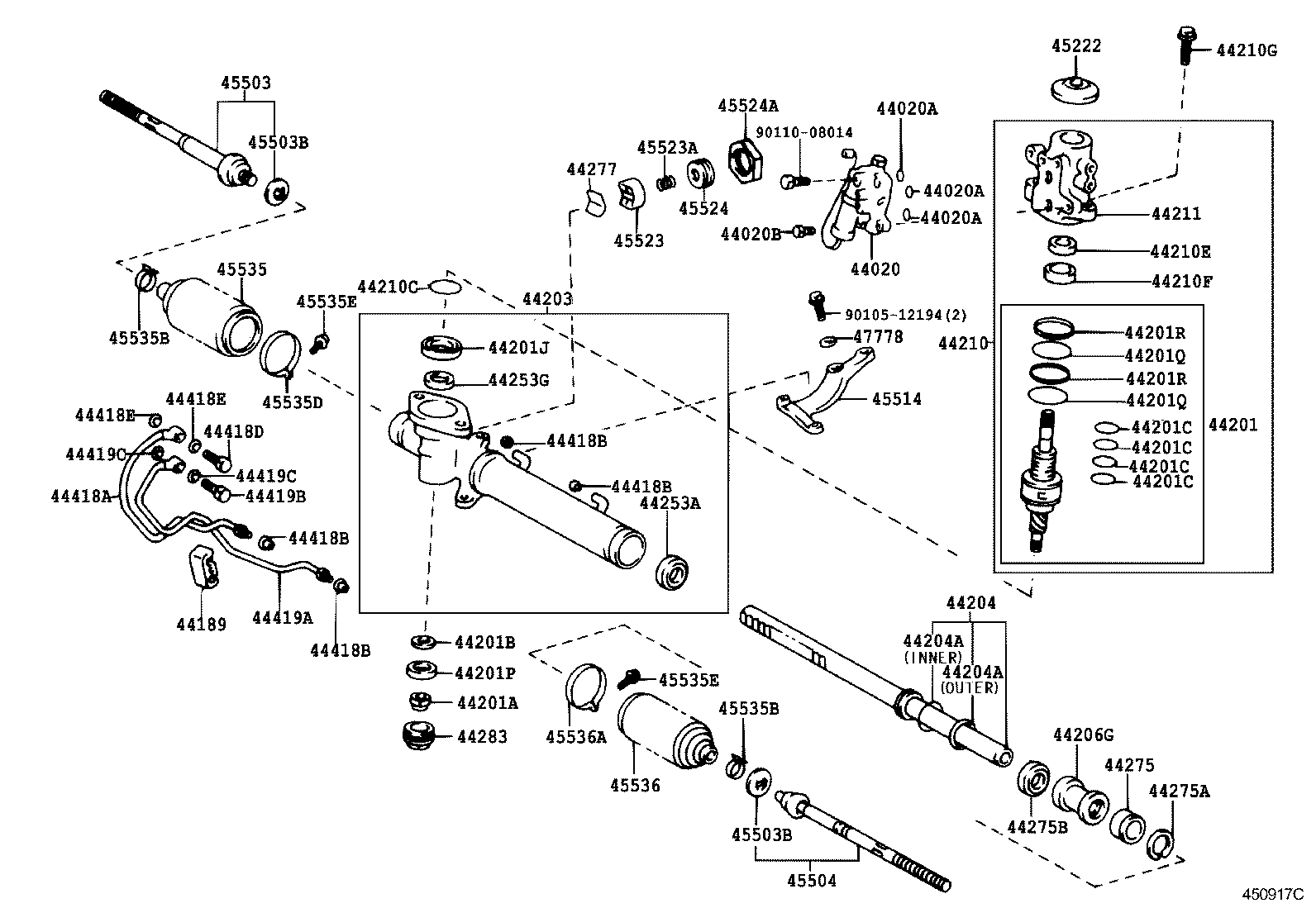

ILLUST NO. 2 OF 2(9508- )JZS155,UZS151,157..A,C,E,F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44020 - VALVE ASSY, PRESSURE CONTROL W/SOLENOID VALVE | ||||
| 44020-30060 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 44020A - RING, O(FOR POWER STEERING PRESSURE CONTROL VALVE) | ||||
| 96711-19014 |
JZS153,155,UZS155..C,ROY,ROYEX,ROYG,ROYT,SALEX |
3 | ||
| 96711-19014 |
JZS155,UZS155..C,ROY,ROYG,ROYT |
3 | ||
| 90301-11009 |
JZS155,UZS151,157..A,C,E,F |
3 | ||
| 44020A - RING, O(FOR POWER STEERING PRESSURE CONTROL VALVE) | ||||
| 96711-19014 |
JZS153,155,UZS155..C,ROY,ROYEX,ROYG,ROYT,SALEX |
3 | ||
| 96711-19014 |
JZS155,UZS155..C,ROY,ROYG,ROYT |
3 | ||
| 90301-11009 |
JZS155,UZS151,157..A,C,E,F |
3 | ||
| 44020A - RING, O(FOR POWER STEERING PRESSURE CONTROL VALVE) | ||||
| 96711-19014 |
JZS153,155,UZS155..C,ROY,ROYEX,ROYG,ROYT,SALEX |
3 | ||
| 96711-19014 |
JZS155,UZS155..C,ROY,ROYG,ROYT |
3 | ||
| 90301-11009 |
JZS155,UZS151,157..A,C,E,F |
3 | ||
| 44020B - BOLT(FOR POWER STEERING PRESSURE CONTROL VALVE) | ||||
| 90110-08012 |
JZS155,UZS151,157..A,C,E,F *8−1.25PX29−26 |
2 | ||
| 44189 - CLAMP, SOLENOID VALVE TERMINAL | ||||
| 90464-00524 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 44201 - VALVE SUB-ASSY, POWER STEERING CONTROL | ||||
| 44201-40010 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 44201-30110 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 44201A - NUT, LOCK(FOR POWER STEERING CONTROL VALVE) | ||||
| 94184-61200 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 44201B - SPACER(FOR POWER STEERING CONTROL VALVE) | ||||
| 90560-12030 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33007 |
GS151,JZS15#,LS151,UZS155..C,ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
4 | ||
| 90562-33008 |
JZS155,UZS151,157..A,C,E,F |
4 | ||
| 90562-33005 |
JZS155,UZS151,157..A,C,E,F |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33007 |
GS151,JZS15#,LS151,UZS155..C,ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
4 | ||
| 90562-33008 |
JZS155,UZS151,157..A,C,E,F |
4 | ||
| 90562-33005 |
JZS155,UZS151,157..A,C,E,F |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33007 |
GS151,JZS15#,LS151,UZS155..C,ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
4 | ||
| 90562-33008 |
JZS155,UZS151,157..A,C,E,F |
4 | ||
| 90562-33005 |
JZS155,UZS151,157..A,C,E,F |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33007 |
GS151,JZS15#,LS151,UZS155..C,ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
4 | ||
| 90562-33008 |
JZS155,UZS151,157..A,C,E,F |
4 | ||
| 90562-33005 |
JZS155,UZS151,157..A,C,E,F |
4 | ||
| 44201J - BEARING(FOR POWER STEERING CONTROL VALVE CENTER) | ||||
| 90363-30054 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 44201P - BEARING(FOR POWER STEERING CONTROL VALVE LOWER) | ||||
| 90363-12008 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 90363-12014 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 44201Q - RING, O(FOR POWER STEERING CONTROL VALVE) | ||||
| 90301-45002 |
JZS155,UZS151,157..A,C,E,F |
2 | ||
| 44201Q - RING, O(FOR POWER STEERING CONTROL VALVE) | ||||
| 90301-45002 |
JZS155,UZS151,157..A,C,E,F |
2 | ||
| 44201R - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-50001 |
JZS155,UZS151,157..A,C,E,F |
2 | ||
| 90562-49002 |
JZS153,155,157,UZS155..C,ROY,ROYEX,ROYG,ROYT,SALEX |
2 | ||
| 44201R - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-50001 |
JZS155,UZS151,157..A,C,E,F |
2 | ||
| 90562-49002 |
JZS153,155,157,UZS155..C,ROY,ROYEX,ROYG,ROYT,SALEX |
2 | ||
| 44203 - HOUSING SUB-ASSY, POWER STEERING RACK | ||||
| 44203-30100 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 44204 - RACK SUB-ASSY, POWER STEERING | ||||
| 44204-30090 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90562-41001 |
GS151,JZS15#,LS151,UZS155..C,ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX 外側 |
1 | ||
| 90560-40008 |
JZS155,UZS151,157..A,C,E,F 外側 |
1 | ||
| 90301-37007 |
GS151,JZS15#,LS151,UZS155..C,ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX 内側 |
1 | ||
| 90562-40002 |
JZS155,UZS151,157..A,C,E,F 外側 |
1 | ||
| 90301-36004 |
JZS155,UZS151,157..A,C,E,F 内側 |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90562-41001 |
GS151,JZS15#,LS151,UZS155..C,ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX 外側 |
1 | ||
| 90560-40008 |
JZS155,UZS151,157..A,C,E,F 外側 |
1 | ||
| 90301-37007 |
GS151,JZS15#,LS151,UZS155..C,ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX 内側 |
1 | ||
| 90562-40002 |
JZS155,UZS151,157..A,C,E,F 外側 |
1 | ||
| 90301-36004 |
JZS155,UZS151,157..A,C,E,F 内側 |
1 | ||
| 44206G - SPACER, NO.1(FOR POWER STEERING CYLINDER TUBE) | ||||
| 90561-29002 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 44210 - VALVE ASSY, POWER STEERING CONTROL | ||||
| 44210-30110 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 44210C - RING, O(FOR POWER STEERING CONTROL VALVE) | ||||
| 90301-57003 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 90301-62005 |
JZS153,155,157,UZS155..C,ROY,ROYEX,ROYG,ROYT,SALEX |
1 | ||
| 44210E - SEAL, OIL(FOR POWER STEERING CONTROL VALVE) | ||||
| 90311-19014 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 90311-19013 |
GS151,JZS15#,LS151,UZS155..C,ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 90311-19002 |
GS151,JZS15#,LS151,UZS155..C,ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 90311-19006 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 44210F - BEARING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90363-19002 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 90363-19003 |
GS151,JZS15#,LS151,UZS155..C,ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 44210G - BOLT(FOR POWER STEERING CONTROL VALVE) | ||||
| 90110-08012 |
JZS155,UZS151,157..A,C,E,F |
2 | ||
| 44211 - HOUSING, CONTROL VALVE | ||||
| 44022-24010 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 44253A - SEAL, OIL(FOR POWER STEERING RACK HOUSING) | ||||
| 90310-26021 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 90310-26018 |
GS151,JZS15#,LS151,UZS155..C,ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 90310-26016 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 44253G - SEAL, OIL, NO.2(FOR POWER STEERING RACK HOUSING) | ||||
| 90310-30005 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 90310-30013 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 44275 - STOPPER, CYLINDER END | ||||
| 44275-24020 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 44275A - RING, HOLE SNAP(FOR CYLINDER END STOPPER) | ||||
| 90521-53002 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 44275B - SEAL, OIL(FOR CYLINDER END STOPPER) | ||||
| 90310-26021 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 90310-26016 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 90310-26019 |
GS151,JZS15#,LS151,UZS155..C,ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 44277 - SEAT, RACK GUIDE | ||||
| 44277-50011 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 44283 - CAP, RACK HOUSING | ||||
| 44283-12010 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 44418A - TUBE, STEERING RIGHT TURN PRESSURE | ||||
| 44418-30080 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 44418B - SEAT, UNION(FOR STEERING TURN PRESSURE TUBE) | ||||
| 96390-71200 |
JZS155,UZS151,157..A,C,E,F |
2 | ||
| 44418B - SEAT, UNION(FOR STEERING TURN PRESSURE TUBE) | ||||
| 96390-71200 |
JZS155,UZS151,157..A,C,E,F |
2 | ||
| 44418B - SEAT, UNION(FOR STEERING TURN PRESSURE TUBE) | ||||
| 96390-71200 |
JZS155,UZS151,157..A,C,E,F |
2 | ||
| 44418B - SEAT, UNION(FOR STEERING TURN PRESSURE TUBE) | ||||
| 96390-71200 |
JZS155,UZS151,157..A,C,E,F |
2 | ||
| 44418D - BOLT, UNION(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90401-12017 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 44418E - GASKET(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90430-12013 |
JZS155,UZS151,157..A,C,E,F |
2 | ||
| 44418E - GASKET(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90430-12013 |
JZS155,UZS151,157..A,C,E,F |
2 | ||
| 44419A - TUBE, STEERING LEFT TURN PRESSURE | ||||
| 44419-30080 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 44419B - BOLT, UNION(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90401-12017 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 44419C - GASKET(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90430-12013 |
JZS155,UZS151,157..A,C,E,F |
2 | ||
| 44419C - GASKET(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90430-12013 |
JZS155,UZS151,157..A,C,E,F |
2 | ||
| 45222 - COVER, STEERING GEAR DUST | ||||
| 45222-22040 |
JZS153,155,157,UZS155..C,ROY,ROYEX,ROYG,ROYT,SALEX |
1 | ||
| 45222-50010 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-39095 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-14007 |
JZS155..A,E;JZS153,157,UZS151,157 外径=38 |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-14007 |
JZS155..A,E;JZS153,157,UZS151,157 外径=38 |
2 | ||
| 45504 - END SUB-ASSY, STEERING RACK, NO.2 | ||||
| 45504-39045 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 45514 - BRACKET, STEERING RACK HOUSING, NO.1 | ||||
| 45514-30010 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 45523 - GUIDE, RACK(FOR STEERING GEAR) | ||||
| 45523-50011 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 45523A - SPRING(FOR STEERING GEAR RACK GUIDE) | ||||
| 90501-29036 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 45524 - CAP, STEERING RACK GUIDE SPRING | ||||
| 45524-50010 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 45524A - NUT(FOR STEERING RACK GUIDE SPRING CAP) | ||||
| 90179-36002 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 45535 - BOOT, STEERING RACK, NO.1 | ||||
| 45535-30010 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-19019 |
JZS155,UZS151,157..A,C,E,F |
2 | ||
| 90467-19012 |
GS151,JZS15#,LS151,UZS151,157 |
2 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-19019 |
JZS155,UZS151,157..A,C,E,F |
2 | ||
| 90467-19012 |
GS151,JZS15#,LS151,UZS151,157 |
2 | ||
| 45535D - CLAMP(FOR STEERING RACK BOOT NO.1) | ||||
| 90460-49002 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 90460-49002 |
JZS155,UZS15#..A,C,F |
1 | ||
| 90460-49002 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 45535E - SCREW(FOR STEERING RACK BOOT CLAMP) | ||||
| 90149-30004 |
JZS155,UZS151,157..A,C,E,F |
2 | ||
| 90149-30009 |
JZS155,UZS151,157..A,C,E,F |
2 | ||
| 90149-30004 |
GS151,JZS15#,LS151,UZS151,157 |
2 | ||
| 45535E - SCREW(FOR STEERING RACK BOOT CLAMP) | ||||
| 90149-30004 |
JZS155,UZS151,157..A,C,E,F |
2 | ||
| 90149-30009 |
JZS155,UZS151,157..A,C,E,F |
2 | ||
| 90149-30004 |
GS151,JZS15#,LS151,UZS151,157 |
2 | ||
| 45536 - BOOT, STEERING RACK, NO.2 | ||||
| 45535-24040 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 45536A - CLAMP(FOR STEERING RACK BOOT NO.2) | ||||
| 90460-54003 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 47778 - RETAINER, STEERING RACK HOUSING | ||||
| 47778-30020 |
JZS155,UZS151,157..A,C,E,F |
2 | ||
| Common parts | ||||
| 90105-12194 | ||||
| 90110-08014 | ||||

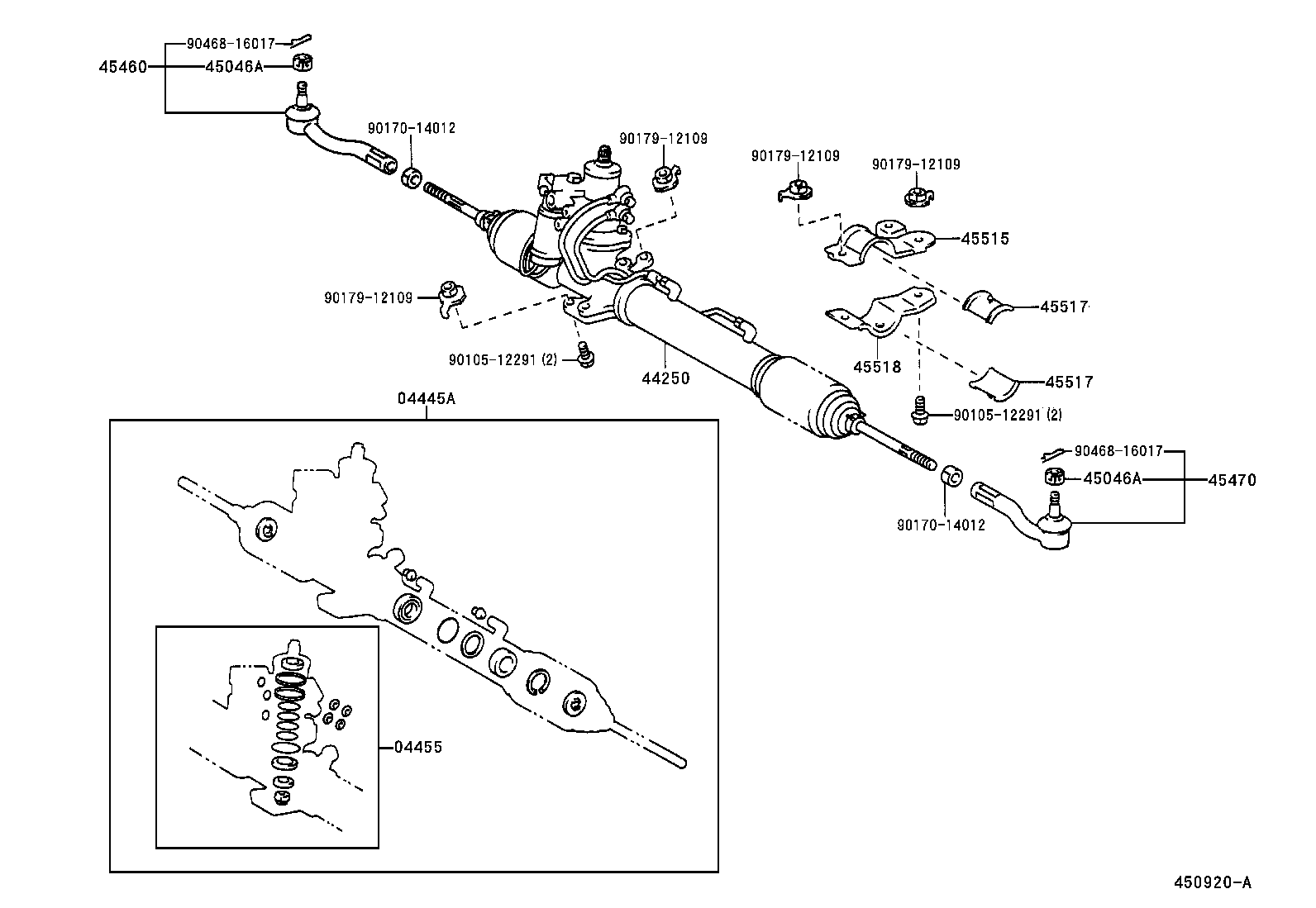

ILLUST NO. 1 OF 2(9508- )JZS155,UZS151,157..A,C,E,F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04445A - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION) | ||||
| 04445-30180 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 04455 - GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE | ||||
| 04455-30050 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 04455-30040 |
JZS155,UZS155..C,ROY,ROYG,ROYT |
1 | ||
| 44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION) | ||||
| 44250-30120 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12002 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12002 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| 45460 - ROD ASSY, TIE, RH | ||||
| 45460-39395 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 45470 - ROD ASSY, TIE, LH | ||||
| 45470-39145 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 45515 - BRACKET, STEERING RACK HOUSING, NO.2 | ||||
| 45515-30070 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 45517 - GROMMET, STEERING RACK HOUSING, NO.2 | ||||
| 45517-30040 |
JZS155,UZS151,157..A,C,E,F |
2 | ||
| 45517 - GROMMET, STEERING RACK HOUSING, NO.2 | ||||
| 45517-30040 |
JZS155,UZS151,157..A,C,E,F |
2 | ||
| 45518 - BRACKET, STEERING RACK HOUSING, NO.3 | ||||
| 45518-30010 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| Common parts | ||||
| 90105-12291 | ||||
| 90170-14012 | ||||
| 90179-12109 | ||||
| 90468-16017 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
