JZS155-CTPZF (1995)

Toyota Crown/Crown Majesta

Production Aug 1995 - Sep 1999
Engine 2JZGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9508- )

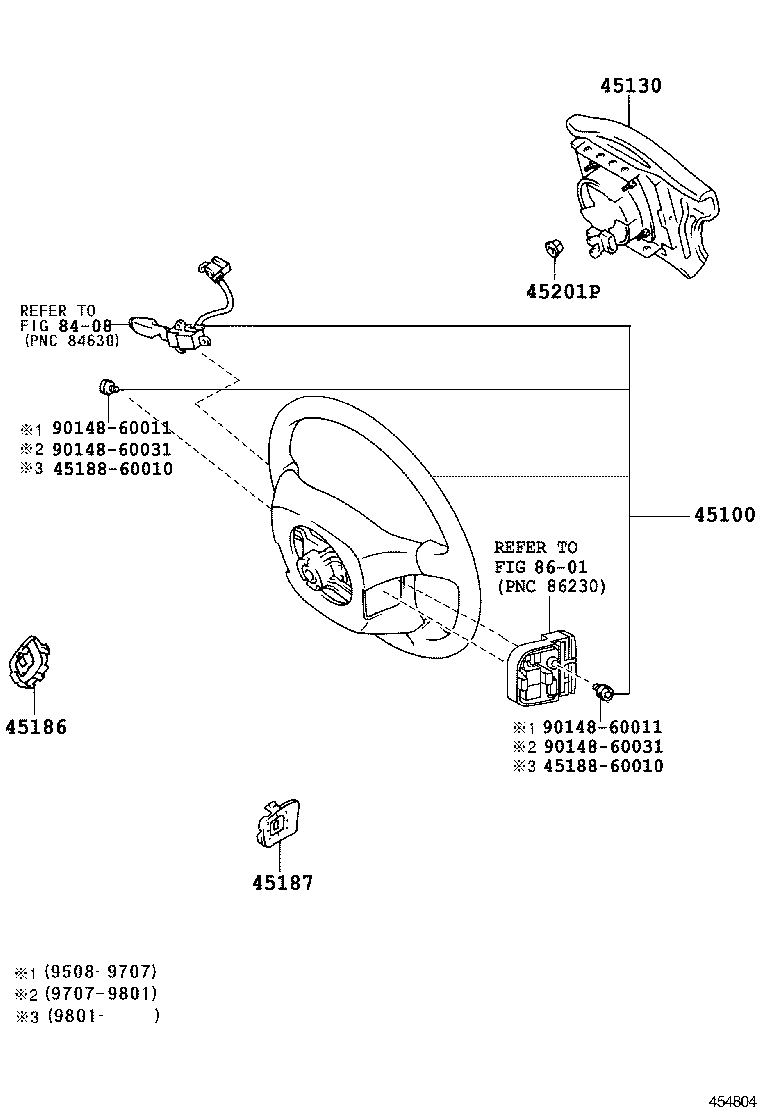

Click highlighted areas on diagram

4-SPOKE

diagram 45100 45130 45186 45187 4518860010 4518860010 45201P 8408 8601 9014860011 9014860011 9014860031 9014860031
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-30730B0

JZS155..E,ROYT

4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,ｱﾘ(*80),DK.BLUE GRAY,TRIM1#

 1
45100-30730E0

JZS155..E,ROYT

4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,ｱﾘ(*80),ANTELOPE,TRIM4#

 1
45100-30720E0

JZS155,UZS15#..HT;JZS155..SED..ROYG

4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,ｱﾘ(*80 & ｸﾙ-ｽﾞｺﾝﾄﾛ-ﾙ),ANTELOPE,TRIM4#

 1
45100-30720B0

JZS155,UZS15#..HT;JZS155..SED..ROYG

4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,ｱﾘ(*80 & ｸﾙ-ｽﾞｺﾝﾄﾛ-ﾙ),DK.BLUE GRAY,TRIM1#

 1
45100-30730E0

JZS151,155..E,ROYT

4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,ANTELOPE,TRIM4#

 1
45100-3A010B0

JZS151,155..E,ROYT

4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,DK. BLUE GRAY,TRIM1#

 1
45100-30730B0

JZS151,155..E,ROYT

4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,DK.BLUE GRAY,TRIM1#

 1
45100-3A020E0

JZS151,153,155,UZS157..E,F,ROY,ROYT

4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,ｱﾘ(ｸﾙ-ｽﾞｺﾝﾄﾛ-ﾙ),ANTELOPE,TRIM4#

 1
45100-3A010E0

JZS151,155..E,ROYT

4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,ANTELOPE,TRIM4#

 1
45100-3A030E0

JZS155,UZS151,155..A,C,ROYG

4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,ANTELOPE,TRIM4#

 1
45100-3A030B0

JZS155,UZS151,155..A,C,ROYG

4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,DK. BLUE GRAY,TRIM1#

 1
45100-3A011B0

JZS151,155..E,ROYT

4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,DK. BLUE GRAY,TRIM1#

 1
45100-3A020B0

JZS151,153,155,UZS157..E,F,ROY,ROYT

4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,ｱﾘ(ｸﾙ-ｽﾞｺﾝﾄﾛ-ﾙ),DK. BLUE GRAY,TRIM1#

 1
45130 - BUTTON ASSY, HORN
45130-30420B0

GS151,JZS15#,LS151,UZS15#

DK.BLUE GRAY,TRIM1#

 1
45130-30420E0

GS151,JZS15#,LS151,UZS15#

ANTELOPE,TRIM4#

 1
45130-30550B0

GS151,JZS15#,LS151,UZS15#

DK.BLUE GRAY,TRIM1#

 1
45130-30550E0

GS151,JZS15#,LS151,UZS15#

ANTELOPE,TRIM4#

 1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-60020E1

GS151,JZS15#,LS151..E,ROY,ROYEX,ROYT,SALEX,SPDLX

ｱﾘ(*80),ANTELOPE,TRIM4#

 1
45186-50030B0

JZS155..SED..ROYG;JZS151,155,UZS15#..HT..(A,C,E,F,ROY,ROYG,ROYT)

ｱﾘ(*80 & ｸﾙ-ｽﾞｺﾝﾄﾛ-ﾙ),DK.BLUE GRAY,TRIM1#

 1
45186-60020B1

GS151,JZS15#,LS151..E,ROY,ROYEX,ROYT,SALEX,SPDLX

ｱﾘ(*80),DK.BLUE GRAY,TRIM1#

 1
45186-50030E1

JZS155..SED..ROYG;JZS151,155,UZS15#..HT..(A,C,E,F,ROY,ROYG,ROYT)

ｱﾘ(*80 & ｸﾙ-ｽﾞｺﾝﾄﾛ-ﾙ),ANTELOPE,TRIM4#

 1
45187 - COVER, STEERING WHEEL, LOWER NO.3
45187-50030E1

GS151,JZS15#,LS151,UZS15#

ANTELOPE,TRIM4#

 1
45187-50030B0

GS151,JZS15#,LS151,UZS15#

DK.BLUE GRAY,TRIM1#

 1
45201P - NUT, STEERING WHEEL SET
90179-12071

GS151,JZS15#,LS151,UZS15#

 1
Common parts
45188-60010
90148-60011
90148-60031
Linked diagrams
8408
8601
