Toyota Crown/crown majesta JZS155 DISC WHEEL & WHEEL CAP

JZS155-CTPZF (1995)

Toyota Crown/Crown Majesta

Production Aug 1995 - Sep 1999

Engine 2JZGE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

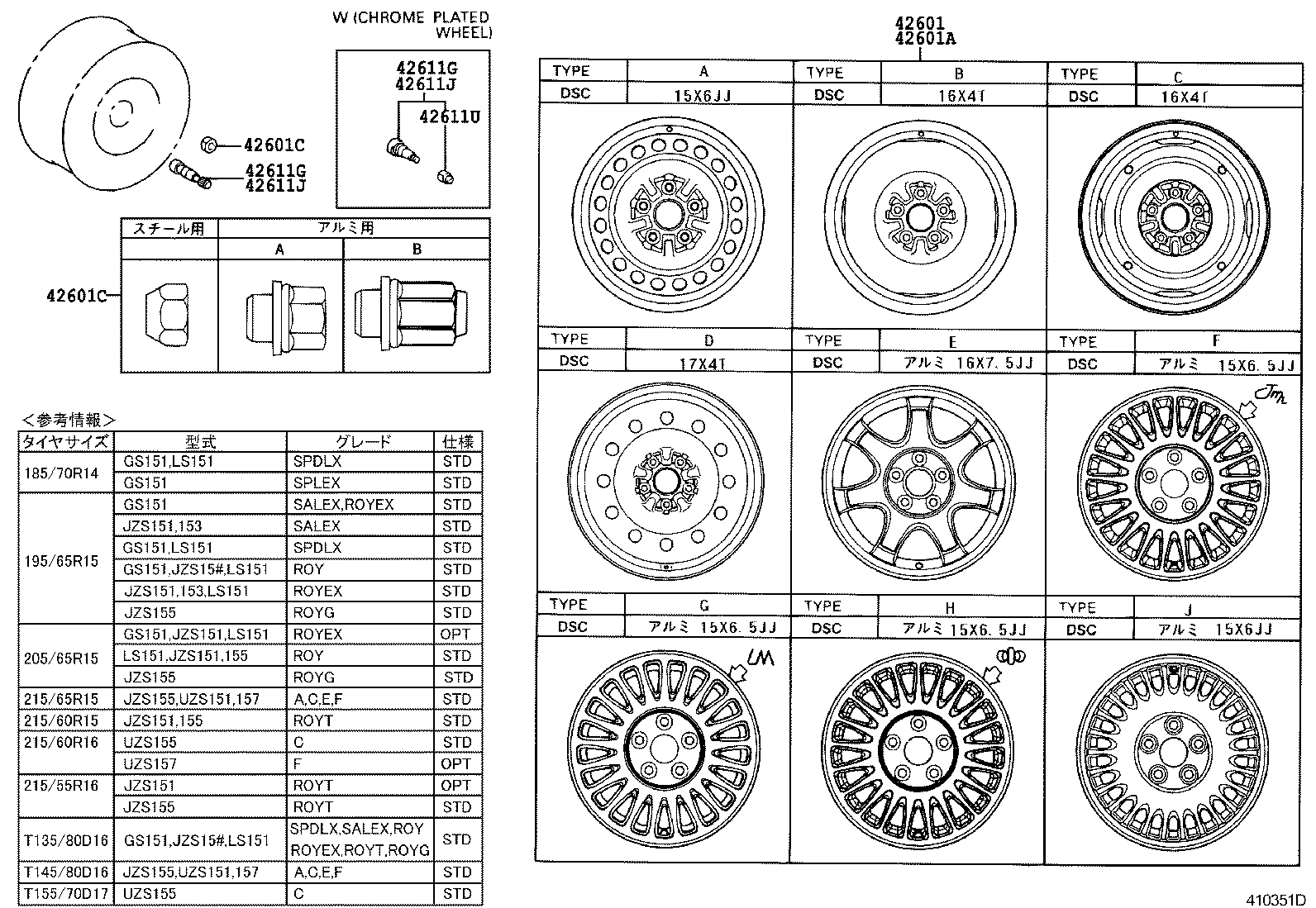

ILLUST NO. 1 OF 4(9508- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
42601 - WHEEL, DISC
42611-30860	JZS151,155,UZS151,157..A,C,E,F,ROYT 15X6.5JJ,TYPE F:ｲﾗｽﾄｻﾝｼﾖｳ	08/1995 - 08/1996	4
42611-30860	JZS151,155,UZS151,157..A,C,E,F,ROYT 15X6.5JJ,TYPE F:ｲﾗｽﾄｻﾝｼﾖｳ	10/1996 - 07/1997	4
42611-30860	JZS151,155,UZS151..A,C,E,ROYT 15X6.5JJ,TYPE F:ｲﾗｽﾄｻﾝｼﾖｳ	08/1996 - 10/1996	4
42611-30860	UZS151,157;JZS151,155..4FC..(A,E,ROYT) 15X6.5JJ,TYPE F:ｲﾗｽﾄｻﾝｼﾖｳ	07/1997 - 09/1999	4
42601A - WHEEL, DISC (FOR SPARE)
42611-28210	GS151,JZS15#,LS151,UZS151,157..HTWC,TDE,TWC 16X4T,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ	08/1995 - 08/1996	1
42611-30860	JZS151,155,UZS151,157..A,C,E,F,ROYT 15X6.5JJ,TYPE F:ｲﾗｽﾄｻﾝｼﾖｳ	08/1995 - 08/1996	1
42611-30860	JZS151,155,UZS151..A,C,E,ROYT 15X6.5JJ,TYPE F:ｲﾗｽﾄｻﾝｼﾖｳ	08/1996 - 10/1996	1
42611-30860	UZS151,157;JZS151,155..4FC..(A,E,ROYT) 15X6.5JJ,TYPE F:ｲﾗｽﾄｻﾝｼﾖｳ	07/1997 - 09/1999	1
42611-30860	JZS151,155,UZS151,157..A,C,E,F,ROYT 15X6.5JJ,TYPE F:ｲﾗｽﾄｻﾝｼﾖｳ	10/1996 - 07/1997	1
42611-28210	UZS151,157..5FC;GS151,JZS15#,LS151..HTWC,TDE,TWC 16X4T,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ	08/1996 - 12/2999	1
42601C - NUT, HUB (FOR AXLE)
90942-01062	JZS153..SALEX;JZS153,UZS151,157..HT..4FC;GS151,JZS151,155,LS151,UZS155 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ, ｱﾘ(ｱﾙﾐﾎｲ-ﾙ)	08/1995 - 12/2999	20
42601C - NUT, HUB (FOR AXLE)
90942-01062	JZS153..SALEX;JZS153,UZS151,157..HT..4FC;GS151,JZS151,155,LS151,UZS155 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ, ｱﾘ(ｱﾙﾐﾎｲ-ﾙ)	08/1995 - 12/2999	20
42611G - VALVE (FOR TUBELESS TIRE)
90942-05009	JZS155,UZS15#..A,C,E,F	08/1995 - 09/1999	4
42611G - VALVE (FOR TUBELESS TIRE)
90942-05009	JZS155,UZS15#..A,C,E,F	08/1995 - 09/1999	4
42611J - VALVE (FOR TUBELESS TIRE SPARE)
90942-05009	GS151,JZS15#,LS151,UZS15#..HTWC,TDE,TWC	08/1995 - 12/2999	1
42611J - VALVE (FOR TUBELESS TIRE SPARE)
90942-05009	GS151,JZS15#,LS151,UZS15#..HTWC,TDE,TWC	08/1995 - 12/2999	1

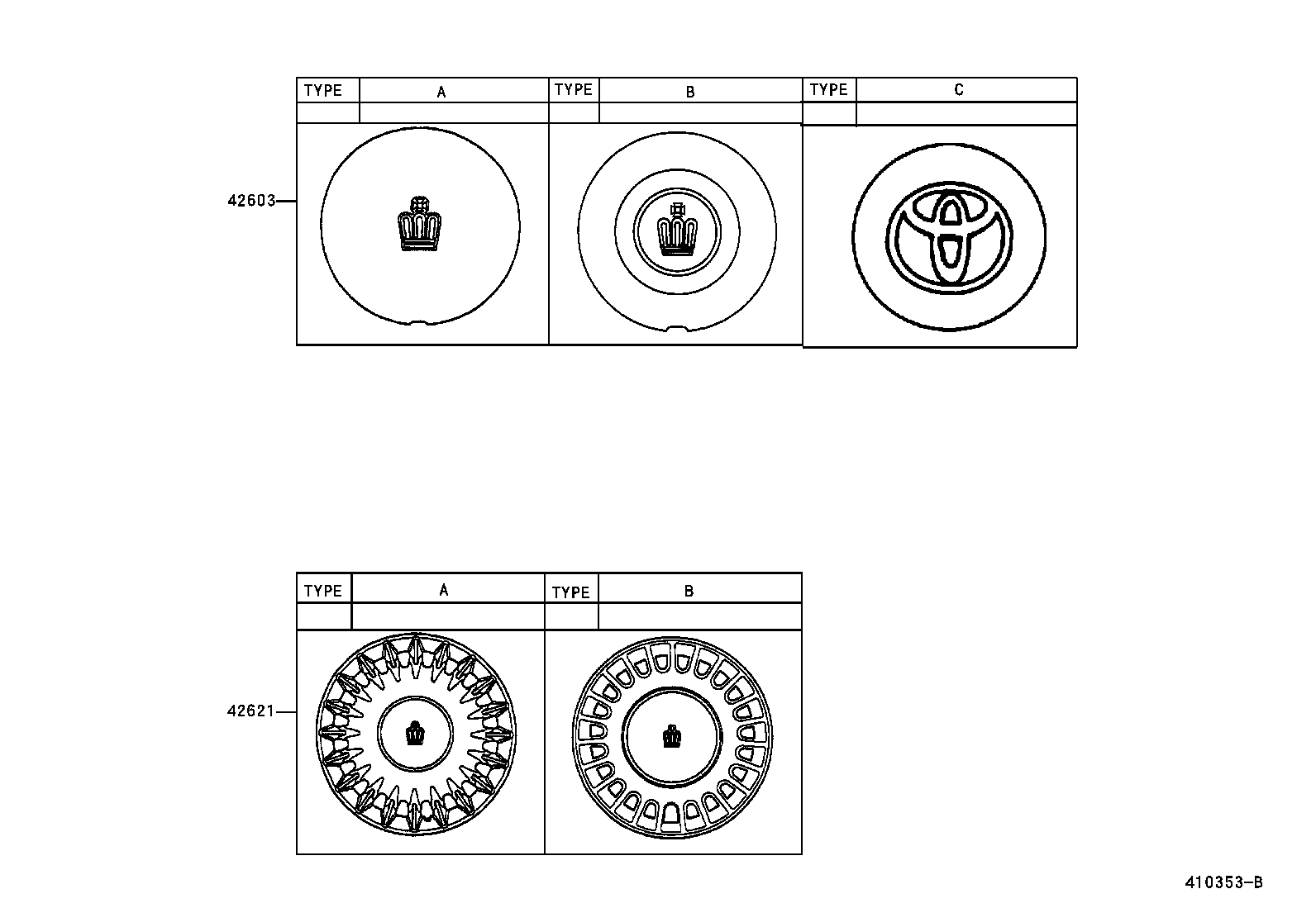

ILLUST NO. 3 OF 4(9508- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
42603 - ORNAMENT SUB-ASSY, WHEEL HUB
42603-30250	JZS151,155,UZS15#..A,C,E,F,ROYT TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	08/1995 - 07/1997	4
42603-30250	UZS151,157;JZS151,155,UZS155..4FC..(A,C,E,ROYT) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	07/1997 - 09/1999	4

Part #

Description

Qty

Price

42603 - ORNAMENT SUB-ASSY, WHEEL HUB

42603-30250

JZS151,155,UZS15#..A,C,E,F,ROYT

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

42603-30250

UZS151,157;JZS151,155,UZS155..4FC..(A,C,E,ROYT)

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

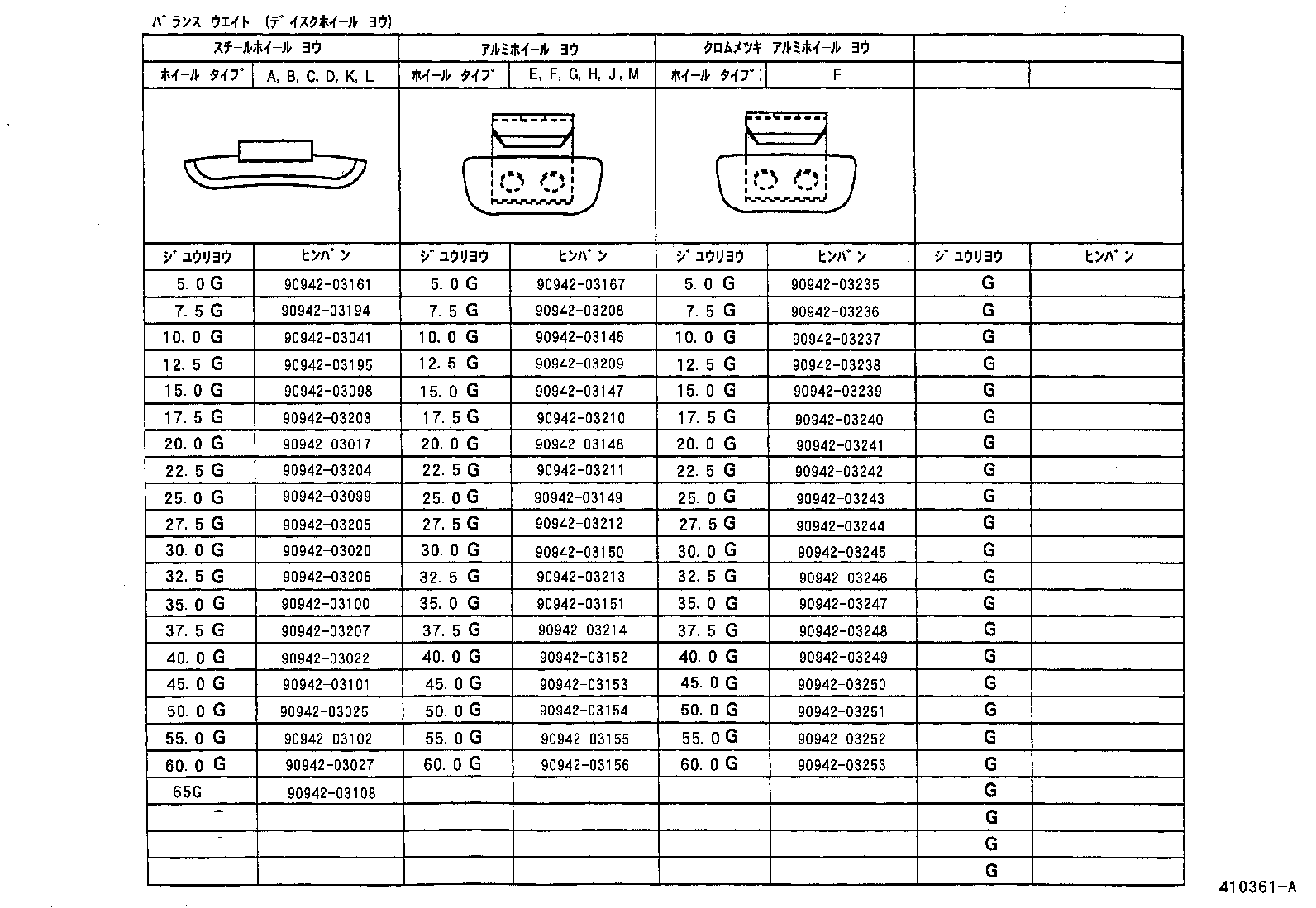

ILLUST NO. 4 OF 4(9508- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90942-03017
90942-03020
90942-03022
90942-03025
90942-03027
90942-03041
90942-03098
90942-03099
90942-03100
90942-03101
90942-03102
90942-03108
90942-03146
90942-03147
90942-03148
90942-03149
90942-03150
90942-03151
90942-03152
90942-03153
90942-03154
90942-03155
90942-03156
90942-03161
90942-03167
90942-03194
90942-03195
90942-03203
90942-03204
90942-03205
90942-03206
90942-03207
90942-03208
90942-03209
90942-03210
90942-03211
90942-03212
90942-03213
90942-03214
90942-03235
90942-03236
90942-03237
90942-03238
90942-03239
90942-03240
90942-03241
90942-03242
90942-03243
90942-03244
90942-03245
90942-03246
90942-03247
90942-03248
90942-03249
90942-03250
90942-03251
90942-03252
90942-03253

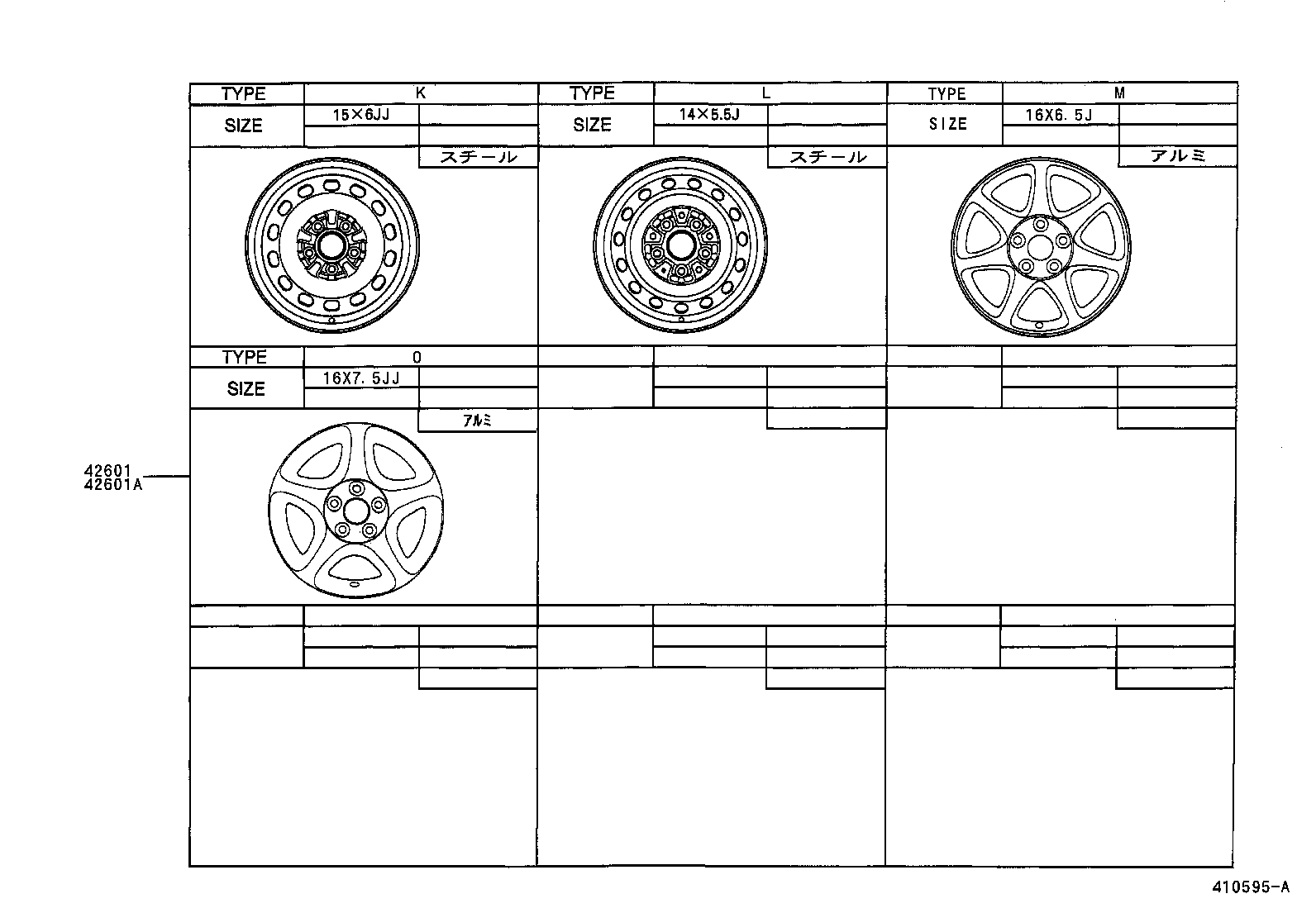

ILLUST NO. 2 OF 4(9508- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
42601 - WHEEL, DISC
42611-30860	JZS151,155,UZS151,157..A,C,E,F,ROYT 15X6.5JJ,TYPE F:ｲﾗｽﾄｻﾝｼﾖｳ	08/1995 - 08/1996	4
42611-30860	JZS151,155,UZS151,157..A,C,E,F,ROYT 15X6.5JJ,TYPE F:ｲﾗｽﾄｻﾝｼﾖｳ	10/1996 - 07/1997	4
42611-30860	JZS151,155,UZS151..A,C,E,ROYT 15X6.5JJ,TYPE F:ｲﾗｽﾄｻﾝｼﾖｳ	08/1996 - 10/1996	4
42611-30860	UZS151,157;JZS151,155..4FC..(A,E,ROYT) 15X6.5JJ,TYPE F:ｲﾗｽﾄｻﾝｼﾖｳ	07/1997 - 09/1999	4
42601A - WHEEL, DISC (FOR SPARE)
42611-28210	GS151,JZS15#,LS151,UZS151,157..HTWC,TDE,TWC 16X4T,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ	08/1995 - 08/1996	1
42611-30860	JZS151,155,UZS151,157..A,C,E,F,ROYT 15X6.5JJ,TYPE F:ｲﾗｽﾄｻﾝｼﾖｳ	08/1995 - 08/1996	1
42611-30860	JZS151,155,UZS151..A,C,E,ROYT 15X6.5JJ,TYPE F:ｲﾗｽﾄｻﾝｼﾖｳ	08/1996 - 10/1996	1
42611-30860	UZS151,157;JZS151,155..4FC..(A,E,ROYT) 15X6.5JJ,TYPE F:ｲﾗｽﾄｻﾝｼﾖｳ	07/1997 - 09/1999	1
42611-30860	JZS151,155,UZS151,157..A,C,E,F,ROYT 15X6.5JJ,TYPE F:ｲﾗｽﾄｻﾝｼﾖｳ	10/1996 - 07/1997	1
42611-28210	UZS151,157..5FC;GS151,JZS15#,LS151..HTWC,TDE,TWC 16X4T,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ	08/1996 - 12/2999	1

JZS155-CTPZF (1995)

ILLUST NO. 1 OF 4(9508- )

ILLUST NO. 3 OF 4(9508- )

ILLUST NO. 4 OF 4(9508- )

ILLUST NO. 2 OF 4(9508- )
