JZS155-CTPZF (1995)

Toyota Crown/Crown Majesta

Production Aug 1995 - Sep 1999
Engine 2JZGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9508- )A,E

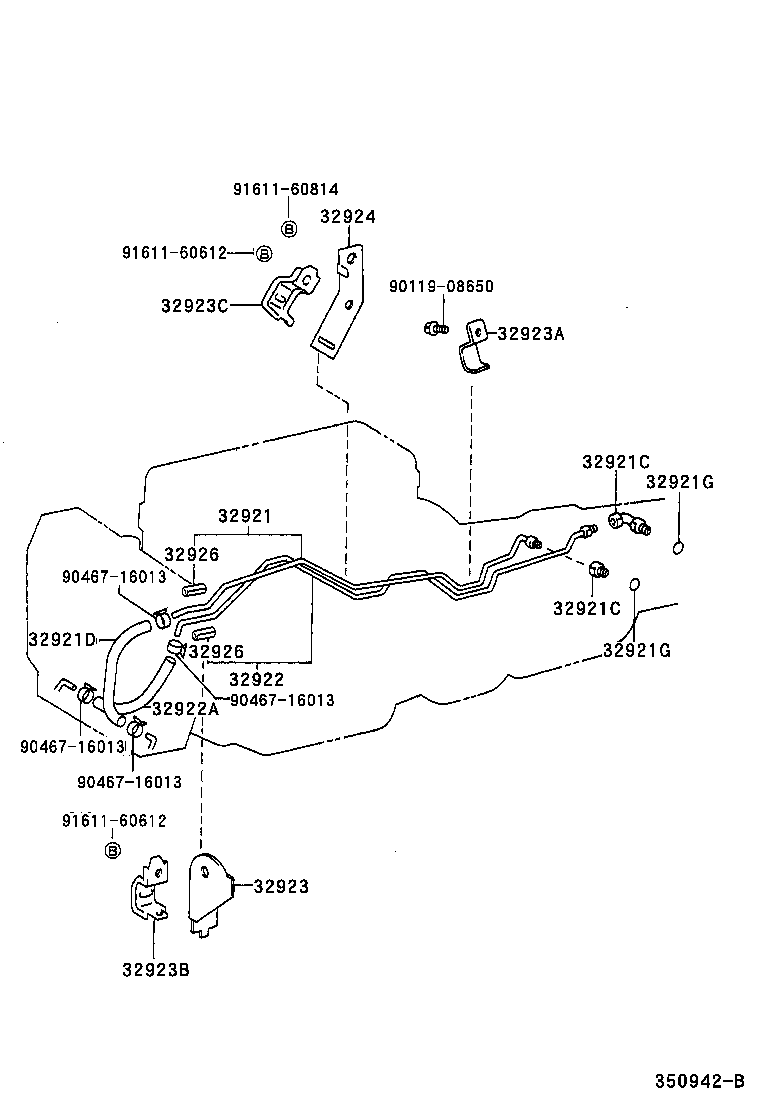

Click highlighted areas on diagram

A340E

diagram 32921 32921C 32921C 32921D 32921G 32921G 32922 32922A 32923 32923A 32923B 32923C 32924 32926 32926 9011908650 9046716013 9046716013 9046716013 9046716013 9161160612 9161160612 9161160814
Part # Description Qty Price
32921 - TUBE, OIL COOLER INLET, NO.1
32921-30600

JZS155..A,E

 1
32921C - UNION(FOR OIL COOLER TUBE)
90407-16009

JZS15#,LS151,UZS15#

ｱｳﾄﾚｯﾄ

 1
90404-16029

JZS151,155,LS151,UZS15#

ｲﾝﾚｯﾄ

 1
32921C - UNION(FOR OIL COOLER TUBE)
90407-16009

JZS15#,LS151,UZS15#

ｱｳﾄﾚｯﾄ

 1
90404-16029

JZS151,155,LS151,UZS15#

ｲﾝﾚｯﾄ

 1
32921D - HOSE(FOR OIL COOLER INLET)
90445-17100

JZS155..A,E

 1
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-11006

JZS15#,LS151,UZS15#

 2
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-11006

JZS15#,LS151,UZS15#

 2
32922 - TUBE, OIL COOLER OUTLET, NO.1
32922-30600

JZS155..A,E

 1
32922A - HOSE(FOR OIL COOLER OUTLET)
90445-17134

JZS155..A,E

 1
90445-17134

LS151;JZS155..A,E

 1
32923 - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE
32924-30190

JZS155..A,E

 1
32923A - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE
32929-30140

JZS15#

 1
32929-30140

JZS15#..4FC

 1
32923B - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1
32929-30160

JZS15#..4FC

 1
32929-30160

JZS15#

 1
32923C - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.4
32929-50020

JZS155..A,E

 1
32924 - CLAMP, OIL COOLER TUBE, NO.2
32923-30190

JZS155..A,E

 1
32923-30220

JZS155..A,E

 1
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-30030

JZS15#

長さ=35,内径=10,ﾘﾔ

 2
32926-30020

JZS15#

長さ=35,内径=10,ｾﾝﾀ

 2
32926-30060

JZS15#

長さ=35,内径=10,ﾌﾛﾝﾄ

 2
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-30030

JZS15#

長さ=35,内径=10,ﾘﾔ

 2
32926-30020

JZS15#

長さ=35,内径=10,ｾﾝﾀ

 2
32926-30060

JZS15#

長さ=35,内径=10,ﾌﾛﾝﾄ

 2
Common parts
90119-08650
90467-16013
91611-60612
91611-60814
