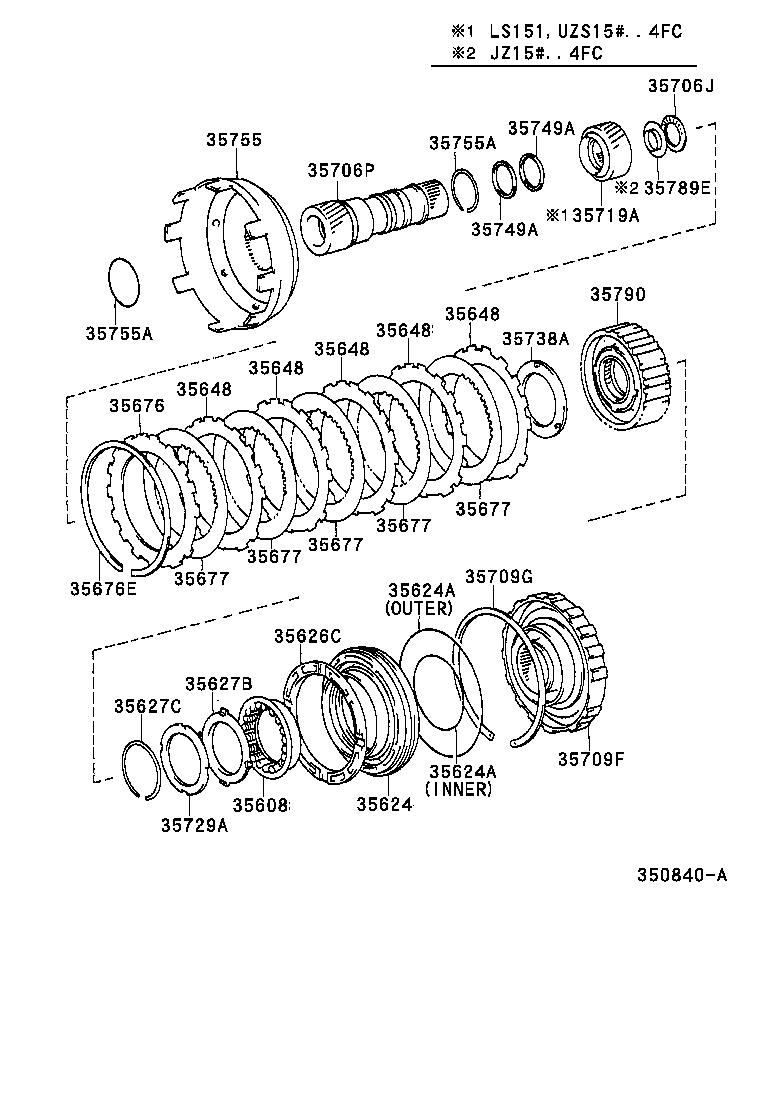

JZS155-CTPZF (1995)
Toyota Crown/Crown Majesta
(9508- )JZS15#,LS151,UZS15#..4FC
A340E,A340H,A341E,A341H
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35608 - SPRING SUB-ASSY, 2ND BRAKE PISTON RETURN | ||||
| 35608-50010 |
JZS155,UZS15# |
1 | ||
| 35608-50010 |
JZS155,157,UZS155..4FC |
1 | ||
| 35624 - PISTON, 2ND BRAKE | ||||
| 35624-30010 |
JZS15#,LS151,UZS15# |
1 | ||
| 35624-30010 |
JZS15#,LS151..4FC |
1 | ||
| 35624A - RING, O (FOR 2ND BRAKE PISTON) | ||||
| 90301-99038 |
JZS15#,LS151,UZS15# 外側 |
1 | ||
| 90301-85001 |
JZS15#,LS151,UZS15# 内側 |
1 | ||
| 90301-99038 |
JZS15#,LS151..4FC 外側 |
1 | ||
| 90301-85001 |
JZS15#,LS151..4FC 内側 |
1 | ||
| 35624A - RING, O (FOR 2ND BRAKE PISTON) | ||||
| 90301-99038 |
JZS15#,LS151,UZS15# 外側 |
1 | ||
| 90301-85001 |
JZS15#,LS151,UZS15# 内側 |
1 | ||
| 90301-99038 |
JZS15#,LS151..4FC 外側 |
1 | ||
| 90301-85001 |
JZS15#,LS151..4FC 内側 |
1 | ||
| 35626C - SLEEVE, 2ND BRAKE PISTON | ||||
| 35626-30030 |
JZS155,UZS15# |
1 | ||
| 35626-30030 |
JZS15#,UZS15# |
1 | ||
| 35626-30030 |
JZS155,157..4FC |
1 | ||
| 35627B - SEAT, 2ND BRAKE PISTON RETURN SPRING | ||||
| 35627-30010 |
JZS15#,LS151,UZS15# |
1 | ||
| 35627-30010 |
JZS15#,LS151,UZS155..4FC |
1 | ||
| 35627C - RING, SHAFT SNAP(FOR 2ND BRAKE PISTON RETURN SPRING SEA | ||||
| 90520-54001 |
JZS15#,LS151,UZS15# |
1 | ||
| 90520-54001 |
JZS15#,LS151,UZS155..4FC |
1 | ||
| 35648 - PLATE, CLUTCH (FOR 2ND BRAKE) | ||||
| 35647-30030 |
JZS155,UZS15#..4FC 厚さ=1.8 |
1 | ||
| 35647-30020 |
JZS155,LS151,UZS15#..4FC 厚さ=2.5 |
4 | ||
| 35647-30030 |
JZS15#,UZS15#..4FC 厚さ=1.8 |
1 | ||
| 35647-30030 |
JZS155,157..4FC 厚さ=1.8 |
1 | ||
| 35647-30020 |
JZS15#,LS151,UZS15#..4FC 厚さ=2.5 |
4 | ||
| 35647-30020 |
JZS15#,LS151..4FC 厚さ=2.5 |
4 | ||
| 35648 - PLATE, CLUTCH (FOR 2ND BRAKE) | ||||
| 35647-30030 |
JZS155,UZS15#..4FC 厚さ=1.8 |
1 | ||
| 35647-30020 |
JZS155,LS151,UZS15#..4FC 厚さ=2.5 |
4 | ||
| 35647-30030 |
JZS15#,UZS15#..4FC 厚さ=1.8 |
1 | ||
| 35647-30030 |
JZS155,157..4FC 厚さ=1.8 |
1 | ||
| 35647-30020 |
JZS15#,LS151,UZS15#..4FC 厚さ=2.5 |
4 | ||
| 35647-30020 |
JZS15#,LS151..4FC 厚さ=2.5 |
4 | ||
| 35648 - PLATE, CLUTCH (FOR 2ND BRAKE) | ||||
| 35647-30030 |
JZS155,UZS15#..4FC 厚さ=1.8 |
1 | ||
| 35647-30020 |
JZS155,LS151,UZS15#..4FC 厚さ=2.5 |
4 | ||
| 35647-30030 |
JZS15#,UZS15#..4FC 厚さ=1.8 |
1 | ||
| 35647-30030 |
JZS155,157..4FC 厚さ=1.8 |
1 | ||
| 35647-30020 |
JZS15#,LS151,UZS15#..4FC 厚さ=2.5 |
4 | ||
| 35647-30020 |
JZS15#,LS151..4FC 厚さ=2.5 |
4 | ||
| 35648 - PLATE, CLUTCH (FOR 2ND BRAKE) | ||||
| 35647-30030 |
JZS155,UZS15#..4FC 厚さ=1.8 |
1 | ||
| 35647-30020 |
JZS155,LS151,UZS15#..4FC 厚さ=2.5 |
4 | ||
| 35647-30030 |
JZS15#,UZS15#..4FC 厚さ=1.8 |
1 | ||
| 35647-30030 |
JZS155,157..4FC 厚さ=1.8 |
1 | ||
| 35647-30020 |
JZS15#,LS151,UZS15#..4FC 厚さ=2.5 |
4 | ||
| 35647-30020 |
JZS15#,LS151..4FC 厚さ=2.5 |
4 | ||
| 35648 - PLATE, CLUTCH (FOR 2ND BRAKE) | ||||
| 35647-30030 |
JZS155,UZS15#..4FC 厚さ=1.8 |
1 | ||
| 35647-30020 |
JZS155,LS151,UZS15#..4FC 厚さ=2.5 |
4 | ||
| 35647-30030 |
JZS15#,UZS15#..4FC 厚さ=1.8 |
1 | ||
| 35647-30030 |
JZS155,157..4FC 厚さ=1.8 |
1 | ||
| 35647-30020 |
JZS15#,LS151,UZS15#..4FC 厚さ=2.5 |
4 | ||
| 35647-30020 |
JZS15#,LS151..4FC 厚さ=2.5 |
4 | ||
| 35676 - FLANGE, BRAKE (FOR 2ND BRAKE) | ||||
| 35676-30020 |
JZS15#,LS151,UZS15# 厚さ=3.0 |
1 | ||
| 35676-30020 |
JZS15#,LS151..4FC 厚さ=3.0 |
1 | ||
| 35676E - RING, HOLE SNAP (FOR 2ND BRAKE) | ||||
| 90521-99032 |
JZS15#,LS151,UZS15# |
1 | ||
| 90521-99032 |
JZS15#,LS151..4FC |
1 | ||
| 35677 - DISC, CLUTCH (FOR 2ND BRAKE) | ||||
| 35667-30050 |
JZS155,UZS15#..4FC |
5 | ||
| 35667-30050 |
JZS155,157..4FC |
5 | ||
| 35667-50020 |
JZS155,UZS15#..4FC |
5 | ||
| 35677 - DISC, CLUTCH (FOR 2ND BRAKE) | ||||
| 35667-30050 |
JZS155,UZS15#..4FC |
5 | ||
| 35667-30050 |
JZS155,157..4FC |
5 | ||
| 35667-50020 |
JZS155,UZS15#..4FC |
5 | ||
| 35677 - DISC, CLUTCH (FOR 2ND BRAKE) | ||||
| 35667-30050 |
JZS155,UZS15#..4FC |
5 | ||
| 35667-30050 |
JZS155,157..4FC |
5 | ||
| 35667-50020 |
JZS155,UZS15#..4FC |
5 | ||
| 35677 - DISC, CLUTCH (FOR 2ND BRAKE) | ||||
| 35667-30050 |
JZS155,UZS15#..4FC |
5 | ||
| 35667-30050 |
JZS155,157..4FC |
5 | ||
| 35667-50020 |
JZS155,UZS15#..4FC |
5 | ||
| 35677 - DISC, CLUTCH (FOR 2ND BRAKE) | ||||
| 35667-30050 |
JZS155,UZS15#..4FC |
5 | ||
| 35667-30050 |
JZS155,157..4FC |
5 | ||
| 35667-50020 |
JZS155,UZS15#..4FC |
5 | ||
| 35706J - BEARING, THRUST NEEDLE ROLLER (FOR PLANETARY SUN GEAR) | ||||
| 90374-30006 |
JZS15#..4FC |
1 | ||
| 35706P - GEAR SUB-ASSY, FRONT PLANETARY SUN | ||||
| 35706-30061 |
JZS15# |
1 | ||
| 35709F - DRUM SUB-ASSY, 2ND BRAKE | ||||
| 35709-30061 |
JZS15#,LS151,UZS155..4FC |
1 | ||
| 35709-30061 |
JZS15#,LS151,UZS15# |
1 | ||
| 35709G - RING, HOLE SNAP (FOR 2ND BRAKE DRUM) | ||||
| 90521-99044 |
JZS15#,LS151,UZS155..4FC |
1 | ||
| 90521-99044 |
JZS15#,LS151,UZS15# |
1 | ||
| 35729A - WASHER, PLANETARY CARRIER THRUST, NO.4 | ||||
| 35729-30010 |
JZS15#,LS151,UZS155..4FC |
1 | ||
| 35729-30010 |
JZS15#,LS151,UZS15# |
1 | ||
| 35738A - WASHER, 1 WAY CLUTCH THRUST, NO.1 | ||||
| 35738-30040 |
JZS15#,LS151..4FC |
1 | ||
| 35738-30040 |
JZS15#,LS151,UZS15# |
1 | ||
| 35749A - RING, SUN GEAR SHAFT OIL SEAL | ||||
| 35749-30010 |
UZS15#;GS151,JZS15#,LS151..LPGTE,TDE,TWC |
2 | ||
| 35749-30010 |
UZS155;GS151,JZS15#,LS151..4FC..(LPGTE,TDE,TWC) |
2 | ||
| 35749A - RING, SUN GEAR SHAFT OIL SEAL | ||||
| 35749-30010 |
UZS15#;GS151,JZS15#,LS151..LPGTE,TDE,TWC |
2 | ||
| 35749-30010 |
UZS155;GS151,JZS15#,LS151..4FC..(LPGTE,TDE,TWC) |
2 | ||
| 35755 - DRUM, SUN GEAR INPUT | ||||
| 35755-50010 |
JZS15#,LS151,UZS15#..4FC |
1 | ||
| 35755A - RING, SHAFT SNAP (FOR SUN GEAR INPUT DRUM) | ||||
| 90520-49001 |
JZS15#,LS151,UZS15#..4FC 内径=49.0,線径=2.3 |
1 | ||
| 90520-24026 |
JZS15#,LS151,UZS155..4FC..(C,ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX) 厚さ=1.8,内径=23.68 |
1 | ||
| 90520-24026 |
JZS15#,LS151,UZS155..C,ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX 厚さ=1.8,内径=23.68 |
1 | ||
| 90520-46002 |
JZS15#,LS151,UZS15# 内径=46.0,厚さ=1.2 |
1 | ||
| 90520-46002 |
JZS15#,LS151,UZS155..4FC 内径=46.0,厚さ=1.2 |
1 | ||
| 35755A - RING, SHAFT SNAP (FOR SUN GEAR INPUT DRUM) | ||||
| 90520-49001 |
JZS15#,LS151,UZS15#..4FC 内径=49.0,線径=2.3 |
1 | ||
| 90520-24026 |
JZS15#,LS151,UZS155..4FC..(C,ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX) 厚さ=1.8,内径=23.68 |
1 | ||
| 90520-24026 |
JZS15#,LS151,UZS155..C,ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX 厚さ=1.8,内径=23.68 |
1 | ||
| 90520-46002 |
JZS15#,LS151,UZS15# 内径=46.0,厚さ=1.2 |
1 | ||
| 90520-46002 |
JZS15#,LS151,UZS155..4FC 内径=46.0,厚さ=1.2 |
1 | ||
| 35789E - RACE, THRUST BEARING (FOR PLANETARY SUN GEAR) | ||||
| 35789-30150 |
JZS15#..4FC |
1 | ||
| 35790 - CLUTCH ASSY, 1 WAY | ||||
| 35790-30050 |
JZS15#,LS151 |
1 | ||
| 35790-30060 |
JZS15#,UZS15# |
1 | ||
| 35790-30050 |
JZS15#,LS151..4FC |
1 | ||
