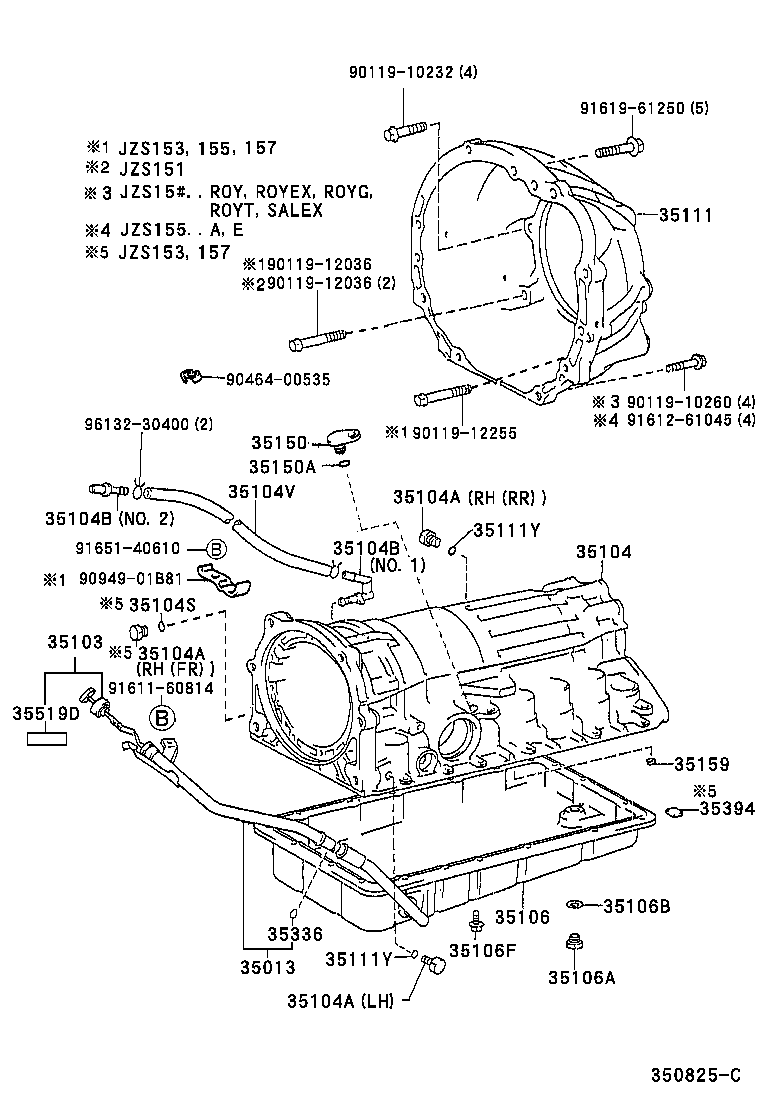

JZS155-CTPZF (1995)
Toyota Crown/Crown Majesta
(9609- )JZS151,155,157..4FC ; (9711-9808)JZS153..HT..ROY
A340E,A340H
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER | ||||
| 35013-30380 |
JZS155..A,E |
1 | ||
| 35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL | ||||
| 35103-30420 |
JZS155..A,E |
1 | ||
| 35103-30620 |
JZS155..A,E |
1 | ||
| 35103-30421 |
JZS155..A,E |
1 | ||
| 35104 - CASE SUB-ASSY, AUTOMATIC TRANSMISSION | ||||
| 35104-30170 |
JZS155,UZS151,157..4FC |
1 | ||
| 35104A - PLUG, AUTOMATIC TRANSMISSION CASE | ||||
| 90341-08001 |
GS151,JZS151,155,LS151,UZS15#..ATM |
2 | ||
| 90341-08001 |
GS151,JZS151,155,LS151,UZS155..4FC |
2 | ||
| 35104A - PLUG, AUTOMATIC TRANSMISSION CASE | ||||
| 90341-08001 |
GS151,JZS151,155,LS151,UZS15#..ATM |
2 | ||
| 90341-08001 |
GS151,JZS151,155,LS151,UZS155..4FC |
2 | ||
| 35104A - PLUG, AUTOMATIC TRANSMISSION CASE | ||||
| 90341-08001 |
GS151,JZS151,155,LS151,UZS15#..ATM |
2 | ||
| 90341-08001 |
GS151,JZS151,155,LS151,UZS155..4FC |
2 | ||
| 35104B - PLUG, BREATHER, NO.1 (ATM) | ||||
| 90930-03099 |
JZS153,155,LS151 NO.2 |
1 | ||
| 90930-03098 |
JZS15#,LS151;UZS151,157..5FC NO.1 |
1 | ||
| 90930-03098 |
GS151,JZS15#,LS151,UZS151,157..ATM..(HTWC,TDE,TWC) NO.1 |
1 | ||
| 90930-03098 |
JZS153,155,LS151 NO.1 |
1 | ||
| 35104B - PLUG, BREATHER, NO.1 (ATM) | ||||
| 90930-03099 |
JZS153,155,LS151 NO.2 |
1 | ||
| 90930-03098 |
JZS15#,LS151;UZS151,157..5FC NO.1 |
1 | ||
| 90930-03098 |
GS151,JZS15#,LS151,UZS151,157..ATM..(HTWC,TDE,TWC) NO.1 |
1 | ||
| 90930-03098 |
JZS153,155,LS151 NO.1 |
1 | ||
| 35104V - HOSE (FOR BREATHER PLUG) | ||||
| 90445-10020 |
JZS155 |
1 | ||
| 90445-10020 |
JZS15#;UZS151,157..5FC |
1 | ||
| 35106 - PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL | ||||
| 35106-30130 |
JZS155..4FC |
1 | ||
| 35106A - PLUG SUB-ASSY, DRAIN (ATM) | ||||
| 90341-10017 |
JZS153,155,UZS155..4FC |
1 | ||
| 90341-10018 |
GS151,JZS15#,UZS15#..ATM..(HTWC,TWC) |
1 | ||
| 90341-10012 |
JZS155,UZS151,157..C,F,ROYT |
1 | ||
| 90341-10017 |
JZS15#,UZS155..4FC |
1 | ||
| 90341-10018 |
JZS15#,UZS15# |
1 | ||
| 35106B - GASKET, DRAIN PLUG (ATM) | ||||
| 35178-50010 |
JZS15#,UZS15# |
1 | ||
| 35178-30010 |
GS151,JZS151,155,LS151..ATM |
1 | ||
| 35178-50010 |
GS151,JZS15#,UZS15#..ATM..(HTWC,TWC) |
1 | ||
| 35106F - BOLT (FOR AUTOMATIC TRANSMISSION OIL PAN) | ||||
| 90119-06513 |
JZS15#,LS151,UZS155..4FC |
19 | ||
| 90119-06513 |
JZS15#,LS151,UZS15# |
19 | ||
| 35111 - HOUSING, AUTOMATIC TRANSMISSION | ||||
| 35111-22081 |
JZS15# |
1 | ||
| 35111-22081 |
JZS15#..4FC |
1 | ||
| 35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-06196 |
GS151,JZS15#,LS151,UZS155..4FC |
2 | ||
| 90301-06196 |
GS151,JZS15#,LS151,UZS15#..ATM |
2 | ||
| 35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-06196 |
GS151,JZS15#,LS151,UZS155..4FC |
2 | ||
| 90301-06196 |
GS151,JZS15#,LS151,UZS15#..ATM |
2 | ||
| 35159 - GASKET, BRAKE DRUM | ||||
| 35159-30010 |
JZS15#,LS151,UZS155..4FC |
1 | ||
| 35159-30010 |
JZS15#,LS151,UZS15# |
1 | ||
| 35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE) | ||||
| 90301-09173 |
GS151,JZS15#,LS151..ATM |
1 | ||
| 35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION) | ||||
| 35394-30011 |
JZS151,155,LS151,UZS151,157 |
3 | ||
| 35519D - LABEL, AUTOMATIC TRANSMISSION INFORMATION | ||||
| 35519-20020 |
JZS15#,UZS155 |
1 | ||
| 35519-30010 |
JZS15#,UZS155;UZS151,157..5FC |
1 | ||
| 35519-30010 |
GS151,JZS15#,UZS15#..ATM..(HTWC,TWC) |
1 | ||
| 35519-30010 |
GS151,JZS15#,UZS155..ATM..(HTWC,TWC) |
1 | ||
| 35519-20020 |
JZS153,155,UZS155 |
1 | ||
| Common parts | ||||
| 90119-10232 | ||||
| 90119-10260 | ||||
| 90119-12036 | ||||
| 90119-12255 | ||||
| 90464-00535 | ||||
| 90949-01B81 | ||||
| 91611-60814 | ||||
| 91612-61045 | ||||
| 91619-61250 | ||||
| 91651-40610 | ||||
| 96132-30400 | ||||

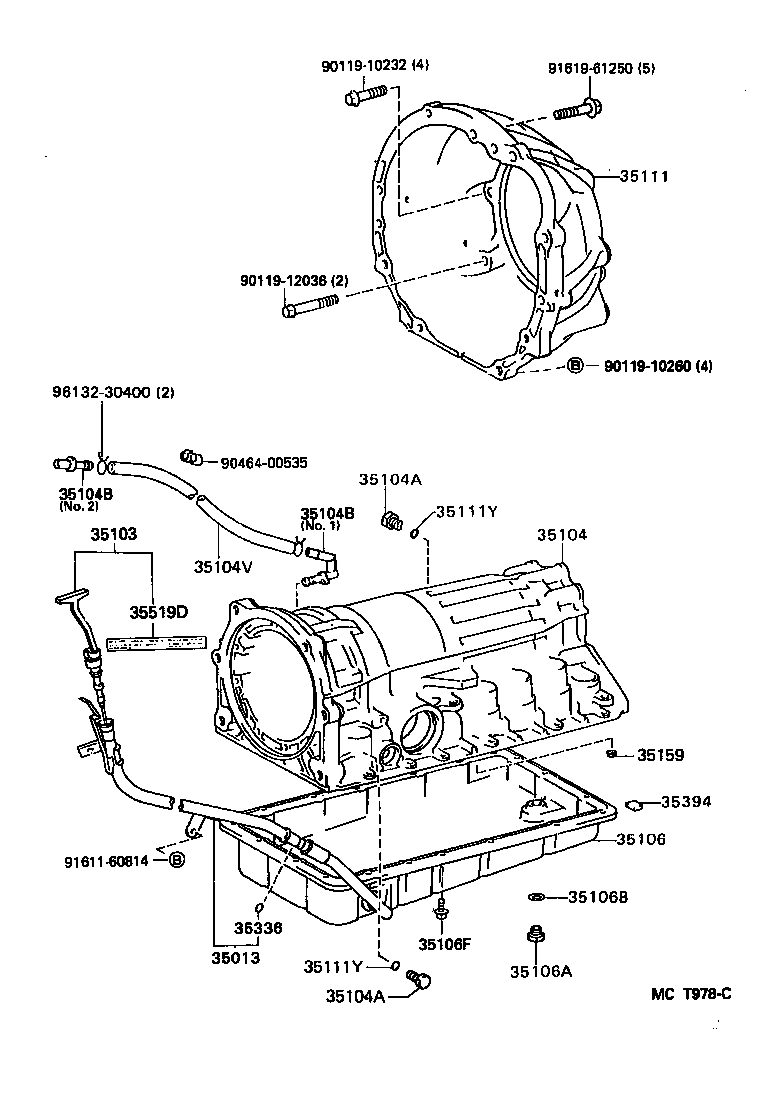

(9508-9609)JZS155..4FC
A340E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER | ||||
| 35013-30380 |
JZS155..A,E |
1 | ||
| 35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL | ||||
| 35103-30420 |
JZS155..A,E |
1 | ||
| 35103-30620 |
JZS155..A,E |
1 | ||
| 35103-30421 |
JZS155..A,E |
1 | ||
| 35104 - CASE SUB-ASSY, AUTOMATIC TRANSMISSION | ||||
| 35104-30170 |
JZS155,UZS151,157..4FC |
1 | ||
| 35104A - PLUG, AUTOMATIC TRANSMISSION CASE | ||||
| 90341-08001 |
GS151,JZS151,155,LS151,UZS15#..ATM |
2 | ||
| 90341-08001 |
GS151,JZS151,155,LS151,UZS155..4FC |
2 | ||
| 35104A - PLUG, AUTOMATIC TRANSMISSION CASE | ||||
| 90341-08001 |
GS151,JZS151,155,LS151,UZS15#..ATM |
2 | ||
| 90341-08001 |
GS151,JZS151,155,LS151,UZS155..4FC |
2 | ||
| 35104B - PLUG, BREATHER, NO.1 (ATM) | ||||
| 90930-03099 |
JZS153,155,LS151 NO.2 |
1 | ||
| 90930-03098 |
JZS15#,LS151;UZS151,157..5FC NO.1 |
1 | ||
| 90930-03098 |
GS151,JZS15#,LS151,UZS151,157..ATM..(HTWC,TDE,TWC) NO.1 |
1 | ||
| 90930-03098 |
JZS153,155,LS151 NO.1 |
1 | ||
| 35104B - PLUG, BREATHER, NO.1 (ATM) | ||||
| 90930-03099 |
JZS153,155,LS151 NO.2 |
1 | ||
| 90930-03098 |
JZS15#,LS151;UZS151,157..5FC NO.1 |
1 | ||
| 90930-03098 |
GS151,JZS15#,LS151,UZS151,157..ATM..(HTWC,TDE,TWC) NO.1 |
1 | ||
| 90930-03098 |
JZS153,155,LS151 NO.1 |
1 | ||
| 35104V - HOSE (FOR BREATHER PLUG) | ||||
| 90445-10020 |
JZS155 |
1 | ||
| 90445-10020 |
JZS15#;UZS151,157..5FC |
1 | ||
| 35106 - PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL | ||||
| 35106-30130 |
JZS155..4FC |
1 | ||
| 35106A - PLUG SUB-ASSY, DRAIN (ATM) | ||||
| 90341-10017 |
JZS153,155,UZS155..4FC |
1 | ||
| 90341-10018 |
GS151,JZS15#,UZS15#..ATM..(HTWC,TWC) |
1 | ||
| 90341-10012 |
JZS155,UZS151,157..C,F,ROYT |
1 | ||
| 90341-10017 |
JZS15#,UZS155..4FC |
1 | ||
| 90341-10018 |
JZS15#,UZS15# |
1 | ||
| 35106B - GASKET, DRAIN PLUG (ATM) | ||||
| 35178-50010 |
JZS15#,UZS15# |
1 | ||
| 35178-30010 |
GS151,JZS151,155,LS151..ATM |
1 | ||
| 35178-50010 |
GS151,JZS15#,UZS15#..ATM..(HTWC,TWC) |
1 | ||
| 35106F - BOLT (FOR AUTOMATIC TRANSMISSION OIL PAN) | ||||
| 90119-06513 |
JZS15#,LS151,UZS155..4FC |
19 | ||
| 90119-06513 |
JZS15#,LS151,UZS15# |
19 | ||
| 35111 - HOUSING, AUTOMATIC TRANSMISSION | ||||
| 35111-22081 |
JZS15# |
1 | ||
| 35111-22081 |
JZS15#..4FC |
1 | ||
| 35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-06196 |
GS151,JZS15#,LS151,UZS155..4FC |
2 | ||
| 90301-06196 |
GS151,JZS15#,LS151,UZS15#..ATM |
2 | ||
| 35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-06196 |
GS151,JZS15#,LS151,UZS155..4FC |
2 | ||
| 90301-06196 |
GS151,JZS15#,LS151,UZS15#..ATM |
2 | ||
| 35159 - GASKET, BRAKE DRUM | ||||
| 35159-30010 |
JZS15#,LS151,UZS155..4FC |
1 | ||
| 35159-30010 |
JZS15#,LS151,UZS15# |
1 | ||
| 35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE) | ||||
| 90301-09173 |
GS151,JZS15#,LS151..ATM |
1 | ||
| 35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION) | ||||
| 35394-30011 |
JZS151,155,LS151,UZS151,157 |
3 | ||
| 35519D - LABEL, AUTOMATIC TRANSMISSION INFORMATION | ||||
| 35519-20020 |
JZS15#,UZS155 |
1 | ||
| 35519-30010 |
JZS15#,UZS155;UZS151,157..5FC |
1 | ||
| 35519-30010 |
GS151,JZS15#,UZS15#..ATM..(HTWC,TWC) |
1 | ||
| 35519-30010 |
GS151,JZS15#,UZS155..ATM..(HTWC,TWC) |
1 | ||
| 35519-20020 |
JZS153,155,UZS155 |
1 | ||
| Common parts | ||||
| 90119-10232 | ||||
| 90119-10260 | ||||
| 90119-12036 | ||||
| 90464-00535 | ||||
| 91611-60814 | ||||
| 91619-61250 | ||||
| 96132-30400 | ||||
