JZS155-CTPZF (1995)
Toyota Crown/Crown Majesta

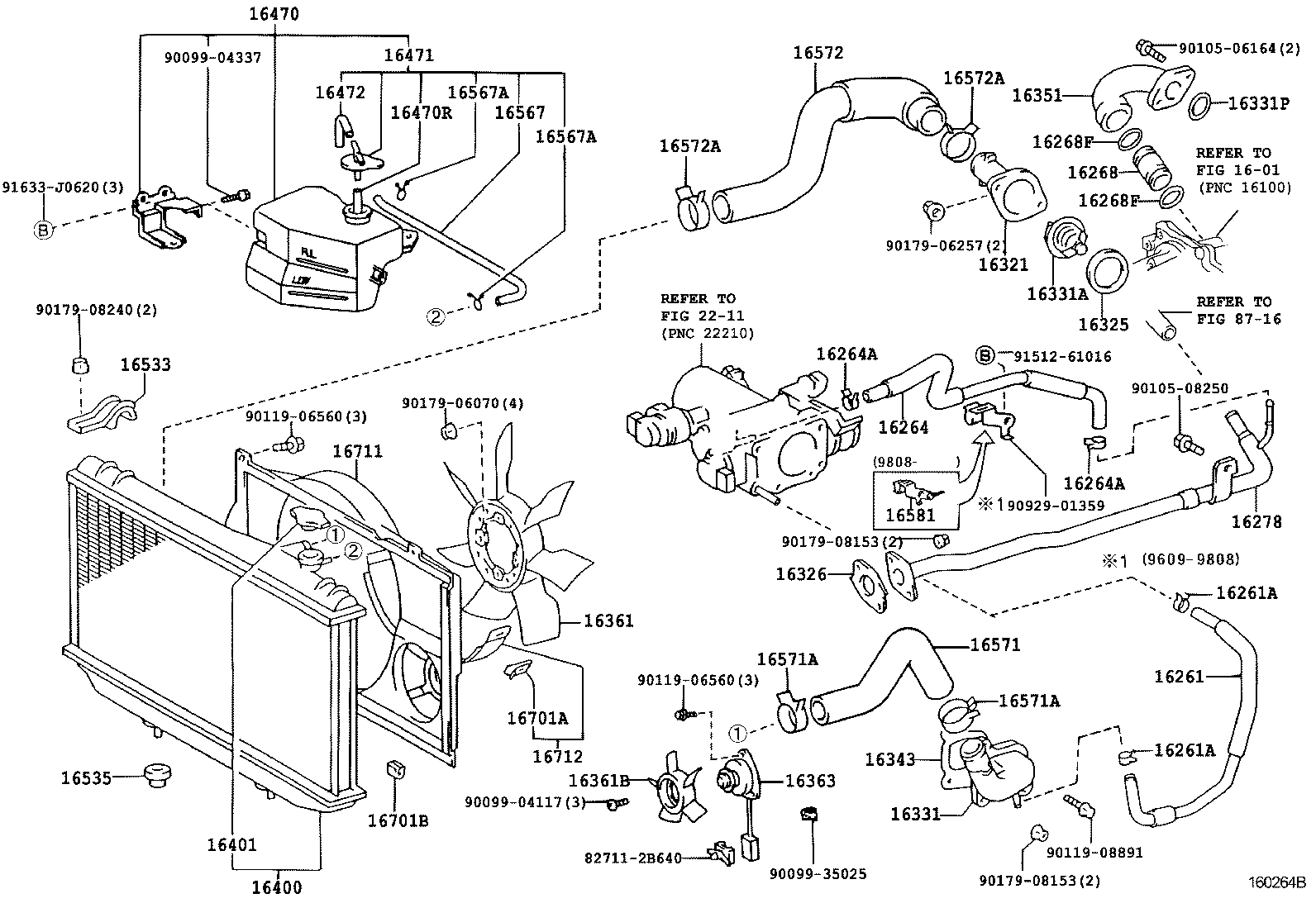

ILLUST NO. 1 OF 2(9508- )2JZGE..JZS155..A,E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-46020 |
1JZGE,2JZGE..JZS15# |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-13050 |
1JZGE,2JZGE..JZS15# |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-13050 |
1JZGE,2JZGE..JZS15# |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-46040 |
1JZGE,2JZGE..JZS15# |
1 | ||
| 16264-46041 |
1JZGE,2JZGE..JZS15# |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-13050 |
1JZGE,2JZGE..JZS15# |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-13050 |
1JZGE,2JZGE..JZS15# |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-46011 |
1JZGE,2JZGE..JZS15# |
1 | ||
| 16268F - RING, O(FOR WATER BY-PASS PIPE) | ||||
| 96761-24022 |
1JZGE,2JZGE..JZS15# |
2 | ||
| 16268F - RING, O(FOR WATER BY-PASS PIPE) | ||||
| 96761-24022 |
1JZGE,2JZGE..JZS15# |
2 | ||
| 16278 - PIPE, WATER BY-PASS, NO.2 | ||||
| 16278-46010 |
1JZGE,2JZGE..JZS15# |
1 | ||
| 16278-46010 |
2JZGE..JZS155 |
1 | ||
| 16278-46040 |
1JZGE,2JZGE..JZS15# |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-46040 |
1JZGE,2JZGE..JZS15# |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-62010 |
1JZGE,2JZGE..JZS15# |
1 | ||
| 16326 - GASKET, WATER INLET HOUSING, NO.2 | ||||
| 16325-46010 |
1JZGE,2JZGE..JZS15# |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-46041 |
2JZGE..JZS155,157 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03093 |
1JZGE,2JZGE..JZS15# *WAX 82−95 |
1 | ||
| 16331P - RING,O(FOR WATER OUTLET) | ||||
| 96761-24028 |
1JZGE,2JZGE..JZS15# |
1 | ||
| 16343 - GASKET, WATER OUTLET HOUSING | ||||
| 16343-46020 |
1JZGE,2JZGE..JZS15# |
1 | ||
| 16351 - OUTLET, WATER BY-PASS | ||||
| 16351-46022 |
2JZGE..JZS155,157 |
1 | ||
| 16351-46021 |
2JZGE..JZS155 |
1 | ||
| 16361 - FAN | ||||
| 16361-46040 |
1JZGE,2JZGE..JZS15# |
1 | ||
| 16361B - FAN, NO.2 | ||||
| 16361-46050 |
1JZGE,2JZGE..JZS151,155 |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-50021 |
1JZGE,2JZGE..JZS151,155 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-50160 |
2JZGE..JZS155..A,E |
1 | ||
| 16400-50180 |
2JZGE..JZS155..A,E |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-72090 |
1JZGE,2JZGE..JZS15# |
1 | ||
| 16401-62100 |
2JZGE..JZS155..A,E |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-50090 |
2JZGE..JZS155..A,E |
1 | ||
| 16470R - HOSE, NO.2(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
2JZGE..JZS155..A,E |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-50010 |
2JZGE..JZS155..A,E |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 16479-50090 |
2JZGE..JZS155..A,E |
1 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16505-50030 |
2JZGE..JZS155..A,E |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 90480-40020 |
2JZGE..JZS155..A,E |
2 | ||
| 90480-40016 |
2JZGE..JZS155..A,E |
2 | ||
| 16567 - HOSE(FOR RADIATOR RESERVE TANK) | ||||
| 16478-50090 |
2JZGE..JZS155..A,E |
1 | ||
| 16567A - CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
2JZGE..JZS155..A,E |
2 | ||
| 16567A - CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
2JZGE..JZS155..A,E |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-46100 |
2JZGE..JZS155..A,E |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37006 |
1JZGE,2JZGE..JZS15# |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37006 |
1JZGE,2JZGE..JZS15# |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-46080 |
2JZGE..JZS155..A,E |
1 | ||
| 16572-46081 |
2JZGE..JZS155..A,E |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-41007 |
2JZGE..JZS155..A,E |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-41007 |
2JZGE..JZS155..A,E |
2 | ||
| 16581 - CLAMP, HOSE(FOR WATER HOSE) | ||||
| 16581-46040 |
1JZGE,2JZGE..JZS15# |
1 | ||
| 16701A - CLIP(FOR FAN SHROUD) | ||||
| 90468-05109 |
2JZGE..JZS155..A,E,ROYG;1JZGE,2JZGE..JZS151,155..SED..ROY |
2 | ||
| 16701B - CUSHION, FAN SHROUD | ||||
| 90541-11002 |
1JZGE,2JZGE..JZS15# |
2 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-46100 |
2JZGE..JZS155..A,E |
1 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16702-46030 |
2JZGE..JZS155..A,E |
1 | ||
| Common parts | ||||
| 82711-2B640 | ||||
| 90099-04117 | ||||
| 90099-04337 | ||||
| 90099-35025 | ||||
| 90105-06164 | ||||
| 90105-08250 | ||||
| 90119-06560 | ||||
| 90119-08891 | ||||
| 90179-06070 | ||||
| 90179-06257 | ||||
| 90179-08153 | ||||
| 90179-08240 | ||||
| 90929-01359 | ||||
| 91512-61016 | ||||
| 91633-J0620 | ||||
| Linked diagrams | ||||
| 1601 | ||||
| 2211 | ||||
| 8716 | ||||

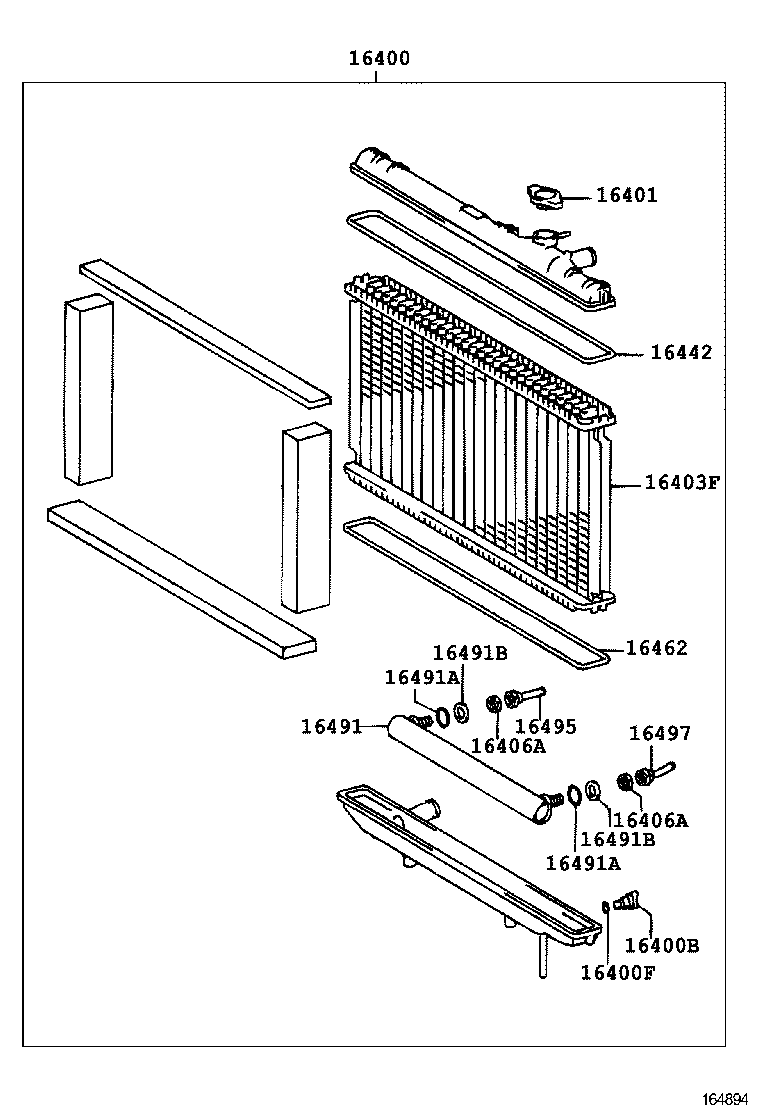

ILLUST NO. 2 OF 2(9508- )2JZGE..JZS155..A,E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16400 - RADIATOR ASSY | ||||
| 16400-50160 |
2JZGE..JZS155..A,E |
1 | ||
| 16400-50160 |
2JZGE..JZS155..A,E |
1 | ||
| 16400-50180 |
2JZGE..JZS155..A,E |
1 | ||
| 16400-50180 |
2JZGE..JZS155..A,E |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 23322-54010 |
1JZGE,2JZGE..JZS15# |
1 | ||
| 23322-54010 |
1JZGE,2JZGE..JZS15# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 96711-19007 |
1JZGE,2JZGE..JZS15# |
1 | ||
| 96711-19007 |
1JZGE,2JZGE..JZS15# |
1 | ||
| 16492-21050 |
1JZGE,2JZGE..JZS15# |
1 | ||
| 16492-21050 |
1JZGE,2JZGE..JZS15# |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-72090 |
1JZGE,2JZGE..JZS15# |
1 | ||
| 16401-72090 |
1JZGE,2JZGE..JZS15# |
1 | ||
| 16401-62100 |
2JZGE..JZS155..A,E |
1 | ||
| 16401-62100 |
2JZGE..JZS155..A,E |
1 | ||
| 16403F - CORE SUB-ASSY, RADIATOR | ||||
| 16403-50160 |
2JZGE..JZS155..A,E |
1 | ||
| 16403-50160 |
2JZGE..JZS155..A,E |
1 | ||
| 16406A - SUPPORT(FOR OIL COOLER) | ||||
| 16406-62060 |
1JZGE,2JZGE..JZS15# |
2 | ||
| 16406-62060 |
1JZGE,2JZGE..JZS15# |
2 | ||
| 16406A - SUPPORT(FOR OIL COOLER) | ||||
| 16406-62060 |
1JZGE,2JZGE..JZS15# |
2 | ||
| 16406-62060 |
1JZGE,2JZGE..JZS15# |
2 | ||
| 16442 - RING, O(FOR RADIATOR UPPER TANK) | ||||
| 16442-50020 |
2JZGE..JZS155..A,E |
1 | ||
| 16442-50020 |
2JZGE..JZS155..A,E |
1 | ||
| 16462 - RING, O(FOR RADIATOR LOWER TANK) | ||||
| 16442-50020 |
2JZGE..JZS155..A,E |
1 | ||
| 16442-50020 |
2JZGE..JZS155..A,E |
1 | ||
| 16491 - COOLER, OIL(FOR ATM) | ||||
| 16491-54790 |
2JZGE..JZS155..A,E |
1 | ||
| 16491-54790 |
2JZGE..JZS155..A,E |
1 | ||
| 16491A - RING, O(FOR ATM OIL COOLER) | ||||
| 16492-50020 |
1JZGE,2JZGE..JZS15# |
2 | ||
| 16492-50020 |
1JZGE,2JZGE..JZS15# |
2 | ||
| 16491A - RING, O(FOR ATM OIL COOLER) | ||||
| 16492-50020 |
1JZGE,2JZGE..JZS15# |
2 | ||
| 16492-50020 |
1JZGE,2JZGE..JZS15# |
2 | ||
| 16491B - WASHER, PLATE(FOR ATM OIL COOLER) | ||||
| 16493-62060 |
1JZGE,2JZGE..JZS15# |
2 | ||
| 16493-62060 |
1JZGE,2JZGE..JZS15# |
2 | ||
| 16491B - WASHER, PLATE(FOR ATM OIL COOLER) | ||||
| 16493-62060 |
1JZGE,2JZGE..JZS15# |
2 | ||
| 16493-62060 |
1JZGE,2JZGE..JZS15# |
2 | ||
| 16495 - NUT, FLARE(FOR ATM OIL COOLER) | ||||
| 16495-50020 |
2JZGE..JZS155..A,E |
1 | ||
| 16495-50020 |
2JZGE..JZS155..A,E |
1 | ||
| 16497 - INLET SUB-ASSY | ||||
| 16497-74760 |
2JZGE..JZS155..A,E |
1 | ||
| 16497-74760 |
2JZGE..JZS155..A,E |
1 | ||
