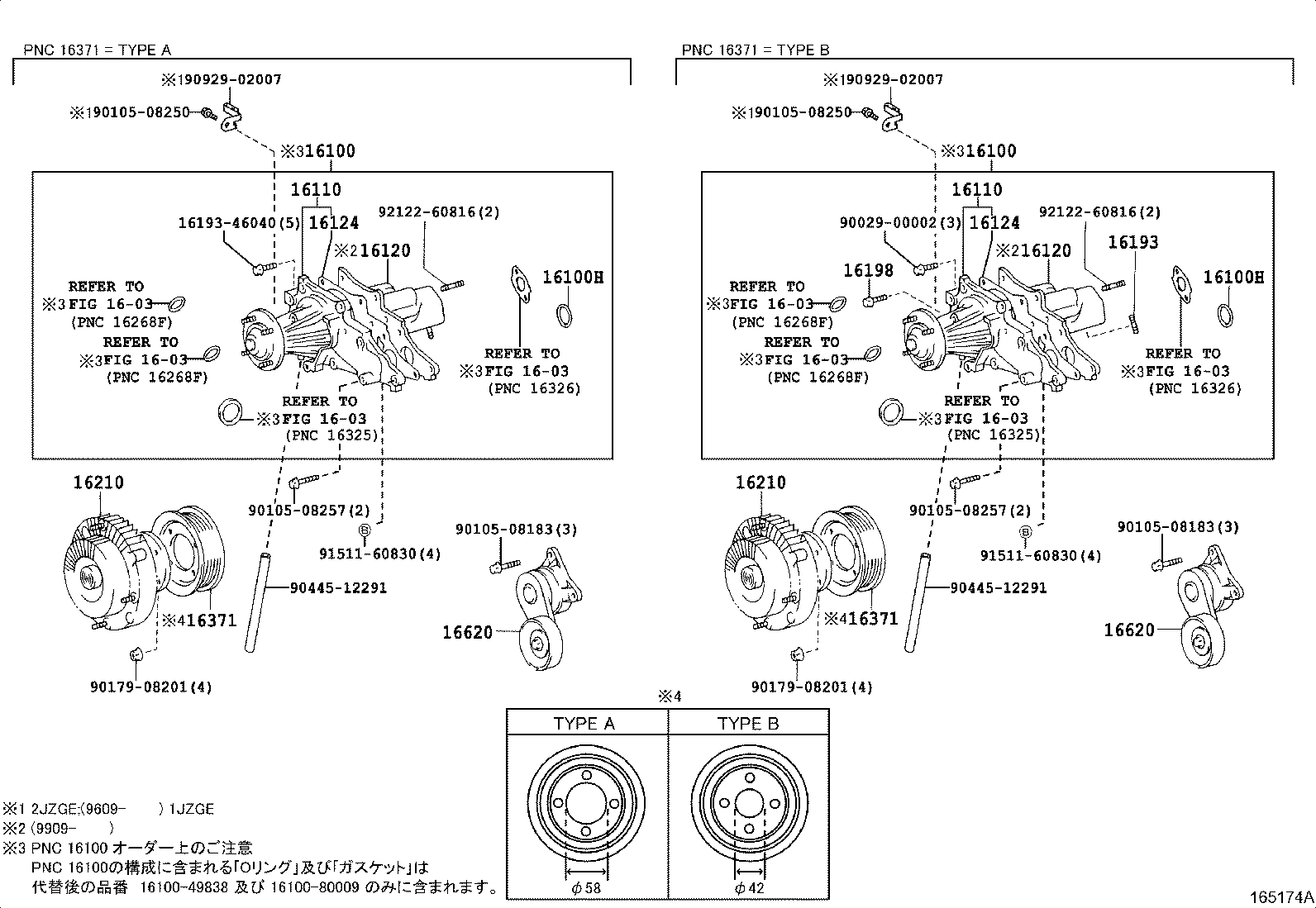

Toyota Crown/crown majesta JZS155 WATER PUMP

Part #	Description	Period	Qty
16100 - PUMP ASSY, ENGINE WATER
16100-49836	2JZGE..JZS155,157 PNC 16371=TYPE A	08/1995 - 06/1999	1
16100-49865	1JZGE,2JZGE..JZS15# PNC 16371=TYPE B	06/1999 - 09/1999	1
16100-49836	1JZGE,2JZGE..JZS15# PNC 16371=TYPE A	06/1999 - 09/1999	1
16100 - PUMP ASSY, ENGINE WATER
16100-49836	2JZGE..JZS155,157 PNC 16371=TYPE A	08/1995 - 06/1999	1
16100-49865	1JZGE,2JZGE..JZS15# PNC 16371=TYPE B	06/1999 - 09/1999	1
16100-49836	1JZGE,2JZGE..JZS15# PNC 16371=TYPE A	06/1999 - 09/1999	1
16100H - RING, O(FOR WATER PUMP)
96761-24040	1JZGE,2JZGE..JZS15#	08/1995 - 12/2999	1
16100H - RING, O(FOR WATER PUMP)
96761-24040	1JZGE,2JZGE..JZS15#	08/1995 - 12/2999	1
16110 - PUMP ASSY, WATER, W/O COUPLING
16110-49116	1JZGE,2JZGE..JZS15# PNC 16371=TYPE A	06/1999 - 09/1999	1
16110-49145	1JZGE,2JZGE..JZS15# PNC 16371=TYPE B	06/1999 - 09/1999	1
16110-49116	2JZGE..JZS155,157 PNC 16371=TYPE A	08/1995 - 06/1999	1
16110 - PUMP ASSY, WATER, W/O COUPLING
16110-49116	1JZGE,2JZGE..JZS15# PNC 16371=TYPE A	06/1999 - 09/1999	1
16110-49145	1JZGE,2JZGE..JZS15# PNC 16371=TYPE B	06/1999 - 09/1999	1
16110-49116	2JZGE..JZS155,157 PNC 16371=TYPE A	08/1995 - 06/1999	1
16124 - GASKET, WATER PUMP COVER
16124-46041	2JZGE..JZS155	08/1996 - 07/1997	1
16124-46041	2JZGE..JZS155,157..HT	07/1997 - 09/1999	1
16124-46040	2JZGE..JZS155	08/1995 - 08/1996	1
16124 - GASKET, WATER PUMP COVER
16124-46041	2JZGE..JZS155	08/1996 - 07/1997	1
16124-46041	2JZGE..JZS155,157..HT	07/1997 - 09/1999	1
16124-46040	2JZGE..JZS155	08/1995 - 08/1996	1
16210 - COUPLING ASSY, FLUID
16210-46040	2JZGE..JZS155	09/1996 - 08/1997	1
16210-46041	2JZGE..JZS155,157 PNC 16371=TYPE A	08/1997 - 06/1999	1
16210-46040	1JZGE,2JZGE..JZS15#	08/1995 - 09/1996	1
16210-46051	1JZGE,2JZGE..JZS15# PNC 16371=TYPE B	06/1999 - 09/1999	1
16210-46041	1JZGE,2JZGE..JZS15# PNC 16371=TYPE A	06/1999 - 09/1999	1
16210 - COUPLING ASSY, FLUID
16210-46040	2JZGE..JZS155	09/1996 - 08/1997	1
16210-46041	2JZGE..JZS155,157 PNC 16371=TYPE A	08/1997 - 06/1999	1
16210-46040	1JZGE,2JZGE..JZS15#	08/1995 - 09/1996	1
16210-46051	1JZGE,2JZGE..JZS15# PNC 16371=TYPE B	06/1999 - 09/1999	1
16210-46041	1JZGE,2JZGE..JZS15# PNC 16371=TYPE A	06/1999 - 09/1999	1
16371 - PULLEY, FAN
16371-46020	1JZGE,2JZGE..JZS15#	08/1995 - 09/1996	1
16371-46020	2JZGE..JZS155,157 TYPE A:ｲﾗｽﾄ参照	09/1996 - 06/1999	1
16371-46030	1JZGE,2JZGE..JZS15# TYPE B:ｲﾗｽﾄ参照	06/1999 - 09/1999	1
16371-46020	1JZGE,2JZGE..JZS15# TYPE A:ｲﾗｽﾄ参照	06/1999 - 09/1999	1
16371 - PULLEY, FAN
16371-46030	1JZGE,2JZGE..JZS15# TYPE B:ｲﾗｽﾄ参照	06/1999 - 09/1999	1
16371-46020	1JZGE,2JZGE..JZS15#	08/1995 - 09/1996	1
16371-46020	2JZGE..JZS155,157 TYPE A:ｲﾗｽﾄ参照	09/1996 - 06/1999	1
16371-46020	1JZGE,2JZGE..JZS15# TYPE A:ｲﾗｽﾄ参照	06/1999 - 09/1999	1
16620 - TENSIONER ASSY, V-RIBBED BELT
16620-0W023	2JZGE..JZS155	08/1995 - 10/1996	1
16620-0W024	2JZGE..JZS155,157	10/1996 - 09/1999	1
16620 - TENSIONER ASSY, V-RIBBED BELT
16620-0W023	2JZGE..JZS155	08/1995 - 10/1996	1
16620-0W024	2JZGE..JZS155,157	10/1996 - 09/1999	1
Common parts
16193-46040
90029-00002
90105-08183
90105-08250
90105-08257
90179-08201
90445-12291
90929-02007
91511-60830
92122-60816
Linked diagrams
1603

JZS155-CTPZF (1995)

(9508- )1JZGE,2JZGE
