JZS155-CTPZF (1995)

Toyota Crown/Crown Majesta

Production Aug 1995 - Sep 1999
Engine 2JZGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9508- )2JZGE ; (9609- )1JZGE

Click highlighted areas on diagram

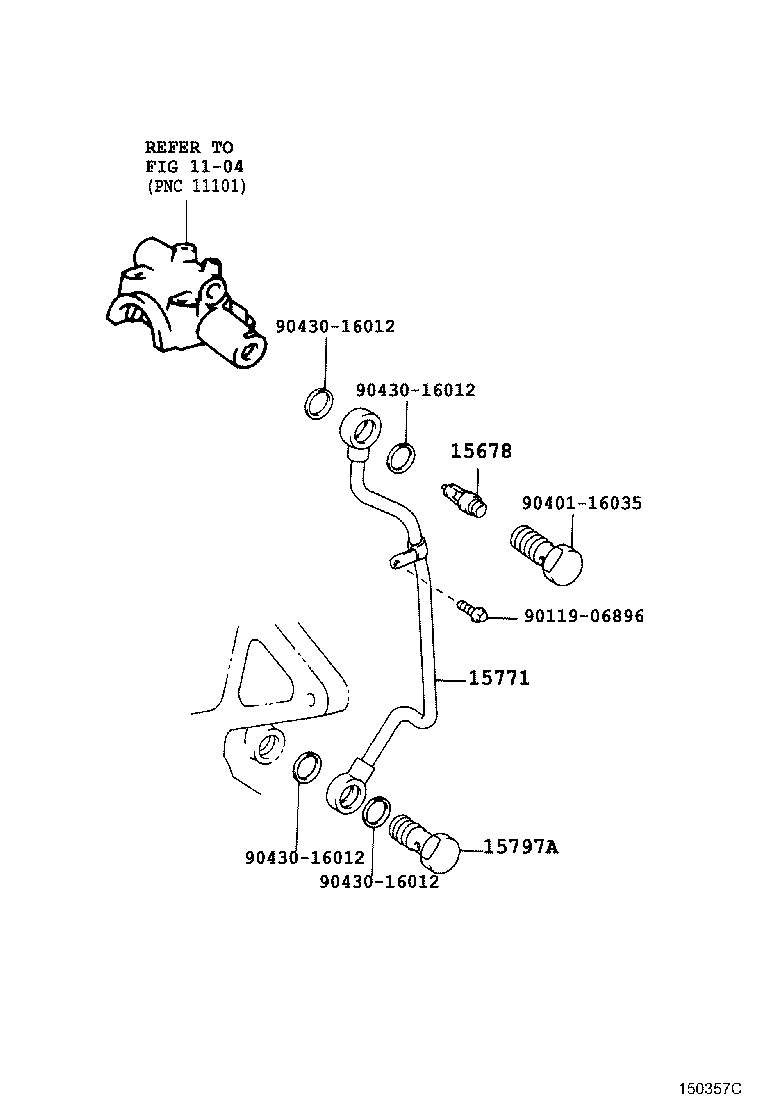

diagram 1104 15678 15771 15797A 9011906896 9040116035 9043016012 9043016012 9043016012 9043016012
Part # Description Qty Price
15678 - FILTER, OIL CONTROL VALVE
15678-46010

2JZGE..JZS155

 1
15678-46010

1JZGE,2JZGE..JZS15#

 1
15678-46020

1JZGE,2JZGE..JZS15#

 1
15771 - PIPE, OIL, NO.1
15771-46010

2JZGE..JZS155,157

 1
15797A - BOLT, OIL CHECK VALVE
15797-46010

1JZGE,2JZGE..JZS15#

 1
15797-46010

2JZGE..JZS155

 1
Common parts
90119-06896
90401-16035
90430-16012
Linked diagrams
1104
