JZS155-CTPZF (1995)

Toyota Crown/Crown Majesta

Production Aug 1995 - Sep 1999
Engine 2JZGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9508- )

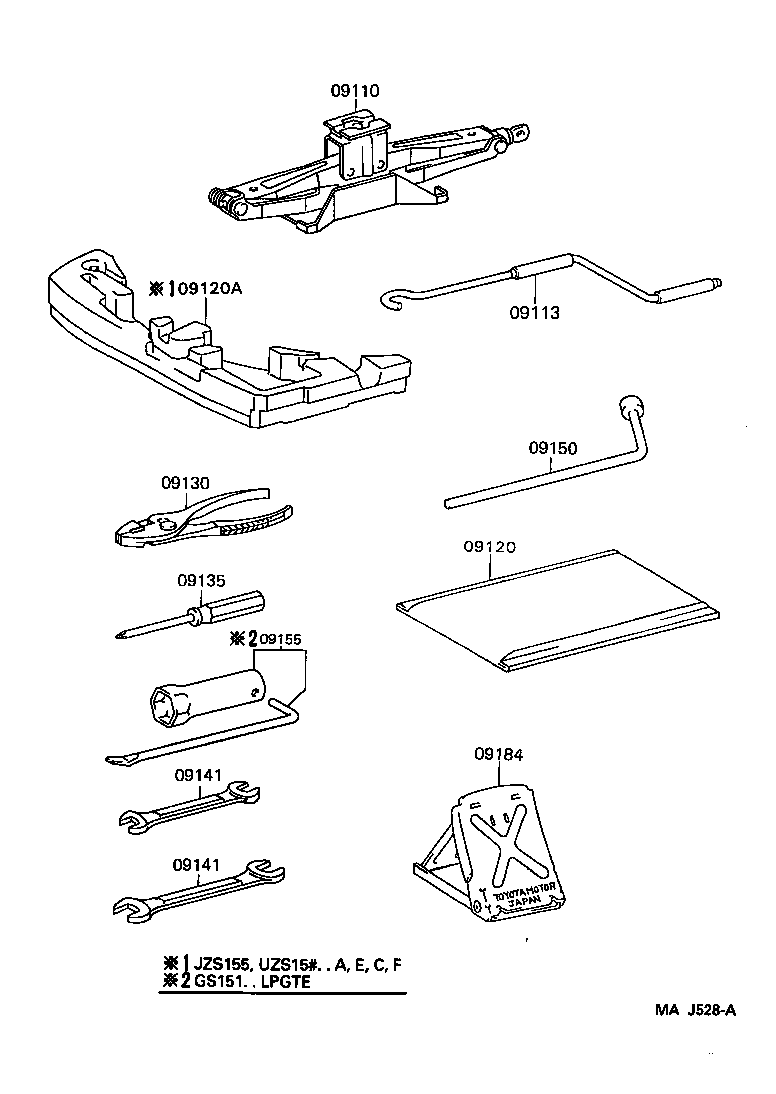

Click highlighted areas on diagram

diagram 09110 09113 09120 09120A 09130 09135 09141 09141 09150 09155 09184
Part # Description Qty Price
09110 - JACK ASSY
09111-30120

GS151,JZS15#,LS151,UZS15#

 1
09113 - HANDLE, JACK
09113-22020

GS151,JZS15#,LS151,UZS15#

 1
09120 - BAG, TOOL
09120-28040

GS151,JZS15#,LS151,UZS15#..HTWC,TDE,TWC

 1
09120A - CASE, TOOL
09120-30080

JZS155,UZS15#..A,C,E,F

 1
09130 - PLIERS
99913-11500

GS151,JZS15#,LS151,UZS15#

 1
09135 - DRIVER, SCREW
99915-10700

GS151,JZS15#,LS151,UZS15#

 1
09141 - SPANNER
99914-11214

GS151,JZS15#,LS151,UZS15#

12 X 14

 1
99914-10810

GS151,JZS15#,LS151,UZS15#

8 X 10

 1
09141 - SPANNER
99914-11214

GS151,JZS15#,LS151,UZS15#

12 X 14

 1
99914-10810

GS151,JZS15#,LS151,UZS15#

8 X 10

 1
09150 - WRENCH, HUB NUT BOX
09150-40010

GS151,JZS15#,LS151,UZS15#

 1
09184 - STOPPER, WHEEL
09184-00010

GS151,JZS15#,LS151,UZS15#

 1
