JZS155-CTPQF (1995)
Toyota Crown/Crown Majesta

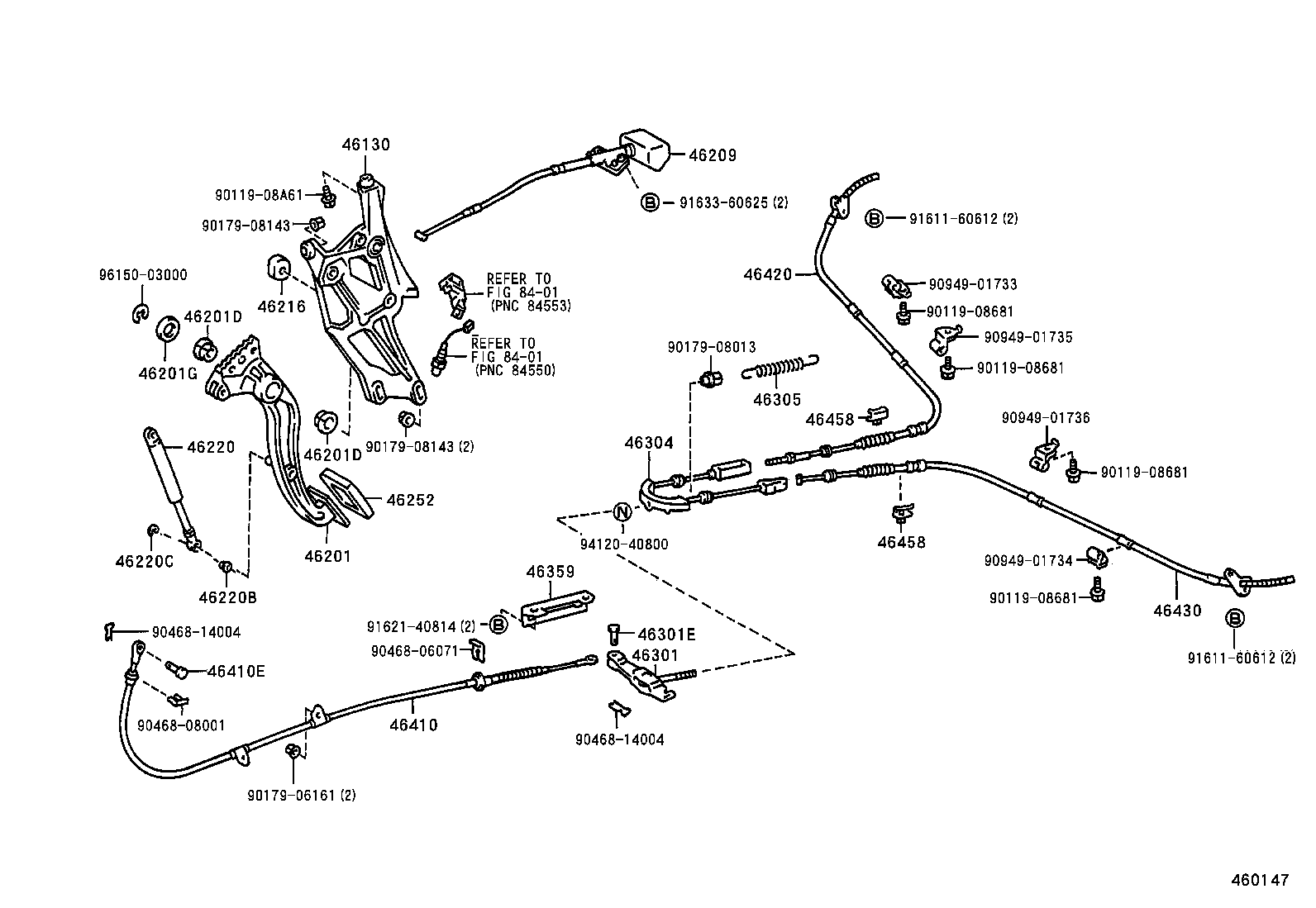

ILLUST NO. 1 OF 2(9508- )JZS155,UZS151,157..A,C,E,F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46130 - BRACKET ASSY, PARKING BRAKE PEDAL | ||||
| 46130-30130 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 46130-30120 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 46201 - PEDAL SUB-ASSY, PARKING BRAKE | ||||
| 46201-30160 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 46201-30120 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 46201D - BUSH(FOR PARKING BRAKE PEDAL) | ||||
| 90386-30002 |
JZS155,UZS15#..A,C,E,F 右側 |
1 | ||
| 90386-30003 |
JZS155,UZS15#..A,C,E,F 左側 |
1 | ||
| 46201D - BUSH(FOR PARKING BRAKE PEDAL) | ||||
| 90386-30002 |
JZS155,UZS15#..A,C,E,F 右側 |
1 | ||
| 90386-30003 |
JZS155,UZS15#..A,C,E,F 左側 |
1 | ||
| 46201G - SPACER(FOR PARKING BRAKE PEDAL) | ||||
| 90560-30010 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 46209 - CABLE SUB-ASSY, PARKING BRAKE RELEASE | ||||
| 46209-30130B0 |
JZS155,UZS15#..A,C,E,F BLUE GRAY,TRIM1# |
1 | ||
| 46209-30130E0 |
JZS155,UZS15#..A,C,E,F QUARTZ,TRIM4# |
1 | ||
| 46209-30131B0 |
JZS155,UZS15#..A,C,E,F BLUE GRAY,TRIM1# |
1 | ||
| 46209-30131E0 |
JZS155,UZS15#..A,C,E,F QUARTZ,TRIM4# |
1 | ||
| 46216 - CUSHION, PARKING PEDAL | ||||
| 90541-15013 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 46220 - ABSORBER ASSY, PARKING BRAKE PEDAL RETURN | ||||
| 46220-22010 |
GS151,JZS15#,LS151,UZS15#..ATM..(HTWC,TDE,TWC) |
1 | ||
| 46220-30010 |
GS151,JZS15#,LS151,UZS15#..ATM |
1 | ||
| 46220B - BUSH(FOR PARKING BRAKE PEDAL RETURN ABSORBER) | ||||
| 90386-08059 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 46220C - RING, E(FOR PARKING BRAKE PEDAL RETURN ABSORBER) | ||||
| 96160-00700 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 46252 - PAD, PARKING PEDAL | ||||
| 46252-20010 |
GS151,JZS15#,LS151,UZS15#..ATM |
1 | ||
| 46301 - LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE | ||||
| 46301-30260 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 46301E - PIN, W/HOLE(FOR INTERMEDIATE LEVER) | ||||
| 90240-08059 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 46304 - EQUALIZER SUB-ASSY, PARKING BRAKE | ||||
| 46304-30090 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 46305 - SPRING, PARKING BRAKE RETURN W/DAMPER | ||||
| 46305-50010 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 46359 - GUIDE, PARKING BRAKE INTERMEDIATE LEVER | ||||
| 46359-30140 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-30670 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 46410E - PIN, W/HOLE(FOR PARKING BRAKE CABLE NO.1) | ||||
| 90240-08062 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-30410 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-30100 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 46458 - RETAINER, CABLE | ||||
| 46458-30060 |
JZS155,UZS15#..A,C,E,F |
2 | ||
| 46458 - RETAINER, CABLE | ||||
| 46458-30060 |
JZS155,UZS15#..A,C,E,F |
2 | ||
| Common parts | ||||
| 90119-08681 | ||||
| 90119-08A61 | ||||
| 90179-06161 | ||||
| 90179-08013 | ||||
| 90179-08143 | ||||
| 90468-06071 | ||||
| 90468-08001 | ||||
| 90468-14004 | ||||
| 90949-01733 | ||||
| 90949-01734 | ||||
| 90949-01735 | ||||
| 90949-01736 | ||||
| 91611-60612 | ||||
| 91621-40814 | ||||
| 91633-60625 | ||||
| 94120-40800 | ||||
| 96150-03000 | ||||
| Linked diagrams | ||||
| 8401 | ||||

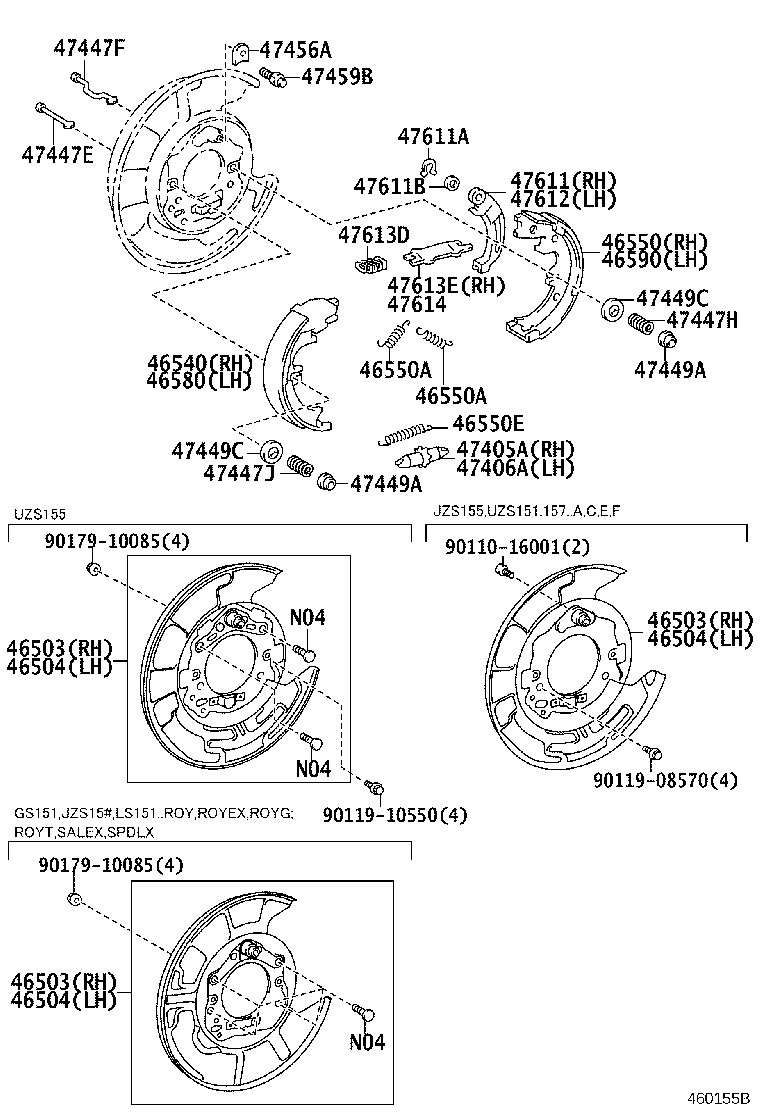

ILLUST NO. 2 OF 2(9508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46503 - PLATE SUB-ASSY, PARKING BRAKE, RH | ||||
| 46503-24020 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 46503 - PLATE SUB-ASSY, PARKING BRAKE, RH | ||||
| 46503-24020 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 46503 - PLATE SUB-ASSY, PARKING BRAKE, RH | ||||
| 46503-24020 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 46504 - PLATE SUB-ASSY, PARKING BRAKE, LH | ||||
| 46504-24020 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 46504 - PLATE SUB-ASSY, PARKING BRAKE, LH | ||||
| 46504-24020 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 46504 - PLATE SUB-ASSY, PARKING BRAKE, LH | ||||
| 46504-24020 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 46540 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1 | ||||
| 46540-28010 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2 | ||||
| 46550-28010 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90507-20016 |
JZS155,UZS15#..A,C,E,F |
4 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90507-20016 |
JZS155,UZS15#..A,C,E,F |
4 | ||
| 46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-12051 |
JZS155,UZS15#..A,C,E,F |
2 | ||
| 46580 - SHOE ASSY, PARKING BRAKE, LH NO.1 | ||||
| 46540-28010 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 46590 - SHOE ASSY, PARKING BRAKE, LH NO.2 | ||||
| 46590-28010 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 47405A - SCREW SET, SHOE ADJUSTING, RH(FOR PARKING BRAKE) | ||||
| 47405-30040 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 47406A - SCREW SET, SHOE ADJUSTING, LH(FOR PARKING BRAKE) | ||||
| 47406-30040 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 47447E - PIN, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47447-30020 |
JZS155,UZS15#..A,C,E,F |
2 | ||
| 47447F - PIN, SHOE HOLD DOWN SPRING, NO.2(FOR PARKING BRAKE) | ||||
| 47447-50010 |
JZS155,UZS15#..A,C,E,F |
2 | ||
| 47447H - SPRING, COMPRESSION, NO.1(FOR PARKING BRAKE SHOE HOLD D | ||||
| 90501-16053 |
JZS155,UZS15#..A,C,E,F |
2 | ||
| 47447J - SPRING, COMPRESSION, NO.2(FOR PARKING BRAKE SHOE HOLD D | ||||
| 90501-16118 |
JZS155,UZS15#..A,C,E,F |
2 | ||
| 47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47449-30030 |
GS151,JZS15#,LS151,UZS15# |
4 | ||
| 47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47449-30030 |
GS151,JZS15#,LS151,UZS15# |
4 | ||
| 47449C - CUP, SHOE HOLD DOWN SPRING, NO.2(FOR PARKING BRAKE) | ||||
| 47449-40010 |
JZS155,UZS15#..A,C,E,F |
4 | ||
| 47449C - CUP, SHOE HOLD DOWN SPRING, NO.2(FOR PARKING BRAKE) | ||||
| 47449-40010 |
JZS155,UZS15#..A,C,E,F |
4 | ||
| 47456A - PLATE, SHOE GUIDE(FOR PARKING BRAKE) | ||||
| 47456-33010 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| 47459B - BOLT, SHOE GUIDE PLATE SET(FOR PARKING BRAKE) | ||||
| 47459-30010 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| 47611 - LEVER, PARKING BRAKE SHOE, RH | ||||
| 47611-50010 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 47611A - WASHER, TYPE C(FOR PARKING BRAKE SHOE LEVER) | ||||
| 90213-07018 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| 47611B - SHIM(FOR PARKING BRAKE SHOE LEVER) | ||||
| 90564-09186 |
GS151,JZS15#,LS151,UZS15# 厚さ=0.9 |
1 | ||
| 90564-09185 |
GS151,JZS15#,LS151,UZS15# 厚さ=0.6 |
1 | ||
| 90564-09184 |
GS151,JZS15#,LS151,UZS15# 厚さ=0.3 |
1 | ||
| 47612 - LEVER, PARKING BRAKE SHOE, LH | ||||
| 47612-50010 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 47613D - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT) | ||||
| 90504-14002 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| 47613E - STRUT, PARKING BRAKE SHOE, RH | ||||
| 47613-28010 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 47614 - STRUT, PARKING BRAKE SHOE, LH | ||||
| 47614-28010 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| Common parts | ||||
| 90110-16001 | ||||
| 90119-08570 | ||||
| 90119-10550 | ||||
| 90179-10085 | ||||
