JZS155-CTPQF (1995)

Toyota Crown/Crown Majesta

Production Aug 1995 - Sep 1999
Engine 2JZGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9508- )JZS155,UZS151,157..A,C,E,F

Click highlighted areas on diagram

A340E,A341E,A650E

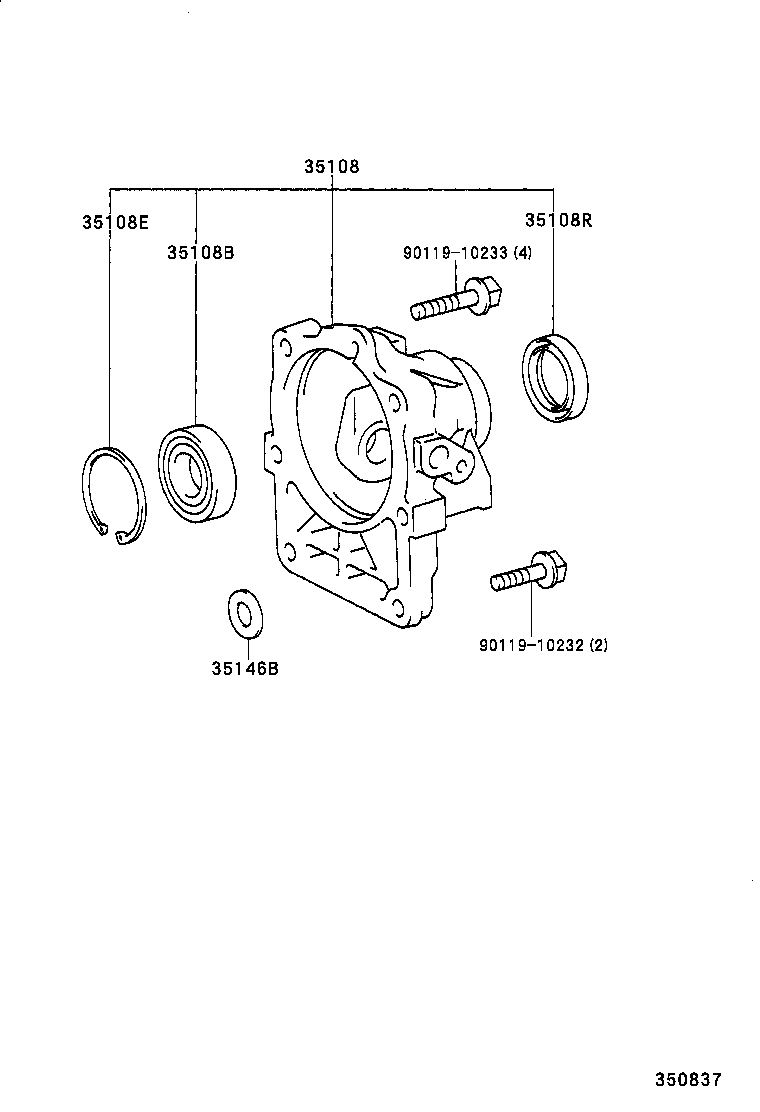

diagram 35108 35108B 35108E 35108R 35146B 9011910232 9011910233
Part # Description Qty Price
35108 - HOUSING SUB-ASSY, EXTENSION (ATM)
35108-50021

JZS155..A,E

 1
35108B - BEARING (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSING)
90363-30063

JZS155,UZS151,157..4FC..(A,C,E,F)

 1
35108E - RING, HOLE SNAP (FOR ATM EXTENSION HOUSING)
90521-66006

JZS155,UZS151,157..A,C,E,F

 1
35108R - SEAL, OIL (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSING
90311-42024

JZS155,UZS151,157..A,C,E,F

 1
Common parts
90119-10232
90119-10233
