JZS155-ATPUF (1995)
Toyota Crown/Crown Majesta

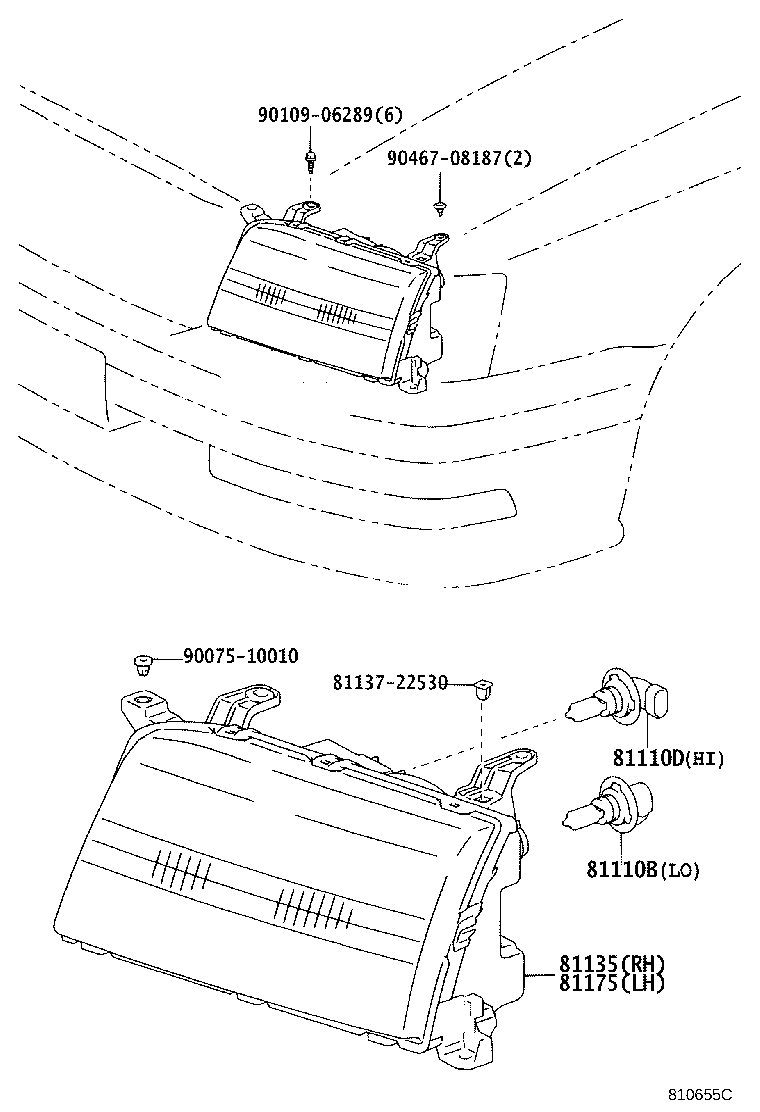

(9707- )HT..ROY,ROYEX,ROYG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-20001 |
JZS151,155,157..HT..ROY 85V 35W,ｱﾆﾊﾞ-ｻﾘ- ﾊﾟﾂｹ-ｼﾞ *(A) |
2 | ||
| 90981-20001 |
JZS151,155,UZS15#..A,C,F,ROYT 85V 35W |
2 | ||
| 90080-81040 |
GS151,JZS15#,LS151..HT..(E,ROY,ROYEX,ROYG) 12V 51W |
2 | ||
| 90981-22004 |
GS151,JZS15#,LS151,UZS15# 12V 60/55W,*HAL *WH |
2 | ||
| 81110D - BULB(FOR HEADLAMP, NO.2) | ||||
| 90981-13017 |
JZS155,UZS15#..A,C,E,F 12V 55W,*HAL *WH |
2 | ||
| 90080-81041 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) 12V 65W |
2 | ||
| 90080-81041 |
JZS151,155,157..HT..ROY 12V 65W,ｱﾆﾊﾞ-ｻﾘ- ﾊﾟﾂｹ-ｼﾞ *(A) |
2 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81130-30680 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 81130-3A420 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG) |
1 | ||
| 81130-30720 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 81130-3A430 |
JZS151,155,157..HT..ROY ｱﾆﾊﾞ-ｻﾘ- ﾊﾟﾂｹ-ｼﾞ *(A) |
1 | ||
| 81130-3A440 |
JZS155..E |
1 | ||
| 81130-3A460 |
JZS155,UZS15#..A,C,F |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81170-3A160 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 81170-3A560 |
JZS155..E |
1 | ||
| 81170-3A170 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 81170-3A540 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG) |
1 | ||
| 81170-3A570 |
JZS155,UZS15#..A,C,F |
1 | ||
| 81170-3A550 |
JZS151,155,157..HT..ROY ｱﾆﾊﾞ-ｻﾘ- ﾊﾟﾂｹ-ｼﾞ *(A) |
1 | ||
| Common parts | ||||
| 81137-22530 | ||||
| 90075-10010 | ||||
| 90109-06289 | ||||
| 90467-08187 | ||||

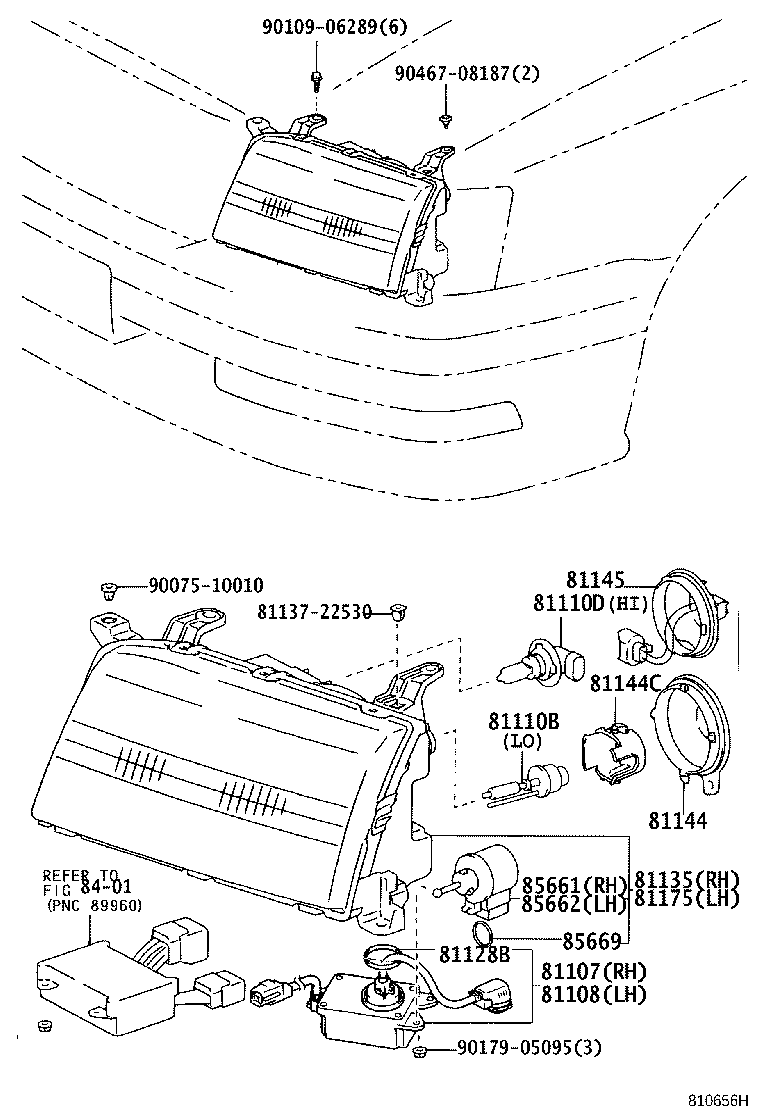

(9707- )JZS151,155,157..HT..ROY,ROYT ; (9810-)GS151..ROYEX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81107 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH | ||||
| 81107-3A460 |
JZS155,UZS15#..A,C,F |
1 | ||
| 81107-3A430 |
JZS151,155,157..HT..ROY ｱﾆﾊﾞ-ｻﾘ- ﾊﾟﾂｹ-ｼﾞ *(A) |
1 | ||
| 81108 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH | ||||
| 81107-3A430 |
JZS151,155,157..HT..ROY ｱﾆﾊﾞ-ｻﾘ- ﾊﾟﾂｹ-ｼﾞ *(A) |
1 | ||
| 81107-3A460 |
JZS155,UZS15#..A,C,F |
1 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-20001 |
JZS151,155,157..HT..ROY 85V 35W,ｱﾆﾊﾞ-ｻﾘ- ﾊﾟﾂｹ-ｼﾞ *(A) |
2 | ||
| 90981-20001 |
JZS151,155,UZS15#..A,C,F,ROYT 85V 35W |
2 | ||
| 90080-81040 |
GS151,JZS15#,LS151..HT..(E,ROY,ROYEX,ROYG) 12V 51W |
2 | ||
| 90981-22004 |
GS151,JZS15#,LS151,UZS15# 12V 60/55W,*HAL *WH |
2 | ||
| 81110D - BULB(FOR HEADLAMP, NO.2) | ||||
| 90981-13017 |
JZS155,UZS15#..A,C,E,F 12V 55W,*HAL *WH |
2 | ||
| 90080-81041 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) 12V 65W |
2 | ||
| 90080-81041 |
JZS151,155,157..HT..ROY 12V 65W,ｱﾆﾊﾞ-ｻﾘ- ﾊﾟﾂｹ-ｼﾞ *(A) |
2 | ||
| 81128B - PACKING, HEADLAMP (FOR BALLAST) | ||||
| 81132-3A430 |
JZS151,155,157..HT..ROY ｱﾆﾊﾞ-ｻﾘ- ﾊﾟﾂｹ-ｼﾞ *(A) |
2 | ||
| 81134-22720 |
JZS155,UZS15#..A,C,F |
2 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81130-30680 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 81130-3A420 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG) |
1 | ||
| 81130-30720 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 81130-3A430 |
JZS151,155,157..HT..ROY ｱﾆﾊﾞ-ｻﾘ- ﾊﾟﾂｹ-ｼﾞ *(A) |
1 | ||
| 81130-3A440 |
JZS155..E |
1 | ||
| 81130-3A460 |
JZS155,UZS15#..A,C,F |
1 | ||
| 81144 - COVER, HEADLAMP, NO.1 | ||||
| 81135-30870 |
JZS151,155,157..HT..ROY ｱﾆﾊﾞ-ｻﾘ- ﾊﾟﾂｹ-ｼﾞ *(A) |
2 | ||
| 90075-65002 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| 81144C - COVER, HEADLAMP SOCKET | ||||
| 90075-99129 |
JZS151,155,UZS15#..A,C,F,ROYT |
2 | ||
| 90075-99129 |
JZS151,155,157..HT..ROY ｱﾆﾊﾞ-ｻﾘ- ﾊﾟﾂｹ-ｼﾞ *(A) |
2 | ||
| 81145 - COVER, HEADLAMP, NO.2 | ||||
| 90075-65003 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| 81135-3A430 |
JZS151,155,157..HT..ROY ｱﾆﾊﾞ-ｻﾘ- ﾊﾟﾂｹ-ｼﾞ *(A) |
2 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81170-3A160 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 81170-3A560 |
JZS155..E |
1 | ||
| 81170-3A170 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 81170-3A540 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG) |
1 | ||
| 81170-3A570 |
JZS155,UZS15#..A,C,F |
1 | ||
| 81170-3A550 |
JZS151,155,157..HT..ROY ｱﾆﾊﾞ-ｻﾘ- ﾊﾟﾂｹ-ｼﾞ *(A) |
1 | ||
| 85661 - MOTOR, HEADLAMP LEVELING, RH | ||||
| 85661-30010 |
JZS151,155,UZS15#..A,C,F,ROYT |
1 | ||
| 85661-30010 |
JZS151,155,157..HT..ROY ｱﾆﾊﾞ-ｻﾘ- ﾊﾟﾂｹ-ｼﾞ *(A) |
1 | ||
| 85662 - MOTOR, HEADLAMP LEVELING, LH | ||||
| 85661-30010 |
JZS151,155,UZS15#..A,C,F,ROYT |
1 | ||
| 85661-30010 |
JZS151,155,157..HT..ROY ｱﾆﾊﾞ-ｻﾘ- ﾊﾟﾂｹ-ｼﾞ *(A) |
1 | ||
| 85669 - PACKING, HEADLAMP LEVELING MOTOR BASE | ||||
| 90075-99120 |
JZS151,155,UZS15#..A,C,F,ROYT |
2 | ||
| 90075-99120 |
JZS151,155,157..HT..ROY ｱﾆﾊﾞ-ｻﾘ- ﾊﾟﾂｹ-ｼﾞ *(A) |
2 | ||
| Common parts | ||||
| 81137-22530 | ||||
| 90075-10010 | ||||
| 90109-06289 | ||||
| 90179-05095 | ||||
| 90467-08187 | ||||
| Linked diagrams | ||||
| 8401 | ||||

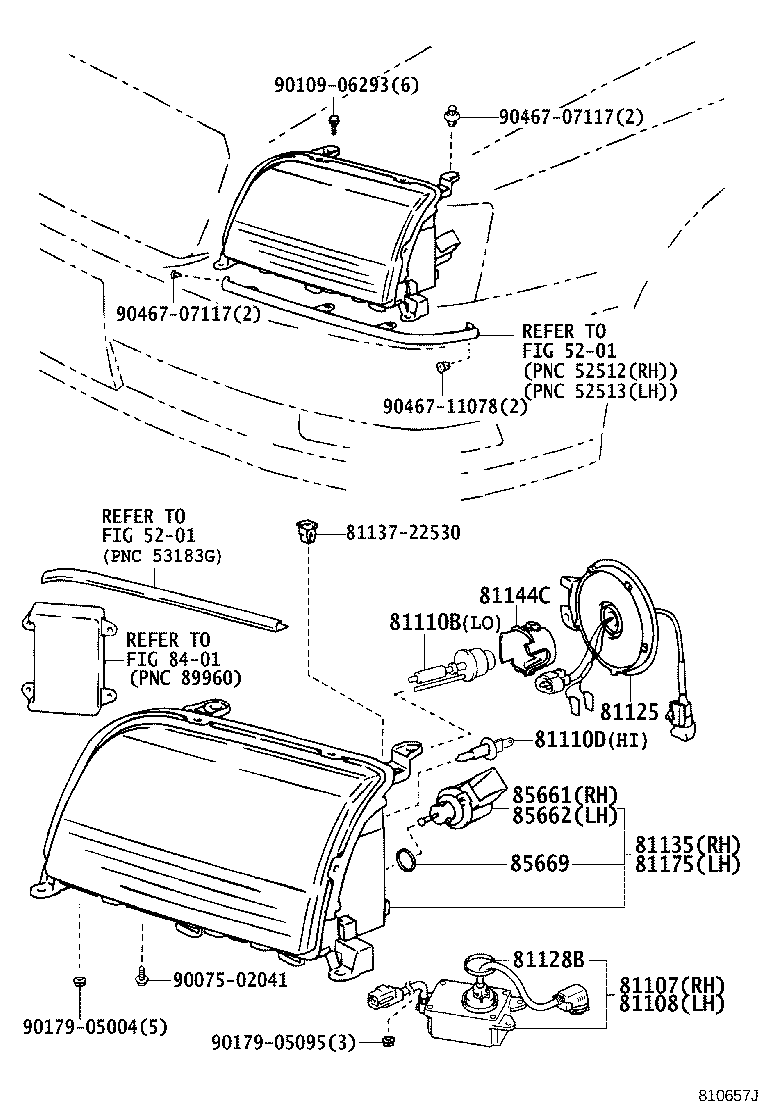

(9707- )A,C,F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81107 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH | ||||
| 81107-3A460 |
JZS155,UZS15#..A,C,F |
1 | ||
| 81107-3A430 |
JZS151,155,157..HT..ROY ｱﾆﾊﾞ-ｻﾘ- ﾊﾟﾂｹ-ｼﾞ *(A) |
1 | ||
| 81108 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH | ||||
| 81107-3A430 |
JZS151,155,157..HT..ROY ｱﾆﾊﾞ-ｻﾘ- ﾊﾟﾂｹ-ｼﾞ *(A) |
1 | ||
| 81107-3A460 |
JZS155,UZS15#..A,C,F |
1 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-20001 |
JZS151,155,157..HT..ROY 85V 35W,ｱﾆﾊﾞ-ｻﾘ- ﾊﾟﾂｹ-ｼﾞ *(A) |
2 | ||
| 90981-20001 |
JZS151,155,UZS15#..A,C,F,ROYT 85V 35W |
2 | ||
| 90080-81040 |
GS151,JZS15#,LS151..HT..(E,ROY,ROYEX,ROYG) 12V 51W |
2 | ||
| 90981-22004 |
GS151,JZS15#,LS151,UZS15# 12V 60/55W,*HAL *WH |
2 | ||
| 81110D - BULB(FOR HEADLAMP, NO.2) | ||||
| 90981-13017 |
JZS155,UZS15#..A,C,E,F 12V 55W,*HAL *WH |
2 | ||
| 90080-81041 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) 12V 65W |
2 | ||
| 90080-81041 |
JZS151,155,157..HT..ROY 12V 65W,ｱﾆﾊﾞ-ｻﾘ- ﾊﾟﾂｹ-ｼﾞ *(A) |
2 | ||
| 81125 - CORD, HEADLAMP | ||||
| 81125-3A440 |
JZS155..E |
2 | ||
| 81125-3A460 |
JZS155,UZS157..A,F |
1 | ||
| 81125-3A460 |
UZS151,155 |
2 | ||
| 81128B - PACKING, HEADLAMP (FOR BALLAST) | ||||
| 81132-3A430 |
JZS151,155,157..HT..ROY ｱﾆﾊﾞ-ｻﾘ- ﾊﾟﾂｹ-ｼﾞ *(A) |
2 | ||
| 81134-22720 |
JZS155,UZS15#..A,C,F |
2 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81130-30680 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 81130-3A420 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG) |
1 | ||
| 81130-30720 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 81130-3A430 |
JZS151,155,157..HT..ROY ｱﾆﾊﾞ-ｻﾘ- ﾊﾟﾂｹ-ｼﾞ *(A) |
1 | ||
| 81130-3A440 |
JZS155..E |
1 | ||
| 81130-3A460 |
JZS155,UZS15#..A,C,F |
1 | ||
| 81144C - COVER, HEADLAMP SOCKET | ||||
| 90075-99129 |
JZS151,155,UZS15#..A,C,F,ROYT |
2 | ||
| 90075-99129 |
JZS151,155,157..HT..ROY ｱﾆﾊﾞ-ｻﾘ- ﾊﾟﾂｹ-ｼﾞ *(A) |
2 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81170-3A160 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 81170-3A560 |
JZS155..E |
1 | ||
| 81170-3A170 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 81170-3A540 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG) |
1 | ||
| 81170-3A570 |
JZS155,UZS15#..A,C,F |
1 | ||
| 81170-3A550 |
JZS151,155,157..HT..ROY ｱﾆﾊﾞ-ｻﾘ- ﾊﾟﾂｹ-ｼﾞ *(A) |
1 | ||
| 85661 - MOTOR, HEADLAMP LEVELING, RH | ||||
| 85661-30010 |
JZS151,155,UZS15#..A,C,F,ROYT |
1 | ||
| 85661-30010 |
JZS151,155,157..HT..ROY ｱﾆﾊﾞ-ｻﾘ- ﾊﾟﾂｹ-ｼﾞ *(A) |
1 | ||
| 85662 - MOTOR, HEADLAMP LEVELING, LH | ||||
| 85661-30010 |
JZS151,155,UZS15#..A,C,F,ROYT |
1 | ||
| 85661-30010 |
JZS151,155,157..HT..ROY ｱﾆﾊﾞ-ｻﾘ- ﾊﾟﾂｹ-ｼﾞ *(A) |
1 | ||
| 85669 - PACKING, HEADLAMP LEVELING MOTOR BASE | ||||
| 90075-99120 |
JZS151,155,UZS15#..A,C,F,ROYT |
2 | ||
| 90075-99120 |
JZS151,155,157..HT..ROY ｱﾆﾊﾞ-ｻﾘ- ﾊﾟﾂｹ-ｼﾞ *(A) |
2 | ||
| Common parts | ||||
| 81137-22530 | ||||
| 90075-02041 | ||||
| 90109-06293 | ||||
| 90179-05004 | ||||
| 90179-05095 | ||||
| 90467-07117 | ||||
| 90467-11078 | ||||
| Linked diagrams | ||||
| 5201 | ||||
| 8401 | ||||

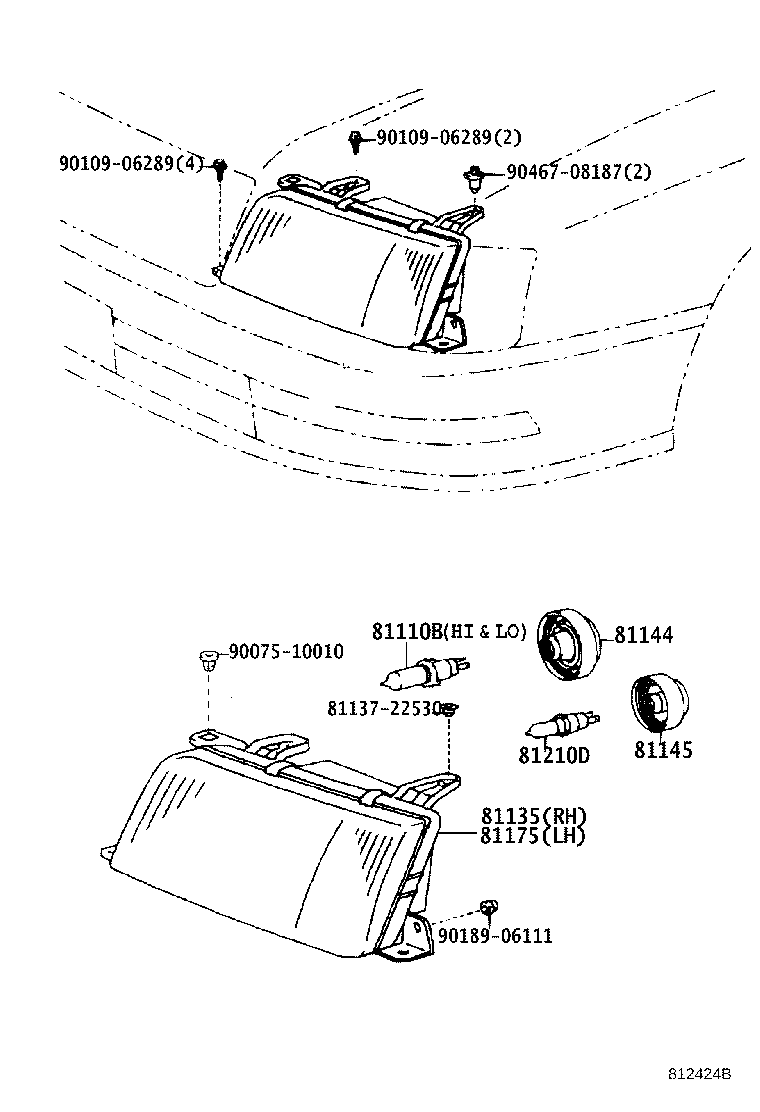

(9508-9707)HT..ROY,ROYEX,ROYG,ROYT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-20001 |
JZS151,155,157..HT..ROY 85V 35W,ｱﾆﾊﾞ-ｻﾘ- ﾊﾟﾂｹ-ｼﾞ *(A) |
2 | ||
| 90981-20001 |
JZS151,155,UZS15#..A,C,F,ROYT 85V 35W |
2 | ||
| 90080-81040 |
GS151,JZS15#,LS151..HT..(E,ROY,ROYEX,ROYG) 12V 51W |
2 | ||
| 90981-22004 |
GS151,JZS15#,LS151,UZS15# 12V 60/55W,*HAL *WH |
2 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81130-30680 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 81130-3A420 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG) |
1 | ||
| 81130-30720 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 81130-3A430 |
JZS151,155,157..HT..ROY ｱﾆﾊﾞ-ｻﾘ- ﾊﾟﾂｹ-ｼﾞ *(A) |
1 | ||
| 81130-3A440 |
JZS155..E |
1 | ||
| 81130-3A460 |
JZS155,UZS15#..A,C,F |
1 | ||
| 81144 - COVER, HEADLAMP, NO.1 | ||||
| 81135-30870 |
JZS151,155,157..HT..ROY ｱﾆﾊﾞ-ｻﾘ- ﾊﾟﾂｹ-ｼﾞ *(A) |
2 | ||
| 90075-65002 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| 81145 - COVER, HEADLAMP, NO.2 | ||||
| 90075-65003 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| 81135-3A430 |
JZS151,155,157..HT..ROY ｱﾆﾊﾞ-ｻﾘ- ﾊﾟﾂｹ-ｼﾞ *(A) |
2 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81170-3A160 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 81170-3A560 |
JZS155..E |
1 | ||
| 81170-3A170 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 81170-3A540 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG) |
1 | ||
| 81170-3A570 |
JZS155,UZS15#..A,C,F |
1 | ||
| 81170-3A550 |
JZS151,155,157..HT..ROY ｱﾆﾊﾞ-ｻﾘ- ﾊﾟﾂｹ-ｼﾞ *(A) |
1 | ||
| 81210D - BULB, FOG LAMP | ||||
| 90981-13070 |
GS151,JZS15#,LS151,UZS15# 12V 55W,ﾊﾛｹﾞﾝ |
2 | ||
| Common parts | ||||
| 81137-22530 | ||||
| 90075-10010 | ||||
| 90109-06289 | ||||
| 90189-06111 | ||||
| 90467-08187 | ||||

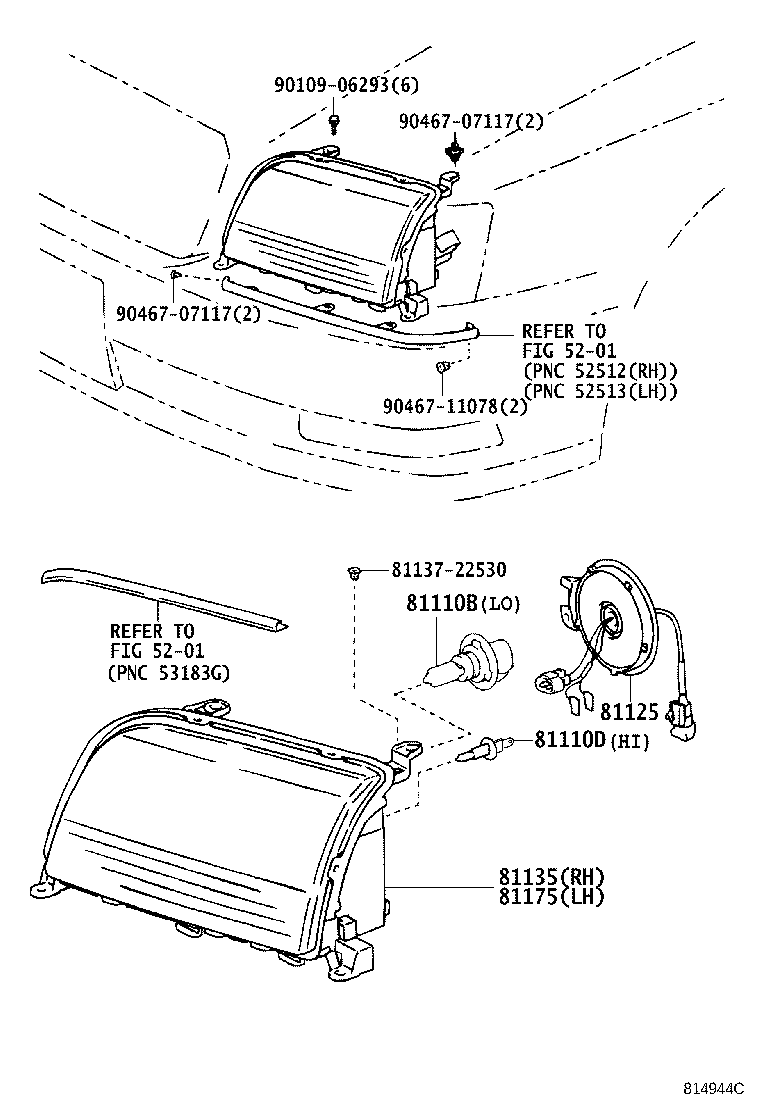

(9707- )E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-20001 |
JZS151,155,157..HT..ROY 85V 35W,ｱﾆﾊﾞ-ｻﾘ- ﾊﾟﾂｹ-ｼﾞ *(A) |
2 | ||
| 90981-20001 |
JZS151,155,UZS15#..A,C,F,ROYT 85V 35W |
2 | ||
| 90080-81040 |
GS151,JZS15#,LS151..HT..(E,ROY,ROYEX,ROYG) 12V 51W |
2 | ||
| 90981-22004 |
GS151,JZS15#,LS151,UZS15# 12V 60/55W,*HAL *WH |
2 | ||
| 81110D - BULB(FOR HEADLAMP, NO.2) | ||||
| 90981-13017 |
JZS155,UZS15#..A,C,E,F 12V 55W,*HAL *WH |
2 | ||
| 90080-81041 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) 12V 65W |
2 | ||
| 90080-81041 |
JZS151,155,157..HT..ROY 12V 65W,ｱﾆﾊﾞ-ｻﾘ- ﾊﾟﾂｹ-ｼﾞ *(A) |
2 | ||
| 81125 - CORD, HEADLAMP | ||||
| 81125-3A440 |
JZS155..E |
2 | ||
| 81125-3A460 |
JZS155,UZS157..A,F |
1 | ||
| 81125-3A460 |
UZS151,155 |
2 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81130-30680 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 81130-3A420 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG) |
1 | ||
| 81130-30720 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 81130-3A430 |
JZS151,155,157..HT..ROY ｱﾆﾊﾞ-ｻﾘ- ﾊﾟﾂｹ-ｼﾞ *(A) |
1 | ||
| 81130-3A440 |
JZS155..E |
1 | ||
| 81130-3A460 |
JZS155,UZS15#..A,C,F |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81170-3A160 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 81170-3A560 |
JZS155..E |
1 | ||
| 81170-3A170 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 81170-3A540 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG) |
1 | ||
| 81170-3A570 |
JZS155,UZS15#..A,C,F |
1 | ||
| 81170-3A550 |
JZS151,155,157..HT..ROY ｱﾆﾊﾞ-ｻﾘ- ﾊﾟﾂｹ-ｼﾞ *(A) |
1 | ||
| Common parts | ||||
| 81137-22530 | ||||
| 90109-06293 | ||||
| 90467-07117 | ||||
| 90467-11078 | ||||
| Linked diagrams | ||||
| 5201 | ||||

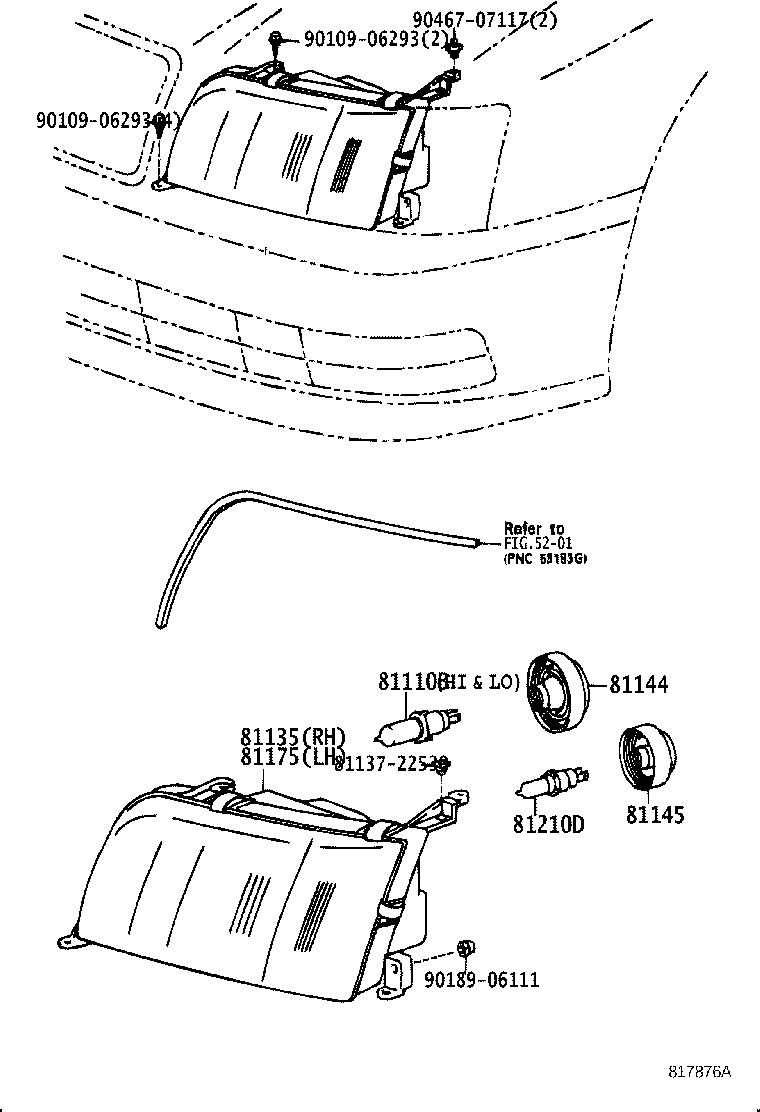

(9508-9707)A,C,E,F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-20001 |
JZS151,155,157..HT..ROY 85V 35W,ｱﾆﾊﾞ-ｻﾘ- ﾊﾟﾂｹ-ｼﾞ *(A) |
2 | ||
| 90981-20001 |
JZS151,155,UZS15#..A,C,F,ROYT 85V 35W |
2 | ||
| 90080-81040 |
GS151,JZS15#,LS151..HT..(E,ROY,ROYEX,ROYG) 12V 51W |
2 | ||
| 90981-22004 |
GS151,JZS15#,LS151,UZS15# 12V 60/55W,*HAL *WH |
2 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81130-30680 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 81130-3A420 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG) |
1 | ||
| 81130-30720 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 81130-3A430 |
JZS151,155,157..HT..ROY ｱﾆﾊﾞ-ｻﾘ- ﾊﾟﾂｹ-ｼﾞ *(A) |
1 | ||
| 81130-3A440 |
JZS155..E |
1 | ||
| 81130-3A460 |
JZS155,UZS15#..A,C,F |
1 | ||
| 81144 - COVER, HEADLAMP, NO.1 | ||||
| 81135-30870 |
JZS151,155,157..HT..ROY ｱﾆﾊﾞ-ｻﾘ- ﾊﾟﾂｹ-ｼﾞ *(A) |
2 | ||
| 90075-65002 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| 81145 - COVER, HEADLAMP, NO.2 | ||||
| 90075-65003 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| 81135-3A430 |
JZS151,155,157..HT..ROY ｱﾆﾊﾞ-ｻﾘ- ﾊﾟﾂｹ-ｼﾞ *(A) |
2 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81170-3A160 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 81170-3A560 |
JZS155..E |
1 | ||
| 81170-3A170 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 81170-3A540 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG) |
1 | ||
| 81170-3A570 |
JZS155,UZS15#..A,C,F |
1 | ||
| 81170-3A550 |
JZS151,155,157..HT..ROY ｱﾆﾊﾞ-ｻﾘ- ﾊﾟﾂｹ-ｼﾞ *(A) |
1 | ||
| 81210D - BULB, FOG LAMP | ||||
| 90981-13070 |
GS151,JZS15#,LS151,UZS15# 12V 55W,ﾊﾛｹﾞﾝ |
2 | ||
| Common parts | ||||
| 81137-22530 | ||||
| 90109-06293 | ||||
| 90189-06111 | ||||
| 90467-07117 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
