JZS155-ATPUF (1995)
Toyota Crown/Crown Majesta

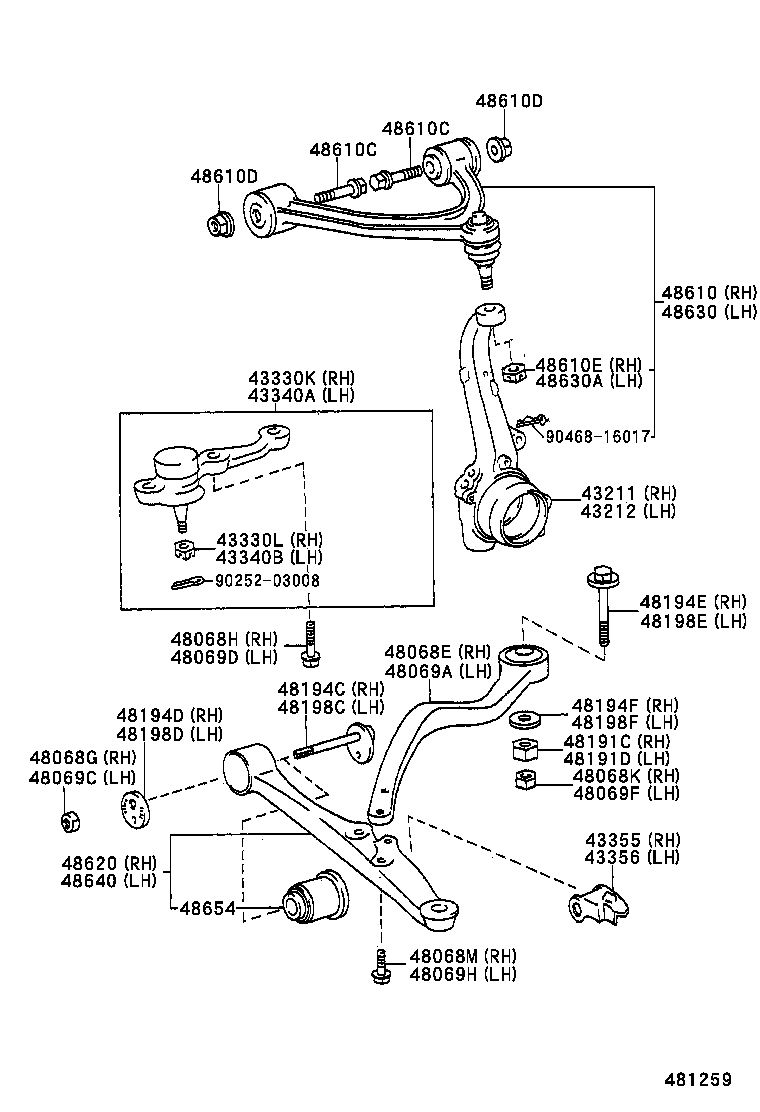

ILLUST NO. 1 OF 2(9508- )GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 43211 - KNUCKLE, STEERING, RH | ||||
| 43211-30160 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 43211-30190 |
GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 43211-30210 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 43212 - KNUCKLE, STEERING, LH | ||||
| 43212-30110 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 43212-30210 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 43212-30140 |
GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 43330K - JOINT ASSY, LOWER BALL, FRONT RH | ||||
| 43330-39395 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 43330-39385 |
GS151,JZS151,155,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)..(HTWC,TDE,TWC) |
1 | ||
| 43330-39485 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 43330-39425 |
GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 43330-39396 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 43330L - NUT, CASTLE (FOR FRONT LOWER BALL JOINT RH) | ||||
| 90171-14002 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 90171-14002 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 43340A - JOINT ASSY, LOWER BALL, FRONT LH | ||||
| 43340-39295 |
GS151,JZS151,155,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)..(HTWC,TDE,TWC) |
1 | ||
| 43340-39306 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 43340-39305 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 43340-39375 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 43340-39335 |
GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 43340B - NUT, CASTLE (FOR FRONT LOWER BALL JOINT LH) | ||||
| 90171-14002 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 90171-14002 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 48068E - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.2 RH | ||||
| 48660-30180 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 48660-30170 |
GS151,JZS151,155,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)..(HTWC,TDE,TWC) |
1 | ||
| 48660-30220 |
GS151,JZS151,155,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)..(HTWC,TDE,TWC) |
1 | ||
| 48660-30221 |
GS151,JZS151,155,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)..(HTWC,TDE,TWC) |
1 | ||
| 48068G - NUT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH) | ||||
| 90179-14019 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 90170-14012 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 48068H - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH) | ||||
| 90105-12141 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| 48068M - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH) | ||||
| 90105-16053 |
GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
2 | ||
| 90105-14088 |
JZS155,UZS15#..A,C,E,F |
2 | ||
| 90105-14097 |
GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
2 | ||
| 90105-14116 |
JZS155,UZS151,157..A,C,E,F |
2 | ||
| 48069A - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.2 LH | ||||
| 48670-30170 |
GS151,JZS151,155,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)..(HTWC,TDE,TWC) |
1 | ||
| 48670-30220 |
GS151,JZS151,155,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)..(HTWC,TDE,TWC) |
1 | ||
| 48670-30221 |
GS151,JZS151,155,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)..(HTWC,TDE,TWC) |
1 | ||
| 48670-30180 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 48069C - NUT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH) | ||||
| 90170-14012 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 90179-14019 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 48069D - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH) | ||||
| 90105-12141 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| 48069H - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH) | ||||
| 90105-14097 |
GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
2 | ||
| 90105-16053 |
GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
2 | ||
| 90105-14088 |
JZS155,UZS15#..A,C,E,F |
2 | ||
| 90105-14116 |
JZS155,UZS151,157..A,C,E,F |
2 | ||
| 48194C - CAM, FRONT SUSPENSION CAMBER ADJUST, NO.1 RH | ||||
| 48190-22040 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 48190-30010 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 48194D - CAM, FRONT SUSPENSION CAMBER ADJUST, NO.2 RH | ||||
| 48198-30030 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 48198-14010 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 48194E - CAM, FRONT SUSPENSION CAMBER ADJUST, NO.3 RH | ||||
| 90901-05010 |
GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 48190-30020 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 48198C - CAM, FRONT SUSPENSION CAMBER ADJUST, NO.1 LH | ||||
| 48190-22040 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 48190-30010 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 48198D - CAM, FRONT SUSPENSION CAMBER ADJUST, NO.2 LH | ||||
| 48198-30030 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 48198-14010 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 48198E - CAM, FRONT SUSPENSION CAMBER ADJUST, NO.3 LH | ||||
| 48190-30020 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 90901-05010 |
GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 48610 - ARM ASSY, FRONT SUSPENSION UPPER, RH | ||||
| 48610-39015 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 48610-39045 |
GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 48610C - BOLT(FOR SUSPENSION UPPER ARM) | ||||
| 90119-10812 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
4 | ||
| 90901-14002 |
JZS155,UZS15#..A,C,E,F |
4 | ||
| 90105-10289 |
JZS155,UZS15#..A,C,E,F |
4 | ||
| 48610C - BOLT(FOR SUSPENSION UPPER ARM) | ||||
| 90119-10812 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
4 | ||
| 90901-14002 |
JZS155,UZS15#..A,C,E,F |
4 | ||
| 90105-10289 |
JZS155,UZS15#..A,C,E,F |
4 | ||
| 48610D - NUT(FOR SUSPENSION UPPER ARM) | ||||
| 90173-10010 |
GS151,JZS15#,LS151,UZS15# |
4 | ||
| 48610D - NUT(FOR SUSPENSION UPPER ARM) | ||||
| 90173-10010 |
GS151,JZS15#,LS151,UZS15# |
4 | ||
| 48610E - NUT, CASTLE(FOR FRONT SUSPENSION UPPER ARM RH) | ||||
| 90171-12002 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 48620 - ARM ASSY, FRONT SUSPENSION, LOWER RH | ||||
| 48068-30270 |
GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 48068-22130 |
GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 48068-30260 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 48630 - ARM ASSY, FRONT SUSPENSION, UPPER LH | ||||
| 48630-39015 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 48630-39025 |
GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 48630A - NUT, CASTLE(FOR FRONT SUSPENSION UPPER ARM LH) | ||||
| 90171-12002 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 48640 - ARM ASSY, FRONT SUSPENSION LOWER, LH | ||||
| 48069-22130 |
GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 48069-30260 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 48069-30270 |
GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 48654 - BUSH, LOWER ARM | ||||
| 48654-30050 |
JZS155,UZS151,157..A,C,E,F |
2 | ||
| 48654-30070 |
GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
2 | ||
| 48654-30070 |
GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
2 | ||
| Common parts | ||||
| 90201-14026 | ||||
| 90252-03008 | ||||
| 90468-16022 | ||||

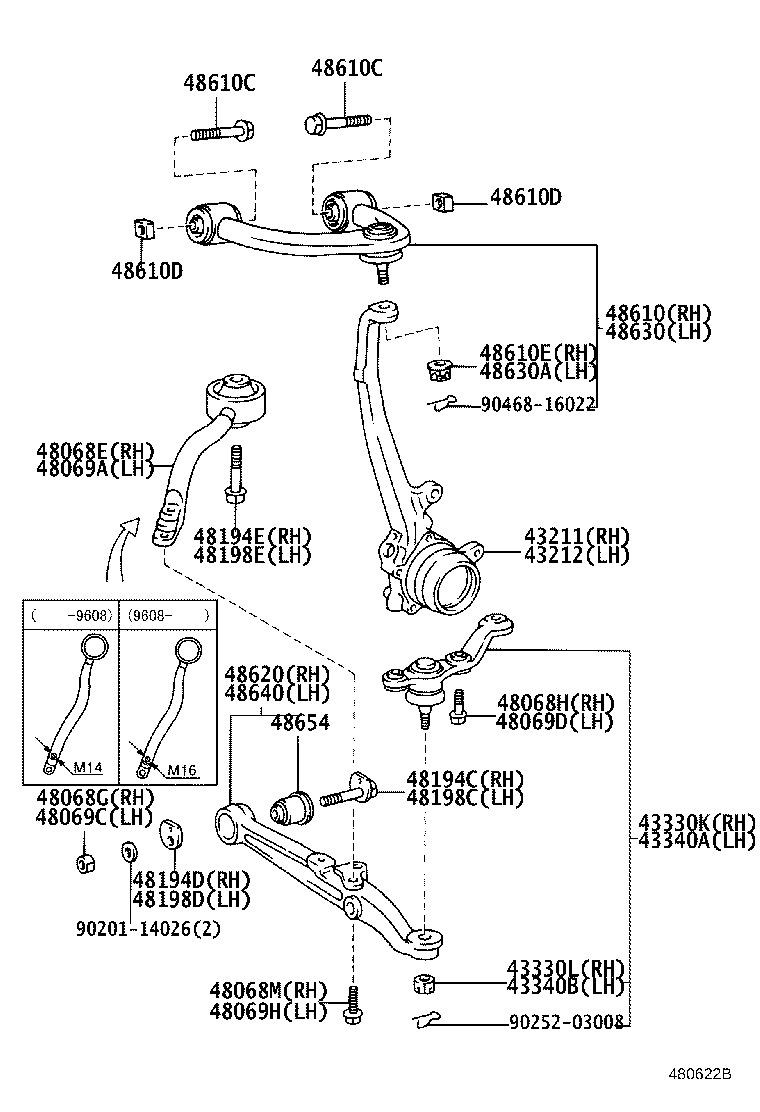

ILLUST NO. 1 OF 2(9508- )JZS155,UZS151,157..A,C,E,F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 43211 - KNUCKLE, STEERING, RH | ||||
| 43211-30160 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 43211-30190 |
GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 43211-30210 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 43212 - KNUCKLE, STEERING, LH | ||||
| 43212-30110 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 43212-30210 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 43212-30140 |
GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 43330K - JOINT ASSY, LOWER BALL, FRONT RH | ||||
| 43330-39395 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 43330-39385 |
GS151,JZS151,155,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)..(HTWC,TDE,TWC) |
1 | ||
| 43330-39485 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 43330-39425 |
GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 43330-39396 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 43330L - NUT, CASTLE (FOR FRONT LOWER BALL JOINT RH) | ||||
| 90171-14002 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 90171-14002 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 43340A - JOINT ASSY, LOWER BALL, FRONT LH | ||||
| 43340-39295 |
GS151,JZS151,155,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)..(HTWC,TDE,TWC) |
1 | ||
| 43340-39306 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 43340-39305 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 43340-39375 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 43340-39335 |
GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 43340B - NUT, CASTLE (FOR FRONT LOWER BALL JOINT LH) | ||||
| 90171-14002 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 90171-14002 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 43355 - DEFLECTOR, LOWER ARM ICE, RH | ||||
| 43355-30030 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 43356 - DEFLECTOR, LOWER ARM ICE, LH | ||||
| 43355-30030 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 48068E - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.2 RH | ||||
| 48660-30180 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 48660-30170 |
GS151,JZS151,155,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)..(HTWC,TDE,TWC) |
1 | ||
| 48660-30220 |
GS151,JZS151,155,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)..(HTWC,TDE,TWC) |
1 | ||
| 48660-30221 |
GS151,JZS151,155,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)..(HTWC,TDE,TWC) |
1 | ||
| 48068G - NUT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH) | ||||
| 90179-14019 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 90170-14012 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 48068H - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH) | ||||
| 90105-12141 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| 48068K - NUT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH) | ||||
| 90170-16020 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 48068M - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH) | ||||
| 90105-16053 |
GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
2 | ||
| 90105-14088 |
JZS155,UZS15#..A,C,E,F |
2 | ||
| 90105-14097 |
GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
2 | ||
| 90105-14116 |
JZS155,UZS151,157..A,C,E,F |
2 | ||
| 48069A - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.2 LH | ||||
| 48670-30170 |
GS151,JZS151,155,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)..(HTWC,TDE,TWC) |
1 | ||
| 48670-30220 |
GS151,JZS151,155,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)..(HTWC,TDE,TWC) |
1 | ||
| 48670-30221 |
GS151,JZS151,155,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)..(HTWC,TDE,TWC) |
1 | ||
| 48670-30180 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 48069C - NUT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH) | ||||
| 90170-14012 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 90179-14019 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 48069D - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH) | ||||
| 90105-12141 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| 48069F - NUT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH) | ||||
| 90170-16020 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 48069H - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH) | ||||
| 90105-14097 |
GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
2 | ||
| 90105-16053 |
GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
2 | ||
| 90105-14088 |
JZS155,UZS15#..A,C,E,F |
2 | ||
| 90105-14116 |
JZS155,UZS151,157..A,C,E,F |
2 | ||
| 48191C - PLATE, FRONT SUPENSION CASTER ADJUST, RH | ||||
| 48191-30010 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 48191D - PLATE, FRONT SUPENSION CASTER ADJUST, LH | ||||
| 48191-30010 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 48194C - CAM, FRONT SUSPENSION CAMBER ADJUST, NO.1 RH | ||||
| 48190-22040 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 48190-30010 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 48194D - CAM, FRONT SUSPENSION CAMBER ADJUST, NO.2 RH | ||||
| 48198-30030 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 48198-14010 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 48194E - CAM, FRONT SUSPENSION CAMBER ADJUST, NO.3 RH | ||||
| 90901-05010 |
GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 48190-30020 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 48194F - CAM, FRONT SUSPENSION CAMBER ADJUST, NO.4 RH | ||||
| 48198-30040 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 48198C - CAM, FRONT SUSPENSION CAMBER ADJUST, NO.1 LH | ||||
| 48190-22040 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 48190-30010 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 48198D - CAM, FRONT SUSPENSION CAMBER ADJUST, NO.2 LH | ||||
| 48198-30030 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 48198-14010 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 48198E - CAM, FRONT SUSPENSION CAMBER ADJUST, NO.3 LH | ||||
| 48190-30020 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 90901-05010 |
GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 48198F - CAM, FRONT SUSPENSION CAMBER ADJUST, NO.4 LH | ||||
| 48198-30040 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 48610 - ARM ASSY, FRONT SUSPENSION UPPER, RH | ||||
| 48610-39015 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 48610-39045 |
GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 48610C - BOLT(FOR SUSPENSION UPPER ARM) | ||||
| 90119-10812 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
4 | ||
| 90901-14002 |
JZS155,UZS15#..A,C,E,F |
4 | ||
| 90105-10289 |
JZS155,UZS15#..A,C,E,F |
4 | ||
| 48610C - BOLT(FOR SUSPENSION UPPER ARM) | ||||
| 90119-10812 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
4 | ||
| 90901-14002 |
JZS155,UZS15#..A,C,E,F |
4 | ||
| 90105-10289 |
JZS155,UZS15#..A,C,E,F |
4 | ||
| 48610D - NUT(FOR SUSPENSION UPPER ARM) | ||||
| 90173-10010 |
GS151,JZS15#,LS151,UZS15# |
4 | ||
| 48610D - NUT(FOR SUSPENSION UPPER ARM) | ||||
| 90173-10010 |
GS151,JZS15#,LS151,UZS15# |
4 | ||
| 48610E - NUT, CASTLE(FOR FRONT SUSPENSION UPPER ARM RH) | ||||
| 90171-12002 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 48620 - ARM ASSY, FRONT SUSPENSION, LOWER RH | ||||
| 48068-30270 |
GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 48068-22130 |
GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 48068-30260 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 48630 - ARM ASSY, FRONT SUSPENSION, UPPER LH | ||||
| 48630-39015 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 48630-39025 |
GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 48630A - NUT, CASTLE(FOR FRONT SUSPENSION UPPER ARM LH) | ||||
| 90171-12002 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 48640 - ARM ASSY, FRONT SUSPENSION LOWER, LH | ||||
| 48069-22130 |
GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 48069-30260 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 48069-30270 |
GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 48654 - BUSH, LOWER ARM | ||||
| 48654-30050 |
JZS155,UZS151,157..A,C,E,F |
2 | ||
| 48654-30070 |
GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
2 | ||
| 48654-30070 |
GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
2 | ||
| Common parts | ||||
| 90252-03008 | ||||
| 90468-16017 | ||||

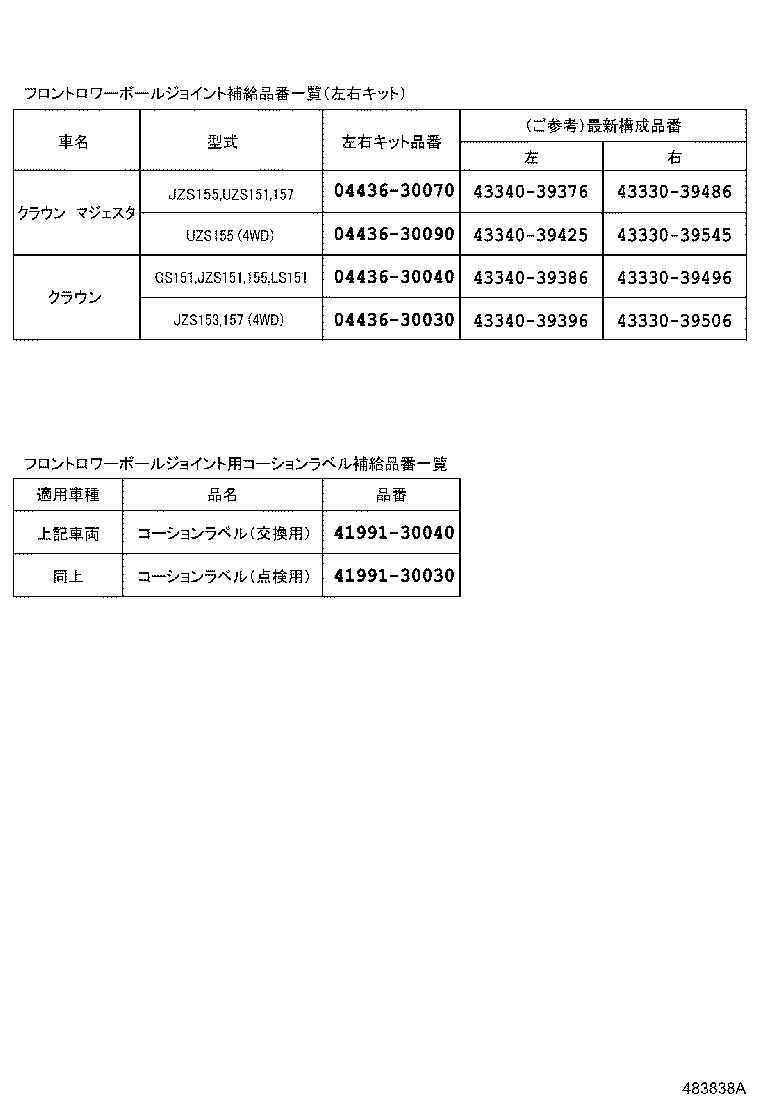

ILLUST NO. 2 OF 2(9508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 04436-30030 | ||||
| 04436-30040 | ||||
| 04436-30070 | ||||
| 04436-30090 | ||||
| 41991-30030 | ||||
| 41991-30040 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
