JZS155-ATPUF (1995)

Toyota Crown/Crown Majesta

Production Aug 1995 - Sep 1999
Engine 2JZGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9508- )2JZGE..JZS155..ROY,ROYG,ROYT

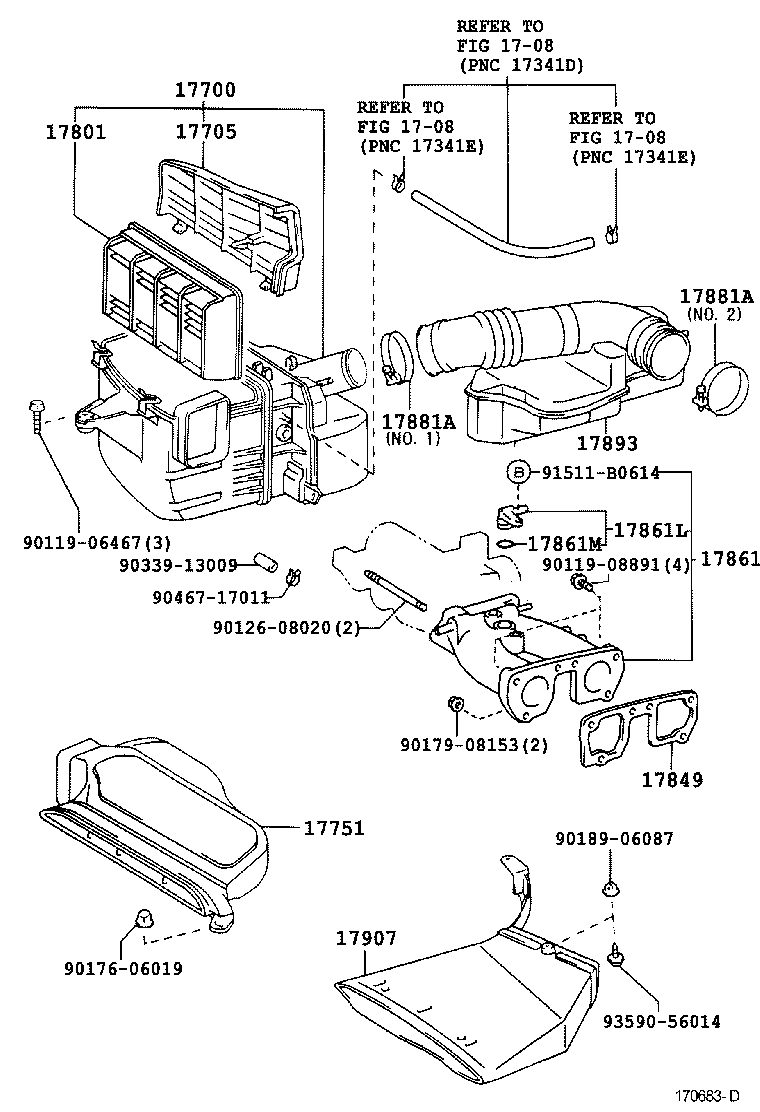

Click highlighted areas on diagram

diagram 1708 1708 1708 17700 17705 17751 17801 17849 17861 17861L 17861M 17881A 17881A 17893 17907 9011906467 9011908891 9012608020 9017606019 9017908153 9018906087 9033913009 9046717011 91511B0614 9359056014
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-46260

1JZGE,2JZGE..JZS15#..ROY,ROYEX,ROYG,ROYT,SALEX

 1
17700-46251

2JZGE..JZS155..A,E

 1
17700-46250

2JZGE..JZS155..A,E

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-50030

2JZGE..JZS155..A,E

 1
17705-46150

1JZGE,2JZGE..JZS15#..ROY,ROYEX,ROYG,ROYT,SALEX

 1
17751 - INLET, AIR CLEANER, NO.1
17751-46060

1JZGE,2JZGE..JZS15#..ROY,ROYEX,ROYG,ROYT,SALEX

 1
17751-46070

2JZGE..JZS155..A,E

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-46060

1JZGE,2JZGE..JZS15#..ROY,ROYEX,ROYG,ROYT,SALEX

 1
17801-50020

2JZGE..JZS155..A,E

 1
17849 - GASKET, INTAKE AIR CONNECTOR
17849-46020

2JZGE..JZS155

 1
17849-46020

1JZGE,2JZGE..JZS15#

 1
17861 - CONNECTOR, INTAKE AIR
17860-46090

2JZGE..JZS155

 1
17860-46121

2JZGE..JZS155,157

 1
17860-46120

2JZGE..JZS155

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10850

1JZGE,2JZGE..JZS15#

NO.1

 1
96111-10800

1JZGE,2JZGE..JZS15#

NO.2

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10850

1JZGE,2JZGE..JZS15#

NO.1

 1
96111-10800

1JZGE,2JZGE..JZS15#

NO.2

 1
17893 - RESONATOR, INTAKE AIR
17893-46030

2JZGE..JZS155..A,E

 1
17893-46080

1JZGE,2JZGE..JZS15#..ROY,ROYEX,ROYG,ROYT,SALEX

 1
17907 - INLET SUB-ASSY, COOL AIR
17907-46010

2JZGE..JZS155..A,E

 1
17907-46020

1JZGE,2JZGE..JZS151,153,155..ROY,ROYEX,ROYG,ROYT,SALEX

 1
Common parts
90119-06467
90119-08891
90126-08020
90176-06019
90179-08153
90189-06087
90339-13009
90467-17011
91511-B0614
93590-56014
Linked diagrams
1708

(9508- )2JZGE..JZS155..A,E

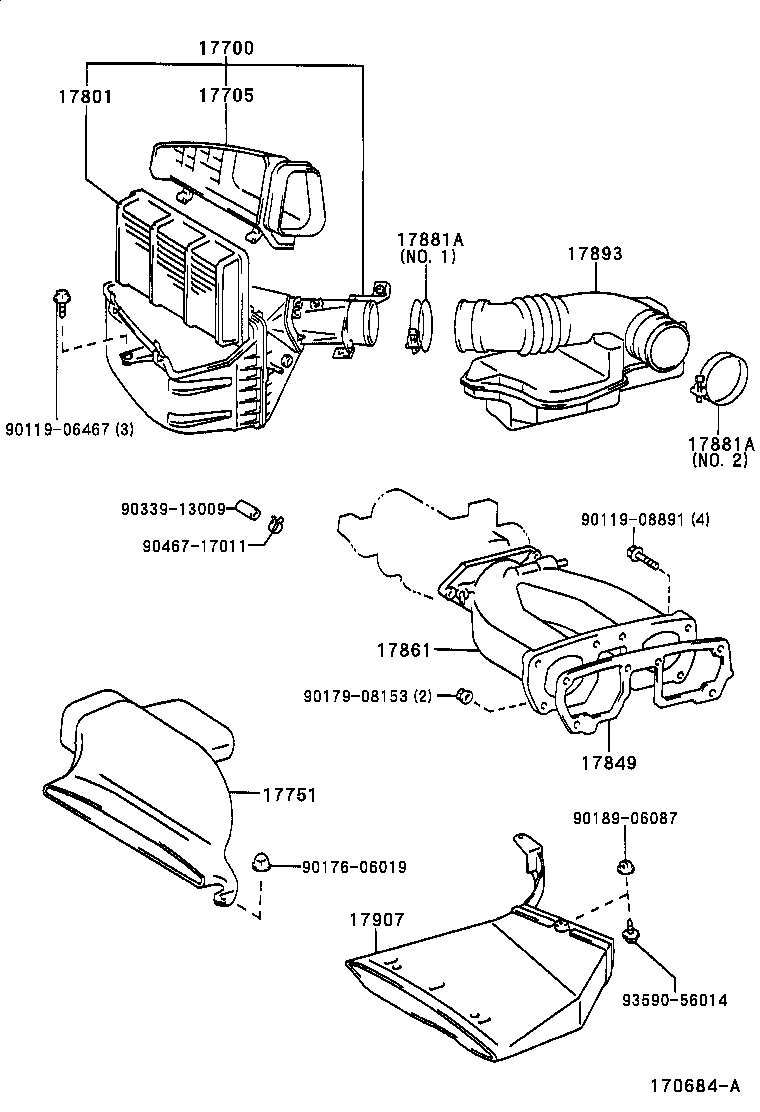

Click highlighted areas on diagram

diagram 17700 17705 17751 17801 17849 17861 17881A 17881A 17893 17907 9011906467 9011908891 9017606019 9017908153 9018906087 9033913009 9046717011 9359056014
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-46260

1JZGE,2JZGE..JZS15#..ROY,ROYEX,ROYG,ROYT,SALEX

 1
17700-46251

2JZGE..JZS155..A,E

 1
17700-46250

2JZGE..JZS155..A,E

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-50030

2JZGE..JZS155..A,E

 1
17705-46150

1JZGE,2JZGE..JZS15#..ROY,ROYEX,ROYG,ROYT,SALEX

 1
17751 - INLET, AIR CLEANER, NO.1
17751-46060

1JZGE,2JZGE..JZS15#..ROY,ROYEX,ROYG,ROYT,SALEX

 1
17751-46070

2JZGE..JZS155..A,E

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-46060

1JZGE,2JZGE..JZS15#..ROY,ROYEX,ROYG,ROYT,SALEX

 1
17801-50020

2JZGE..JZS155..A,E

 1
17849 - GASKET, INTAKE AIR CONNECTOR
17849-46020

2JZGE..JZS155

 1
17849-46020

1JZGE,2JZGE..JZS15#

 1
17861 - CONNECTOR, INTAKE AIR
17860-46090

2JZGE..JZS155

 1
17860-46121

2JZGE..JZS155,157

 1
17860-46120

2JZGE..JZS155

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10850

1JZGE,2JZGE..JZS15#

NO.1

 1
96111-10800

1JZGE,2JZGE..JZS15#

NO.2

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10850

1JZGE,2JZGE..JZS15#

NO.1

 1
96111-10800

1JZGE,2JZGE..JZS15#

NO.2

 1
17893 - RESONATOR, INTAKE AIR
17893-46030

2JZGE..JZS155..A,E

 1
17893-46080

1JZGE,2JZGE..JZS15#..ROY,ROYEX,ROYG,ROYT,SALEX

 1
17907 - INLET SUB-ASSY, COOL AIR
17907-46010

2JZGE..JZS155..A,E

 1
17907-46020

1JZGE,2JZGE..JZS151,153,155..ROY,ROYEX,ROYG,ROYT,SALEX

 1
Common parts
90119-06467
90119-08891
90176-06019
90179-08153
90189-06087
90339-13009
90467-17011
93590-56014
