JZS155-ATPQF (1995)
Toyota Crown/Crown Majesta

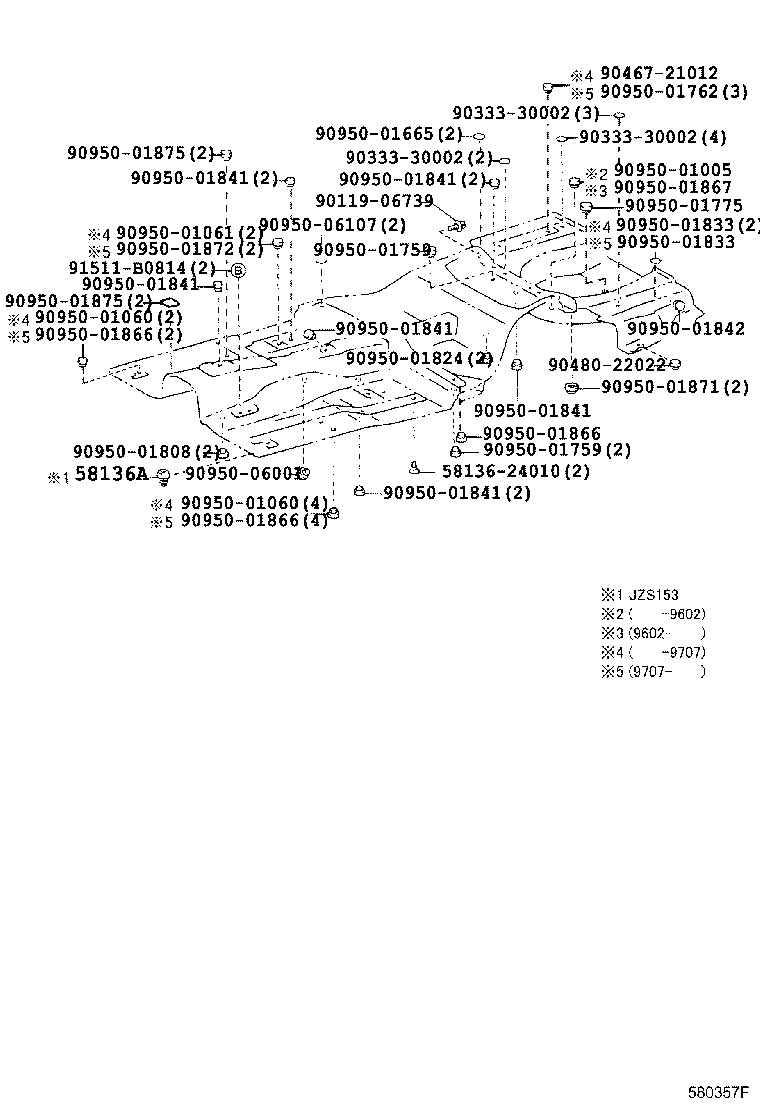

ILLUST NO. 2 OF 2(9508- )ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58136A - COVER, FRONT FLOOR SERVICE HOLE | ||||
| 58136-30020 |
JZS155..A,E;JZS153,UZS15# |
2 | ||
| Common parts | ||||
| 58136-24010 | ||||
| 90119-06739 | ||||
| 90333-30002 | ||||
| 90467-21012 | ||||
| 90480-22022 | ||||
| 90950-01005 | ||||
| 90950-01060 | ||||
| 90950-01061 | ||||
| 90950-01665 | ||||
| 90950-01759 | ||||
| 90950-01762 | ||||
| 90950-01775 | ||||
| 90950-01808 | ||||
| 90950-01824 | ||||
| 90950-01833 | ||||
| 90950-01841 | ||||
| 90950-01842 | ||||
| 90950-01866 | ||||
| 90950-01867 | ||||
| 90950-01871 | ||||
| 90950-01872 | ||||
| 90950-01875 | ||||
| 90950-06001 | ||||
| 90950-06107 | ||||
| 91511-B0814 | ||||

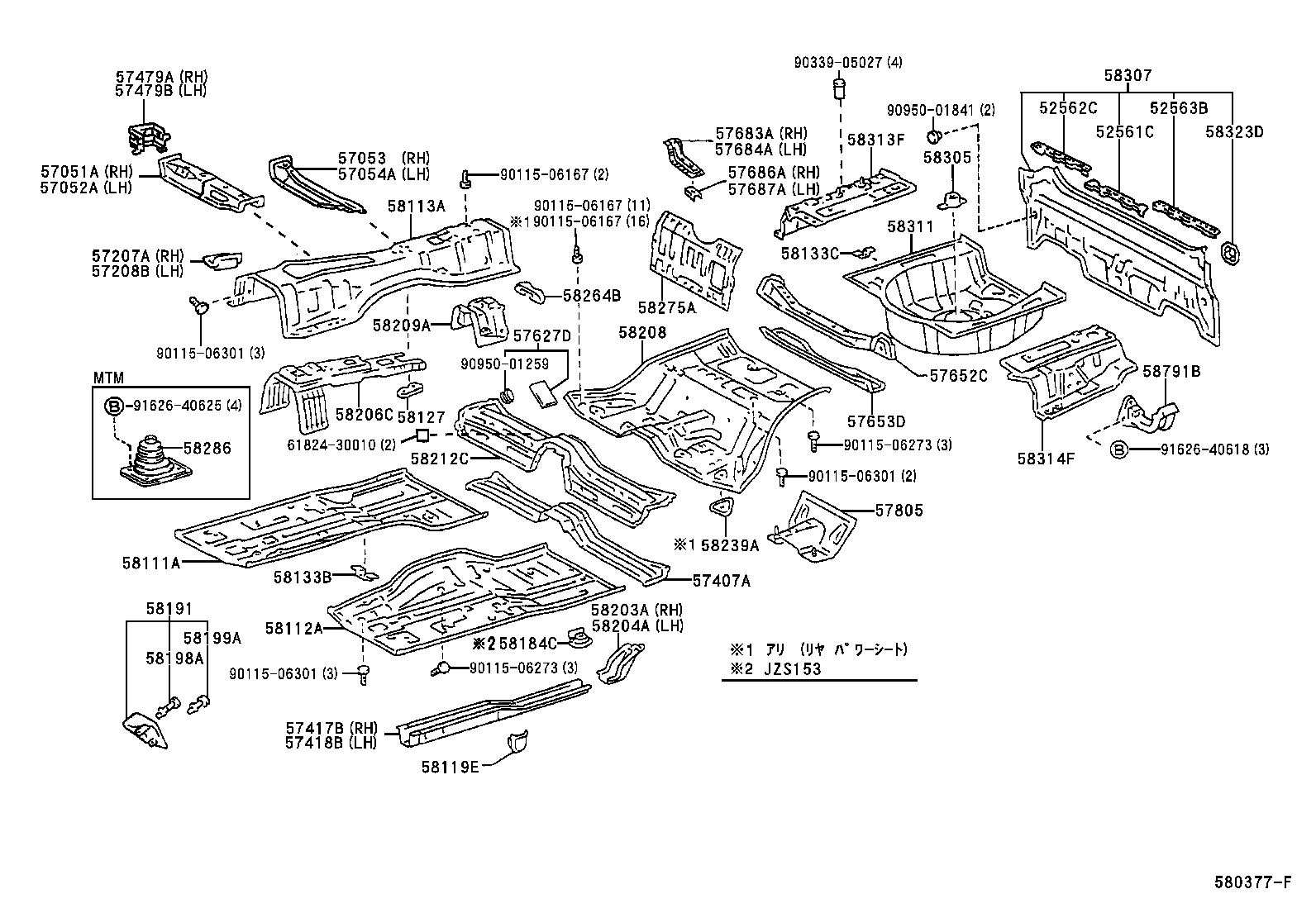

ILLUST NO. 1 OF 2(9508- )ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52561C - RETAINER, REAR BUMPER, UPPER CENTER | ||||
| 52561-30160 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 52562C - RETAINER, REAR BUMPER, UPPER RH | ||||
| 52562-30090 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 52563B - RETAINER, REAR BUMPER, UPPER LH | ||||
| 52563-30040 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 57051A - MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH | ||||
| 57051-30010 |
GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 57052A - MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH | ||||
| 57052-30010 |
GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 57207A - BRACKET SUB-ASSY, ENGINE REAR MOUNTING MEMBER, RH | ||||
| 57207-22050 |
GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 57208B - BRACKET SUB-ASSY, ENGINE REAR MOUNTING MEMBER, LH | ||||
| 57208-22050 |
GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 57407A - MEMBER SUB-ASSY, CENTER FLOOR CROSS | ||||
| 57461-30080 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 57407-30080 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 57417B - REINFORCEMENT, FRONT FLOOR UNDER | ||||
| 57417-30040 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 57418B - REINFORCEMENT, FRONT FLOOR UNDER, LH | ||||
| 57418-30010 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 57479A - REINFORCEMENT, FRONT FLOOR NO.2 CROSSMEMBER, LH | ||||
| 57479-30040 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 57479-30030 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 57479B - REINFORCEMENT, FRONT FLOOR NO.2 CROSSMEMBER, RH | ||||
| 57479-30040 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 57479-30030 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 57627D - COVER, REAR FLOOR SIDE MEMBER | ||||
| 57627-30010 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
6 | ||
| 57652C - MEMBER, REAR FLOOR CROSS, NO.1 | ||||
| 57652-30901 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 57652-22900 |
GS151,JZS15#,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)..(HTWC,TDE,TWC) |
1 | ||
| 57653D - MEMBER, REAR FLOOR CROSS, NO.2 | ||||
| 57653-22901 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 57653-30900 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 57805 - REINFORCEMENT SUB-ASSY, BELT ANCHOR | ||||
| 57805-30020 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 58111A - PAN, FRONT FLOOR, RH | ||||
| 58111-30905 |
JZS155..A,E |
1 | ||
| 58111-30350 |
GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 58111-30900 |
JZS155..A,E |
1 | ||
| 58111-30351 |
GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 58112A - PANEL, FRONT FLOOR, LH | ||||
| 58112-30905 |
JZS155..A,E |
1 | ||
| 58112-30900 |
JZS155..A,E |
1 | ||
| 58112-30030 |
GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 58113A - PANEL, FRONT FLOOR, CENTER | ||||
| 58113-30120 |
GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 58014-30041 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 58014-30042 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 58113-30060 |
GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 58014-30040 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 58119E - COVER, FRONT FLOOR SIDE, FRONT | ||||
| 58119-30020 |
GS151,JZS151,155,LS151,UZS155..C,ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 58127 - PATCH, FRONT FLOOR PANEL | ||||
| 58127-30030 |
GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 58133B - BRACKET, FRONT FLOOR HEAT INSULATOR, NO.3 | ||||
| 58133-22040 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
2 | ||
| 58133C - BRACKET, REAR FLOOR HEAT INSULATOR, NO.3 | ||||
| 58133-22040 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
2 | ||
| 58191 - FOOTREST, FRONT FLOOR | ||||
| 58191-22080 |
GS151,JZS15#,LS151..ATM..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX) |
1 | ||
| 58198A - CLIP, FOOTREST, NO.1 | ||||
| 58198-22080 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 58199A - CLIP, FOOTREST, NO.2 | ||||
| 58199-22020 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 58203A - REINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, RH | ||||
| 58203-30040 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 58204A - REINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, LH | ||||
| 58204-30050 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 58206C - COVER SUB-ASSY, TRANSMISSION, REAR | ||||
| 58206-30020 |
GS151,JZS151,155,LS151..ATM..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX) |
1 | ||
| 58206-30080 |
JZS155..ROY,ROYG,ROYT |
1 | ||
| 58208 - PAN, CENTER FLOOR | ||||
| 58211-30901 |
JZS155,UZS157..A,E,F |
1 | ||
| 58211-30900 |
UZS151,155 |
1 | ||
| 58211-30900 |
JZS155,UZS15#..A,C,E,F ｱﾘ(ﾘﾔ ﾊﾟﾜ- ｼ-ﾄ) |
1 | ||
| 58211-30200 |
JZS153..SED..ROY;JZS151,155,157,LS151..ROY,ROYG ｱﾘ(ﾘﾔ ﾊﾟﾜ- ｼ-ﾄ) |
1 | ||
| 58211-30900 |
JZS155..E ｱﾘ(ﾘﾔ ﾊﾟﾜ- ｼ-ﾄ) |
1 | ||
| 58211-30240 |
GS151,JZS157..HTWC,TWC;JZS151,153,LS151..SALEX,SPDLX;JZS151,153,155,LS151..HT..(ROY,ROYEX,ROYT) |
1 | ||
| 58209A - REINFORCEMENT SUB-ASSY, DRIVE SHAFT CENTER SUPPORT | ||||
| 58209-50010 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 58209-30020 |
GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 58212C - PAN, CENTER FLOOR, FRONT | ||||
| 58202-30100 |
JZS155,UZS157..A,E,F |
1 | ||
| 58202-30110 |
JZS153..SED..ROY;JZS151,155,157,LS151..ROY,ROYG ｱﾘ(ﾘﾔ ﾊﾟﾜ- ｼ-ﾄ) |
1 | ||
| 58202-30081 |
UZS151,155 |
1 | ||
| 58202-30081 |
JZS155..E ｱﾘ(ﾘﾔ ﾊﾟﾜ- ｼ-ﾄ) |
1 | ||
| 58212-30080 |
GS151,JZS157;JZS151,153,LS151..SALEX,SPDLX;JZS151,153,155,LS151..HT..(ROY,ROYEX,ROYT) |
1 | ||
| 58202-30081 |
JZS155,UZS15#..A,C,E,F ｱﾘ(ﾘﾔ ﾊﾟﾜ- ｼ-ﾄ) |
1 | ||
| 58239A - PLATE, BELT ANCHOR NUT | ||||
| 58239-50020 |
JZS153..SED..ROY;JZS151,155,157,LS151..ROY,ROYG |
4 | ||
| 58264B - BRACKET, PARKING BRAKE CABLE GUIDE | ||||
| 58264-22060 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 58275A - RETAINER, REAR SEAT BACK TO CENTER FLOOR | ||||
| 58275-30010 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 58305 - BRACKET SUB-ASSY, SPARE WHEEL CLAMP | ||||
| 58305-10011 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 58351-50010 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58307-30680 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 58307-30670 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58311-30241 |
JZS155,UZS157..E,F ｱﾘ(ﾘﾔ ｵ-ﾄ ｴｱｺﾝ) |
1 | ||
| 58311-30241 |
JZS155,UZS151,155..A,C |
1 | ||
| 58311-30240 |
JZS155,UZS15#..A,C,E,F ｱﾘ(ﾘﾔ ｵ-ﾄ ｴｱｺﾝ) |
1 | ||
| 58311-24021 |
JZS155,UZS157..E,F |
1 | ||
| 58311-24020 |
JZS155,UZS157..E,F |
1 | ||
| 58311-22140 |
JZS151,LS151..SALEX,SPDLX;GS151,JZS153,157..HTWC,TWC;JZS151,155,LS151..HT..(ROY,ROYEX,ROYT) |
1 | ||
| 58311-30260 |
GS151..HTWC;JZS151,LS151..SALEX,SPDLX;JZS151,155,LS151..HT..(ROY,ROYEX,ROYT) ｱﾘ(ﾘﾔ ﾏﾆﾕｱﾙ ｴｱｺﾝ) |
1 | ||
| 58313F - EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH | ||||
| 57603-30901 |
JZS155,UZS157..A,E,F |
1 | ||
| 57603-30901 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 58305-30170 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 58314F - EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH | ||||
| 57604-30900 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 58306-30160 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 58306-30161 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 58323D - REINFORCEMENT, REAR BUMPER ARM SUPPORT | ||||
| 58323-30020 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
2 | ||
| 58791B - CARRIER, JACK | ||||
| 58791-30020 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT |
1 | ||
| 58791-30021 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| Common parts | ||||
| 61824-30010 | ||||
| 90115-06167 | ||||
| 90115-06273 | ||||
| 90115-06301 | ||||
| 90339-05027 | ||||
| 90950-01259 | ||||
| 90950-01841 | ||||
| 91626-40618 | ||||
| 91626-40625 | ||||

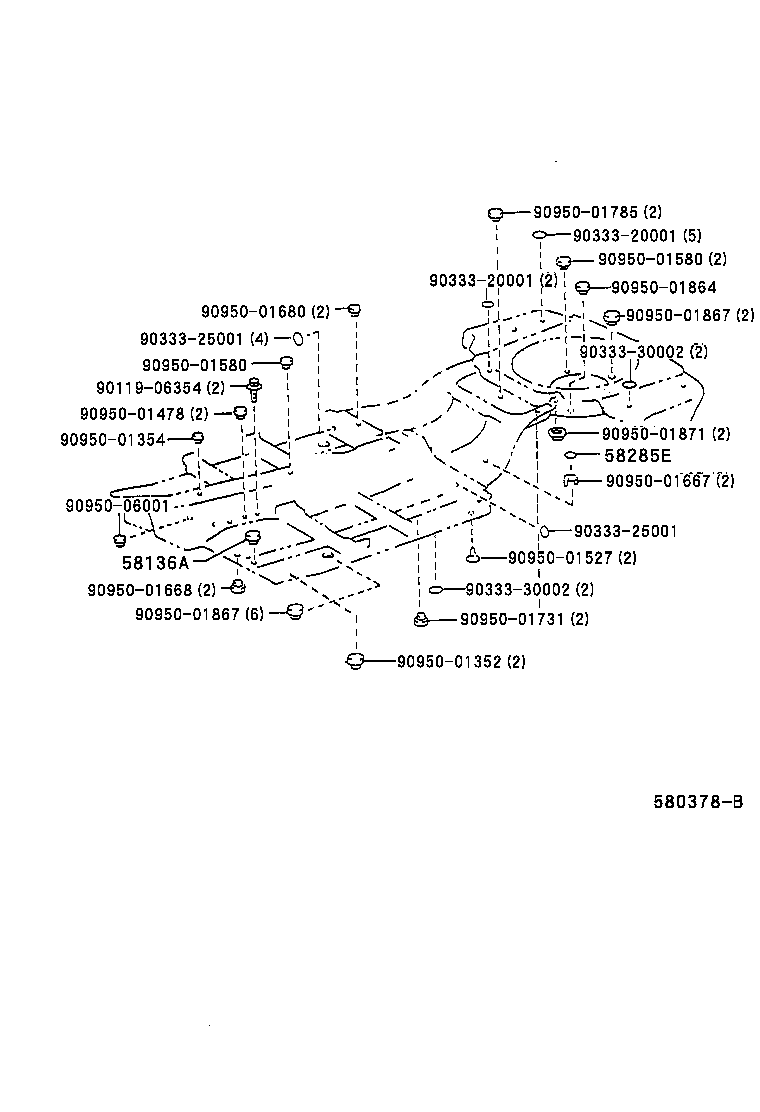

ILLUST NO. 2 OF 2(9508- )A,C,E,F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58136A - COVER, FRONT FLOOR SERVICE HOLE | ||||
| 58136-30020 |
JZS155..A,E;JZS153,UZS15# |
2 | ||
| 58285E - COVER, CENTER FLOOR HOLE | ||||
| 58285-50010 |
JZS155,UZS15#..A,C,E,F |
2 | ||
| Common parts | ||||
| 90119-06354 | ||||
| 90333-20001 | ||||
| 90333-25001 | ||||
| 90333-30002 | ||||
| 90950-01352 | ||||
| 90950-01354 | ||||
| 90950-01478 | ||||
| 90950-01527 | ||||
| 90950-01580 | ||||
| 90950-01667 | ||||
| 90950-01668 | ||||
| 90950-01680 | ||||
| 90950-01731 | ||||
| 90950-01785 | ||||
| 90950-01864 | ||||
| 90950-01867 | ||||
| 90950-01871 | ||||
| 90950-06001 | ||||

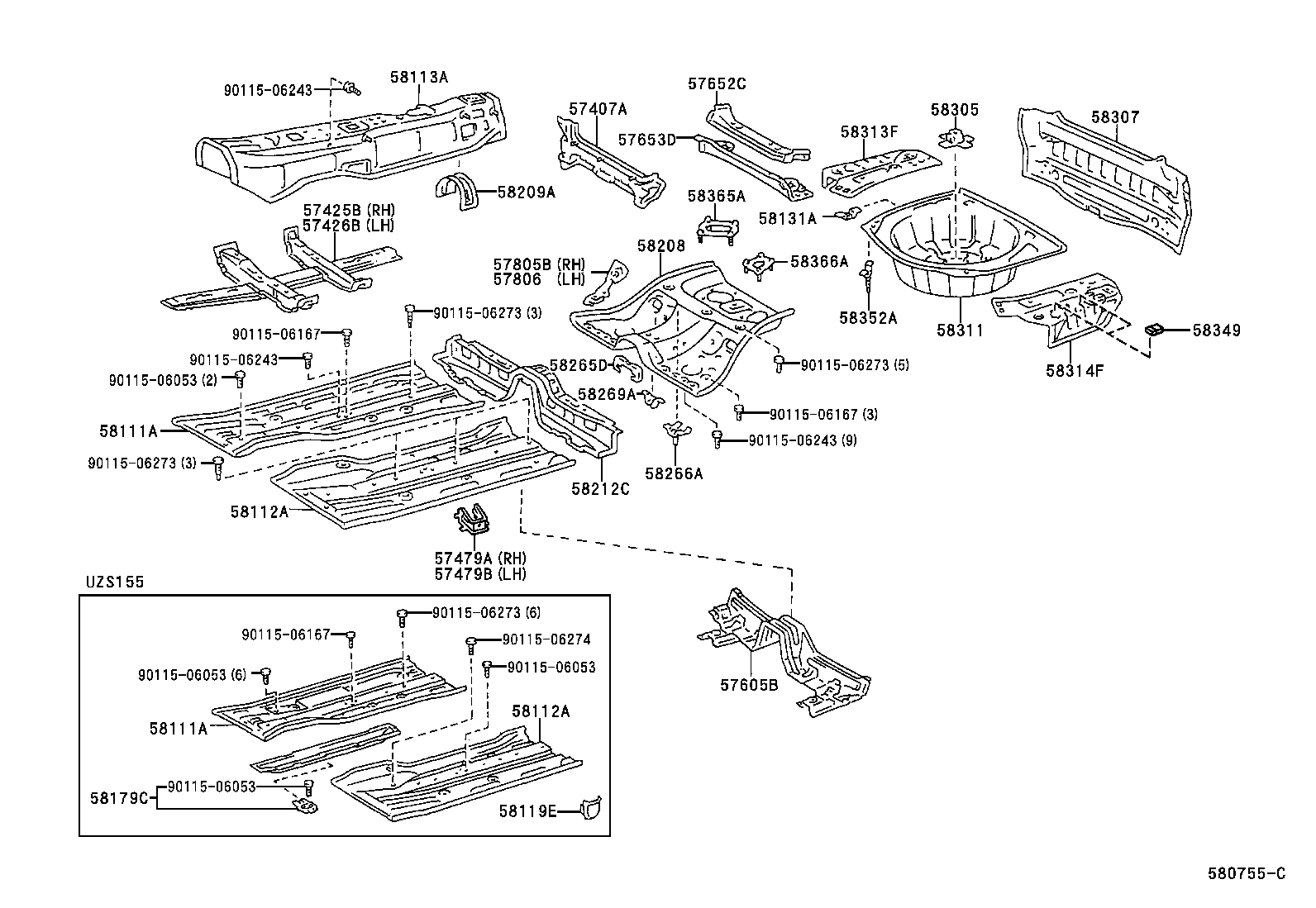

ILLUST NO. 1 OF 2(9508- )A,C,E,F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57407A - MEMBER SUB-ASSY, CENTER FLOOR CROSS | ||||
| 57461-30080 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 57407-30080 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 57425B - REINFORCEMENT, FRONT FLOOR, NO.2 RH | ||||
| 57425-30903 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 57426B - REINFORCEMENT, FRONT FLOOR, NO.2 LH | ||||
| 57426-30903 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 57479A - REINFORCEMENT, FRONT FLOOR NO.2 CROSSMEMBER, LH | ||||
| 57479-30040 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 57479-30030 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 57479B - REINFORCEMENT, FRONT FLOOR NO.2 CROSSMEMBER, RH | ||||
| 57479-30040 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 57479-30030 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 57605B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1 | ||||
| 57605-30040 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 57652C - MEMBER, REAR FLOOR CROSS, NO.1 | ||||
| 57652-30901 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 57652-22900 |
GS151,JZS15#,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)..(HTWC,TDE,TWC) |
1 | ||
| 57653D - MEMBER, REAR FLOOR CROSS, NO.2 | ||||
| 57653-22901 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 57653-30900 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 57805B - REINFORCEMENT SUB-ASSY, BELT ANCHOR, RH | ||||
| 57805-30030 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 57806 - REINFORCEMENT SUB-ASSY, BELT ANCHOR, LH | ||||
| 57806-30020 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 58111A - PAN, FRONT FLOOR, RH | ||||
| 58111-30905 |
JZS155..A,E |
1 | ||
| 58111-30350 |
GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 58111-30900 |
JZS155..A,E |
1 | ||
| 58111-30351 |
GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 58111A - PAN, FRONT FLOOR, RH | ||||
| 58111-30905 |
JZS155..A,E |
1 | ||
| 58111-30350 |
GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 58111-30900 |
JZS155..A,E |
1 | ||
| 58111-30351 |
GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 58112A - PANEL, FRONT FLOOR, LH | ||||
| 58112-30905 |
JZS155..A,E |
1 | ||
| 58112-30900 |
JZS155..A,E |
1 | ||
| 58112-30030 |
GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 58112A - PANEL, FRONT FLOOR, LH | ||||
| 58112-30905 |
JZS155..A,E |
1 | ||
| 58112-30900 |
JZS155..A,E |
1 | ||
| 58112-30030 |
GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 58113A - PANEL, FRONT FLOOR, CENTER | ||||
| 58113-30120 |
GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 58014-30041 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 58014-30042 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 58113-30060 |
GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 58014-30040 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 58119E - COVER, FRONT FLOOR SIDE, FRONT | ||||
| 58119-30020 |
GS151,JZS151,155,LS151,UZS155..C,ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 58131A - BRACKET, FRONT FLOOR HEAT INSULATOR, NO.1 | ||||
| 58131-24010 |
JZS155,UZS15#..A,C,E,F |
4 | ||
| 58208 - PAN, CENTER FLOOR | ||||
| 58211-30901 |
JZS155,UZS157..A,E,F |
1 | ||
| 58211-30900 |
UZS151,155 |
1 | ||
| 58211-30900 |
JZS155,UZS15#..A,C,E,F ｱﾘ(ﾘﾔ ﾊﾟﾜ- ｼ-ﾄ) |
1 | ||
| 58211-30200 |
JZS153..SED..ROY;JZS151,155,157,LS151..ROY,ROYG ｱﾘ(ﾘﾔ ﾊﾟﾜ- ｼ-ﾄ) |
1 | ||
| 58211-30900 |
JZS155..E ｱﾘ(ﾘﾔ ﾊﾟﾜ- ｼ-ﾄ) |
1 | ||
| 58211-30240 |
GS151,JZS157..HTWC,TWC;JZS151,153,LS151..SALEX,SPDLX;JZS151,153,155,LS151..HT..(ROY,ROYEX,ROYT) |
1 | ||
| 58209A - REINFORCEMENT SUB-ASSY, DRIVE SHAFT CENTER SUPPORT | ||||
| 58209-50010 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 58209-30020 |
GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 58212C - PAN, CENTER FLOOR, FRONT | ||||
| 58202-30100 |
JZS155,UZS157..A,E,F |
1 | ||
| 58202-30110 |
JZS153..SED..ROY;JZS151,155,157,LS151..ROY,ROYG ｱﾘ(ﾘﾔ ﾊﾟﾜ- ｼ-ﾄ) |
1 | ||
| 58202-30081 |
UZS151,155 |
1 | ||
| 58202-30081 |
JZS155..E ｱﾘ(ﾘﾔ ﾊﾟﾜ- ｼ-ﾄ) |
1 | ||
| 58212-30080 |
GS151,JZS157;JZS151,153,LS151..SALEX,SPDLX;JZS151,153,155,LS151..HT..(ROY,ROYEX,ROYT) |
1 | ||
| 58202-30081 |
JZS155,UZS15#..A,C,E,F ｱﾘ(ﾘﾔ ﾊﾟﾜ- ｼ-ﾄ) |
1 | ||
| 58265D - BRACKET, PARKING BRAKE CABLE GUIDE, NO.2 | ||||
| 58265-30040 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 58266A - BRACKET, FUEL TUBE CLAMP | ||||
| 58266-30070 |
JZS155,UZS15#..A,C,E,F |
2 | ||
| 58269A - BRACKET, PARKING BRAKE CABLE GUIDE, NO.3 | ||||
| 58269-30120 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 58305 - BRACKET SUB-ASSY, SPARE WHEEL CLAMP | ||||
| 58305-10011 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 58351-50010 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58307-30680 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 58307-30670 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58311-30241 |
JZS155,UZS157..E,F ｱﾘ(ﾘﾔ ｵ-ﾄ ｴｱｺﾝ) |
1 | ||
| 58311-30241 |
JZS155,UZS151,155..A,C |
1 | ||
| 58311-30240 |
JZS155,UZS15#..A,C,E,F ｱﾘ(ﾘﾔ ｵ-ﾄ ｴｱｺﾝ) |
1 | ||
| 58311-24021 |
JZS155,UZS157..E,F |
1 | ||
| 58311-24020 |
JZS155,UZS157..E,F |
1 | ||
| 58311-22140 |
JZS151,LS151..SALEX,SPDLX;GS151,JZS153,157..HTWC,TWC;JZS151,155,LS151..HT..(ROY,ROYEX,ROYT) |
1 | ||
| 58311-30260 |
GS151..HTWC;JZS151,LS151..SALEX,SPDLX;JZS151,155,LS151..HT..(ROY,ROYEX,ROYT) ｱﾘ(ﾘﾔ ﾏﾆﾕｱﾙ ｴｱｺﾝ) |
1 | ||
| 58313F - EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH | ||||
| 57603-30901 |
JZS155,UZS157..A,E,F |
1 | ||
| 57603-30901 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 58305-30170 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 58314F - EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH | ||||
| 57604-30900 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 58306-30160 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 58306-30161 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 58349 - CUSHION, REAR FLOOR SIDE | ||||
| 58349-30010 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 58352A - BRACKET, REAR FLOOR STAY | ||||
| 58352-24010 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 58365A - BRACKET, FUEL TANK SUPPORT, RH | ||||
| 58365-30040 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 58366A - BRACKET, FUEL TANK SUPPORT, LH | ||||
| 58366-30040 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| Common parts | ||||
| 90115-06053 | ||||
| 90115-06167 | ||||
| 90115-06243 | ||||
| 90115-06273 | ||||
| 90115-06274 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
